Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-045-2927 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 05 3304 57, 05330457, 5935-01-045-2927, 01-045-2927, 5935010452927, 010452927
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 JUL 1977 | 01-045-2927 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-01-045-2927
Demand History | NSN 5935-01-045-2927
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-045-2927 | 2014-11-307 | 174 | DIBBS |
Cross Reference | NSN 5935-01-045-2927
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 05 3304 57 | 91662 | AVX CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-045-2927
Technical Data | NSN 5935-01-045-2927
| Characteristic | Specifications |
|---|---|

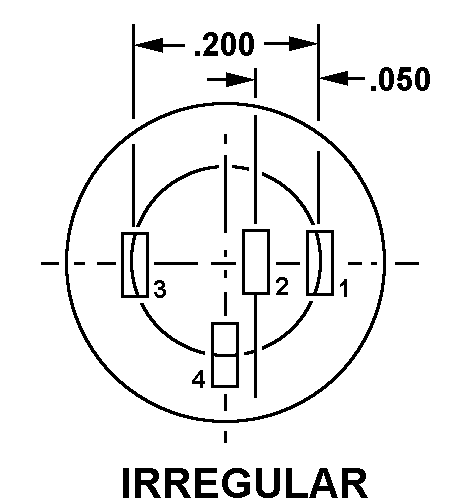

| CONTACT POSITION ARRANGEMENT STYLE | 422A IRREGULAR |
| ACCOMMODATED CONTACT QUANTITY | 4 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 1.0 |
| CONTACT MATERIAL | BERYLLIUM COPPER |
| CONTACT SURFACE TREATMENT | GOLD AND SILVER |
| BODY STYLE | 36B TOP MOUNT, PRESS FIT |
| TERMINAL LENGTH | 0.188 INCHES NOMINAL |
| OVERALL HEIGHT | 0.469 INCHES NOMINAL |
| OVERALL DIAMETER | 0.500 INCHES NOMINAL |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | ANY ACCEPTABLE |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 4 PIN |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | PRESS FIT |
| MOUNTING HOLE STYLE | 3D ROUND, FLATTED |
| BODY MOUNTING HOLE ACCOMMODATION DIAMETER | 0.361 INCHES MINIMUM AND 0.363 INCHES MAXIMUM |
| DISTANCE FROM FLATTED PORTION TO OPPOSITE SURFACE | 0.338 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION AND CONTACT SHAPE |
| III SPECIFIC EQUIPMENT ACCOMMODATED | TRANSISTOR |
| III FABRICATION METHOD | MOLDED |
| III PRECIOUS MATERIAL | GOLD AND SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.004 GOLD GRAINS, TROY AND 0.004 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE GOLD AND CONTACT SURFACE SILVER |
