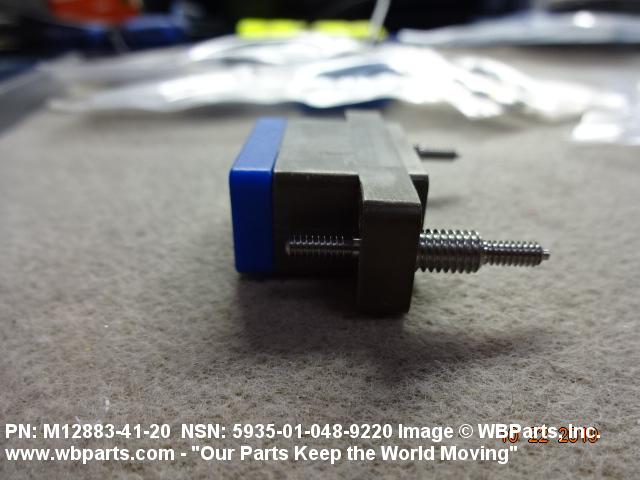

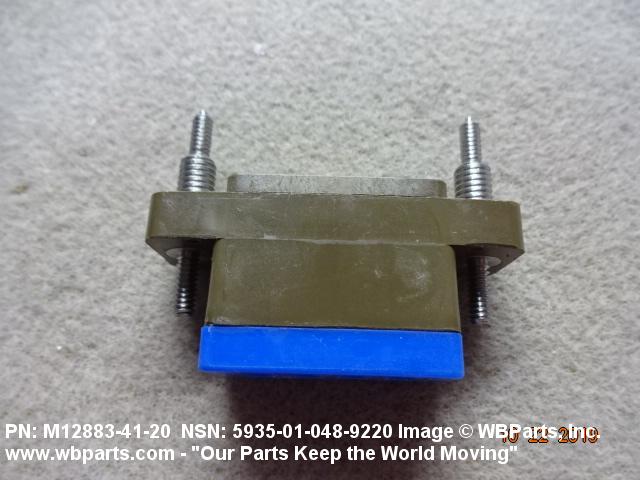

Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-048-9220 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: M12883/41-20, M128834120, S010558690, S0-1055-8690, MIL-C-12883/41, MILC1288341, MIL-DTL-12883/41 , MILDTL1288341, RSE116703, 5926155, 5935-01-048-9220, 01-048-9220, 5935010489220, 010489220
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 OCT 1977 | 01-048-9220 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |

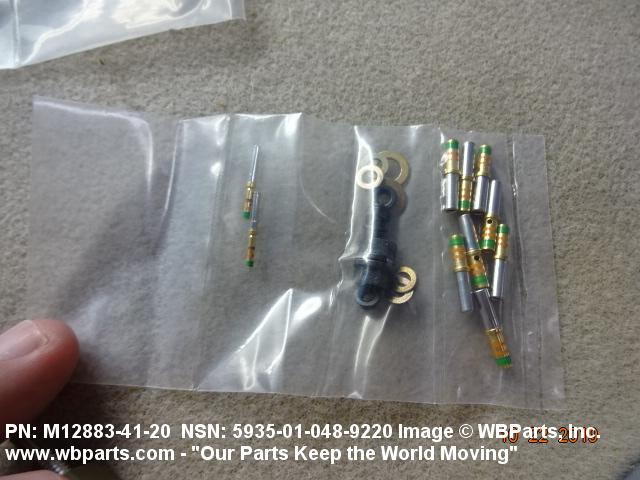

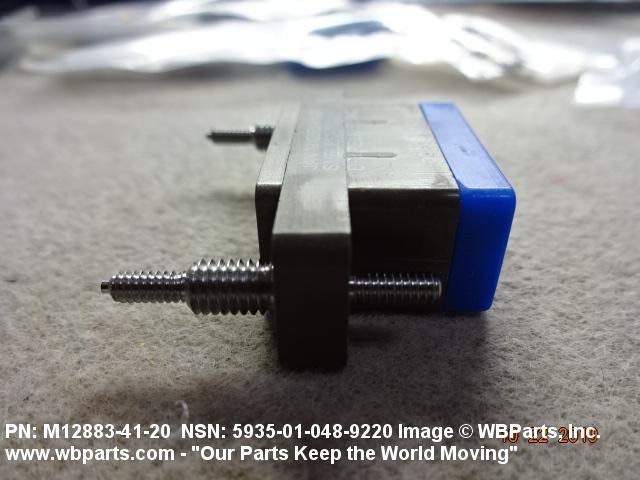

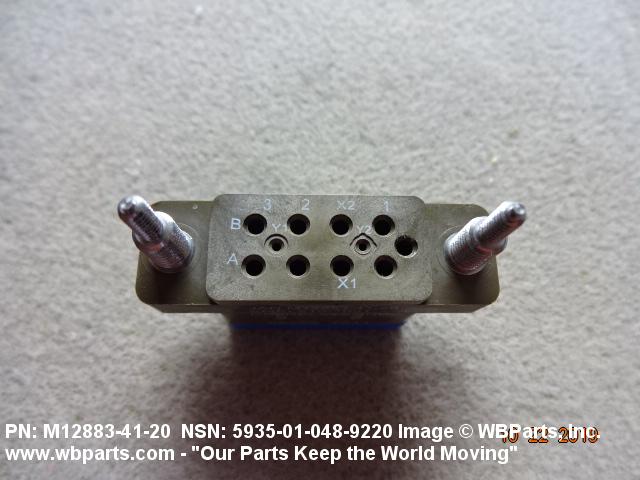

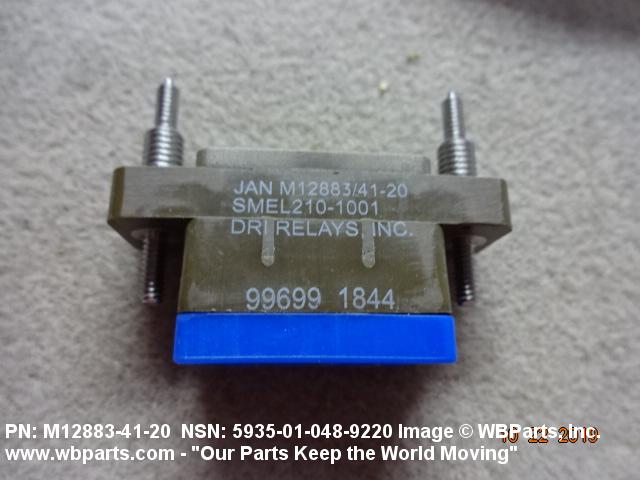

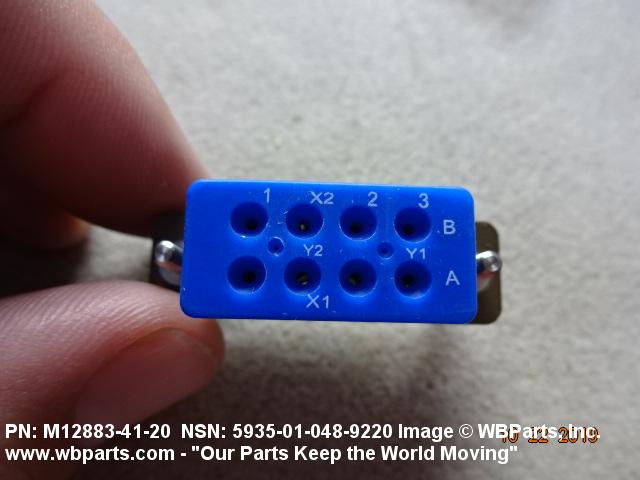

Drawings & Photos | NSN 5935-01-048-9220
Demand History | NSN 5935-01-048-9220
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| S010558690 | 2020-03-79 | 1 | United States |
| S010558690 | 2020-03-79 | 1 | United States |
| M128834120 | 2019-10-288 | 3 | United States |
| S010558690 | 2019-10-288 | 3 | United States |
| S010558690 | 2018-07-206 | 1 | us |
| 5935-01-048-9220 | 2012-07-193 | 137 | DIBBS |
| 5935-01-048-9220 | 2012-03-62 | 162 | DIBBS |
| 5935-01-048-9220 | 2011-09-273 | 163 | DIBBS |
| 5935-01-048-9220 | 2011-09-245 | 61 | DIBBS |
| 5935-01-048-9220 | 2010-06-179 | 149 | DIBBS |
| 5935-01-048-9220 | 2009-01-08 | 5 | DIBBS |
| 5935-01-048-9220 | 2008-11-316 | 87 | DIBBS |
| 5935-01-048-9220 | 2008-10-301 | 65 | DIBBS |
| 5935-01-048-9220 | 2008-08-220 | 26 | DIBBS |
| 5935-01-048-9220 | 2007-10-298 | 33 | DIBBS |
| 5935-01-048-9220 | 2007-04-102 | 9 | DIBBS |
| 5935-01-048-9220 | 2007-02-41 | 4 | DIBBS |
| 5935-01-048-9220 | 2006-05-135 | 6 | DIBBS |
Cross Reference | NSN 5935-01-048-9220
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5926155 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| M12883/41-20 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-12883/41 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-12883/41 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RSE116703 | 58982 | AMPHENOL PCD, INC. |
| S0-1055-8690 | 58657 | LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-048-9220
Related Products | NSN 5935-01-048-9220
Technical Data | NSN 5935-01-048-9220
| Characteristic | Specifications |
|---|---|
| CONTACT POSITION ARRANGEMENT STYLE | 1010A TRIPLE IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 10 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 12.0 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | ANY ACCEPTABLE |
| BODY STYLE | 19B TOP MOUNT W/MOLDED SADDLE |

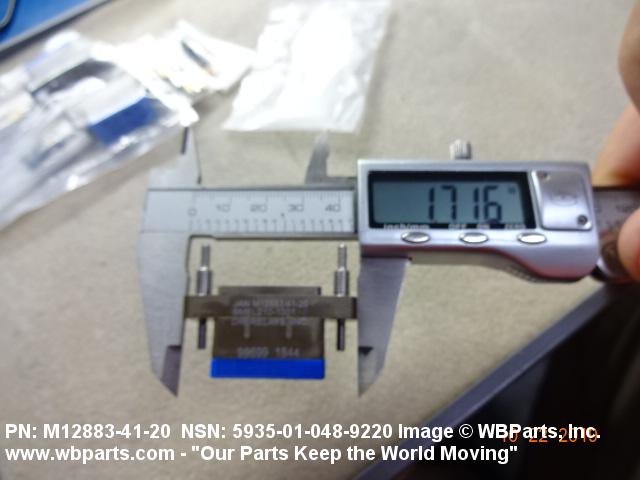

| OVERALL LENGTH | 1.710 INCHES NOMINAL |
| OVERALL HEIGHT | ANY ACCEPTABLE |

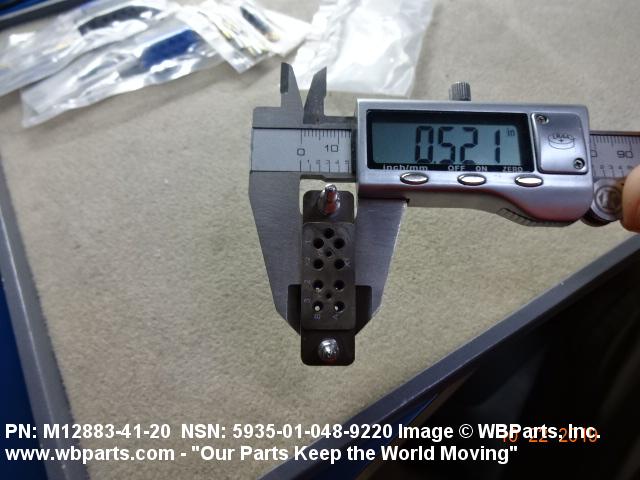

| OVERALL WIDTH | 0.520 INCHES NOMINAL |
| PROJECTION LENGTH ABOVE MOUNTING SURFACE | 0.213 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 10 CRIMP |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | 17D TWO MOUNTING HOLES/SLOTS, IN-LINE |
| MOUNTING HOLE DIAMETER | 0.208 INCHES NOMINAL |

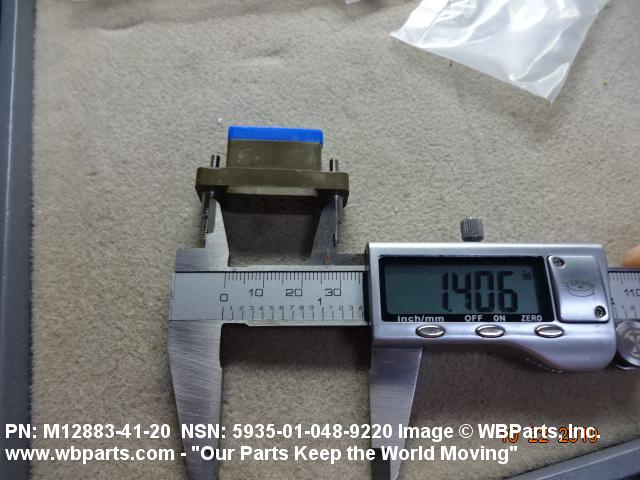

| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.406 INCHES NOMINAL |
