NSN 5935-01-057-6733 3600425100, 360-0425-100, 4154290020
Product Details | TELEPHONE JACK
5935-01-057-6733 A contact spring type electrical fitting of two or more conductors, which is arranged for the insertion of a PLUG, TELEPHONE. One conductor may be grounded. Does not include separable telephone jacks which are termed, JACK ASSEMBLY, TELEPHONE. Excludes JACK, TIP.
Part Alternates: 3600425100, 360-0425-100, 4154290020, 4-15429-0020, 89HL82S, 5935-01-057-6733, 01-057-6733, 5935010576733, 010576733
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 MAR 1978 | 01-057-6733 | 00124 ( JACK, TELEPHONE ) |
Drawings & Photos | NSN 5935-01-057-6733
Cross Reference | NSN 5935-01-057-6733
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-057-6733
Technical Data | NSN 5935-01-057-6733
| Characteristic | Specifications |
|---|---|

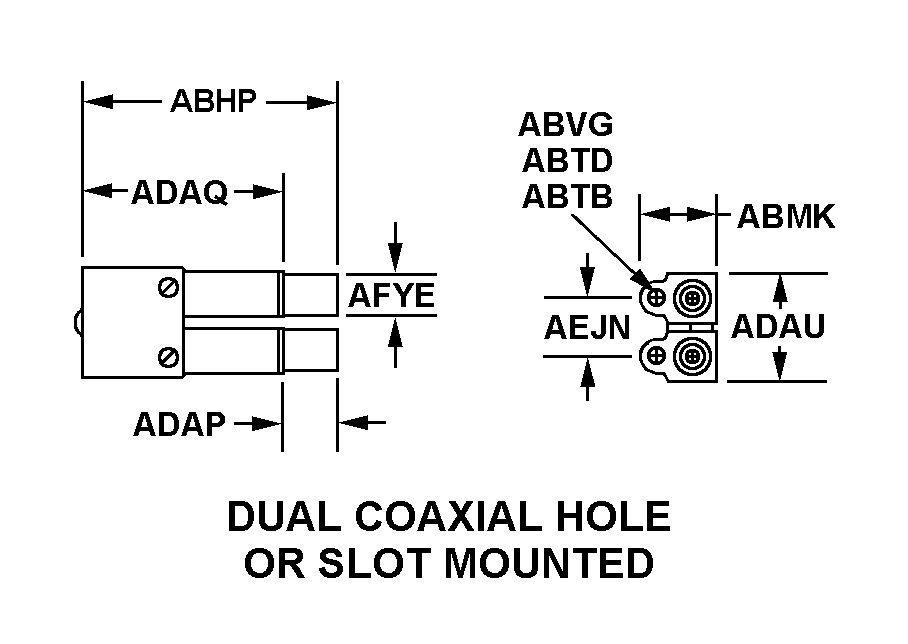

| BODY STYLE | 36 DUAL COAXIAL HOLE OR SLOT MOUNTED |
| OVERALL LENGTH | 4.207 INCHES MAXIMUM |
| MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
| MOUNTING BUSHING LENGTH | 0.598 INCHES MAXIMUM |
| BODY LENGTH | 3.109 INCHES MAXIMUM |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 0.620 INCHES NOMINAL |
| MATERIAL | BERYLLIUM COPPER OR PHOSPHOR BRONZE SPRING |
Restrictions/Controls & Freight Information | NSN 5935-01-057-6733
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | 80 | NASA Marshall Space Flight Center Marshall Space Flight Center, AL 35812-0001 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
