NSN 5935-01-058-7225 C8824120, C8824-1-20, G823420

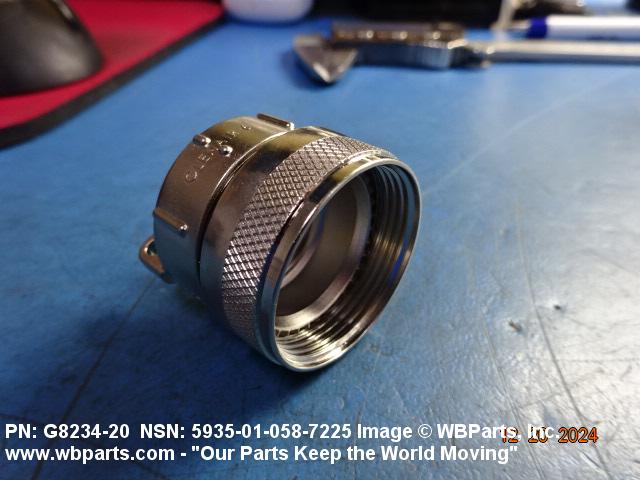

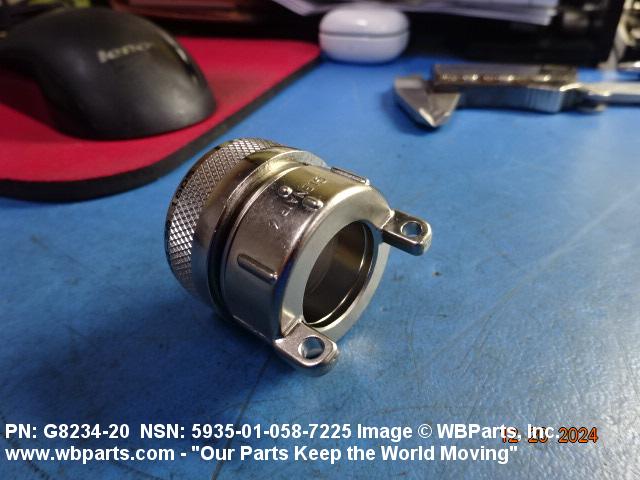

Product Details | ELECTRICAL CONNECTOR CABLE CLAMP

5935-01-058-7225 A clamp specifically designed to hold an electrical cable firmly in a connector. Must include provisions for attachment to an electrical connector. Excludes ADAPTER (1), CABLE TO CONNECTOR.

Part Alternates: C8824120, C8824-1-20, G823420, G8234-20, 5935-01-058-7225, 01-058-7225, 5935010587225, 010587225

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	31 MAR 1978	01-058-7225	23010 ( CLAMP, CABLE, ELECTRICAL CONNECTOR )

Drawings & Photos | NSN 5935-01-058-7225

Part Number	Request Date	QTY	Origin
5935-01-058-7225	2024-12-338	10	United States
G8234-20	2024-10-275	213	DIBBS
G8234-20	2024-09-263	213	DIBBS
G8234-20	2019-08-219	81	DIBBS
5935-01-058-7225	2018-02-38	34	DIBBS
5935-01-058-7225	2017-12-360	23	DIBBS
5935-01-058-7225	2017-08-219	23	DIBBS
5935-01-058-7225	2017-07-199	7	DIBBS
5935-01-058-7225	2017-06-180	3	DIBBS
5935-01-058-7225	2017-05-129	8	DIBBS
5935-01-058-7225	2017-01-25	8	DIBBS
5935-01-058-7225	2015-04-112	29	DIBBS
5935-01-058-7225	2014-08-225	256	DIBBS
5935-01-058-7225	2014-08-217	12	DIBBS
5935-01-058-7225	2014-06-152	11	DIBBS
5935-01-058-7225	2014-04-99	7	DIBBS
5935-01-058-7225	2011-06-179	0	DIBBS
5935-01-058-7225	2007-08-219	101	DIBBS
5935-01-058-7225	2007-07-192	20	DIBBS
5935-01-058-7225	2007-06-169	4	DIBBS

Cross Reference | NSN 5935-01-058-7225

Part Number	Cage Code	Manufacturer
C8824-1-20	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
G8234-20	06324	GLENAIR, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-058-7225

Compare

Related Products | NSN 5935-01-058-7225

5935-01-058-7226, 5935-01-058-7227, 5935-01-058-7228, 5935-01-058-7229, 5935-01-058-7230

Technical Data | NSN 5935-01-058-7225

Characteristic	Specifications
STYLE DESIGNATOR	1B DOUBLE CLAMPING ACTION W OR W/O BUSHING
BODY DIAMETER	1.323 INCHES NOMINAL
BODY LENGTH	1.420 INCHES NOMINAL
BODY HEIGHT	1.323 INCHES NOMINAL
MATERIAL	ALUMINUM ALLOY
SURFACE TREATMENT	NICKEL, ELECTROLESS
MOUNTING FACILITY TYPE AND QUANTITY	1 THREADED COUPLING AND 1 CLAMP ASSEMBLY
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	1.188 INCHES
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
CABLE OPENING QUANTITY	1
CABLE OPENING DIAMETER	0.750 INCHES NOMINAL
SIZE DESIGNATION	20
