NSN 5935-01-060-9312 SB 6320-G1, SB26320G1, SB2-6320G1
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-060-9312 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: SB 6320-G1, SB26320G1, SB2-6320G1, SB350, SB6320G1, SY6320G1, 195293, 6320G1, 5935-01-060-9312, 01-060-9312, 5935010609312, 010609312, 154101211, 554101211
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 JUN 1978 | 01-060-9312 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-060-9312
Demand History | NSN 5935-01-060-9312
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 195293 | 2023-11-332 | 222 | DIBBS |
| 554101211 | 2023-11-332 | 222 | DIBBS |
| 6320G1 | 2023-11-332 | 222 | DIBBS |
| SY6320G1 | 2023-11-332 | 222 | DIBBS |
| 5935-01-060-9312 | 2018-09-263 | 159 | DIBBS |
| 5935-01-060-9312 | 2014-07-196 | 348 | DIBBS |
| 5935-01-060-9312 | 2014-03-77 | 10 | US |
| 5935-01-060-9312 | 2013-11-323 | 182 | DIBBS |
| 5935-01-060-9312 | 2010-08-222 | 158 | DIBBS |
| 5935-01-060-9312 | 2010-03-85 | 145 | DIBBS |
| 5935-01-060-9312 | 2009-11-322 | 78 | DIBBS |
| 5935-01-060-9312 | 2008-09-273 | 50 | DIBBS |
| 5935-01-060-9312 | 2007-04-95 | 195 | DIBBS |
Cross Reference | NSN 5935-01-060-9312
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 154101211 | 31795 | EATON CORPORATION |
| 195293 | 04627 | NACCO MATERIALS HANDLING GROUP INC |
| 195293 | 30076 | NACCO MATERIALS HANDLING GROUP INC DBA HYSTER |
| 554101211 | 31795 | EATON CORPORATION |
| 6320G1 | 80495 | ANDERSON AIRMOTIVE PRODUCTS COMPANY, INC |
| SB 6320-G1 | 80495 | ANDERSON AIRMOTIVE PRODUCTS COMPANY, INC |
| SB2-6320G1 | 80495 | ANDERSON AIRMOTIVE PRODUCTS COMPANY, INC |
| SB350 | 80495 | ANDERSON AIRMOTIVE PRODUCTS COMPANY, INC |
| SB350 | Z1D09 | BAXTERS PTY LTD |
| SY6320G1 | 66654 | TVH PARTS CO. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-060-9312
Technical Data | NSN 5935-01-060-9312
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 46A RECTANGULAR SHAPE |
| OVERALL LENGTH | 2.750 INCHES NOMINAL |
| OVERALL HEIGHT | 4.250 INCHES NOMINAL |
| OVERALL WIDTH | 1.312 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | FRICTION |
| CONNECTOR CABLE STRAIN RELIEF METHOD | CABLE CLAMP |
| CABLE ENTRANCE DIAMETER | 0.484 INCHES NOMINAL |
| POLARIZATION METHOD | CONTACT |
| MATING END QUANTITY | 1 |

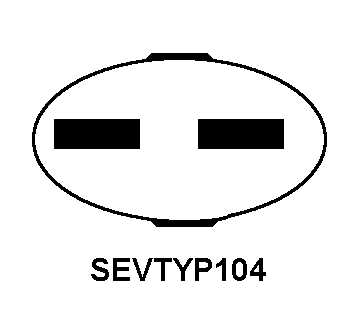

| CONTACT POSITION ARRANGEMENT STYLE | ACGA SEVTYP104 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC POLYCARBONATE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 2 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | LEAF SPRING SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 350.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 600.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | SILVER SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-S-365 FED SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND WEIGHT | 0.010 SILVER GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES SILVER |
Restrictions/Controls & Freight Information | NSN 5935-01-060-9312
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | W | 120 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051140 | HOSE:NOI TUBING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-060-9312
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | W | 120 months |
| Purchasing | QTY UOM |
1 EA : Each |
