NSN 5935-01-062-2378 2064005451, 20640-05-451, 640BG1
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-062-2378 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 2064005451, 20640-05-451, 640BG1, 640-BG1, 5935-01-062-2378, 01-062-2378, 5935010622378, 010622378
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-062-2378 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-01-062-2378
Cross Reference | NSN 5935-01-062-2378
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20640-05-451 | 61638 | ADVANCED INTERCONNECTIONS CORPORATION |
| 640-BG1 | 00779 | TYCO ELECTRONICS CORPORATION |
| 640-BG1 | 91506 | AUGAT INC |
| 88042-023 | 037Z3 | DLA LAND AND MARITIME OPNS SUPPORT GROUP |
| 88042-023 | 16236 | DLA LAND AND MARITIME |
| AP-640-B-G | 55322 | SAMTEC INC. |
| SD640GHA | 60197 | GBENJO LAW GROUP THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-062-2378
Technical Data | NSN 5935-01-062-2378
| Characteristic | Specifications |
|---|---|

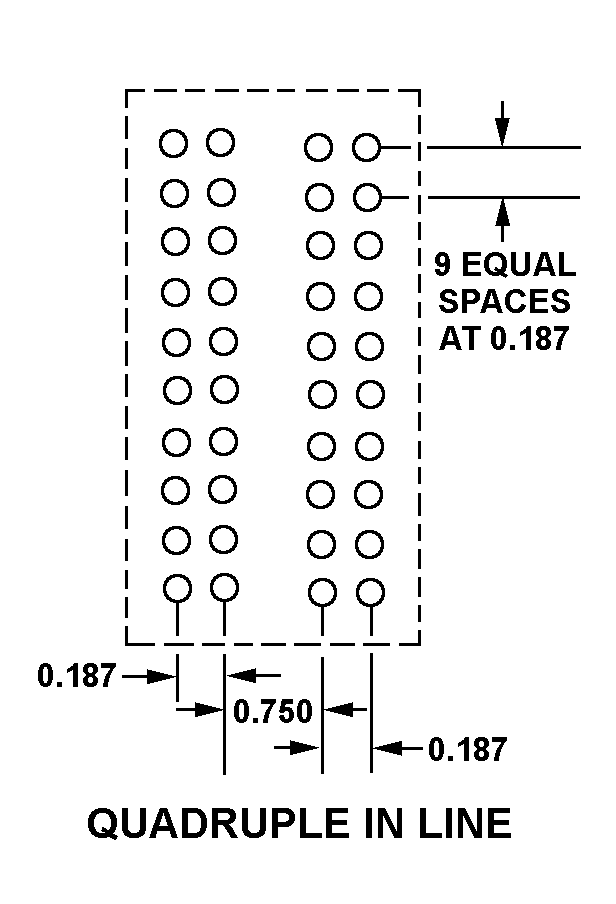

| CONTACT POSITION ARRANGEMENT STYLE | 4001A QUADRUPLE IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 40 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | PHOSPHOR BRONZE |
| CONTACT SURFACE TREATMENT | GOLD AND NICKEL |
| BODY STYLE | 69B TOP MOUNT |
| OVERALL LENGTH | 0.600 INCHES NOMINAL |
| TERMINAL LENGTH | ANY ACCEPTABLE |
| OVERALL HEIGHT | ANY ACCEPTABLE |
| OVERALL WIDTH | 0.100 INCHES NOMINAL |
| BODY MATERIAL | GLASS, EPOXY |
| TERMINAL TYPE AND QUANTITY | 40 TAB, SOLDER LUG |
| MOUNTING TYPE FOR WHICH DESIGNED | PRINTED CIRCUIT |
| MOUNTING METHOD | TERMINAL |

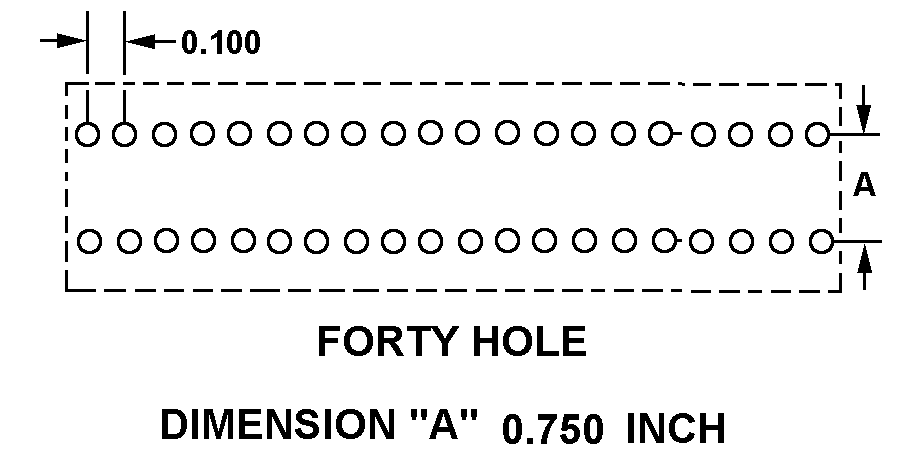

| PRINTED CIRCUIT BOARD HOLE ARRANGEMENT STYLE | 4002E FORTY HOLE |
| POLARIZATION TYPE | CONTACT SHAPE |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.040 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE GOLD |
Restrictions/Controls & Freight Information | NSN 5935-01-062-2378
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
