Product Details | ELECTRICAL PLUG CONNECTOR BODY


5935-01-064-1140 The main or principal part of a CONNECTOR, PLUG, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is not designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR PLUG, ELECTRICAL. For items without insert(s), see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: B33U00114, B33U0011-4, 18934117, 189341-17, 2861481, 2-86148-1, 5935-01-064-1140, 01-064-1140, 5935010641140, 010641140

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG) NSN Assign. NIIN
59 17 AUG 1978 01-064-1140

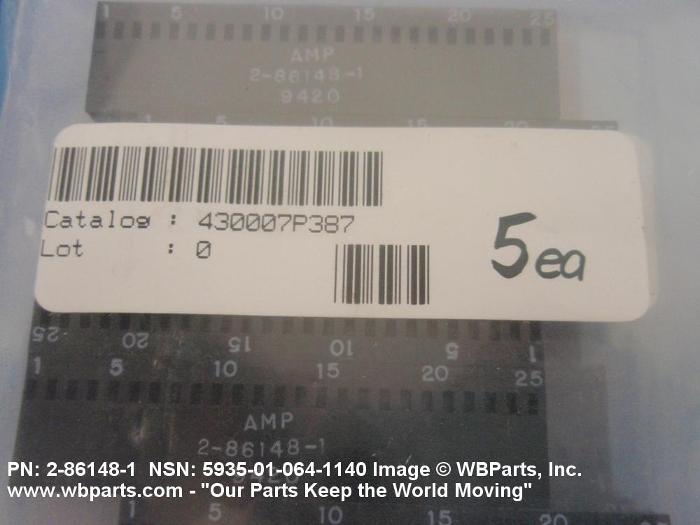

Drawings & Photos | NSN 5935-01-064-1140



Demand History | NSN 5935-01-064-1140


Part Number Request Date QTY Origin
5935-01-064-1140 2011-06-02 5 United States
5935-01-064-1140 2008-03-11 81 DIBBS
5935-01-064-1140 2007-09-12 240 DIBBS
5935-01-064-1140 2007-07-26 81 DIBBS

Cross Reference | NSN 5935-01-064-1140


Part Number Cage Code Manufacturer
189341-17 37695 RAYTHEON COMPANY DBA RAYTHEON
2-86148-1 00779 TYCO ELECTRONICS CORPORATION
B33U0011-4 12464 MCDONNELL DOUGLAS CORP MCDONNELL DOUGLAS ELECTRONIC SYSTEMS

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 5935-01-064-1140


Technical Data | NSN 5935-01-064-1140


Characteristic Specifications

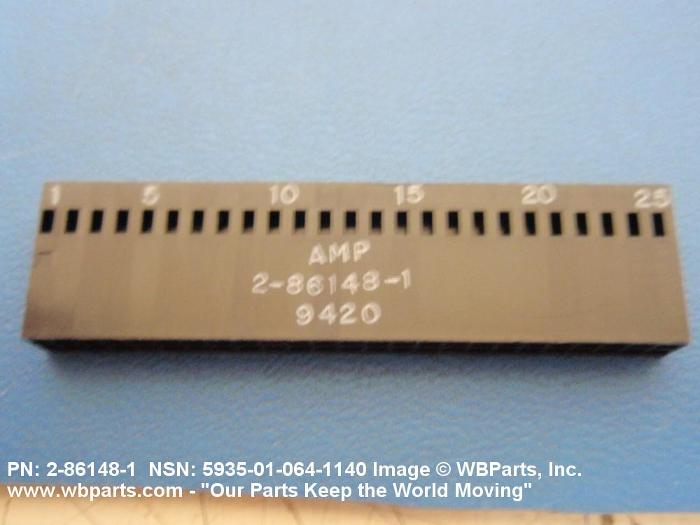

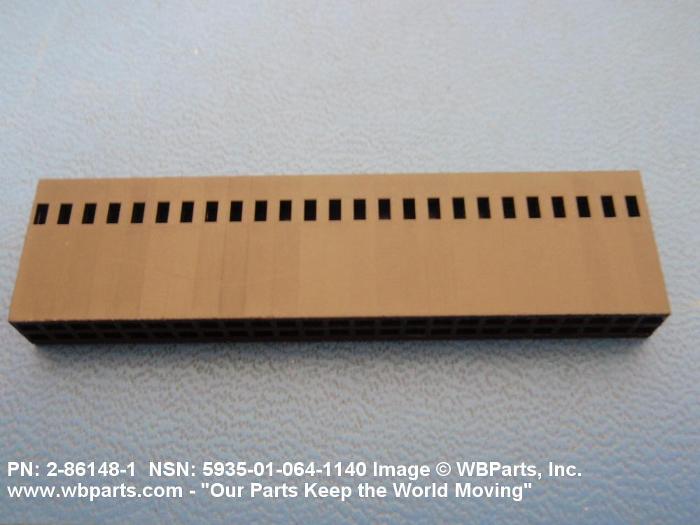

BODY STYLE 28A STRAIGHT SHAPE
OVERALL LENGTH 2.494 INCHES MINIMUM AND 2.506 INCHES MAXIMUM
OVERALL HEIGHT 0.635 INCHES MINIMUM AND 0.650 INCHES MAXIMUM
OVERALL WIDTH 0.240 INCHES NOMINAL
CONNECTOR LOCKING METHOD FRICTION
MATING END QUANTITY 1
CONTACT POSITION ARRANGEMENT STYLE AAAE 2 ROWS OF CONTACTS NON-INSERTED BOARD SINGLE MATING END
INSERT MATERIAL PLASTIC POLYAMIDE GLASS FILLED SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION L-P-395,TY 1 FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END
MISSING CONTACT TYPE AND QUANTITY 50 SQUARE SOCKET SINGLE MATING END SINGLE CONTACT GROUPING SINGLE ACCOMMODATED CONTACT TYPE
ENVIRONMENTAL PROTECTION COLD RESISTANT AND HEAT RESISTANT
