NSN 5935-01-071-0401 1006664001, 1006664-001, 430049
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-071-0401 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: 1006664001, 1006664-001, 430049, PP10, 5935-01-071-0401, 01-071-0401, 5935010710401, 010710401
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 JAN 1979 | 01-071-0401 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-01-071-0401
Cross Reference | NSN 5935-01-071-0401
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1006664-001 | 1PQF4 | L-3 COMMUNICATIONS CORPORATION DBA LINK SIMULATION & TRAINING |
| 1006664-001 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 430049 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 430049 | 94696 | SE RELAYS LLC MAGNECRAFT DIV SE RELAYS LLC MAGNECRAFT |
| PP10 | 61964 | OMRON ELECTRONICS LLC DBA O E I |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-071-0401
Technical Data | NSN 5935-01-071-0401
| Characteristic | Specifications |
|---|---|

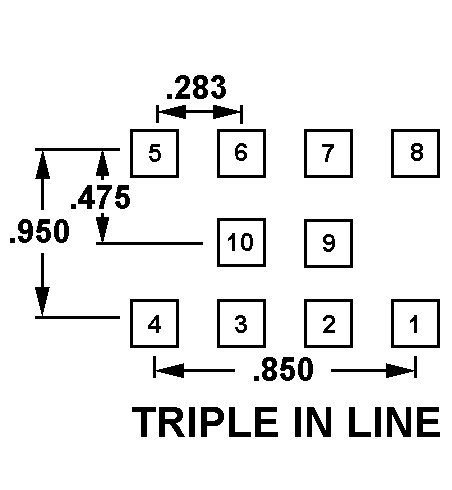

| CONTACT POSITION ARRANGEMENT STYLE | 1008A TRIPLE IN LINE |
