NSN 5935-01-079-9595 S010568691, S0-1056-8691, RSE116532
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET

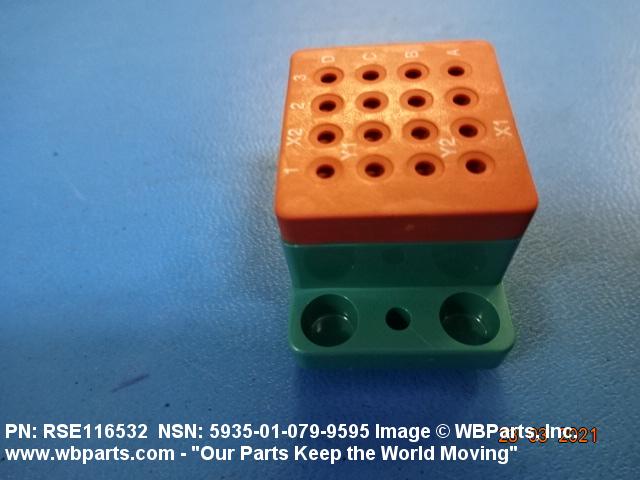

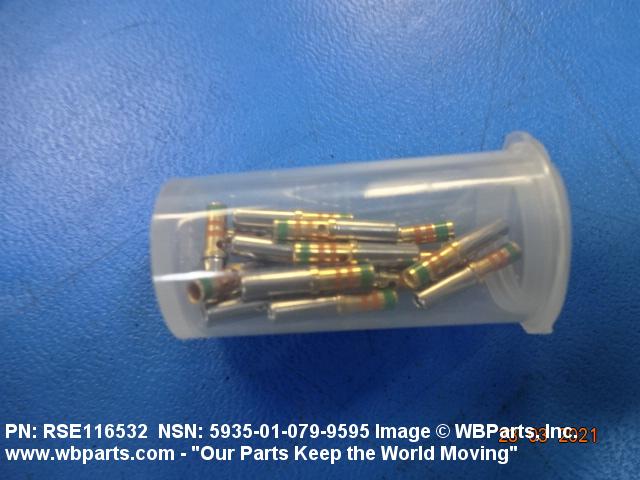

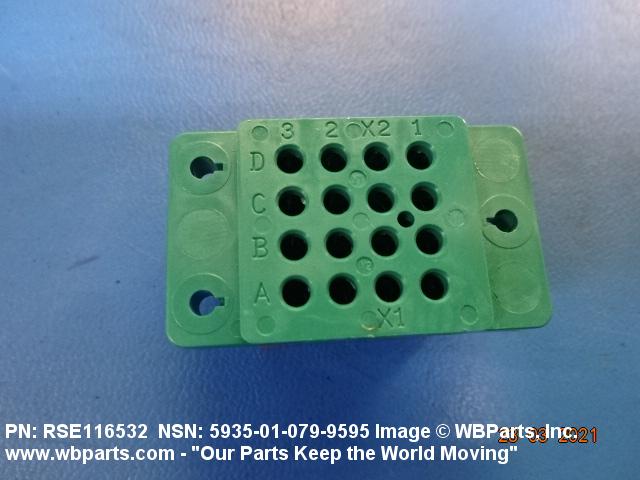

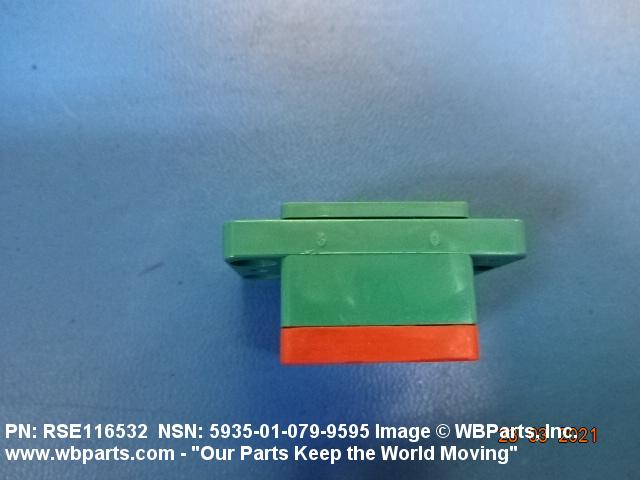

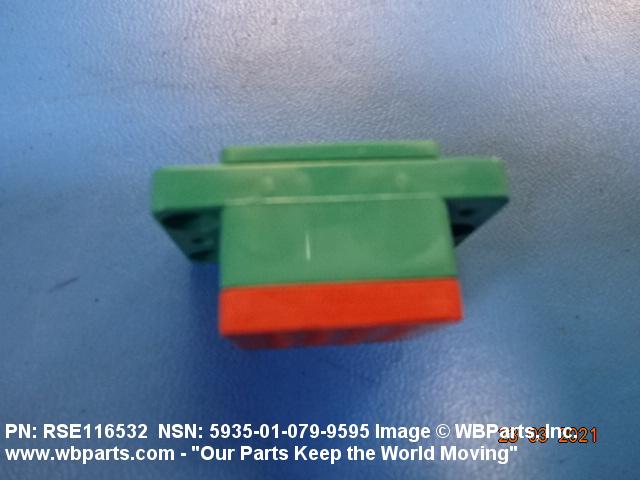

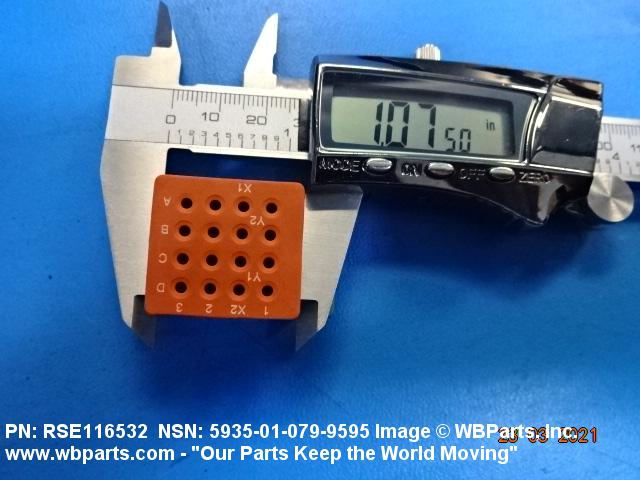

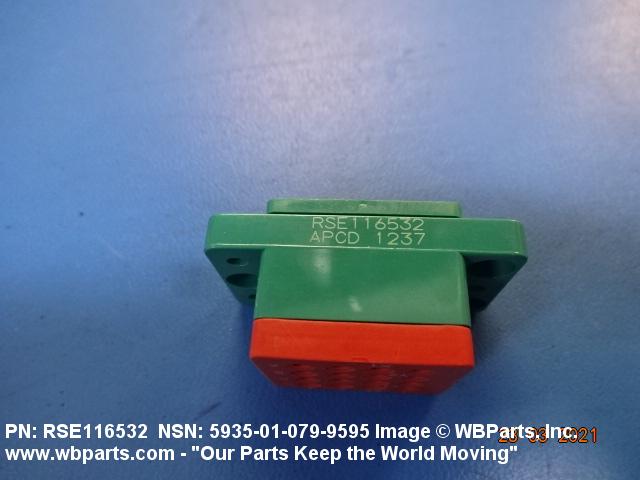

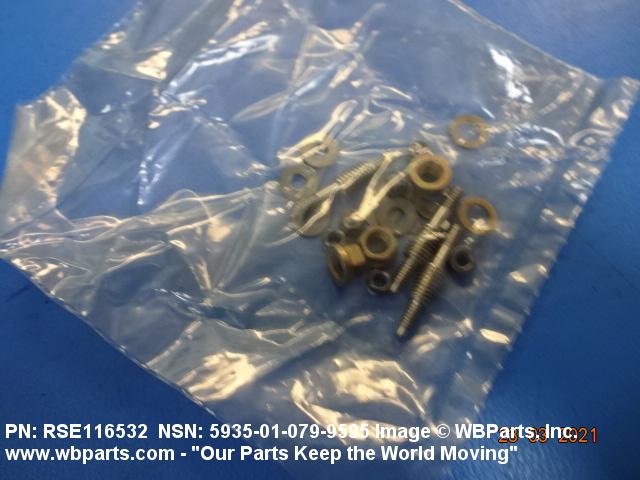

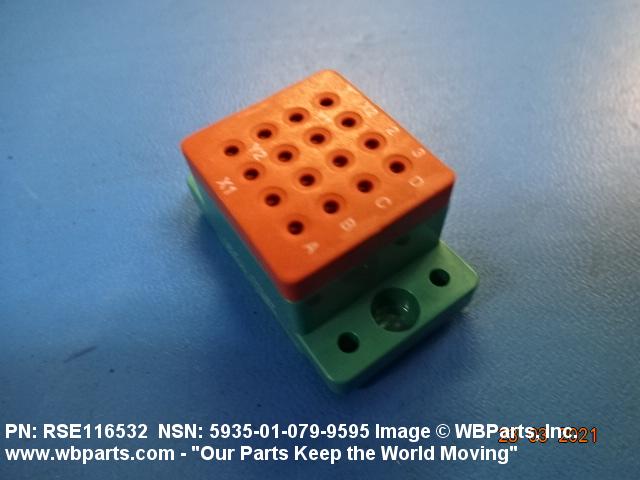

5935-01-079-9595 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: S010568691, S0-1056-8691, RSE116532, 0003001314, 000300-1314, 2221149, 451116-532, 5935-01-079-9595, 01-079-9595, 5935010799595, 451116532, 010799595
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 JUL 1979 | 01-079-9595 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |

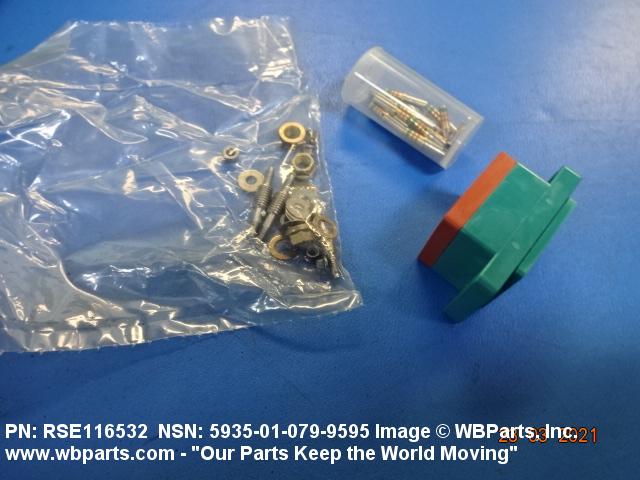

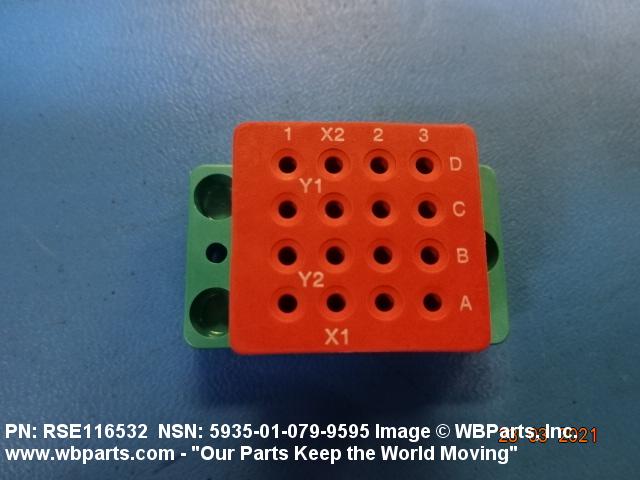

Drawings & Photos | NSN 5935-01-079-9595
Demand History | NSN 5935-01-079-9595
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 000300-1314 | 2025-11-320 | 87 | DIBBS |
| RSE116532 | 2025-11-320 | 87 | DIBBS |
| SO-1056-8691 | 2025-11-320 | 87 | DIBBS |
| RSE116532 | 2025-05-125 | 87 | DIBBS |
| SO-1056-8691 | 2025-05-125 | 87 | DIBBS |
| RSE116532 | 2025-02-51 | 63 | DIBBS |
| SO-1056-8691 | 2025-02-51 | 63 | DIBBS |
| RSE116532 | 2024-08-238 | 24 | DIBBS |
| SO-1056-8691 | 2024-08-238 | 24 | DIBBS |
| RSE116532 | 2024-06-176 | 24 | DIBBS |
| SO-1056-8691 | 2024-06-176 | 24 | DIBBS |
| 000300-1314 | 2022-03-76 | 59 | DIBBS |
| RSE116532 | 2022-03-76 | 59 | DIBBS |
| SO-1056-8691 | 2022-03-76 | 59 | DIBBS |
| 000300-1314 | 2021-10-287 | 42 | DIBBS |
| RSE116532 | 2021-10-287 | 42 | DIBBS |
| SO-1056-8691 | 2021-10-287 | 42 | DIBBS |
| 5935-01-079-9595 | 2021-03-62 | 1 | Taiwan |
| 5935-01-079-9595 | 2020-06-163 | 1 | Taiwan |
| 5935-01-079-9595 | 2018-12-344 | 99 | DIBBS |
| 5935-01-079-9595 | 2014-10-303 | 101 | DIBBS |
| 5935-01-079-9595 | 2013-06-156 | 58 | DIBBS |
| 5935-01-079-9595 | 2013-05-133 | 57 | DIBBS |
| 5935-01-079-9595 | 2011-07-190 | 40 | DIBBS |
| 0003001314 | 2010-02-41 | 9 | US |
| 5935-01-079-9595 | 2010-02-36 | 52 | DIBBS |
| 5935-01-079-9595 | 2007-08-215 | 96 | DIBBS |
Cross Reference | NSN 5935-01-079-9595
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 000300-1314 | 05574 | VIKING ELECTRONICS, INC. DIV VIKING |
| 2221149 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 451116-532 | 03743 | EGS ELECTRICAL GROUP APPLETON DIV |
| RSE116532 | 58982 | AMPHENOL PCD, INC. |
| S0-1056-8691 | 58657 | LEACH INTERNATIONAL CORPORATION DBA LEACH INTERNATIONAL NORTH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-079-9595
Related Products | NSN 5935-01-079-9595
Technical Data | NSN 5935-01-079-9595
| Characteristic | Specifications |
|---|---|

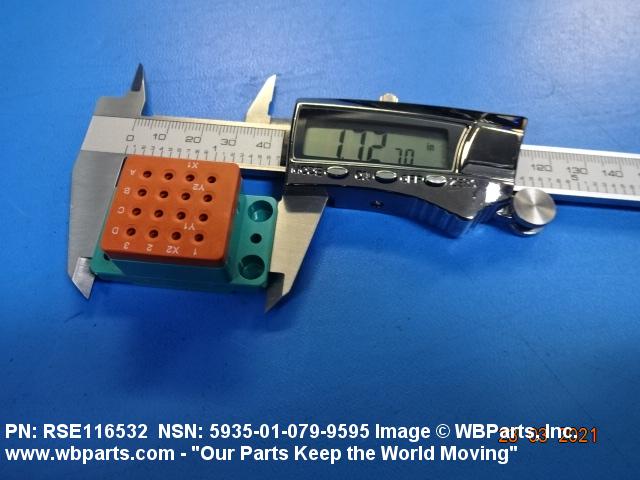

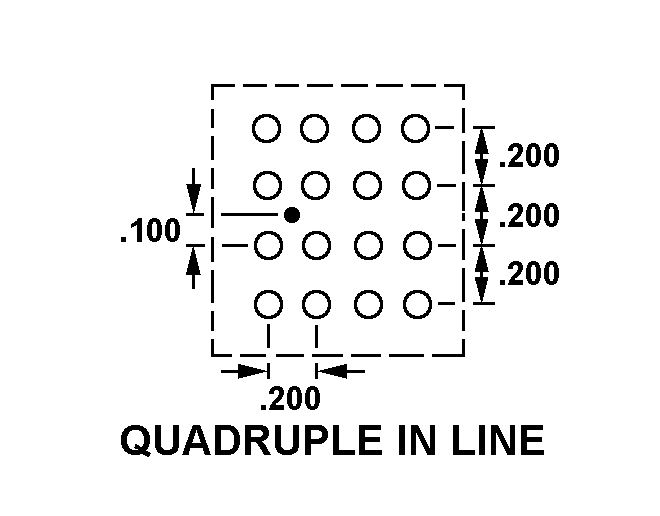

| CONTACT POSITION ARRANGEMENT STYLE | 1621A QUADRUPLE IN LINE |
| ACCOMMODATED CONTACT QUANTITY | 16 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | NOT RATED |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | GOLD,MIL-G-45204,TYPE 2,CLASS 1 |
| BODY STYLE | 53B TOP MOUNT W/STUDS |

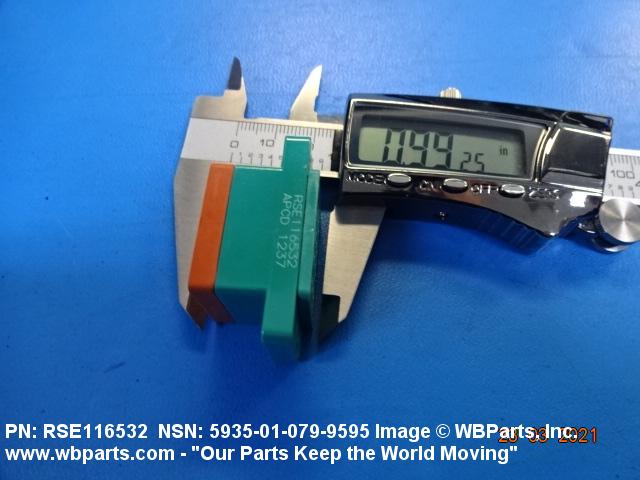

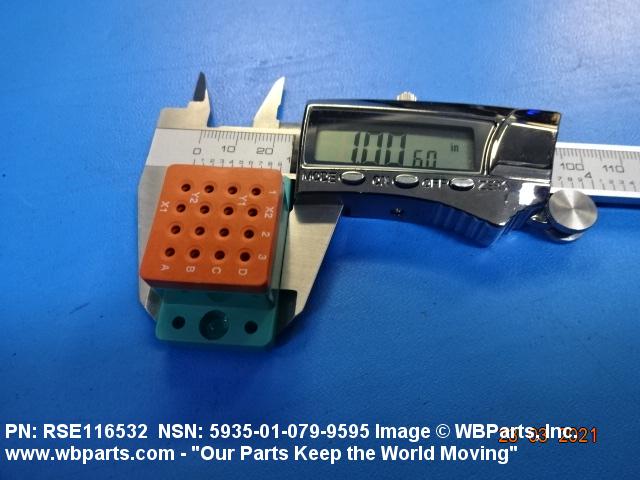

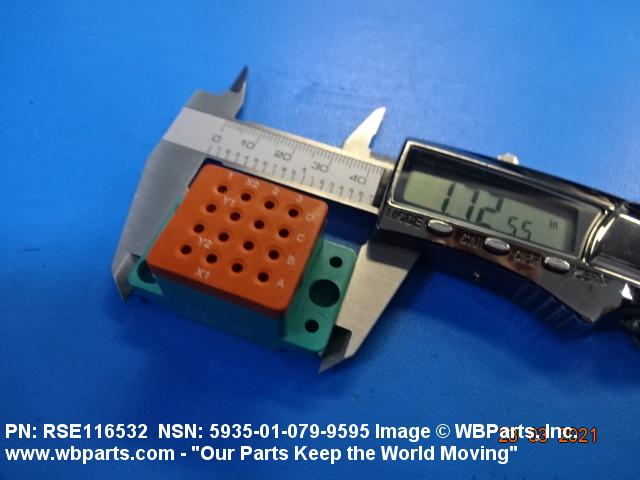

| OVERALL LENGTH | 1.710 INCHES NOMINAL |
