NSN 5935-01-081-0955 0970030000, 097-0030-000, 2137034G002
Product Details | ELECTRICAL CONNECTOR GUIDE
5935-01-081-0955 An aligning device specifically designed to insure proper mating of electrical connectors. Its mating end is unthreaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, RECEPTACLE, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. Its mounting facilities may include threads, press fit, or the like.
Part Alternates: 0970030000, 097-0030-000, 2137034G002, 5640041000, 564-0041-000, 581R848H03, 907013-102, 5935-01-081-0955, 01-081-0955, 5935010810955, 010810955, 907013102
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 AUG 1979 | 01-081-0955 | 36341 ( GUIDE, ELECTRICAL CONNECTOR ) |

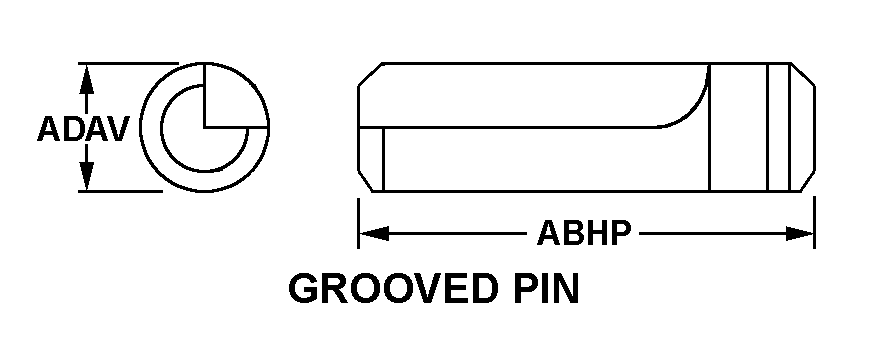

Drawings & Photos | NSN 5935-01-081-0955
Demand History | NSN 5935-01-081-0955
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-081-0955 | 2022-08-234 | 2 | United States |
| 5935-01-081-0955 | 2021-01-11 | 1 | United States |
Cross Reference | NSN 5935-01-081-0955
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 097-0030-000 | 05041 | DCX-CHOL ENTERPRISES, INC. DBA MASTERITE DIVISION |
| 2137034G002 | 28527 | EXELIS INC. DBA ELECTRONIC SYSTEMS, INTEGRATED |
| 564-0041-000 | 31413 | AMPHENOL CORPORATION DBA AMPHENOL TCS |
| 564-0041-000 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 581R848H03 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 907013-102 | 05257 | GENERAL DYNAMICS CANADA LTD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-081-0955
Technical Data | NSN 5935-01-081-0955
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 14L GROOVED PIN |
| OVERALL LENGTH | 0.410 INCHES NOMINAL |
| OVERALL DIAMETER | 0.101 INCHES NOMINAL |
| MATERIAL | STEEL, CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATED |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 SNAP-IN |
Restrictions/Controls & Freight Information | NSN 5935-01-081-0955
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
