NSN 5935-01-085-6447 B/L L1318/BLACK, BLL1318BLACK, 31484492
Product Details | TIP JACK
5935-01-085-6447 An electrical fitting with a female contact arranged for the insertion of a PLUG, TIP or a TIP, TEST PROD. It has a single facility for attachment of a conductor or facility for circuit connection through its mounting provisions. The item may or may not be insulated. Excludes multisection types each section of which consists of a single contact spring or telephone-type jack. Excludes CONNECTOR, RECEPTACLE ELECTRICAL; JACK, TELEPHONE; JACK ASSEMBLY, TIP; and POST, BINDING.
Part Alternates: B/L L1318/BLACK, BLL1318BLACK, 31484492, 3148449-2, 5634982, 563498-2, 5935-01-085-6447, 01-085-6447, 5935010856447, 010856447
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 NOV 1979 | 01-085-6447 | 15077 ( JACK, TIP ) |
Drawings & Photos | NSN 5935-01-085-6447
Cross Reference | NSN 5935-01-085-6447
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-085-6447
Technical Data | NSN 5935-01-085-6447
| Characteristic | Specifications |
|---|---|
| ACCOMMODATED FINGER TYPE | TEST PROD SINGLE FINGER |
| FINGER ACCOMMODATION DIAMETER | 0.075 INCHES NOMINAL SINGLE FINGER |
| FINGER ACCOMMODATION LENGTH | ANY ACCEPTABLE SINGLE FINGER |

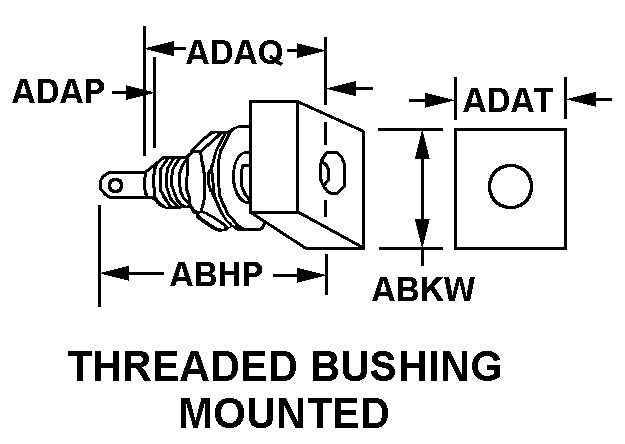

| BODY STYLE | 28A THREADED BUSHING MOUNTED |
| OVERALL LENGTH | 0.906 INCHES NOMINAL |
| OVERALL HEIGHT | 0.469 INCHES NOMINAL |
| MOUNTING BUSHING LENGTH | ANY ACCEPTABLE |
| BODY LENGTH | ANY ACCEPTABLE |
| BODY WIDTH | 0.469 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BUSHING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| BUSHING ACCOMMODATION HOLE SHAPE | ROUND, KEYED |
| KEYWAY WIDTH | 0.091 INCHES NOMINAL |
| KEYWAY DEPTH | ANY ACCEPTABLE |
| BUSHING THRU-HOLE ACCOMMODATION DIAMETER | 0.323 INCHES NOMINAL |
| ELECTRICAL INSULATION FEATURE | INSULATED COMPLETELY |
| MATERIAL | PLASTIC, POLYPROPYLENE BODY PLASTIC, POLYPROPYLENE INSULATOR BRASS SPRING BRASS TERMINAL |
| SURFACE TREATMENT | SILVER SPRING SILVER TERMINAL |
| IDENTIFICATION CODE COLOR | BLACK |
| TERMINAL TYPE | PIN |
| MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| CURRENT RATING IN AMPS | 10.0 |
| CAPACITANCE IN PICOFARADS | NOT RATED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | SPRING CONTACT SILVER |
