NSN 5935-01-087-0780 MS90558C52413P, MILC22992, MIL-C-22992

Product Details | ELECTRICAL RECEPTACLE CONNECTOR

5935-01-087-0780 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS90558C52413P, MILC22992, MIL-C-22992, 5935-01-087-0780, 01-087-0780, 5935010870780, 010870780

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	11 DEC 1979	01-087-0780	15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL )

Drawings & Photos | NSN 5935-01-087-0780

Part Number	Request Date	QTY	Origin
5935-01-087-0780	2025-06-163	32	DIBBS
5935-01-087-0780	2025-05-148	32	DIBBS
5935-01-087-0780	2024-05-144	30	DIBBS
5935-01-087-0780	2023-05-121	42	US
5935-01-087-0780	2023-04-120	42	DIBBS
5935-01-087-0780	2022-05-122	29	DIBBS
5935-01-087-0780	2021-04-115	41	DIBBS
5935-01-087-0780	2020-02-51	17	DIBBS
5935-01-087-0780	2018-11-333	50	DIBBS
5935-01-087-0780	2018-10-274	16	DIBBS
5935-01-087-0780	2018-09-263	16	DIBBS
5935-01-087-0780	2018-08-225	26	DIBBS
5935-01-087-0780	2017-02-33	161	DIBBS
5935-01-087-0780	2017-01-20	48	DIBBS
5935-01-087-0780	2017-01-09	48	DIBBS
5935-01-087-0780	2016-05-147	139	DIBBS
5935-01-087-0780	2016-05-136	139	DIBBS
5935-01-087-0780	2016-04-109	156	DIBBS
5935-01-087-0780	2016-04-98	156	DIBBS
5935-01-087-0780	2016-03-76	156	DIBBS
5935-01-087-0780	2016-02-53	10	DIBBS
5935-01-087-0780	2016-02-41	10	DIBBS
MS90558C52413P	2015-01-29	85	PR
5935-01-087-0780	2011-06-171	42	DIBBS
5935-01-087-0780	2011-05-126	234	DIBBS
5935-01-087-0780	2011-04-102	172	DIBBS
5935-01-087-0780	2011-04-91	227	DIBBS
5935-01-087-0780	2010-10-302	178	DIBBS
5935-01-087-0780	2010-09-250	284	DIBBS
5935-01-087-0780	2010-04-120	60	DIBBS
5935-01-087-0780	2010-04-106	55	DIBBS
5935-01-087-0780	2010-04-93	83	DIBBS
5935-01-087-0780	2010-02-40	56	DIBBS
5935-01-087-0780	2009-01-02	114	DIBBS
5935-01-087-0780	2008-11-316	71	DIBBS
5935-01-087-0780	2008-10-284	37	DIBBS
5935-01-087-0780	2008-08-226	119	DIBBS
5935-01-087-0780	2008-06-175	15	DIBBS
5935-01-087-0780	2008-05-144	77	DIBBS
5935-01-087-0780	2008-05-130	114	DIBBS
5935-01-087-0780	2008-04-116	158	DIBBS
5935-01-087-0780	2008-04-109	158	DIBBS
5935-01-087-0780	2008-03-70	112	DIBBS
5935-01-087-0780	2007-10-288	50	DIBBS
5935-01-087-0780	2007-05-125	97	DIBBS
5935-01-087-0780	2007-03-78	21	DIBBS
5935-01-087-0780	2007-02-36	165	DIBBS

Cross Reference | NSN 5935-01-087-0780

Part Number	Cage Code	Manufacturer
MIL-C-22992	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS90558C52413P	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-087-0780

Compare

Related Products | NSN 5935-01-087-0780

5935-01-087-0781, 5935-01-087-0782, 5935-01-087-0783, 5935-01-087-0784, 5935-01-087-0786

Technical Data | NSN 5935-01-087-0780

Characteristic	Specifications
BODY STYLE	12G STRAIGHT SHAPE, EXTERNAL COUPLING STRAIN RELIEF
OVERALL LENGTH	4.019 INCHES NOMINAL
OVERALL HEIGHT	4.016 INCHES MAXIMUM
OVERALL WIDTH	4.016 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT	3.156 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH	3.156 INCHES NOMINAL
DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE	2.686 INCHES NOMINAL
UNTHREADED MOUNTING HOLE DIAMETER	0.281 INCHES NOMINAL
CONNECTOR LOCKING METHOD	INTERNALLY THREADED COUPLING RING
THREADED DEVICE TYPE	COUPLING FACILITY
THREAD SERIES DESIGNATOR	UNS
NOMINAL THREAD SIZE	3.500 INCHES
THREAD CLASS	2B
THREAD QUANTITY PER INCH	7
THREAD DIRECTION	RIGHT-HAND
CONNECTOR CABLE STRAIN RELIEF METHOD	CABLE CLAMP
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY
SHELL SURFACE TREATMENT	CADMIUM AND NICKEL
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY II FED SPEC SINGLE TREATMENT RESPONSE AND QQ-N-290 FED SPEC 2ND TREATMENT RESPONSE
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	0.0 AND 15.0
MATING END QUANTITY	1

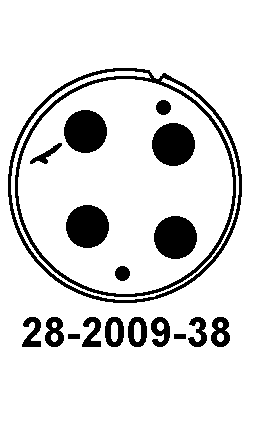

CONTACT POSITION ARRANGEMENT STYLE	AJAV 28-2009-38 SINGLE MATING END
