NSN 5935-01-106-4513 MS90557C52413S, MILC22992, MIL-C-22992

Product Details | ELECTRICAL PLUG CONNECTOR

5935-01-106-4513 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS90557C52413S, MILC22992, MIL-C-22992, 56N976P004, 5935-01-106-4513, 01-106-4513, 5935011064513, 011064513

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	18 JAN 1981	01-106-4513	01938 ( CONNECTOR, PLUG, ELECTRICAL )

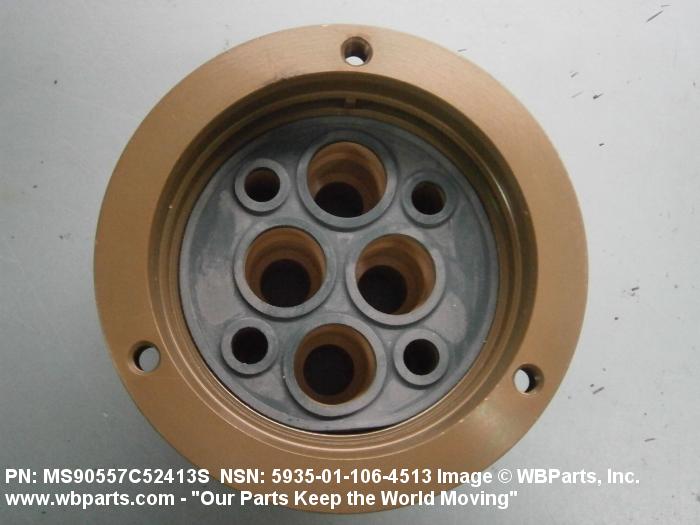

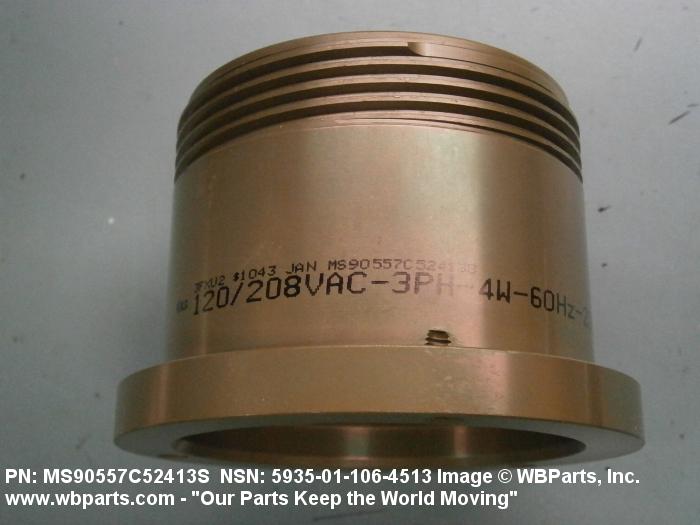

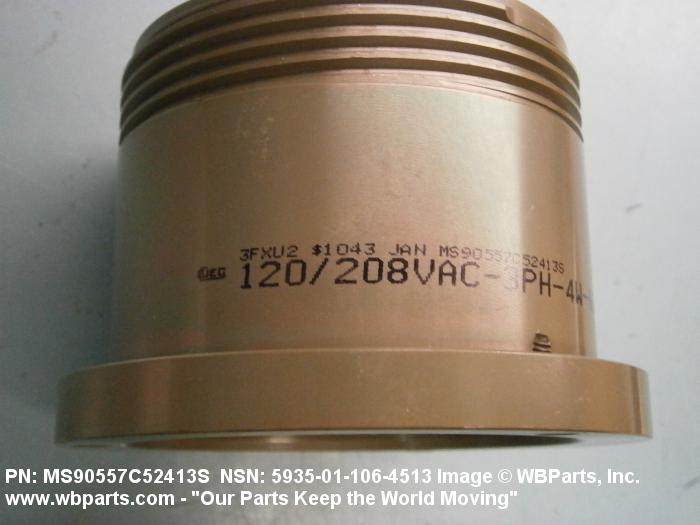

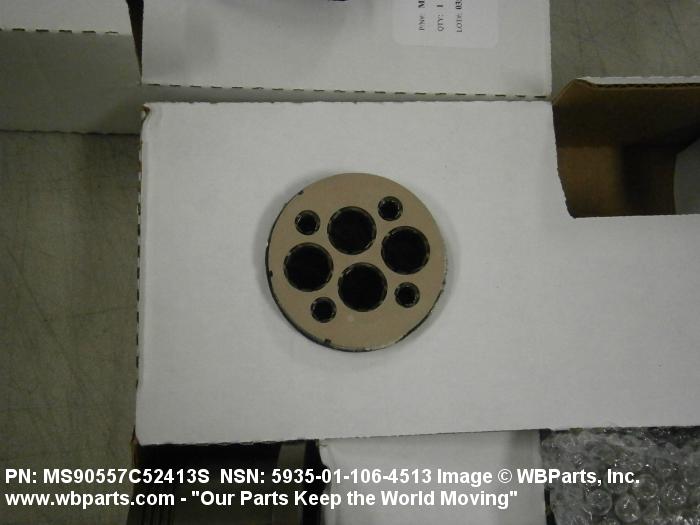

Drawings & Photos | NSN 5935-01-106-4513

Part Number	Request Date	QTY	Origin
5935-01-106-4513	2023-01-10	708	DIBBS
5935-01-106-4513	2023-01-08	38	DIBBS
5935-01-106-4513	2022-12-349	670	US
5935-01-106-4513	2022-12-349	670	DIBBS
5935-01-106-4513	2022-11-324	625	DIBBS
5935-01-106-4513	2022-10-300	134	DIBBS
MS90557C52413S	2022-04-111	5	US
5935-01-106-4513	2020-04-107	273	DIBBS
5935-01-106-4513	2019-12-339	157	DIBBS
5935-01-106-4513	2019-11-317	108	DIBBS
5935-01-106-4513	2019-05-132	225	DIBBS
5935-01-106-4513	2019-02-38	67	DIBBS
5935-01-106-4513	2018-08-221	49	DIBBS
5935-01-106-4513	2018-06-179	49	DIBBS
5935-01-106-4513	2017-10-276	135	DIBBS
5935-01-106-4513	2017-05-135	62	DIBBS
5935-01-106-4513	2017-05-124	62	DIBBS
5935-01-106-4513	2017-04-95	245	DIBBS
5935-01-106-4513	2016-12-362	130	DIBBS
5935-01-106-4513	2016-07-203	250	DIBBS
5935-01-106-4513	2016-07-192	250	DIBBS
5935-01-106-4513	2016-02-35	156	DIBBS
5935-01-106-4513	2015-03-89	32	US
MS90557C52413S	2015-01-29	85	PR
5935-01-106-4513	2014-07-184	181	DIBBS
5935-01-106-4513	2014-04-92	187	DIBBS
5935-01-106-4513	2014-02-49	173	DIBBS
MS90557C52413S	2013-07-193	1	United States
5935-01-106-4513	2013-02-58	246	DIBBS
5935-01-106-4513	2012-06-164	620	DIBBS
5935-01-106-4513	2011-10-300	210	DIBBS
5935-01-106-4513	2011-01-19	300	DIBBS
5935-01-106-4513	2010-04-103	170	DIBBS
5935-01-106-4513	2010-03-71	110	DIBBS
5935-01-106-4513	2010-02-49	150	DIBBS
5935-01-106-4513	2010-02-34	25	DIBBS
5935-01-106-4513	2010-02-34	71	DIBBS
5935-01-106-4513	2010-01-11	88	DIBBS
5935-01-106-4513	2009-06-159	115	DIBBS
5935-01-106-4513	2009-03-89	115	DIBBS
5935-01-106-4513	2009-01-09	130	DIBBS
5935-01-106-4513	2008-09-260	85	DIBBS
5935-01-106-4513	2008-09-256	125	DIBBS
5935-01-106-4513	2008-08-220	75	DIBBS
5935-01-106-4513	2008-05-143	75	DIBBS
5935-01-106-4513	2007-10-291	145	DIBBS

Cross Reference | NSN 5935-01-106-4513

Part Number	Cage Code	Manufacturer
56N976P004	A1615	SELEX ES SPA
MIL-C-22992	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS90557C52413S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-106-4513

Compare

Related Products | NSN 5935-01-106-4513

5935-01-106-4514, 5935-01-106-4515, 5935-01-106-4516, 5935-01-106-4517, 5935-01-106-4518

Technical Data | NSN 5935-01-106-4513

Characteristic	Specifications
BODY STYLE	6A STRAIGHT SHAPE, EXTERNAL COUPLING W/STRAIN RELIEF
OVERALL LENGTH	11.062 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	EXTERNALLY THREADED SHELL
THREADED DEVICE TYPE	COUPLING FACILITY
THREAD SERIES DESIGNATOR	DOUBLE STUB
NOMINAL THREAD SIZE	3.500 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	7
THREAD DIRECTION	RIGHT-HAND
NOMINAL THREAD LENGTH	0.531 INCHES
CONNECTOR CABLE STRAIN RELIEF METHOD	COMPRESSION NUT
CABLE ENTRANCE DIAMETER	2.308 INCHES MINIMUM AND 2.453 INCHES MAXIMUM
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY
SHELL SURFACE TREATMENT	CADMIUM AND CHROMATE AND NICKEL
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2 FED SPEC 1ST TREATMENT RESPONSE AND QQ-P-416,TY 2 FED SPEC 2ND TREATMENT RESPONSE AND QQ-N-290 FED SPEC 3RD TREATMENT RESPONSE
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	120.0
MATING END QUANTITY	1

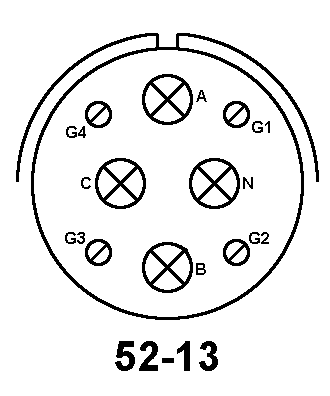

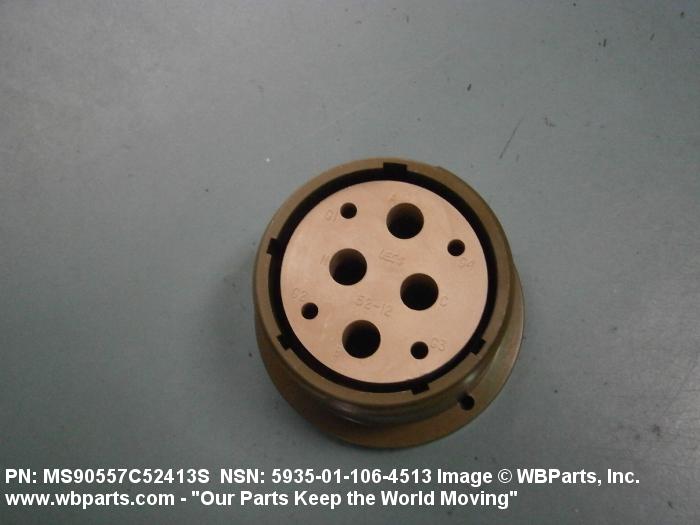

CONTACT POSITION ARRANGEMENT STYLE	AJFS 52-13 SINGLE MATING END
INSERT MATERIAL	PLASTIC SINGLE MATING END
INCLUDED CONTACT QUANTITY	1 SINGLE MATING END 1ST CONTACT GROUPING 3 SINGLE MATING END 2ND CONTACT GROUPING 4 SINGLE MATING END 3RD CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
INCLUDED CONTACT TYPE	ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM CURRENT RATING IN AMPS	200.0 SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	240.0 SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TY 2,CL 1 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE	CRIMP SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL LOCATION	BACK SINGLE MATING END ALL CONTACT GROUPINGS
ENVIRONMENTAL PROTECTION	THERMAL SHOCK RESISTANT AND MOISTURE RESISTANT AND SALT WATER RESISTANT AND SHOCK RESISTANT AND VIBRATION RESISTANT
TEST DATA DOCUMENT	81349-MIL-C-22992 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS90557 GOVERNMENT STANDARD

Restrictions/Controls & Freight Information | NSN 5935-01-106-4513

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
