NSN 5935-01-110-1941 MS3102E2214SC, MS3102E22-14SC, MS3102H2214S

Product Details | ELECTRICAL RECEPTACLE CONNECTOR

5935-01-110-1941 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS3102E2214SC, MS3102E22-14SC, MS3102H2214S, MS3102H-22-14S, MS3102R2214S, MS3102R22-14S, MS3102R2214SC, MS3102R22-14SC, MS3116E1419PW, MS3116E14-19PW , MS3116P1419PW, MS3116P14-19PW , MS3126E1419PW, MS3126E14-19PW , MS3126P1419PW, MS3126P14-19PW , MS3452L2214S, MS3452L22-14S, MS3452W2214S, MS3452W22-14S, MS3476L1419PW, MS3476L14-19PW , MS3476W1419PW, MS3476W14-19PW , M83723/14R1419W , M83723/14W1419W , M83723/21R2214N, M8372314R1419W, M8372314W1419W, M8372321R2214N, MB16A1419PW, MB16A-1419PW , MB16W1419PW , AN31022214S, AN3102-22-14S, ASC1240079 , SP06SE1419PW, SP06SE-14-19PW , MILC26482, MIL-C-26482 , MILC5015, MIL-C-5015, MILC5015D, MILC8372321, MILC83723-21, MILDTL26482, MIL-DTL-26482 , 3590304240, 359-0304-240 , 4140014030, 414-0014-030, 56N339P201, 810BA0947, 9466401911, 946640-1911 , 5935-01-110-1941, 01-110-1941, 5935011101941, 011101941

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	27 MAR 1981	01-110-1941	15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL )

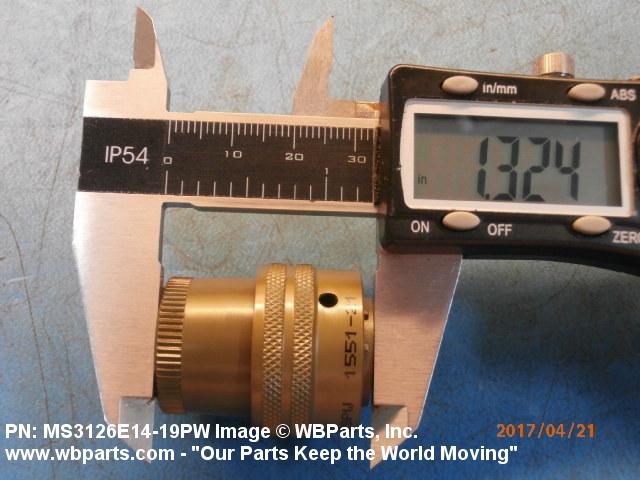

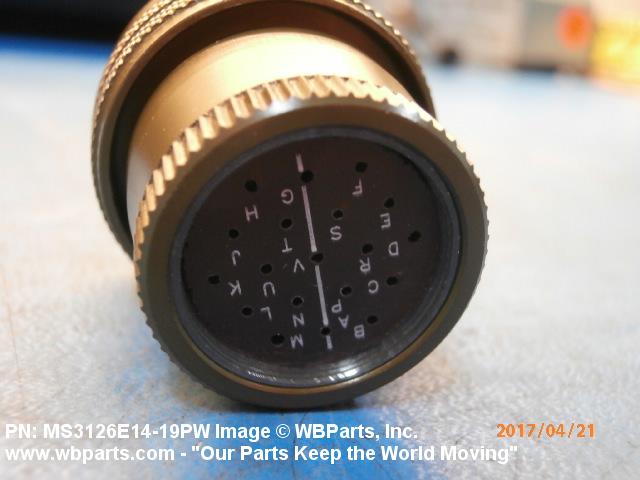

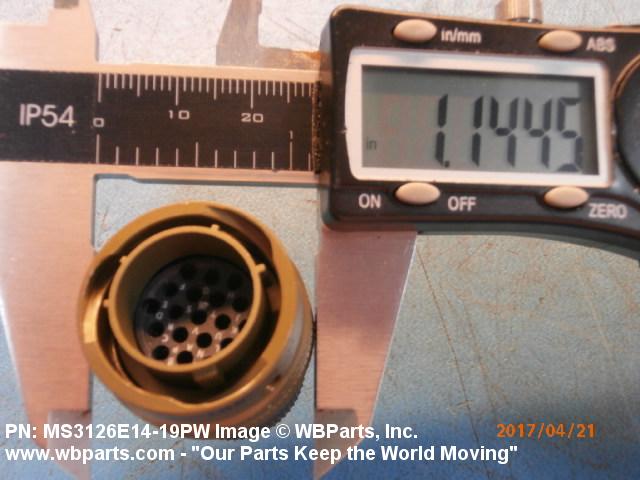

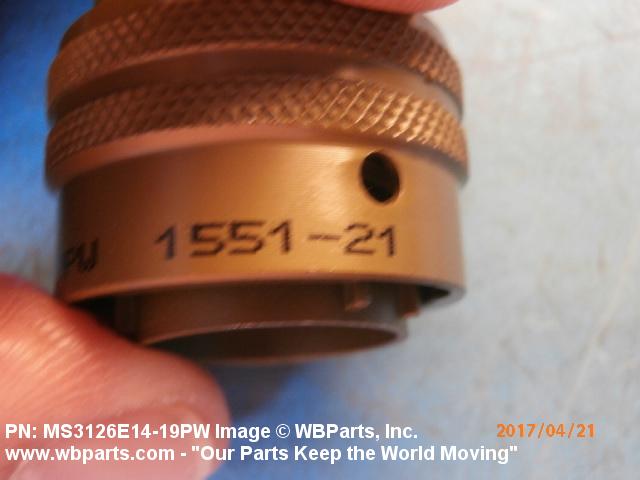

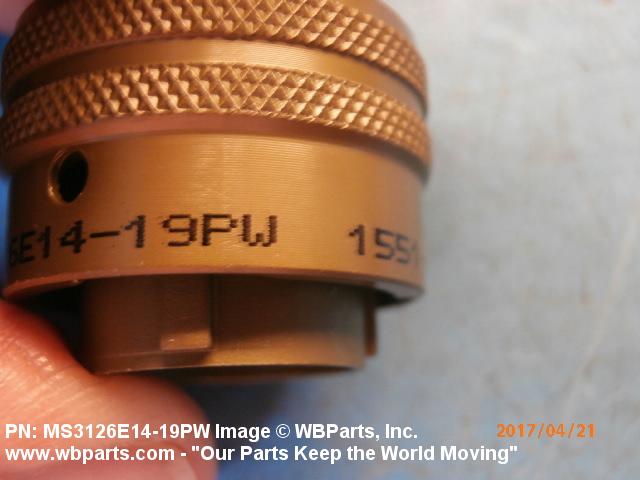

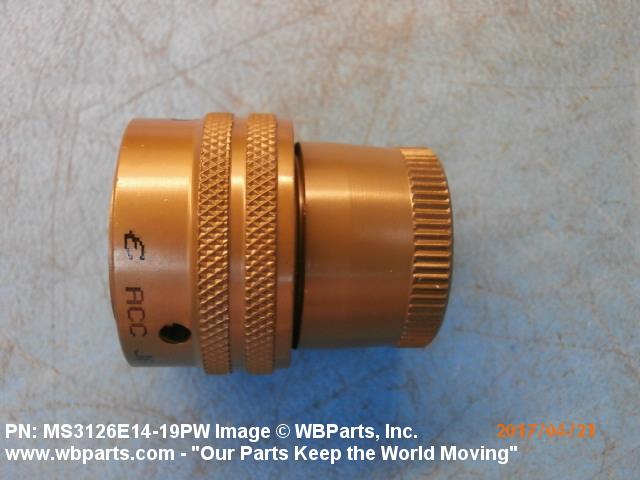

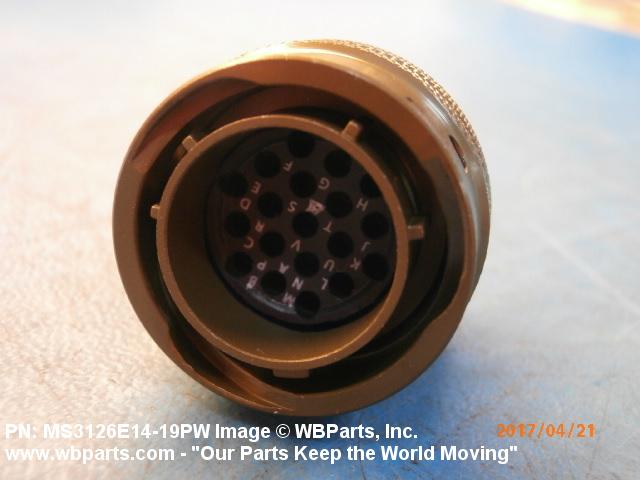

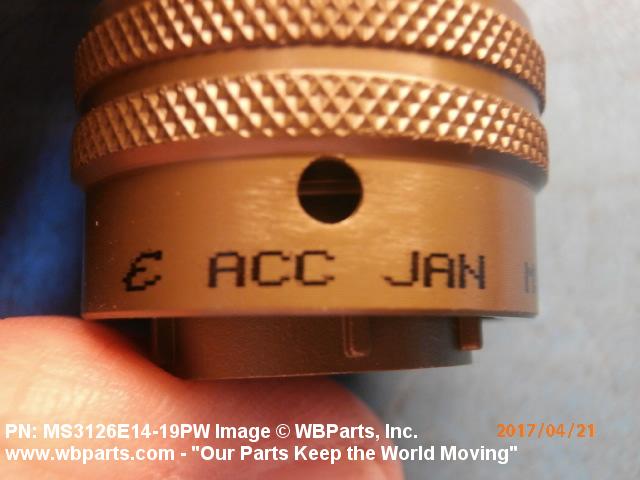

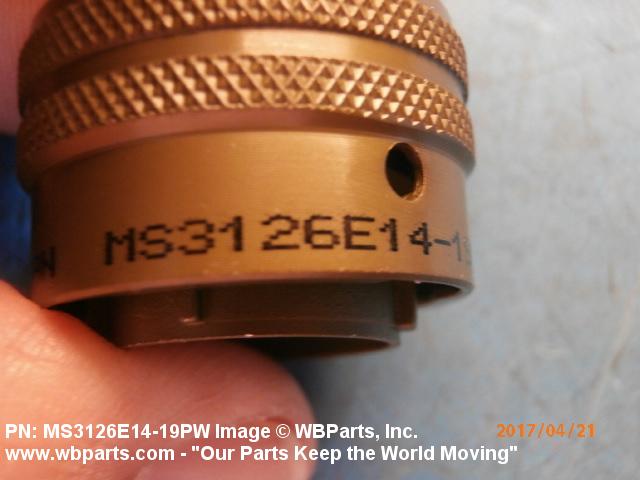

Drawings & Photos | NSN 5935-01-110-1941

Part Number	Request Date	QTY	Origin
5935-01-110-1941	2023-02-33	444	DIBBS
5935-01-110-1941	2022-08-230	70	DIBBS
5935-01-110-1941	2022-02-41	23	DIBBS
5935-01-110-1941	2021-07-187	25	DIBBS
5935-01-110-1941	2021-06-172	25	DIBBS
5935-01-110-1941	2021-03-77	377	DIBBS
5935-01-110-1941	2019-11-315	29	DIBBS
MS3126E1419PW	2017-03-81	1	United States
MS3476W1419PW	2013-09-253	6	United States
MILDTL26482	2012-06-179	20	US
MS3476L14-19PW	2011-11-315	500
5935-01-110-1941	2011-03-66	1	US
MS3476W1419PW	2011-02-39	5	US
MILC26482	2011-01-27	4	Portugal
MILDTL26482	2011-01-27	4	Portugal
5935-01-110-1941	2010-04-100	150	DIBBS
M8372321R2214N	2010-01-14	1	US

Cross Reference | NSN 5935-01-110-1941

Part Number	Cage Code	Manufacturer
414-0014-030	94756	BOEING COMPANY, THE DBA BOEING
56N339P201	A1615	SELEX ES SPA
6D69240 ITEM 5	04808	CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION
AN3102-22-14S	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AS50151	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M83723/21R2214N	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-5015	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILC5015D	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILC83723-21	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3102E22-14SC	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3102H-22-14S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3102R22-14S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3102R22-14SC	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3452L22-14S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3452W22-14S	0BW78	J-T E C H
MS3452W22-14S	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MS3452W22-14S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-110-1941

Compare

Related Products | NSN 5935-01-110-1941

5935-01-110-1942, 5935-01-110-1943, 5935-01-110-2357, 5935-01-110-2358, 5935-01-110-2359

Technical Data | NSN 5935-01-110-1941

Characteristic	Specifications
BODY STYLE	5G STRAIGHT SHAPE, EXTERNAL COUPLING W/BACKSHELL
OVERALL LENGTH	1.662 INCHES MAXIMUM
OVERALL HEIGHT	1.625 INCHES NOMINAL
OVERALL WIDTH	1.625 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT	1.250 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH	1.250 INCHES NOMINAL
DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE	0.750 INCHES NOMINAL
UNTHREADED MOUNTING HOLE DIAMETER	0.120 INCHES NOMINAL
CONNECTOR LOCKING METHOD	INTERNALLY THREADED COUPLING NUT
THREADED DEVICE TYPE	COUPLING FACILITY
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	1.375 INCHES
THREAD CLASS	2B
THREAD QUANTITY PER INCH	18
THREAD DIRECTION	RIGHT-HAND
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY
SHELL SURFACE TREATMENT	CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	0.0
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	AVAD 22-14 SINGLE MATING END
INSERT MATERIAL	SILICON SINGLE MATING END
INCLUDED CONTACT QUANTITY	19 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS	13.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	500.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS	700.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF
TEST DATA DOCUMENT	81349-MIL-C-5015 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS3452 GOVERNMENT STANDARD
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.019 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD

Restrictions/Controls & Freight Information | NSN 5935-01-110-1941

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-110-1941

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	A	Item requires special handling/or condemnation procedures because of specific reasons (i.e., precious metal content, high dollar value, critical material or hazardous material). Refer to appropriate manuals/directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
