NSN 5935-01-110-3236 0106751, 010675-1, 314221

Product Details | ELECTRICAL RECEPTACLE CONNECTOR

5935-01-110-3236 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: 0106751, 010675-1, 314221, 31-4221, 5935-01-110-3236, 01-110-3236, 5935011103236, 011103236

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	28 MAR 1981	01-110-3236	15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL )

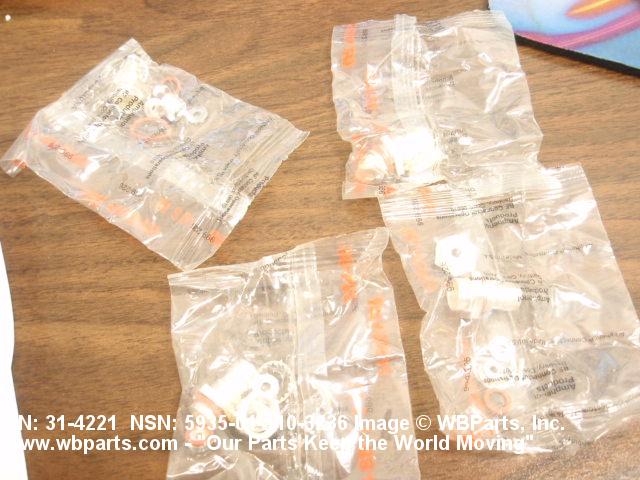

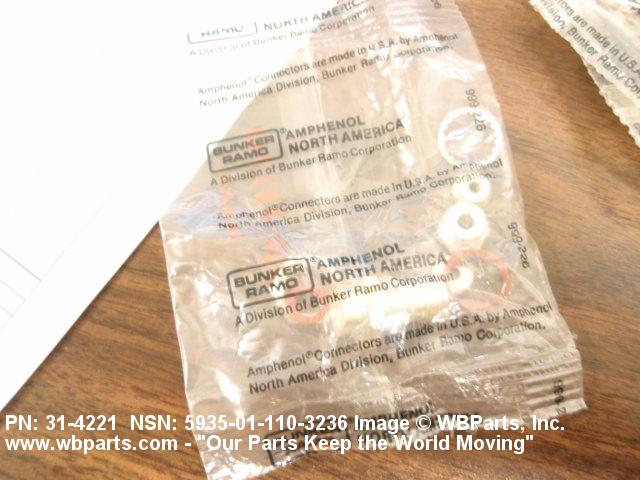

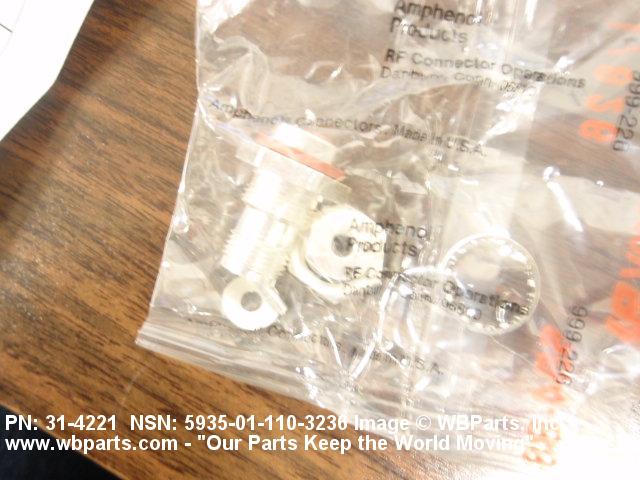

Drawings & Photos | NSN 5935-01-110-3236

Part Number	Request Date	QTY	Origin
5935-01-110-3236	2018-11-319	2	US
5935-01-110-3236	2018-10-292	18	United States
5935-01-110-3236	2018-10-284	18	United States
5935-01-110-3236	2018-10-283	18	DIBBS
5935-01-110-3236	2017-10-296	19	US
5935-01-110-3236	2017-05-121	19	United States
5935-01-110-3236	2017-05-121	19	United States
5935-01-110-3236	2017-05-121	19	United States
5935-01-110-3236	2017-04-120	19	DIBBS
5935-01-110-3236	2015-06-173	1	FR
5935-01-110-3236	2015-02-55	45	US
5935-01-110-3236	2015-02-40	45	United States
5935-01-110-3236	2015-02-37	45	United States
5935-01-110-3236	2015-02-36	45	US
5935-01-110-3236	2015-02-35	45	United States
5935-01-110-3236	2015-02-35	45	United States
5935-01-110-3236	2015-02-34	45	DIBBS
314221	2014-12-343	35	United States
5935-01-110-3236	2014-12-342	35	DIBBS
314221	2014-11-315	19	US
5935-01-110-3236	2014-11-309	19	DIBBS
5935-01-110-3236	2014-10-288	9	US
314221	2014-10-286	9	US
314221	2014-10-286	15	US
5935-01-110-3236	2014-10-286	9	United States
5935-01-110-3236	2014-10-282	9	United States
5935-01-110-3236	2014-10-281	9	DIBBS
5935-01-110-3236	2012-04-116	6	US
5935-01-110-3236	2012-03-90	11	US
5935-01-110-3236	2012-03-82	11	DIBBS
5935-01-110-3236	2012-03-61	28	US
5935-01-110-3236	2011-12-336	28	US
314221	2011-11-332	28	US
314221	2011-11-332	11	United States
5935-01-110-3236	2011-11-329	28	DIBBS
5935-01-110-3236	2011-11-308	9	DIBBS
5935-01-110-3236	2011-09-259	86	us
314221	2011-09-259	1	United States
5935-01-110-3236	2011-09-258	86	DIBBS
5935-01-110-3236	2010-11-314	1	United States
5935-01-110-3236	2010-10-301	86	DIBBS
314221	2010-05-146	77	United States
5935-01-110-3236	2010-04-105	81	DIBBS
5935-01-110-3236	2010-03-74	5	DIBBS
5935-01-110-3236	2009-06-175	90	DIBBS
5935-01-110-3236	2009-06-159	90	DIBBS
5935-01-110-3236	2009-05-135	90	United States
5935-01-110-3236	2009-05-126	50	US
5935-01-110-3236	2009-02-36	83	DIBBS
5935-01-110-3236	2009-01-21	2	DIBBS
5935-01-110-3236	2008-12-338	18	DIBBS
5935-01-110-3236	2008-11-323	18	DIBBS
5935-01-110-3236	2008-08-224	10	DIBBS
5935-01-110-3236	2008-08-224	50	DIBBS
5935-01-110-3236	2006-01-19	88	DIBBS

Cross Reference | NSN 5935-01-110-3236

Part Number	Cage Code	Manufacturer
010675-1	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
31-4221	02660	AMPHENOL CORP SPECTRA-STRIP/ITD
31-4221	46PU2	WBPARTS, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-110-3236

Compare

Related Products | NSN 5935-01-110-3236

5935-01-110-3237, 5935-01-110-3239, 5935-01-110-3240, 5935-01-110-3241, 5935-01-110-3242

Technical Data | NSN 5935-01-110-3236

Characteristic	Specifications
BODY STYLE	13L STRAIGHT SHAPE, EXTERNAL COUPLING
OVERALL LENGTH	1.562 INCHES NOMINAL
OVERALL DIAMETER	0.637 INCHES NOMINAL
MOUNTING FACILITY THICKNESS	0.125 INCHES MAXIMUM
BUSHING ACCOMMODATION HOLE SHAPE	ROUND W/FLAT
CONNECTOR LOCKING METHOD	EXTERNALLY THREADED SHELL
THREADED DEVICE TYPE	COUPLING FACILITY AND MOUNTING BUSHING
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	0.438 INCHES AND 0.500 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	28 AND 20
THREAD DIRECTION	RIGHT-HAND
CONNECTOR CABLE STRAIN RELIEF METHOD	COMPRESSION NUT
CABLE ENTRANCE DIAMETER	0.144 INCHES NOMINAL
SHELL TYPE	SOLID
SHELL MATERIAL	STEEL CORROSION RESISTING
SHELL MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-763,TYPE 416 FED SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT	PASSIVATE
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	ABCZ TNC SINGLE MATING END
INSERT MATERIAL	PLASTIC POLYTETRAFLUOROETHYLENE SINGLE MATING END
INSERT MATERIAL DOCUMENT AND CLASSIFICATION	MIL-P-19468 MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END
INCLUDED CONTACT QUANTITY	1 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	COAXIAL SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	500.0 SINGLE MATING END SINGLE CONTACT GROUPING
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS	50.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM FREQUENCY RATING	11000.0 MEGAHERTZ SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-530 FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD AND COPPER SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TY 2,CL 2 MIL SPEC 1ST TREATMENT RESPONSE AND MIL-C-14550,CL 4 MIL SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	CORROSION RESISTANT AND MOISTURE RESISTANT AND VIBRATION RESISTANT AND

Restrictions/Controls & Freight Information | NSN 5935-01-110-3236

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-110-3236

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
