Product Details | ELECTRICAL PLUG CONNECTOR

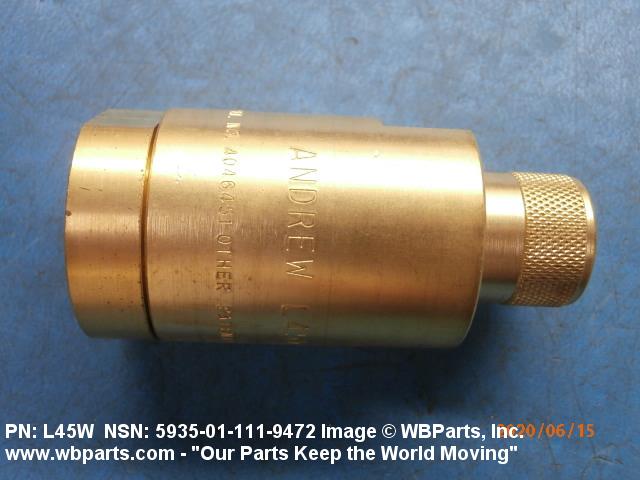

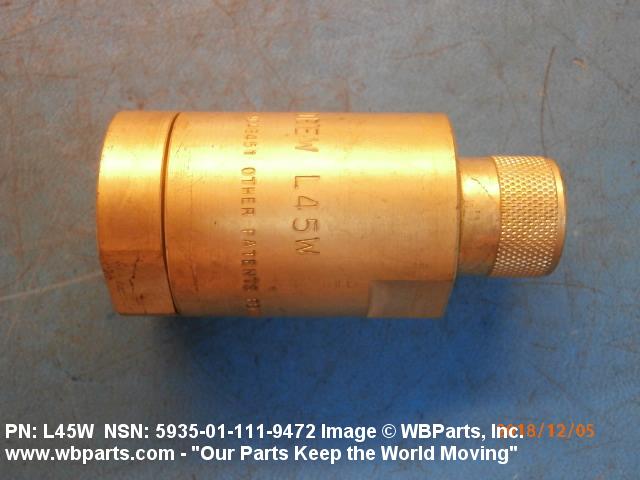

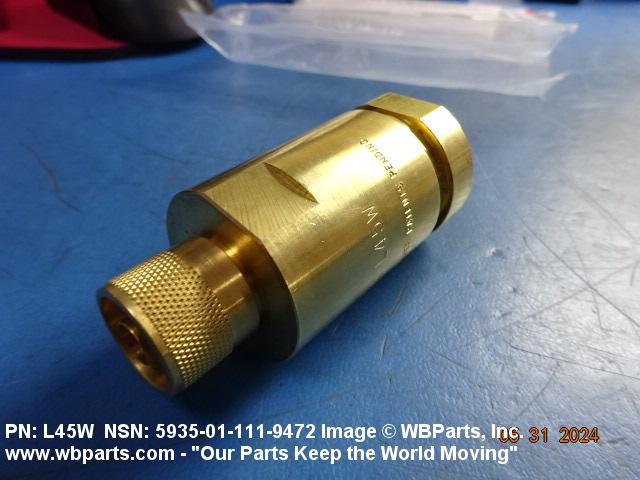

5935-01-111-9472 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: NP078A0, J950004000, J95-0004-000, L45W, 1217045203, 1217045-203, 3570086010, 357-0086-010, 50000042, 5000-0042, 5935-01-111-9472, 01-111-9472, 5935011119472, 011119472

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	24 APR 1981	01-111-9472	01938 ( CONNECTOR, PLUG, ELECTRICAL )

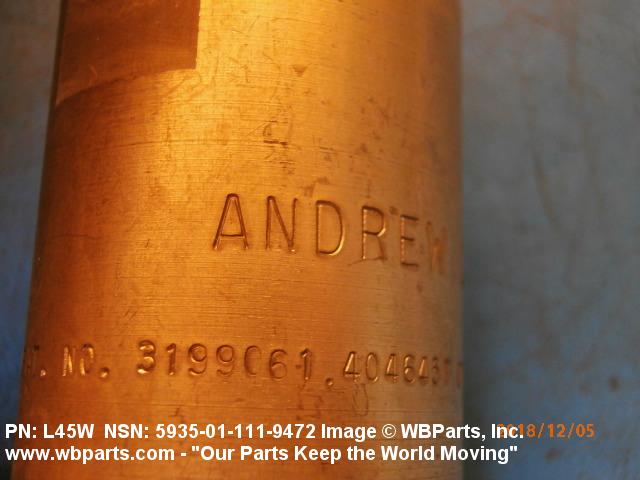

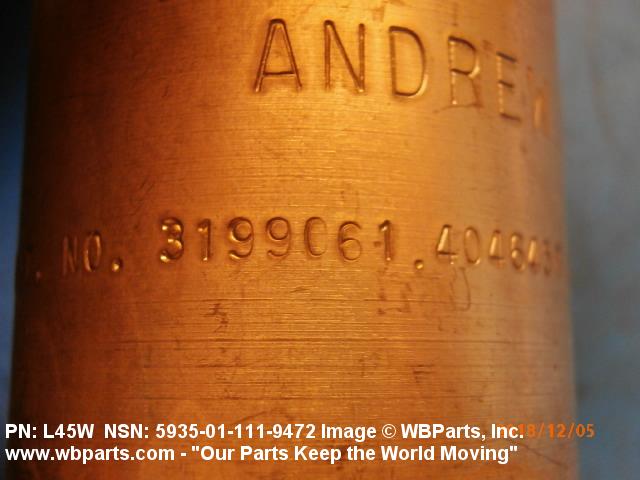

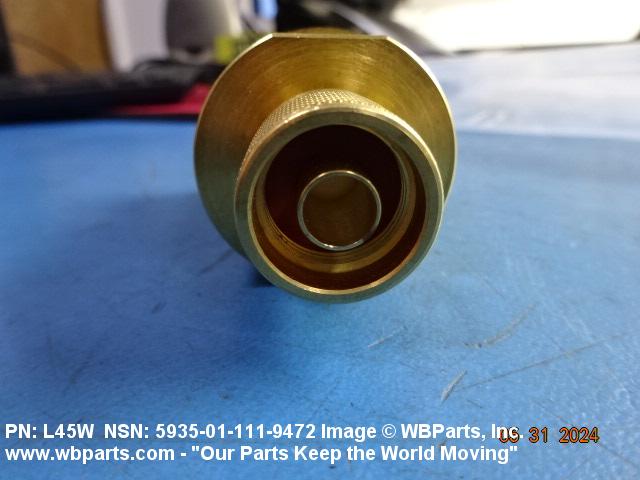

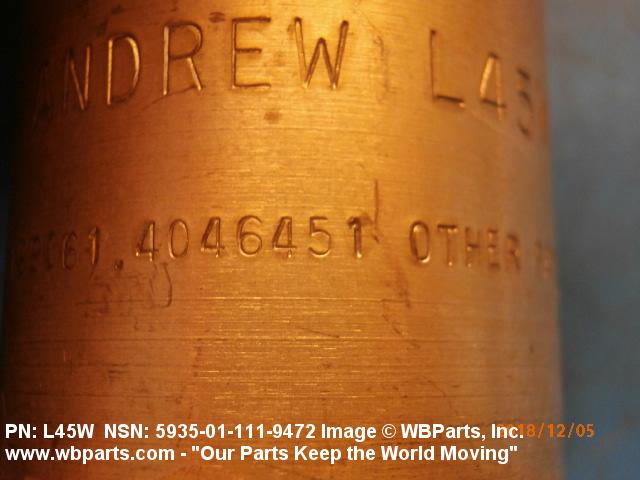

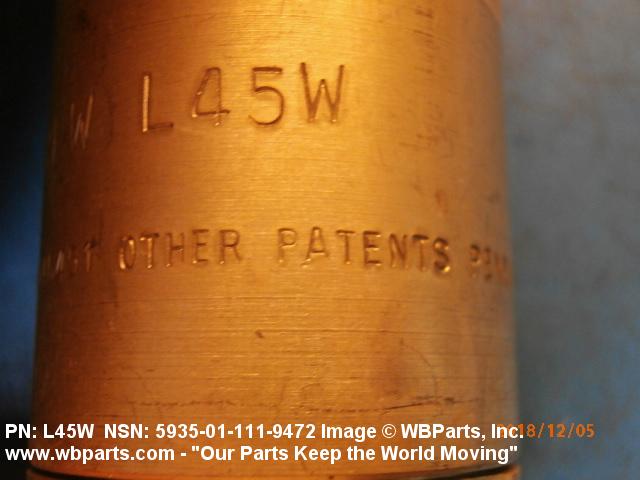

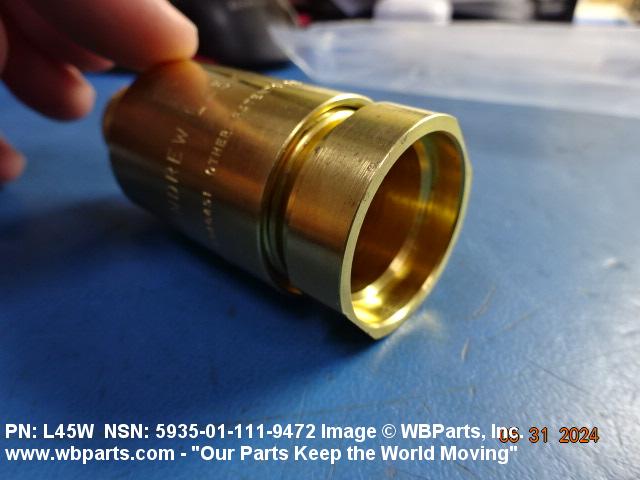

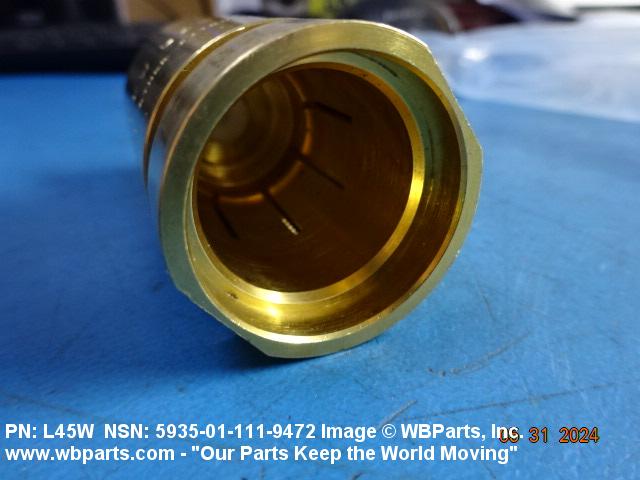

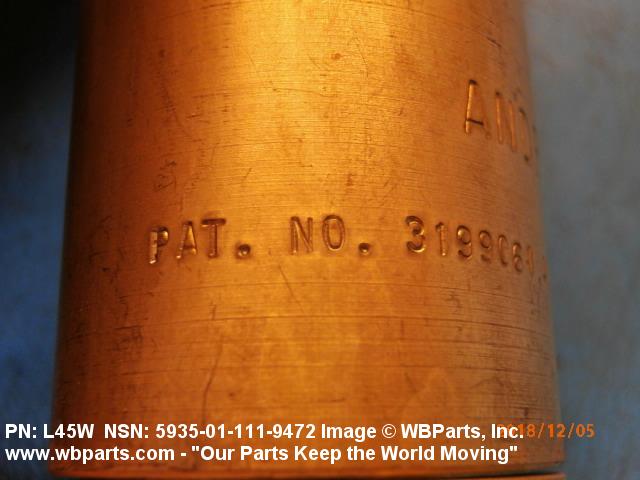

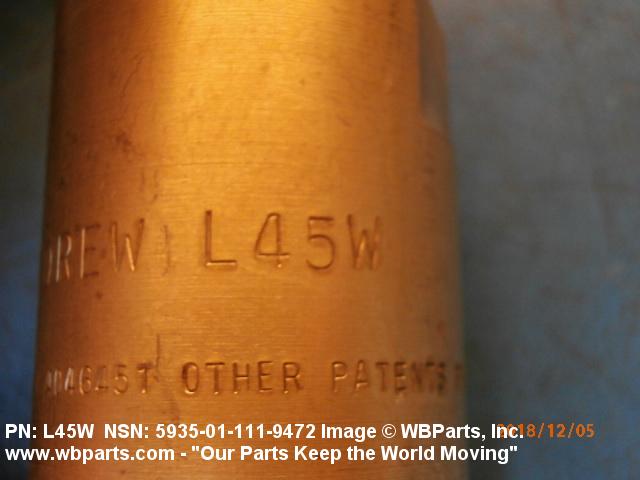

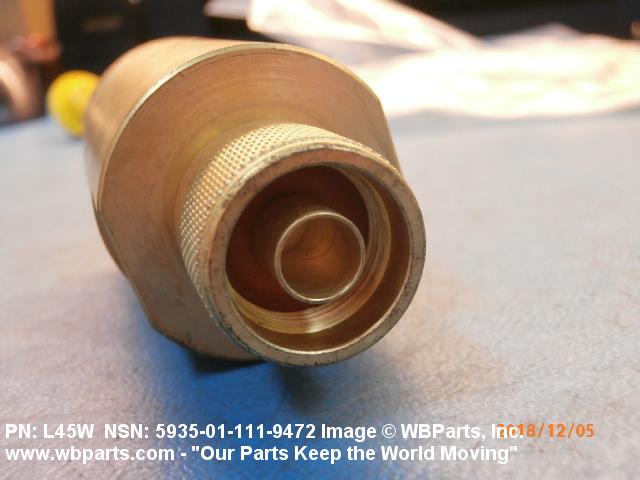

Drawings & Photos | NSN 5935-01-111-9472

Part Number	Request Date	QTY	Origin
L45W	2024-05-145	1	us
L45W	2023-07-212	3	us
1217045-203	2022-03-76	81	DIBBS
357-0086-010	2022-03-76	81	DIBBS
5000-0042	2022-03-76	81	DIBBS
NP078A0	2022-03-76	81	DIBBS
1217045-203	2021-12-350	27	DIBBS
357-0086-010	2021-12-350	27	DIBBS
5000-0042	2021-12-350	27	DIBBS
NP078A0	2021-12-350	27	DIBBS
L45W	2021-12-337	1	us
5935-01-111-9472	2020-09-274	7	Netherlands
5935-01-111-9472	2020-03-73	100	Netherlands
1217045-203	2019-04-107	114	DIBBS
357-0086-010	2019-04-107	114	DIBBS
5000-0042	2019-04-107	114	DIBBS
NP078A0	2019-04-107	114	DIBBS
1217045-203	2019-03-68	114	DIBBS
357-0086-010	2019-03-68	114	DIBBS
5000-0042	2019-03-68	114	DIBBS
NP078A0	2019-03-68	114	DIBBS
1217045-203	2019-02-45	61	DIBBS
357-0086-010	2019-02-45	61	DIBBS
5000-0042	2019-02-45	61	DIBBS
NP078A0	2019-02-45	61	DIBBS
1217045-203	2019-02-43	50	DIBBS
357-0086-010	2019-02-43	50	DIBBS
5000-0042	2019-02-43	50	DIBBS
NP078A0	2019-02-43	50	DIBBS
L45W	2019-01-29	24	Netherlands
5935-01-111-9472	2018-10-297	45	Netherlands
5935-01-111-9472	2014-09-255	97	DIBBS
5935-01-111-9472	2014-03-65	79	DIBBS
5935-01-111-9472	2014-01-05	54	DIBBS
5935-01-111-9472	2011-08-213	93	DIBBS
5935-01-111-9472	2009-04-105	100	DIBBS
5935-01-111-9472	2009-01-30	281	DIBBS

Cross Reference | NSN 5935-01-111-9472

Part Number	Cage Code	Manufacturer
1217045-203	03538	LOCKHEED MARTIN CORPORATION DIV MST
1217045-203	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
357-0086-010	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
357-0086-010	95105	ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS
5000-0042	95077	SV MICROWAVE, INC DIV SV MICROWAVE
J95-0004-000	14304	HARRIS CORPORATION DBA HARRIS RF COMMUNICATION
L45W	84147	ANDREW LLC
NP078A0	0EFR2	CONNECTEC COMPANY, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-111-9472

Compare

Related Products | NSN 5935-01-111-9472

5935-01-111-9473, 5935-01-111-9474, 5935-01-111-9475, 5935-01-111-9476, 5935-01-111-9477

Technical Data | NSN 5935-01-111-9472

Characteristic	Specifications
BODY STYLE	5D STRAIGHT SHAPE, INTERNAL COUPLING

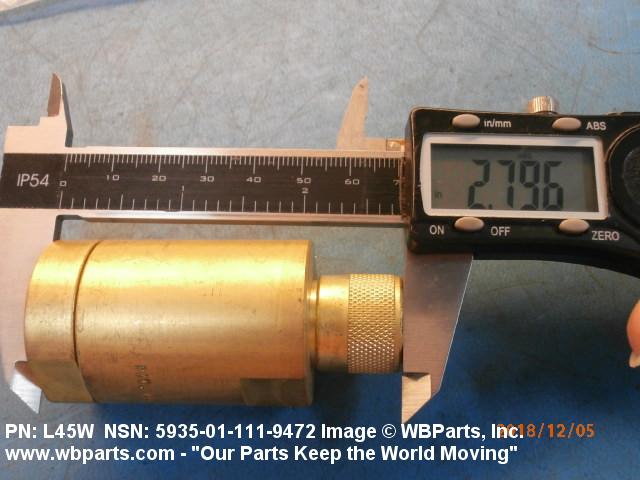

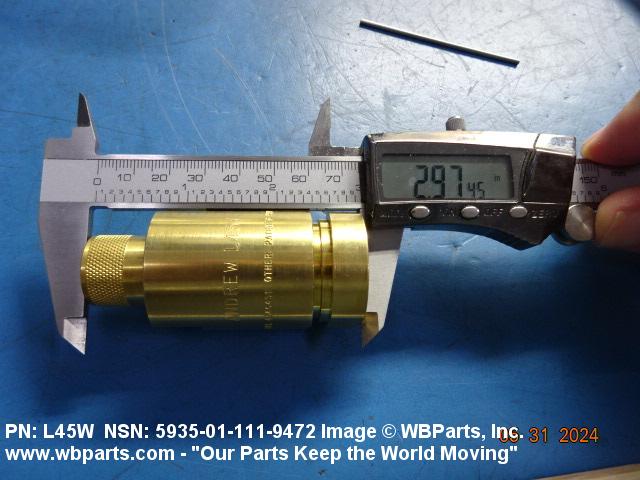

OVERALL LENGTH	2.830 INCHES NOMINAL

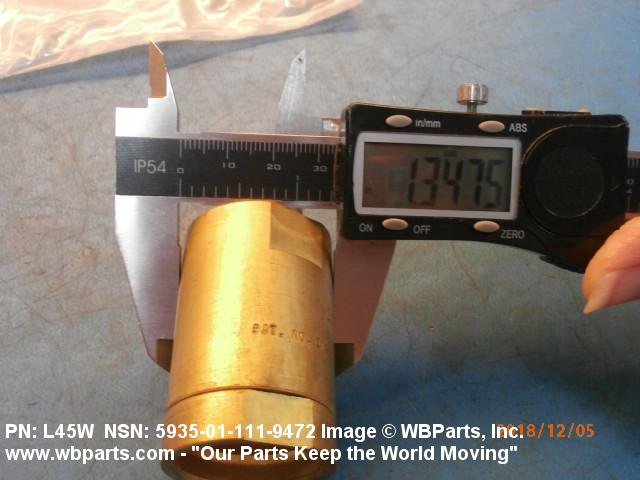

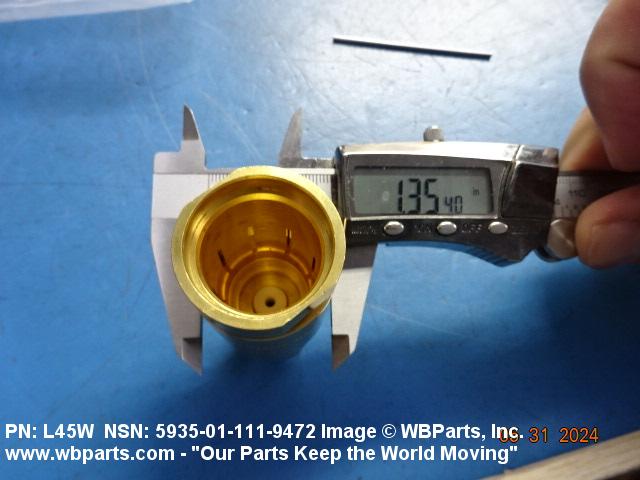

OVERALL DIAMETER	1.370 INCHES NOMINAL
CONNECTOR LOCKING METHOD	BAYONET LATCH
SHELL TYPE	SOLID
SHELL MATERIAL	COPPER ALLOY
SHELL SURFACE TREATMENT	CHROMATE
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	ABCE N SINGLE MATING END
INCLUDED CONTACT QUANTITY	1 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING

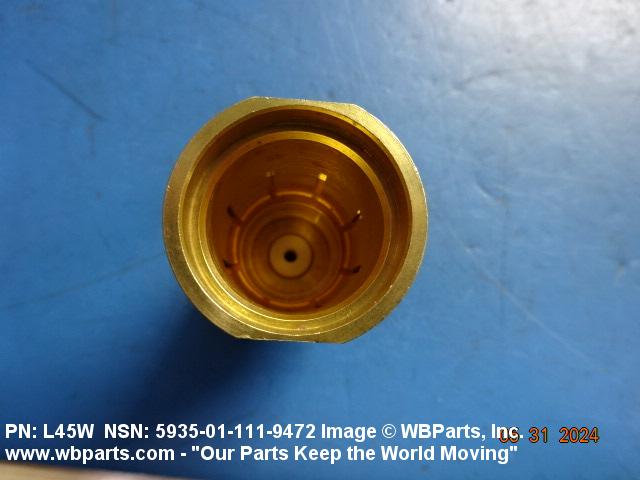

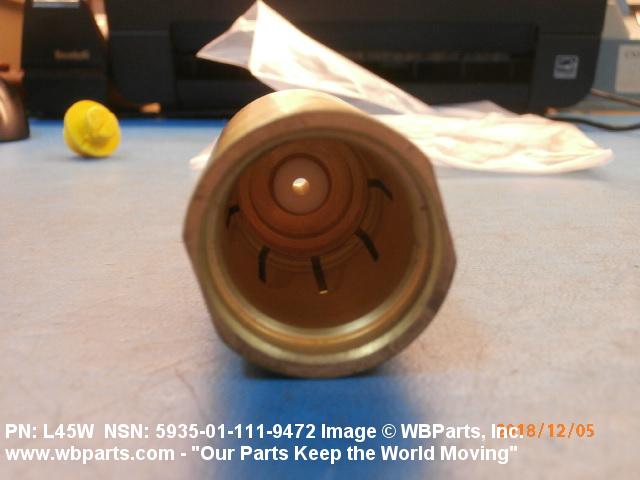

INCLUDED CONTACT TYPE	COAXIAL PIN SINGLE MATING END SINGLE CONTACT GROUPING
RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS	50.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TYPE 2,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	CORROSION RESISTANT AND MOISTURE RESISTANT AND WEATHERPROOF
SPECIAL FEATURES	WEAPON SYSTEM ESSENTIAL
CRITICALITY CODE JUSTIFICATION	FEAT
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.005 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACE GOLD
III END ITEM IDENTIFICATION	TICONDEROGA CLASS CG (47); SPRUANCE CLASS DD (963); CONSOLIDATED SPACE OPERATIONS CENTER; LANDING CRAFT AIR CUSHION (LCAC); VIRGINIA CLASS CGN (41); RADIO ANGRC171; NIMITZ CLAZZ CVN; FORRESTAL CLASS CV; KIDD CLASS DDG
