NSN 5935-01-115-0215 MS3116E123P, MS3116E-12-3P, MS3116E123S

Product Details | ELECTRICAL PLUG CONNECTOR

5935-01-115-0215 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS3116E123P, MS3116E-12-3P, MS3116E123S, MS3116E12-3S, MS3116F123S, MS3116F12-3S, MS3116W123S, MS3116W12-3S, MS3126F123S, MS3126F12-3S, MS3126P123S, MS3126P12-3S, MS3476A12035, MS3476A12-035, MS3476A123S, MS3476A12-3S, MS3476E123S, MS3476E12-3S, MS3476L123S, MS3476L12-3S, MS3476L123SN, MS3476L12-3SN, MS3476W123C, MS3476W12-3C, MS3476W123S, MS3476W12-3S, M83723/13R1203N, M8372313R1203N, MB16A1203SN, MB16A-1203SN, MILC26482, MIL-C-26482, PT06E123SSR, PT06E12-3S-SR, PT06SE123SSR, PT06SE12-3SSR, PW06B123S, PW06B12-3S, 7909922-00, 108-118-112, 3630318240, 3630-3182-40, 5935-01-115-0215, 01-115-0215, 5935011150215, 108118112, 790992200, 011150215

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	26 JUN 1981	01-115-0215	01938 ( CONNECTOR, PLUG, ELECTRICAL )

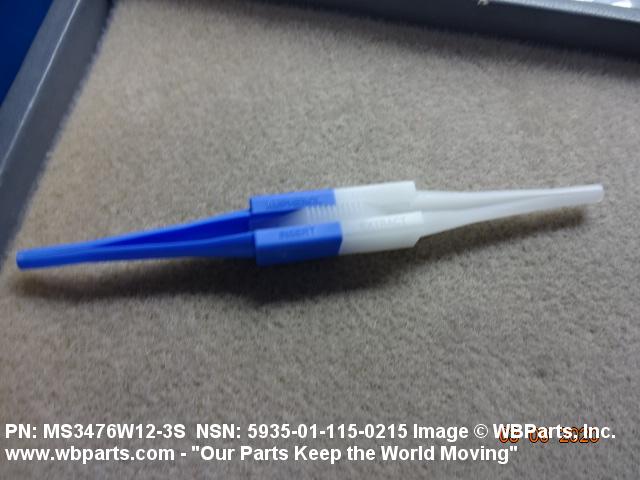

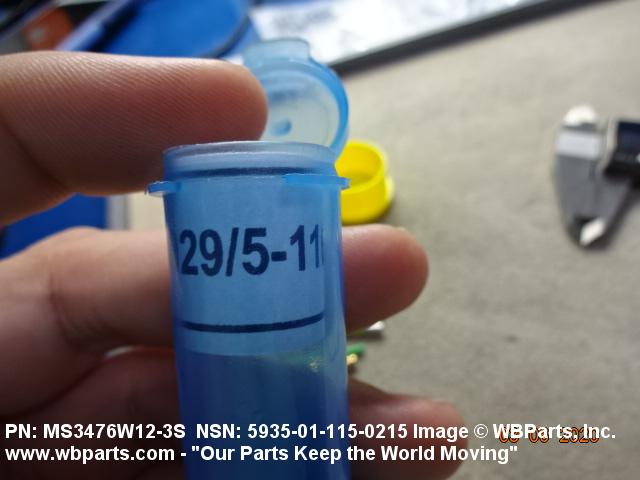

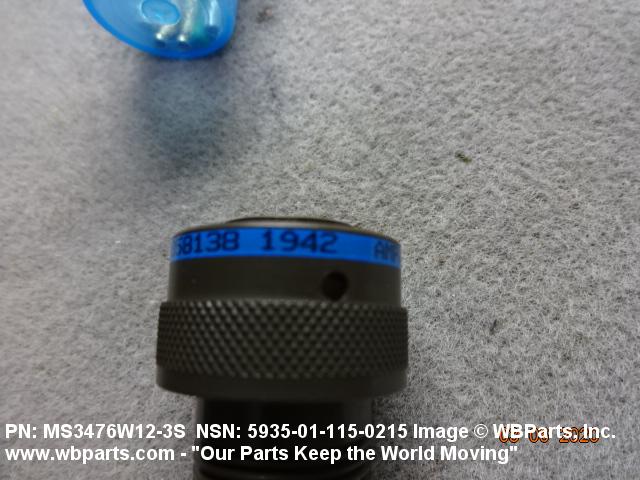

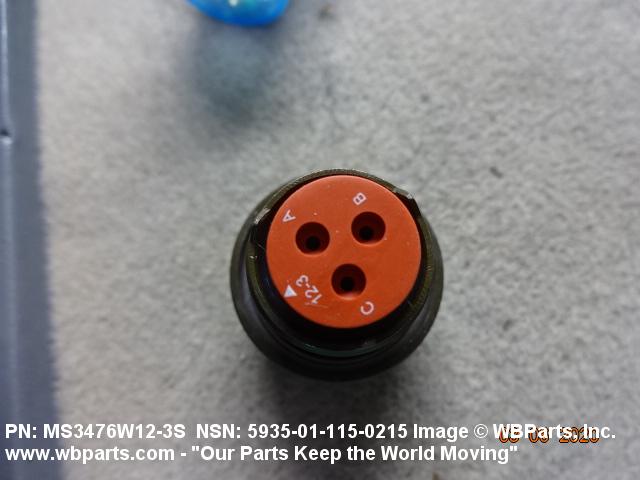

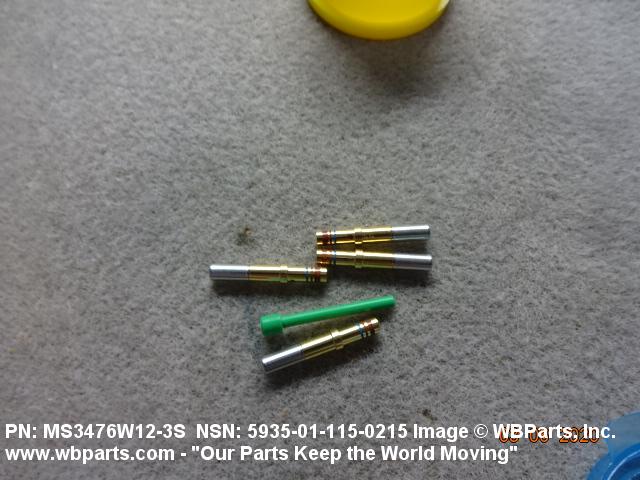

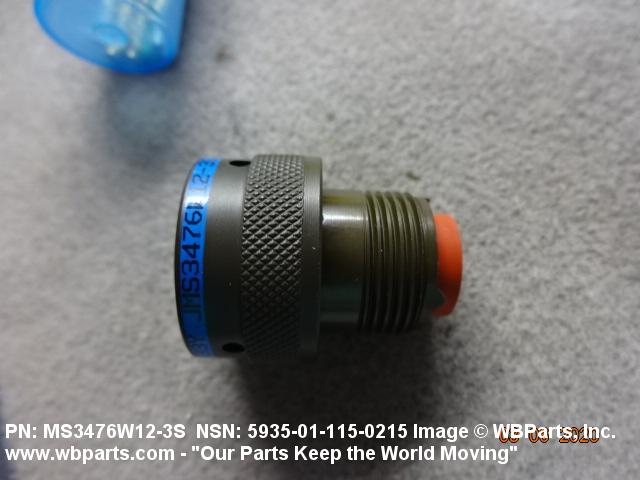

Drawings & Photos | NSN 5935-01-115-0215

Part Number	Request Date	QTY	Origin
PT06SE123SSR	2025-04-94	7	United States
5935-01-115-0215	2022-01-18	1	US
MS3116F123S	2021-08-228	1	JP
MS3116F123S	2021-08-228	1	JP
MS3476W123S	2021-08-217	30	United States
5935-01-115-0215	2021-05-126	2770	DIBBS
5935-01-115-0215	2021-03-77	1075	DIBBS
5935-01-115-0215	2021-02-56	5	US
5935-01-115-0215	2020-02-58	2	United States
5935-01-115-0215	2020-01-13	2	United States
5935-01-115-0215	2019-11-319	4	United States
5935-01-115-0215	2017-03-74	10	us
MS3476W123S	2016-07-209	2	us
MS3476W12-3S	2016-07-207	2
MS3476W123S	2016-02-57	1	United States
5935-01-115-0215	2015-09-247	2	US
MS3126F123S	2014-10-302	1	United States
MS3126F123S	2013-05-121	1	United States
5935-01-115-0215	2012-10-298	30	United States
MS3116E123S	2012-07-191	18	United States
5935-01-115-0215	2012-05-144	23	Taiwan
5935-01-115-0215	2012-04-110	1	US
MS3476W123S	2012-03-66	76	United States
MS3116F123S	2011-10-290	225	JO
MS3116E123S	2011-08-221	31	United States
MILC26482	2011-01-27	4	Portugal
5935-01-115-0215	2010-05-140	704	DIBBS
5935-01-115-0215	2010-03-70	647	DIBBS
5935-01-115-0215	2009-12-362	373	DIBBS
5935-01-115-0215	2009-07-187	1	US
5935-01-115-0215	2006-12-350	2	United Arab Emirates

Cross Reference | NSN 5935-01-115-0215

Part Number	Cage Code	Manufacturer
108-118-112	83330	DIALIGHT CORPORATION
3630-3182-40	54274	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
7909922-00	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
M83723/13R1203N	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MB16A-1203SN	14283	AMPHENOL OPTIMIZE MANUFACTURING CO. DIV AMPHENOL AEROSPACE OPERATIONS
MIL-C-26482	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3116E-12-3P	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3116E12-3S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3116F12-3S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476A12-035	59976	AERO-ELECTRIC CONNECTOR, INC.
MS3476A12-3S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476E12-3S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476L12-3S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476L12-3SN	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476W12-3C	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3476W12-3S	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PT06E12-3S-SR	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
PW06B12-3S	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-115-0215

Compare

Related Products | NSN 5935-01-115-0215

5935-01-115-0216, 5935-01-115-0217, 5935-01-115-0218, 5935-01-115-0219, 5935-01-115-0220

Technical Data | NSN 5935-01-115-0215

Characteristic	Specifications
BODY STYLE	7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH	1.420 INCHES MAXIMUM
OVERALL DIAMETER	1.043 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	BAYONET SLOT
THREADED DEVICE TYPE	BACK SHELL
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	0.750 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	20
THREAD DIRECTION	RIGHT-HAND
NOMINAL THREAD LENGTH	0.290 INCHES
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY 6061 OR ALUMINUM ALLOY 380.0 OR ALUMINUM ALLOY A380.0
SHELL MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-367 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-591 FED SPEC 2ND MATERIAL RESPONSE OR QQ-A-591 FED SPEC 3RD MATERIAL RESPONSE
SHELL SURFACE TREATMENT	CADMIUM AND CHROMATE
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	0.0
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	ADAF 12-3 SINGLE MATING END
INSERT MATERIAL	PLASTIC SINGLE MATING END
INCLUDED CONTACT QUANTITY	3 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	1000.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD AND NICKEL SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204,TY 2,GRADE C,CL 1 MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290,CL 2 FED SPEC 2ND TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AND THERMAL SHOCK RESISTANT AND CORROSION RESISTANT
SPECIAL FEATURES	IN ORDER TO COMPLETE THE CONNECTOR ASSEMBLY,THE USER MUST OBTAIN/PROVIDE THE BACKSHELL; STANDARD VERSIONS MAY BE ORDERED AS NSN 5935-01-184-7189,P/N

Restrictions/Controls & Freight Information | NSN 5935-01-115-0215

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-115-0215

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
