NSN 5935-01-115-1961 M12883/40-01, M128834001, B92876
Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET
5935-01-115-1961 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".
Part Alternates: M12883/40-01, M128834001, B92876, BR64S155, BR64-S155 , JD4A038, J-D4A-038 , MIL-S-12883/40, MILS1288340, T503004702, 5935-01-115-1961, 01-115-1961, 5935011151961, 011151961
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 JUN 1981 | 01-115-1961 | 28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS ) |
Drawings & Photos | NSN 5935-01-115-1961
Demand History | NSN 5935-01-115-1961
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-115-1961 | 2023-10-292 | 267 | DIBBS |
| 5935-01-115-1961 | 2022-04-91 | 314 | DIBBS |
| 5935-01-115-1961 | 2022-03-79 | 314 | DIBBS |
| M128834001 | 2021-03-82 | 20 | United States |
| 5935-01-115-1961 | 2020-04-121 | 376 | DIBBS |
| 5935-01-115-1961 | 2019-03-66 | 134 | DIBBS |
| 5935-01-115-1961 | 2015-07-210 | 222 | DIBBS |
| 5935-01-115-1961 | 2014-11-308 | 101 | DIBBS |
| 5935-01-115-1961 | 2014-08-217 | 48 | DIBBS |
| M12883/40-01 | 2014-01-07 | 55 | IL |
| 5935-01-115-1961 | 2010-05-140 | 204 | DIBBS |
| 5935-01-115-1961 | 2010-04-113 | 105 | DIBBS |
| 5935-01-115-1961 | 2010-01-11 | 83 | DIBBS |
| M128834001 | 2008-01-09 | 100 | US |
Cross Reference | NSN 5935-01-115-1961
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B92876 | K0967 | MBDA UK LTD |
| M12883/40-01 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M12883/40-01 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| M2481-900016 | SZ003 | FORSVARETS MATERIELVERK DEFENCEMATERIEL ADMINISTRATION |
| MIL-S-12883/40 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-115-1961
Technical Data | NSN 5935-01-115-1961
| Characteristic | Specifications |
|---|---|

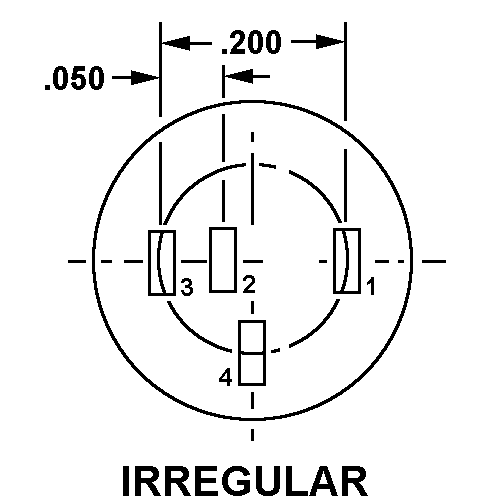

| CONTACT POSITION ARRANGEMENT STYLE | 419A IRREGULAR |
| ACCOMMODATED CONTACT QUANTITY | 14 |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 10.0 |
| CONTACT MATERIAL | COPPER ALLOY |
| CONTACT SURFACE TREATMENT | COPPER AND GOLD |
| BODY STYLE | 73B RECTANGULAR |
| OVERALL LENGTH | 1.710 INCHES NOMINAL |
| OVERALL HEIGHT | 0.880 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| TERMINAL TYPE AND QUANTITY | 14 CRIMP |
| MOUNTING TYPE FOR WHICH DESIGNED | CHASSIS |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE STYLE | 43D RECTANGULAR, W/THREE MOUNTING HOLES/SLOTS |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION LENGTH | 1.075 INCHES NOMINAL |
| BODY MOUNTING HOLE ACCOMMODATION WIDTH | 1.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG LENGTH | 1.406 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN OUTSIDE MOUNTING HOLES ALONG WIDTH | 0.625 INCHES NOMINAL |
| POLARIZATION TYPE | CONTACT POSITION |
| TEST DATA DOCUMENT | 81349-MIL-S-12883/40 SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-12883/40 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M12883/40-01 |
Restrictions/Controls & Freight Information | NSN 5935-01-115-1961
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
