Product Details | ELECTRICAL PLUG CONNECTOR

5935-01-115-4170 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: MS2548631, MS25486-31, AN72004, AS2548631, AS25486-31, AS7974, CP16234, CP1623-4, MILC7974, MIL-C-7974, R67G36B, 16A8-0101-0000-2/0, 16A80101000020, 5935-01-115-4170, 01-115-4170, 5935011154170, 011154170

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	05 JUL 1981	01-115-4170	01938 ( CONNECTOR, PLUG, ELECTRICAL )

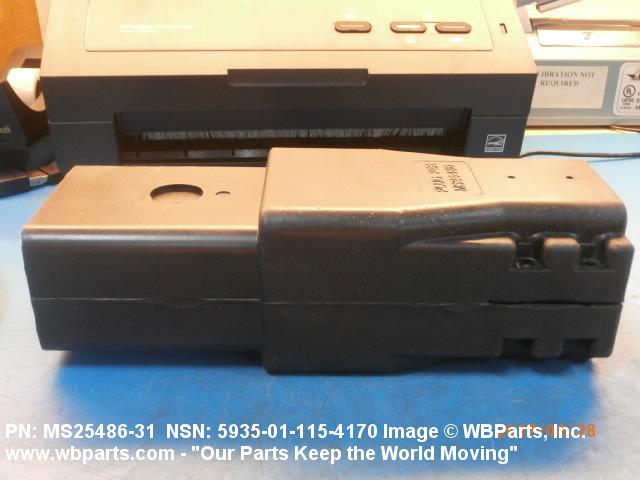

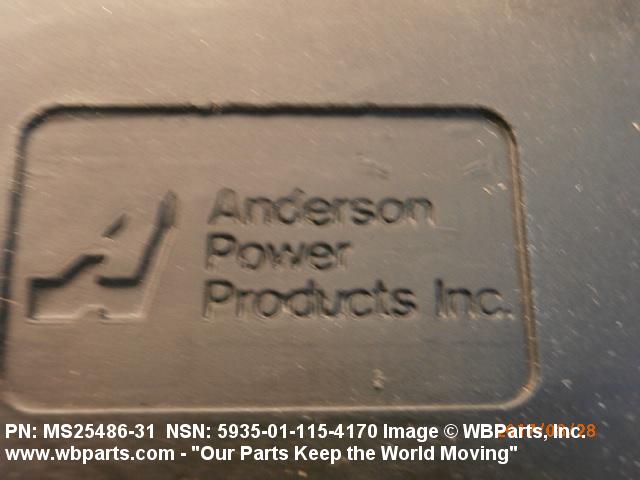

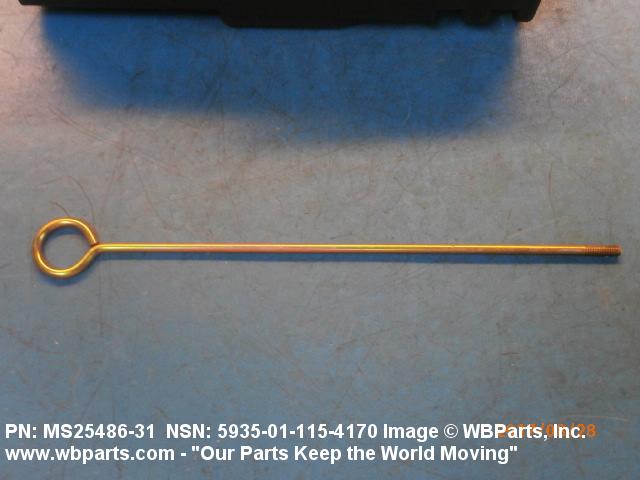

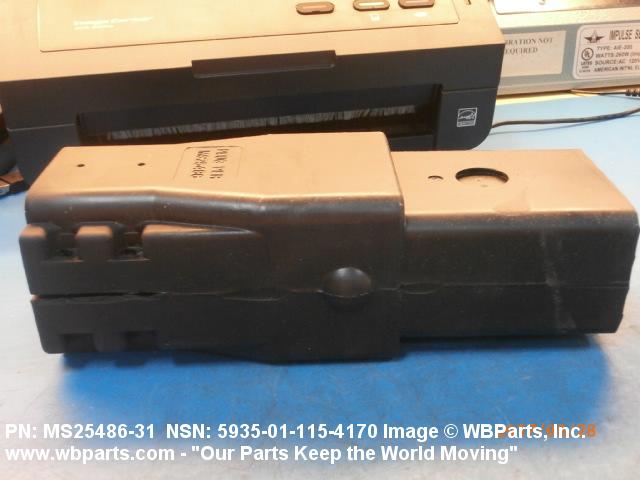

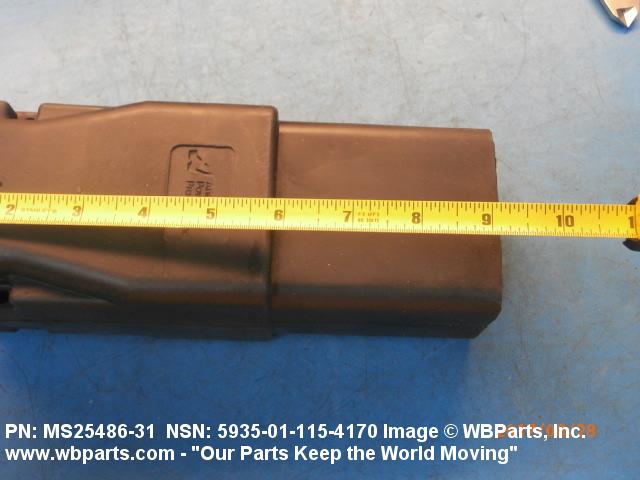

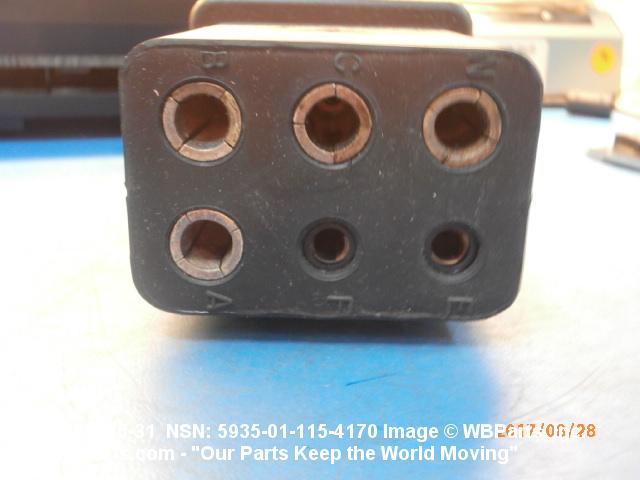

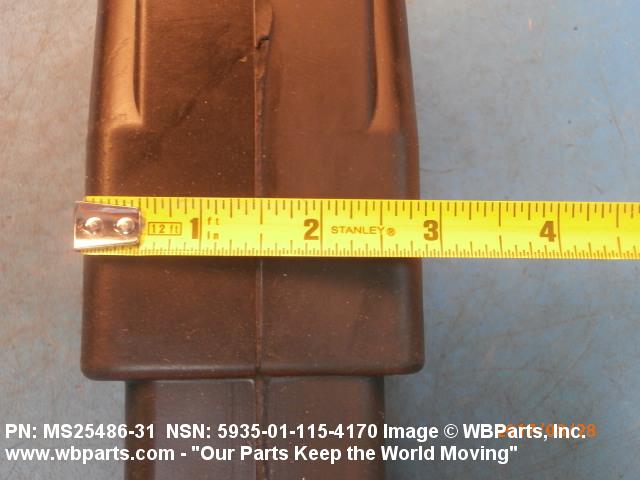

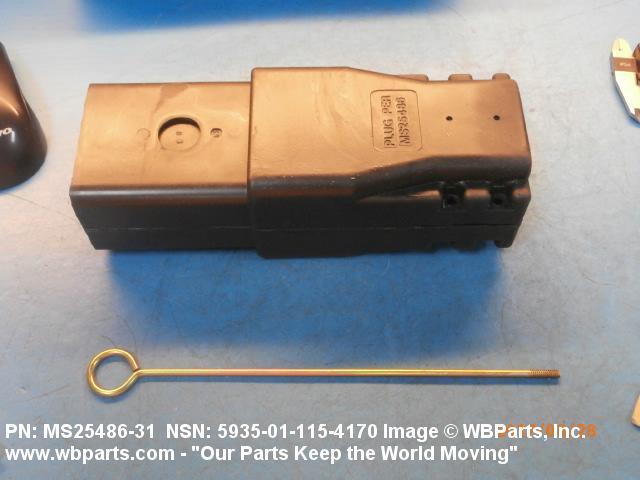

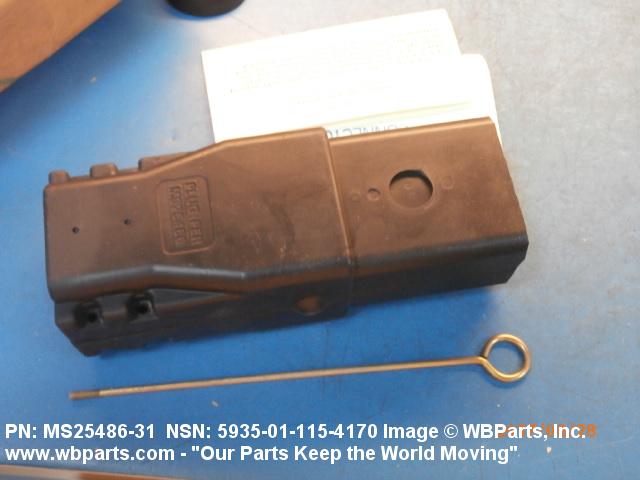

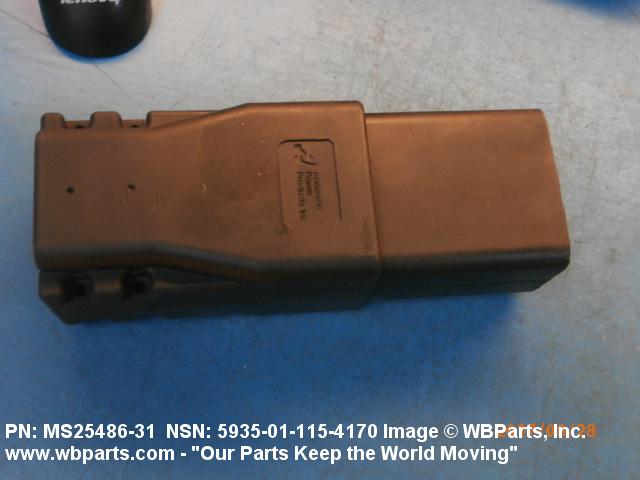

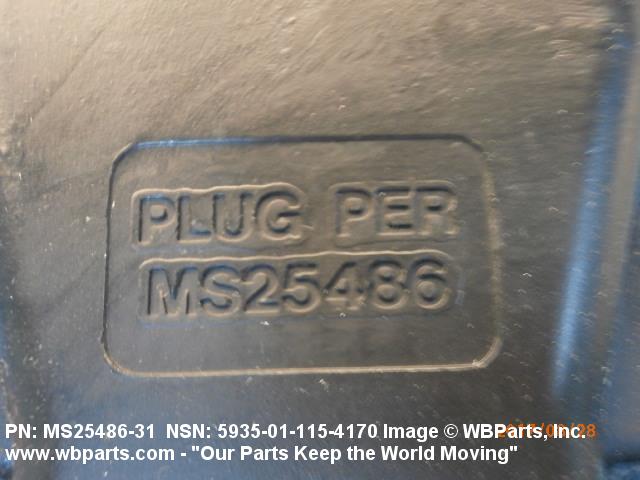

Drawings & Photos | NSN 5935-01-115-4170

Part Number	Request Date	QTY	Origin
5935-01-115-4170	2025-02-51	2	CL
MS2548631	2024-07-208	5	FI
AS7974	2024-05-137	1	United States
5935-01-115-4170	2023-10-282	8	United States
5935-01-115-4170	2022-03-90	33	DIBBS
5935-01-115-4170	2022-01-26	2	US
MS2548631	2019-06-156	3	United States
R67G36B	2019-05-135	3	United States
5935-01-115-4170	2019-05-122	43	DIBBS
16A80101000020	2019-04-100	3	United States
16A80101000020	2019-02-36	3	United States
5935-01-115-4170	2018-09-263	1	United States
5935-01-115-4170	2017-12-361	2	United States
R67G36B	2017-10-295	4	IN
5935-01-115-4170	2017-08-221	1	United States
5935-01-115-4170	2017-08-220	2	United States
5935-01-115-4170	2011-07-211	33	DIBBS
5935-01-115-4170	2011-02-49	39	DIBBS
MS2548631	2010-12-349	14	KR
5935-01-115-4170	2010-09-250	31	DIBBS
5935-01-115-4170	2010-07-210	34	DIBBS
5935-01-115-4170	2010-07-189	1	IT
5935-01-115-4170	2010-03-67	19	DIBBS
5935-01-115-4170	2009-12-338	12	DIBBS
5935-01-115-4170	2009-01-28	18	Indonesia
5935-01-115-4170	2008-11-317	29	DIBBS
5935-01-115-4170	2008-10-281	25	DIBBS
5935-01-115-4170	2008-05-122	22	DIBBS
5935-01-115-4170	2007-03-69	35	DIBBS
5935-01-115-4170	2007-03-69	27	DIBBS
5935-01-115-4170	2006-02-33	2	United States

Cross Reference | NSN 5935-01-115-4170

Part Number	Cage Code	Manufacturer
16A8-0101-0000-2/0	81861	VIKING ELECTRONICS, INC. DBA BURTON ELECTRICAL ENGINEERING
AN72004	F1385	TLD EUROPE
AS25486-31	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS7974	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
CP1623-4	82878	ROWE INDUSTRIES INC
MIL-C-7974	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS25486-31	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
R67G36B	80495	ANDERSON AIRMOTIVE PRODUCTS COMPANY, INC
R67G36B	F7161	BABB CO SA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-115-4170

Compare

Related Products | NSN 5935-01-115-4170

5935-01-115-4171, 5935-01-115-4173, 5935-01-115-4174, 5935-01-115-4175, 5935-01-115-4176

Technical Data | NSN 5935-01-115-4170

Characteristic	Specifications
BODY STYLE	2C STRAIGHT SHAPE W/CLAMP
OVERALL HEIGHT	9.000 INCHES MINIMUM AND 9.500 INCHES MAXIMUM
OVERALL WIDTH	3.800 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	SPRING FRICTION
CONNECTOR CABLE STRAIN RELIEF METHOD	CRIMP TYPE
CABLE ENTRANCE DIAMETER	0.500 INCHES MINIMUM AND 0.520 INCHES MAXIMUM
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY
SHELL SURFACE TREATMENT	ANODIZE
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE
MATING END QUANTITY	1
INCLUDED CONTACT QUANTITY	5 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS	115.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS	200.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	SILVER SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	VIBRATION RESISTANT
TEST DATA DOCUMENT	81349-MIL-C-7974 SPECIFICATION
SPECIFICATION/STANDARD DATA	96906-MS25486 GOVERNMENT STANDARD
III PRECIOUS MATERIAL	SILVER
III PRECIOUS MATERIAL AND WEIGHT	0.025 SILVER GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES SILVER
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-7974
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS25486-31
