NSN 5935-01-127-0016 C8319120B, C8319-1-20B, CJ0122001

Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET

5935-01-127-0016 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".

Part Alternates: C8319120B, C8319-1-20B, CJ0122001, CJ0122-001, CMO20S6G, CMO-20-S6G, S0320GHA31, S0-3-20-GH-A-31, ED1311004, ED1311-004, ED1B11004, ED1B11-004, G1605792, G160579-2, IC320SGG, IC-320-SGG, ICA203SG, ICA-203-S-G, ICA203SGG30, ICA-203-S-GG30, ICA203ST, ICN203S3G, ICN-203-S3-G, J770008004, J77-0008-004, 10220CCB, 102-20-CC-B, 10220CCF, 102-20-CC-F, 1032001446, 10320-01-446, 154 105 195, 17-49695-13, 20132001SP15, 201-320-01S-P15, 2848530735, 28485-30735, 314102472009, 31410247-2009, 320AG40D, 320-AG40D, 520AG10DES, 520-AG10D-ES, 520AG19D, 520-AG19D, 582R254H15, 908371-002, 0008004638, 000-8004-638, 5M266120, 5M2661-20, 7212302, 721230-2, 5935-01-127-0016, 01-127-0016, 5935011270016, 154105195, 174969513, 011270016, 908371002

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	21 FEB 1982	01-127-0016	28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS )

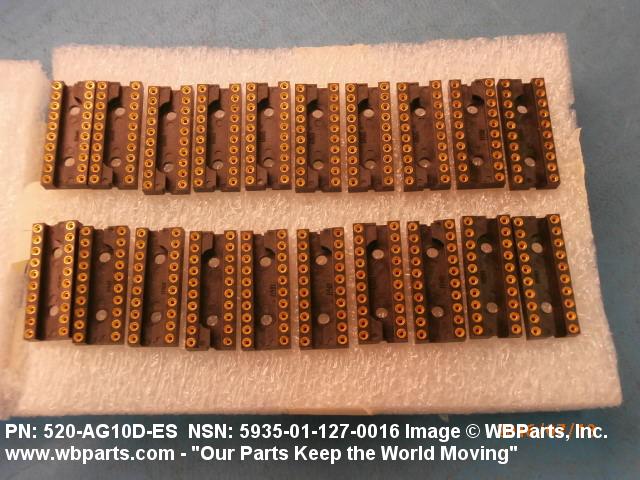

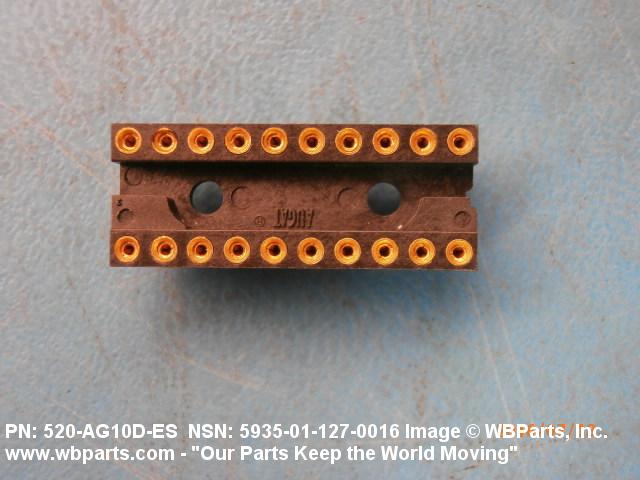

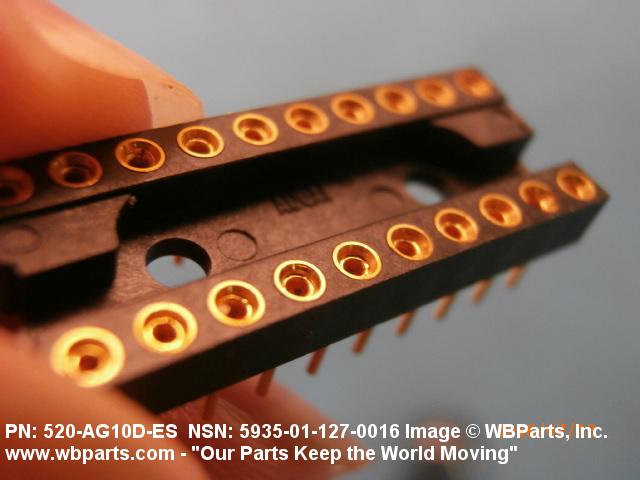

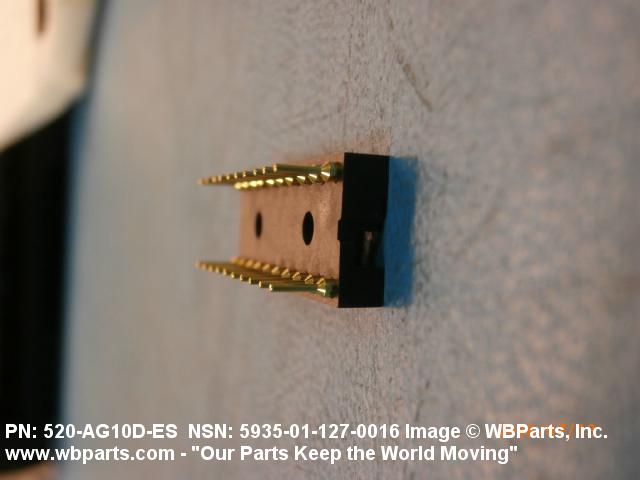

Drawings & Photos | NSN 5935-01-127-0016

Part Number	Request Date	QTY	Origin
000-8004-638	2023-12-345	295	DIBBS
154 105 195	2023-12-345	295	DIBBS
201-320-01S-P15	2023-12-345	295	DIBBS
582R254H15	2023-12-345	295	DIBBS
5M2661-20	2023-12-345	295	DIBBS
721230-2	2023-12-345	295	DIBBS
C8319-1-20B	2023-12-345	295	DIBBS
CJ0122-001	2023-12-345	295	DIBBS
CMO-20-S6G	2023-12-345	295	DIBBS
ED1B11-004	2023-12-345	295	DIBBS
IC-320-SGG	2023-12-345	295	DIBBS
000-8004-638	2023-11-333	295	DIBBS
154 105 195	2023-11-333	295	DIBBS
201-320-01S-P15	2023-11-333	295	DIBBS
582R254H15	2023-11-333	295	DIBBS
5M2661-20	2023-11-333	295	DIBBS
721230-2	2023-11-333	295	DIBBS
C8319-1-20B	2023-11-333	295	DIBBS
CJ0122-001	2023-11-333	295	DIBBS
CMO-20-S6G	2023-11-333	295	DIBBS
ED1B11-004	2023-11-333	295	DIBBS
IC-320-SGG	2023-11-333	295	DIBBS
520AG10DES	2016-07-189	20	United States
5935-01-127-0016	2015-07-210	509	DIBBS

Cross Reference | NSN 5935-01-127-0016

Part Number	Cage Code	Manufacturer
000-8004-638	94756	BOEING COMPANY, THE DBA BOEING
102-20-CC-B	19112	COOPER CROUSE- HINDS, LLC DBA GARRY ELECTRONICS
102-20-CC-F	19112	COOPER CROUSE- HINDS, LLC DBA GARRY ELECTRONICS
10320-01-446	17117	ELECTRONIC MOLDING CORP
154 105 195	31795	EATON CORPORATION
17-49695-13	53908	COMPUTER AUTOMATION INC
201-320-01S-P15	0EBT2	ANDON ELECTRONICS CORPORATION
28485-30735	K0662	SELEX ES LTD
31410247-2009	50163	GENICOM CORP
320-AG40D	91506	AUGAT INC
520-AG10D-ES	91506	AUGAT INC
520-AG19D	91506	AUGAT INC
582R254H15	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
5M2661-20	76301	BOEING COMPANY, THE DBA BOEING
721230-2	05869	RAYTHEON COMPANY DBA RAYTHEON
908371-002	05257	GENERAL DYNAMICS CANADA LTD
C8319-1-20B	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
CJ0122-001	22915	NORTHROP GRUMMAN CORP ELECTRONIC SYSTEMS DEFENSIVE SYSTEM
CMO-20-S6G	15912	THOMAS AND BETTS CORP ELECTRONICS GROUP
ED1311-004	55354	UNIVERSITY OF TEXAS AT AUSTIN DBA UT AUSTIN APPLIED RES LABS
ED1B11-004	55354	UNIVERSITY OF TEXAS AT AUSTIN DBA UT AUSTIN APPLIED RES LABS
G160579-2	49956	RAYTHEON COMPANY DBA RAYTHEON
IC-320-SGG	55322	SAMTEC INC.
ICA-203-S-G	06776	ROBINSON NUGENT INC
ICA-203-S-GG30	06776	ROBINSON NUGENT INC
ICA203ST	06776	ROBINSON NUGENT INC
ICN-203-S3-G	06776	ROBINSON NUGENT INC
J77-0008-004	14304	HARRIS CORPORATION DBA HARRIS RF COMMUNICATION
S0-3-20-GH-A-31	60197	GBENJO LAW GROUP THE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-127-0016

Compare

Related Products | NSN 5935-01-127-0016

5935-01-127-0017, 5935-01-127-0018, 5935-01-127-0019, 5935-01-127-0020, 5935-01-127-0022

Technical Data | NSN 5935-01-127-0016

Characteristic	Specifications
ACCOMMODATED CONTACT QUANTITY	20
CONTACT MAXIMUM CURRENT RATING IN AMPS	3.0
CONTACT MATERIAL	BERYLLIUM COPPER
CONTACT SURFACE TREATMENT	GOLD AND NICKEL
BODY STYLE	69B TOP MOUNT

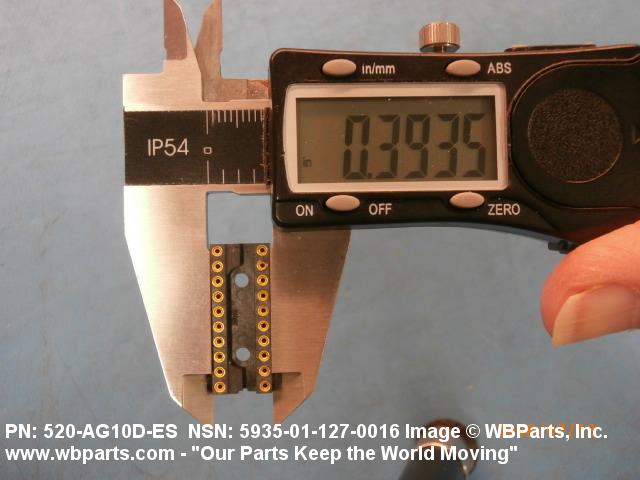

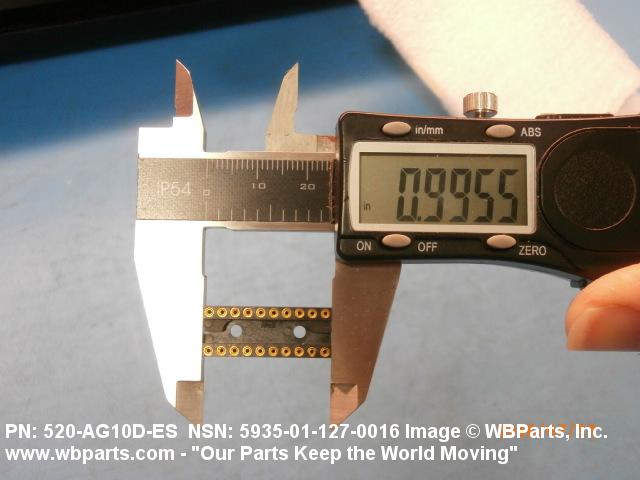

OVERALL LENGTH	1.000 INCHES MAXIMUM

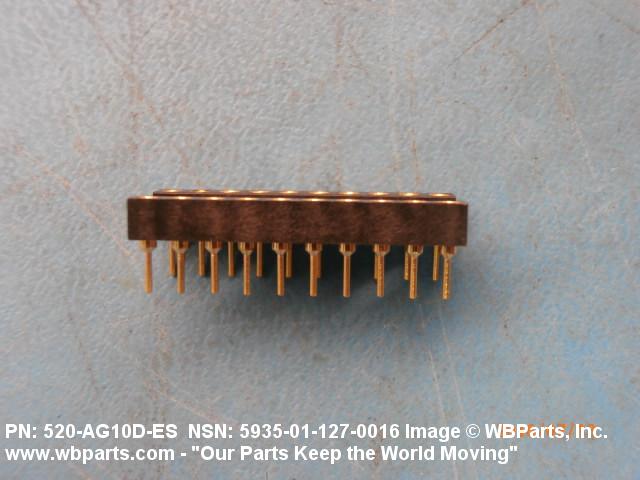

TERMINAL LENGTH	0.155 INCHES NOMINAL

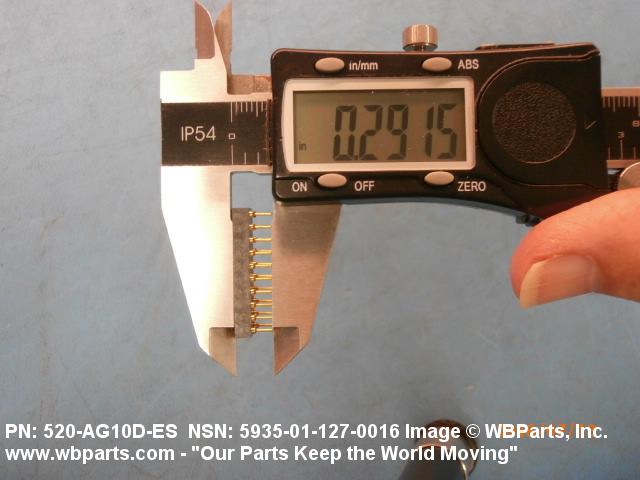

OVERALL HEIGHT	0.290 INCHES NOMINAL

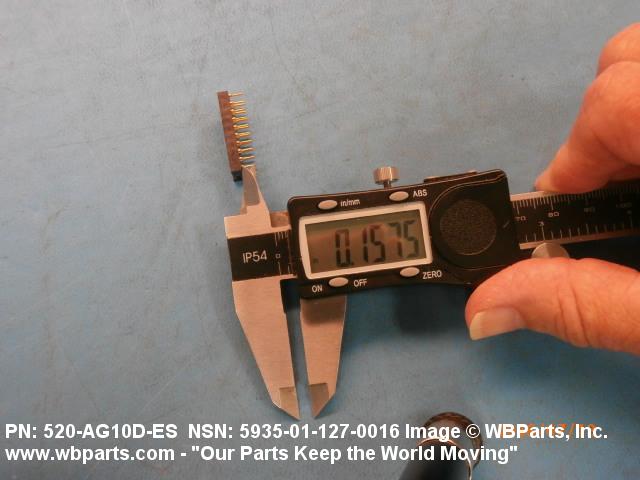

OVERALL WIDTH	0.400 INCHES MAXIMUM
BODY MATERIAL	PLASTIC

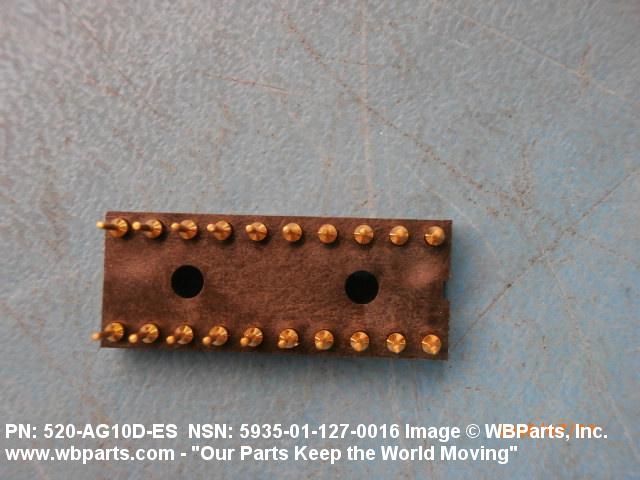

TERMINAL TYPE AND QUANTITY	20 PRINTED CIRCUIT
