NSN 5935-01-130-3899 MS12883/41-01, MS128834101, M12883/41-01

Product Details | PLUG-IN ELECTRONIC COMPONENTS SOCKET

5935-01-130-3899 An item designed to electrically connect and mechanically position the base of an item having plug-in-type contacts, and to facilitate replacement of the item accommodated. It includes sockets which accommodate the contacts of capacitors, coils, crystals, electron tubes, relays, semiconductor devices and vibrators. Excludes sockets or receptacles designed to accommodate plug-in component circuit boards (printed circuit boards) and electronic modules or sub-assemblies. Also excludes heat-dissipating (not heat-sinks) sockets for mounting "power transistors".

Part Alternates: MS12883/41-01, MS128834101, M12883/41-01, M128834101, SSE2101001, SSE210-1001, MIL-DTL-12883/41, MILDTL1288341, MIL-S-12883/41, MILS1288341, 706381 PIECE 89, 706381PIECE89, 106463, 134641, 13-4641, 31602001, 316-02-001, 404123 PIECE 11, 404123PIECE11, 5935-01-130-3899, 01-130-3899, 5935011303899, 011303899

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	22 APR 1982	01-130-3899	28914 ( SOCKET, PLUG-IN ELECTRONIC COMPONENTS )

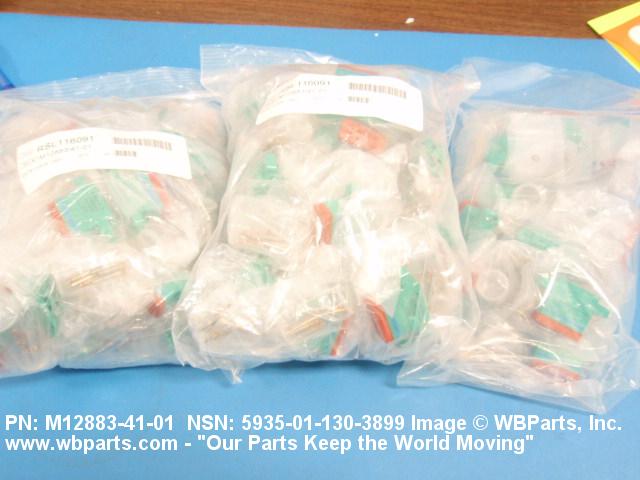

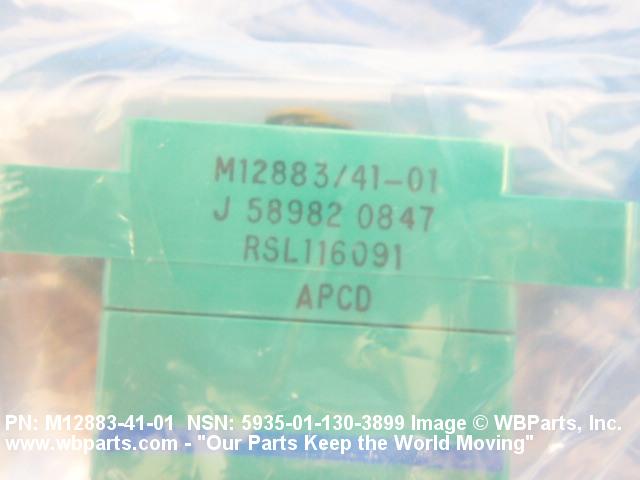

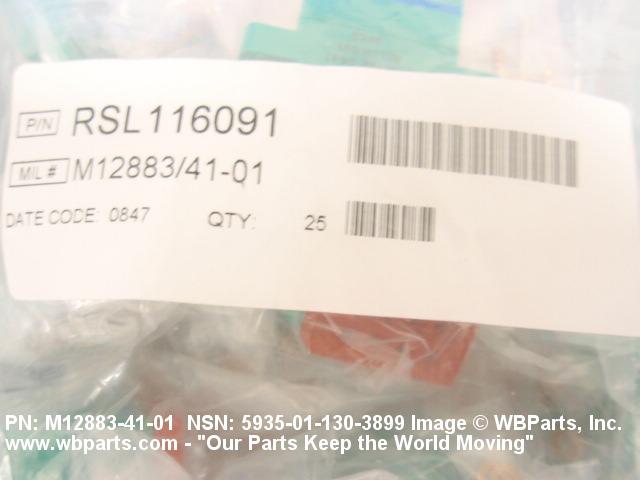

Drawings & Photos | NSN 5935-01-130-3899

Part Number	Request Date	QTY	Origin
5935-01-130-3899	2025-11-322	24	DIBBS
5935-01-130-3899	2025-11-307	24	DIBBS
5935-01-130-3899	2024-07-186	66	DIBBS
5935-01-130-3899	2023-08-215	72	DIBBS
5935-01-130-3899	2021-06-157	346	DIBBS
5935-01-130-3899	2019-07-206	346	DIBBS
5935-01-130-3899	2018-04-95	93	DIBBS
5935-01-130-3899	2017-03-61	300	DIBBS
5935-01-130-3899	2017-02-33	149	DIBBS
5935-01-130-3899	2012-12-362	169	DIBBS
5935-01-130-3899	2011-02-58	190	DIBBS
5935-01-130-3899	2010-08-214	174	DIBBS
5935-01-130-3899	2010-04-99	180	DIBBS
M128834101	2010-03-85	20	United States
M128834101	2010-03-85	20	United States
M128834101	2010-03-84	60	United States
5935-01-130-3899	2009-05-134	333	DIBBS
5935-01-130-3899	2008-11-317	187	DIBBS
5935-01-130-3899	2008-10-283	61	DIBBS
5935-01-130-3899	2008-09-268	78	DIBBS
5935-01-130-3899	2008-09-247	56	DIBBS
5935-01-130-3899	2008-07-193	51	DIBBS
5935-01-130-3899	2007-05-126	129	DIBBS
5935-01-130-3899	2007-03-87	39	DIBBS

Cross Reference | NSN 5935-01-130-3899

Part Number	Cage Code	Manufacturer
106463	34355	LOCKHEED MARTIN SIPPICAN, INC. DBA SIPPICAN USE CAGE CODE 16848 FOR
13-4641	99699	DRI RELAYS INC. DBA FOREIGN PARENT IS FINANCIERE DE
316-02-001	58475	WESTWOOD CORPORATION DBA NMP DIVISION
404123 PIECE 11	57626	COMSACO, INC.
706381 PIECE 89	58475	WESTWOOD CORPORATION DBA NMP DIVISION
M12883/41-01	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M12883/41-01	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MIL-DTL-12883/41	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-12883/41	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS12883/41-01	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
SSE210-1001	99699	DRI RELAYS INC. DBA FOREIGN PARENT IS FINANCIERE DE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-130-3899

Compare

Related Products | NSN 5935-01-130-3899

5935-01-130-3900, 5935-01-130-3901, 5935-01-130-3905, 5935-01-130-3906, 5935-01-130-3907

Technical Data | NSN 5935-01-130-3899

Characteristic	Specifications
CONTACT POSITION ARRANGEMENT STYLE	802A DUAL IN LINE
ACCOMMODATED CONTACT QUANTITY	8
CONTACT MAXIMUM CURRENT RATING IN AMPS	10.0
CONTACT MATERIAL	COPPER ALLOY
CONTACT SURFACE TREATMENT	GOLD AND COPPER
BODY STYLE	53B TOP MOUNT W/STUDS
OVERALL LENGTH	1.740 INCHES MAXIMUM
OVERALL HEIGHT	1.973 INCHES MAXIMUM
OVERALL WIDTH	0.530 INCHES MAXIMUM
PROJECTION LENGTH BELOW MOUNTING SURFACE	0.270 INCHES MINIMUM AND 0.350 INCHES MAXIMUM
BODY MATERIAL	PLASTIC AND GLASS
TERMINAL TYPE AND QUANTITY	8 CRIMP
MOUNTING TYPE FOR WHICH DESIGNED	CHASSIS
MOUNTING METHOD	THREADED STUD
MOUNTING HOLE STYLE	27D RECTANGULAR, W/TWO MOUNTING HOLES/SLOTS
MOUNTING HOLE DIAMETER	0.116 INCHES NOMINAL
BODY MOUNTING HOLE ACCOMMODATION LENGTH	1.105 INCHES MINIMUM AND 1.115 INCHES MAXIMUM
BODY MOUNTING HOLE ACCOMMODATION WIDTH	0.550 INCHES MINIMUM AND 0.560 INCHES MAXIMUM
DISTANCE BETWEEN MOUNTING FACILITY CENTERS	1.401 INCHES MINIMUM AND 1.411 INCHES MAXIMUM
THREAD SERIES DESIGNATOR	UNC AND UNF
NOMINAL THREAD SIZE	0.112 INCHES AND 0.190 INCHES
THREAD CLASS	2A AND 2A
THREAD QUANTITY PER INCH	40 AND 32
THREAD DIRECTION	RIGHT-HAND AND RIGHT-HAND
POLARIZATION TYPE	OFF CENTER HOLE
FURNISHED ITEMS AND QUANTITY	6 FLAT WASHER AND 6 NUT
SPECIAL FEATURES	ITEM MAY BE TOP OR BOTTOM MOUNTED
TEST DATA DOCUMENT	81349-MIL-S-12883 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-S-12883/41 GOVERNMENT SPECIFICATION
III FABRICATION METHOD	MOLDED
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.008 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-S-12883/41
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M12883/41-01

Restrictions/Controls & Freight Information | NSN 5935-01-130-3899

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-130-3899

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
