NSN 5935-01-136-8074 M25516/20-01-03, M25516200103, MIL-C-25516/20
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-136-8074 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M25516/20-01-03, M25516200103, MIL-C-25516/20, MILC2551620, 5935-01-136-8074, 01-136-8074, 5935011368074, 011368074
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 AUG 1982 | 01-136-8074 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

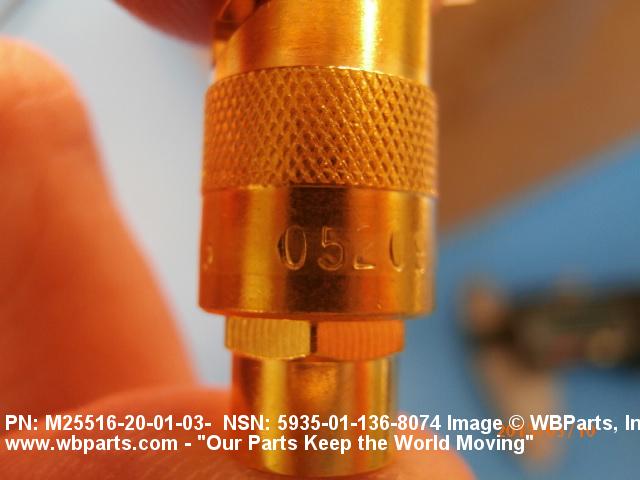

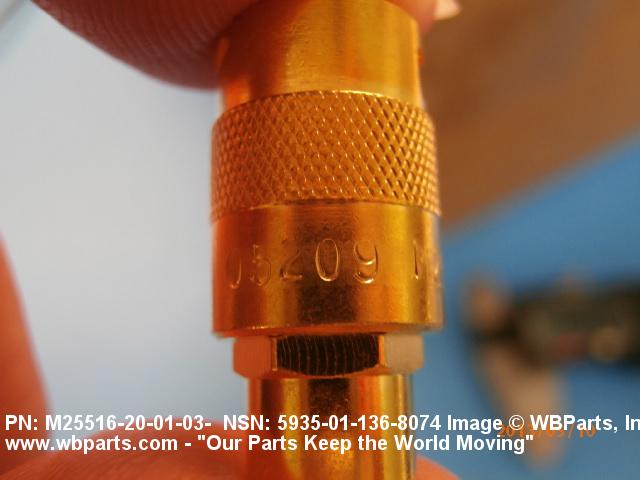

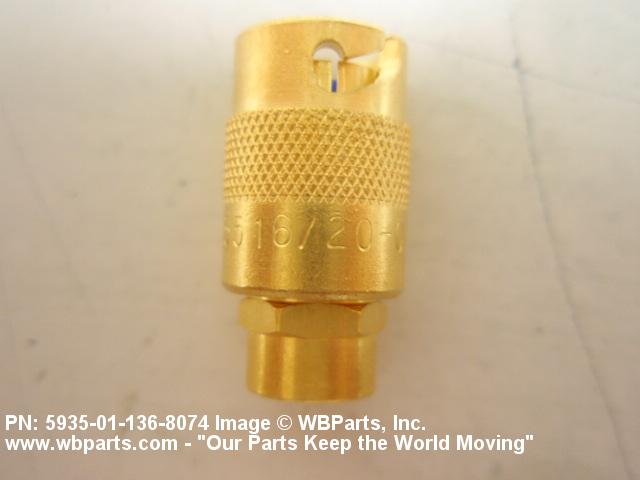

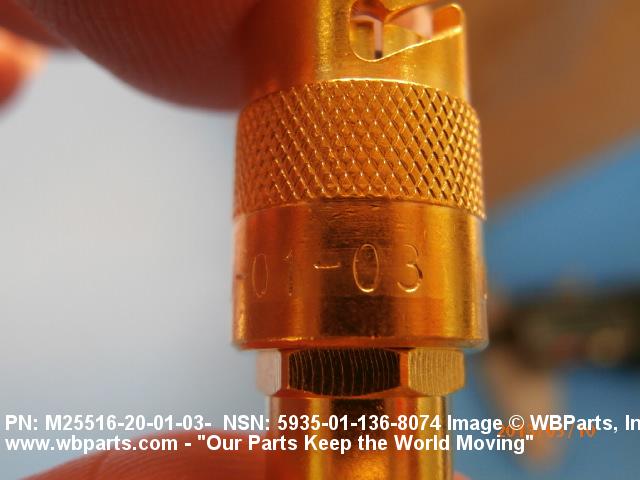

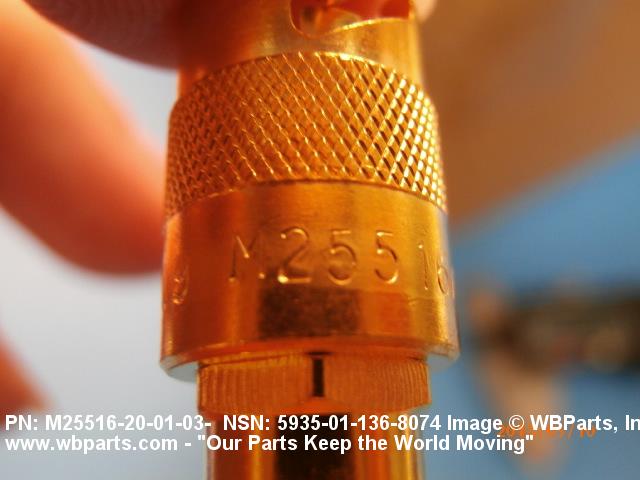

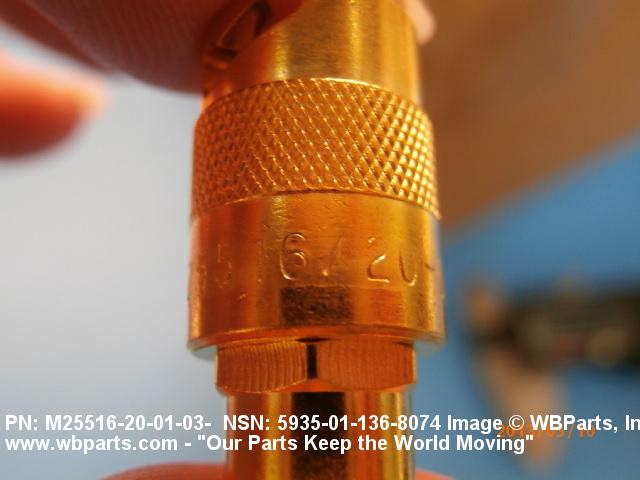

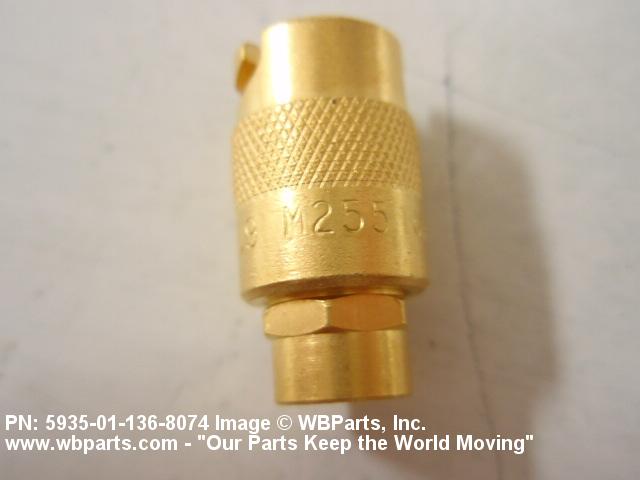

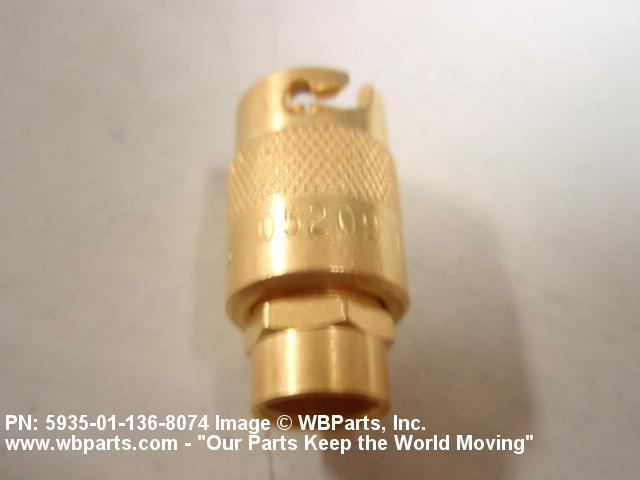

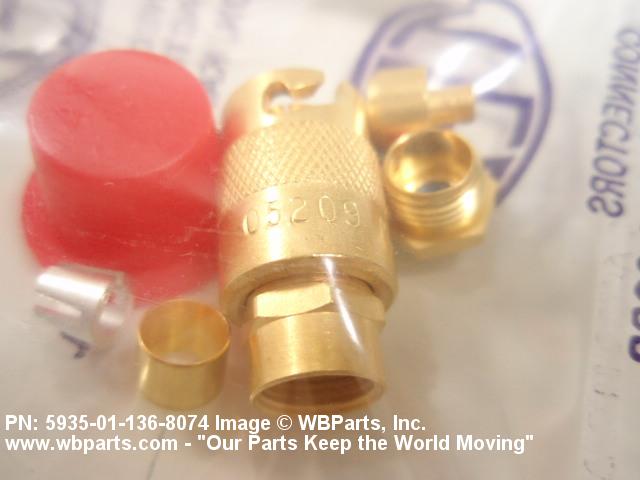

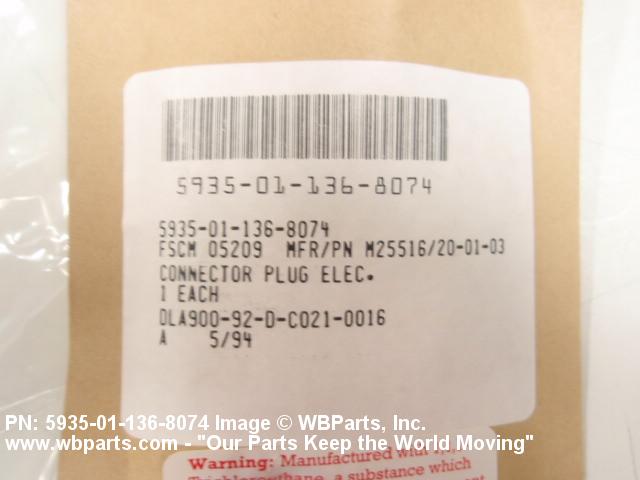

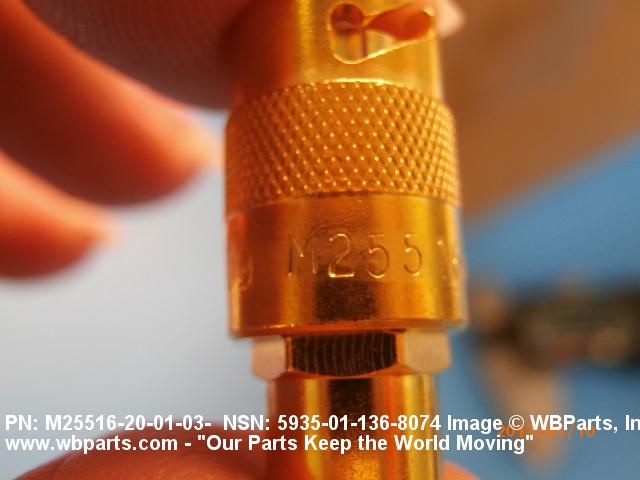

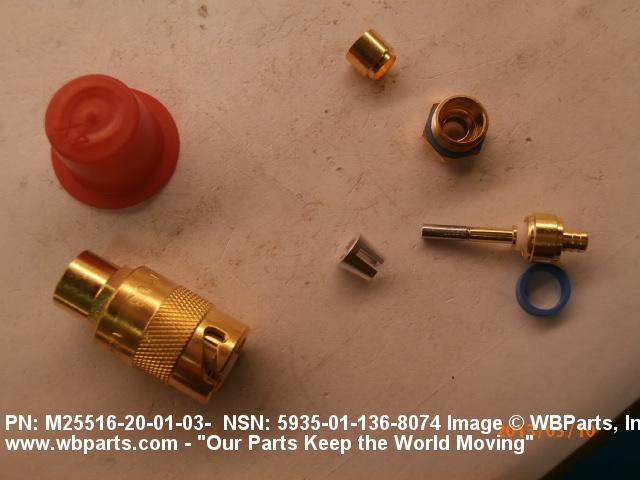

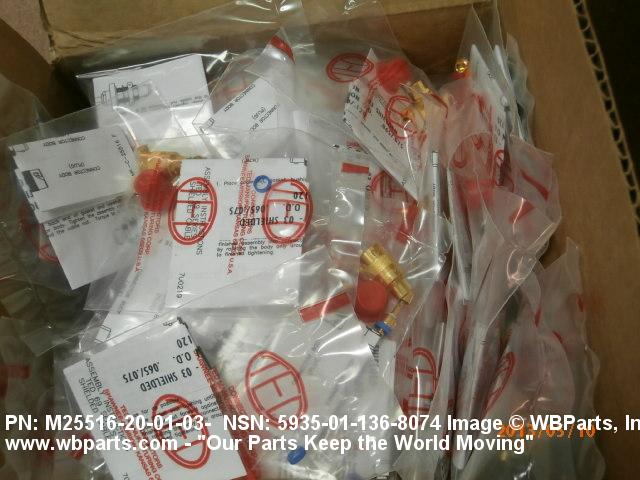

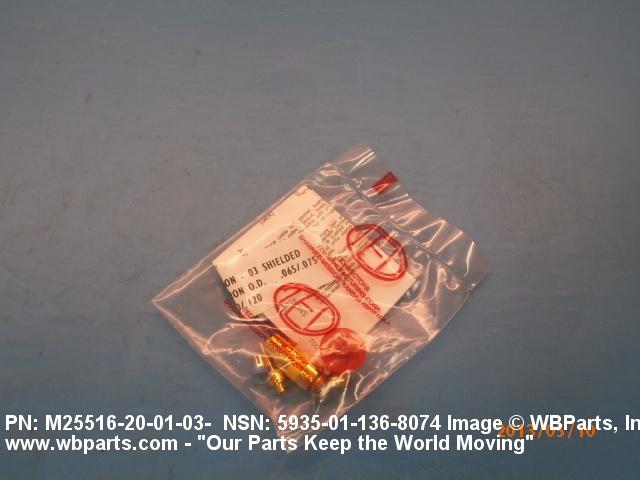

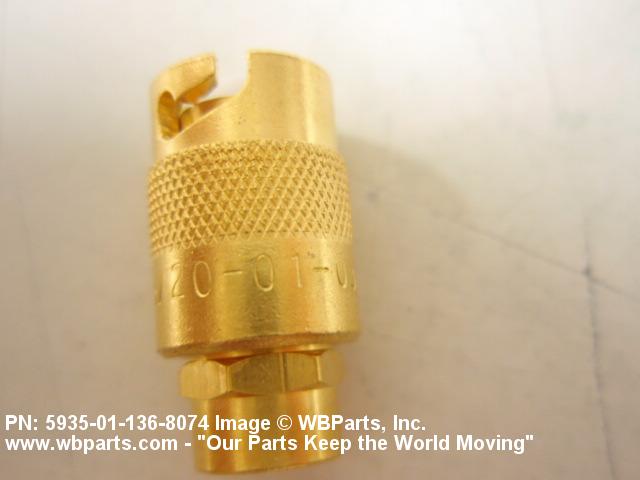

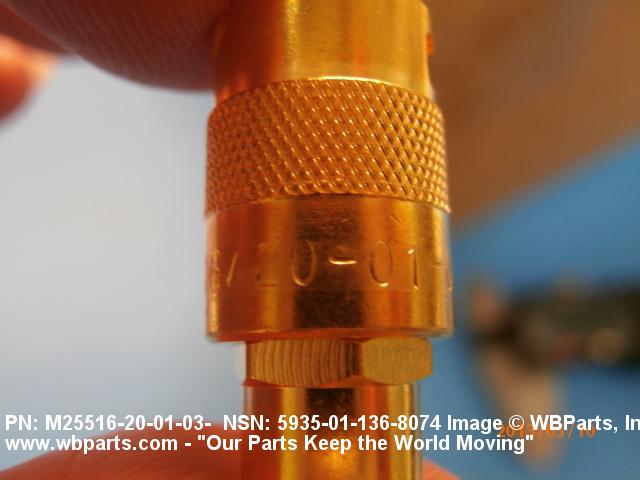

Drawings & Photos | NSN 5935-01-136-8074
Demand History | NSN 5935-01-136-8074
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-136-8074 | 2025-05-128 | 276 | DIBBS |
| 5935-01-136-8074 | 2024-01-12 | 236 | DIBBS |
| 5935-01-136-8074 | 2023-08-233 | 100 | US |
| 5935-01-136-8074 | 2023-08-226 | 236 | us |
| 5935-01-136-8074 | 2023-08-222 | 236 | DIBBS |
| 5935-01-136-8074 | 2023-05-138 | 94 | DIBBS |
| 5935-01-136-8074 | 2022-10-300 | 117 | DIBBS |
| 5935-01-136-8074 | 2022-02-52 | 4 | DIBBS |
| 5935-01-136-8074 | 2021-12-354 | 3 | DIBBS |
| 5935-01-136-8074 | 2021-11-327 | 4 | us |
| 5935-01-136-8074 | 2021-11-325 | 4 | DIBBS |
| 5935-01-136-8074 | 2021-10-280 | 71 | DIBBS |
| 5935-01-136-8074 | 2020-08-218 | 111 | United States |
| 5935-01-136-8074 | 2020-08-218 | 218 | United States |
| 5935-01-136-8074 | 2020-06-153 | 48 | US |
| 5935-01-136-8074 | 2020-05-152 | 325 | DIBBS |
| 5935-01-136-8074 | 2019-12-350 | 415 | DIBBS |
| 5935-01-136-8074 | 2019-11-308 | 415 | DIBBS |
| 5935-01-136-8074 | 2019-10-297 | 415 | DIBBS |
| 5935-01-136-8074 | 2019-08-239 | 335 | DIBBS |
| 5935-01-136-8074 | 2019-04-92 | 17 | UK |
| 5935-01-136-8074 | 2014-09-267 | 1 | DIBBS-RFPs |
| 5935-01-136-8074 | 2013-05-143 | 126 | DIBBS |
| 5935-01-136-8074 | 2013-02-39 | 172 | United States |
| 5935-01-136-8074 | 2013-01-08 | 172 | DIBBS |
| 5935-01-136-8074 | 2012-11-325 | 0 | DIBBS |
| 5935-01-136-8074 | 2012-08-233 | 1 | US |
| 5935-01-136-8074 | 2012-08-228 | 77 | DIBBS |
| 5935-01-136-8074 | 2012-03-87 | 59 | DIBBS |
| 5935-01-136-8074 | 2012-03-87 | 83 | DIBBS |
| 5935-01-136-8074 | 2012-03-79 | 83 | DIBBS |
| 5935-01-136-8074 | 2012-01-10 | 59 | DIBBS |
| 5935-01-136-8074 | 2011-06-167 | 2 | US |
| 5935-01-136-8074 | 2011-06-155 | 84 | DIBBS |
| 5935-01-136-8074 | 2010-12-337 | 102 | DIBBS |
| 5935-01-136-8074 | 2010-08-216 | 191 | DIBBS |
| 5935-01-136-8074 | 2010-08-215 | 110 | DIBBS |
| 5935-01-136-8074 | 2010-07-207 | 140 | DIBBS |
| 5935-01-136-8074 | 2010-04-99 | 4 | United States |
| M25516200103 | 2010-04-99 | 4 | United States |
| 5935-01-136-8074 | 2009-12-364 | 147 | DIBBS |
| 5935-01-136-8074 | 2009-07-212 | 133 | DIBBS |
| 5935-01-136-8074 | 2009-04-104 | 139 | DIBBS |
| 5935-01-136-8074 | 2008-11-317 | 181 | DIBBS |
| 5935-01-136-8074 | 2008-10-283 | 109 | DIBBS |
| 5935-01-136-8074 | 2008-07-203 | 85 | DIBBS |
| 5935-01-136-8074 | 2008-04-105 | 82 | DIBBS |
| 5935-01-136-8074 | 2007-10-278 | 159 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-136-8074
Related Products | NSN 5935-01-136-8074
Technical Data | NSN 5935-01-136-8074
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 5D STRAIGHT SHAPE, INTERNAL COUPLING |

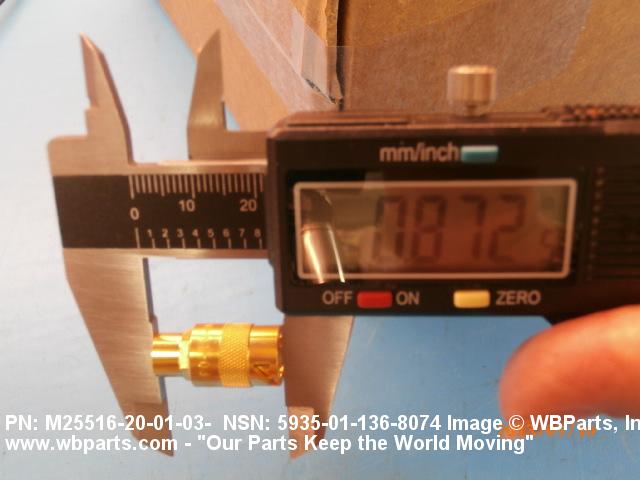

| OVERALL LENGTH | 0.965 INCHES MAXIMUM |

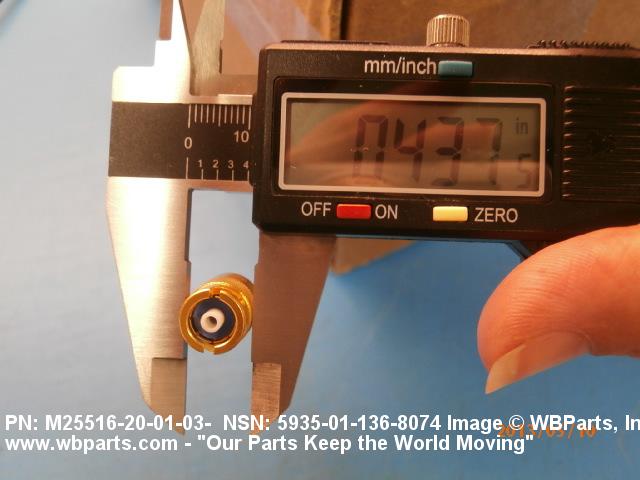

| OVERALL DIAMETER | 0.450 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | BAYONET LATCH |
| CONNECTOR CABLE STRAIN RELIEF METHOD | COMPRESSION NUT |
| CABLE ENTRANCE DIAMETER | 0.110 INCHES MINIMUM AND 0.120 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ABDB NONSTD SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | COAXIAL SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-626 FED SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TY 2,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND SHOCK RESISTANT AND VIBRATION PROOF |
| TEST DATA DOCUMENT | 81349-MIL-C-25516 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-25516/20 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.005 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-25516/20 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M25516/20-01-03 |
Restrictions/Controls & Freight Information | NSN 5935-01-136-8074
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-136-8074
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
