NSN 5935-01-145-3121 RPE217014, RPE217-014, 01-145-3121
Product Details | ELECTRICAL CONNECTOR SHELL
5935-01-145-3121 The outside case of one or more connectors into which the dielectric materials and contacts are assembled. Also includes shell for ADAPTER, CONNECTOR. See also SHIELD, ELECTRICAL CONNECTOR and COVER, ELECTRICAL CONNECTOR.
Part Alternates: RPE217014, RPE217-014, 5935-01-145-3121, 01-145-3121, 5935011453121, 011453121
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-145-3121 | 61026 ( SHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-145-3121
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-145-3121
Technical Data | NSN 5935-01-145-3121
| Characteristic | Specifications |
|---|---|

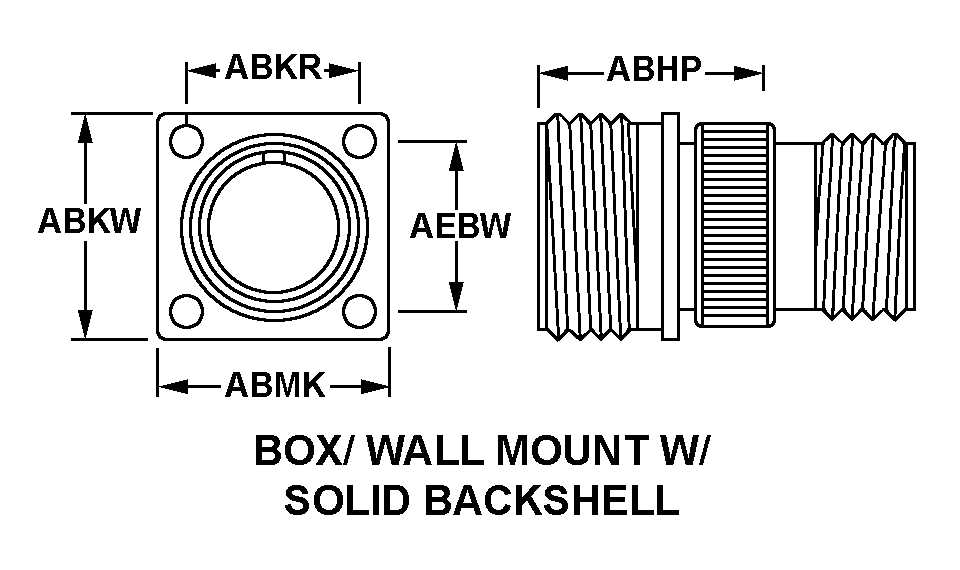

| STYLE DESIGNATOR | 9D BOX/WALL MOUNT W/SOLID BACKSHELL |
| OVERALL LENGTH | 2.165 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 1.375 INCHES NOMINAL |
| OVERALL HEIGHT | 1.760 INCHES NOMINAL |
| OVERALL WIDTH | 1.760 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.375 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED ALUMINUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.190 INCHES NOMINAL |
| FURNISHED ITEMS | DUST CAP W/CHAIN |
| SIZE DESIGNATION | 17 |
| SPECIAL FEATURES | INSERT RETAINING NUT INCLUDED |
Restrictions/Controls & Freight Information | NSN 5935-01-145-3121
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
