NSN 5935-01-166-2221 M81511/45FE02P1, M8151145FE02P1, MIL-C-81511/45
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-166-2221 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M81511/45FE02P1, M8151145FE02P1, MIL-C-81511/45, MILC8151145, 5935-01-166-2221, 01-166-2221, 5935011662221, 011662221
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 NOV 1983 | 01-166-2221 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-166-2221
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-166-2221
Technical Data | NSN 5935-01-166-2221
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 2A STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 1.298 INCHES MINIMUM AND 1.318 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.380 INCHES MINIMUM AND 1.400 INCHES MAXIMUM |
| CONNECTOR LOCKING METHOD | BAYONET PIN |
| THREADED DEVICE TYPE | BACK SHELL |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 1.125 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 28 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY 6061 |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367,TEMPER T6 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | NICKEL |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-26074,CLASS III,GRADE A MIL SPEC SINGLE TREATMENT RESPONSE |
| INSERT POSITION IN DEG | 0.0 AND 80.0 AND 142.0 AND 196.0 AND 293.0 |
| MATING END QUANTITY | 1 |

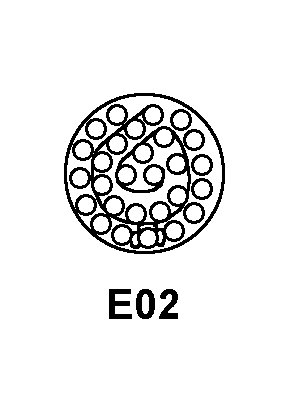

| CONTACT POSITION ARRANGEMENT STYLE | BDAY E02 SINGLE MATING END |
| INSERT MATERIAL | RUBBER FLUOROSILICONE CLASS FQ SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 27 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TYPE 2,GRADE C,CLASS 1 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| FEATURES PROVIDED | SCOOPPROOF DESIGN AND COLOR BAND ENGAGEMENT INDICATOR AND RFI SHIELDING |
| ENVIRONMENTAL PROTECTION | MOISTURE RESISTANT AND MOISTURE PROOF AND SALT WATER RESISTANT AND SHOCK PROOF AND VIBRATION PROOF AND FUNGUS RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT AND SHOCK RESISTANT |
| TEST DATA DOCUMENT | 81349-MIL-C-81511/45 SPECIFICATION |
| III OPERATING TEMP RATING | -65.0 DEG CELSIUS MINIMUM AND |
Restrictions/Controls & Freight Information | NSN 5935-01-166-2221
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
