NSN 5935-01-168-0800 MS3057, MS30578A, MS3057-8A

Product Details | ELECTRICAL CONNECTOR CABLE CLAMP

5935-01-168-0800 A clamp specifically designed to hold an electrical cable firmly in a connector. Must include provisions for attachment to an electrical connector. Excludes ADAPTER (1), CABLE TO CONNECTOR.

Part Alternates: MS3057, MS30578A, MS3057-8A, MS30578B, MS3057-8B, M30578A, M3057-8A, M85049/41-8A, M85049/41-8W, M85049418A, M85049418W, AN30578, AN3057-8, AN3057A, BA983234, BA98323-4, SAE AS85049/41, SAEAS8504941, SC/A4/43447, SCA443447, MIL-C-85049/41, MILC8504941, 104382-004, 352250029014, 80233721, 9730578608, 5935-01-168-0800, 01-168-0800, 5935011680800, 104382004, 011680800

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	12 DEC 1983	01-168-0800	23010 ( CLAMP, CABLE, ELECTRICAL CONNECTOR )

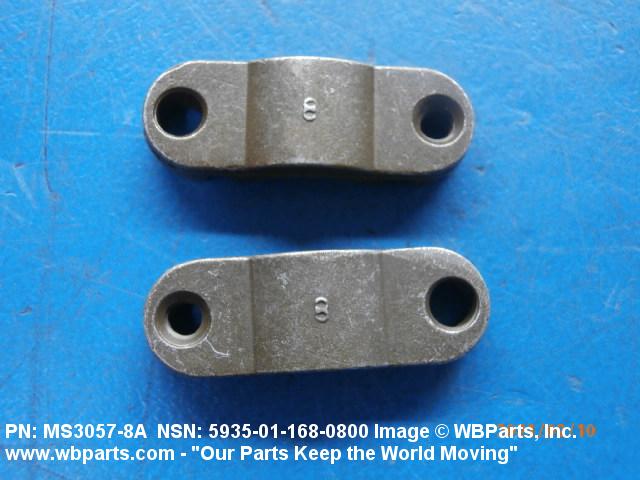

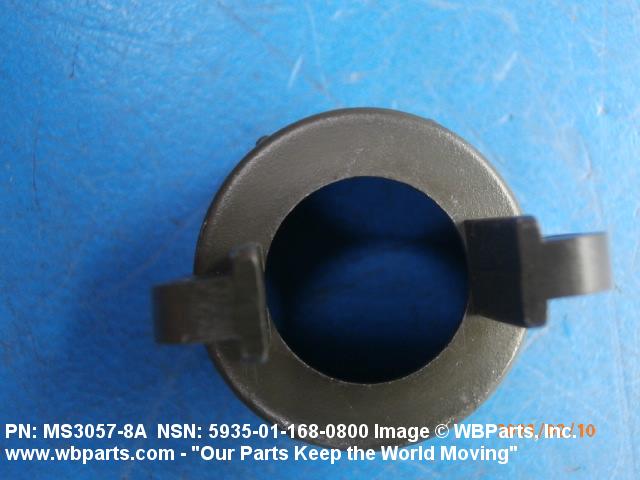

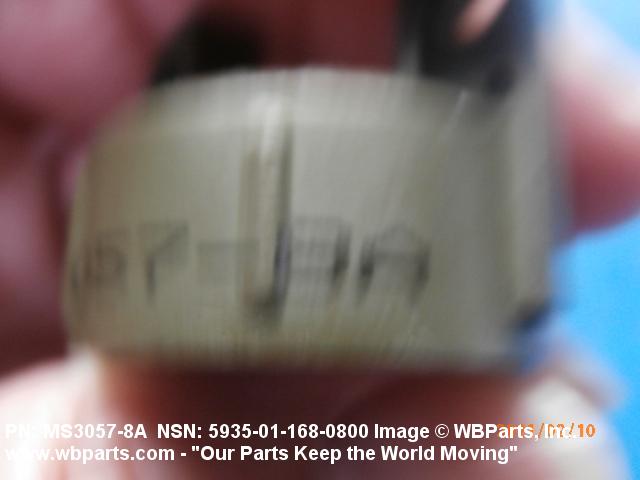

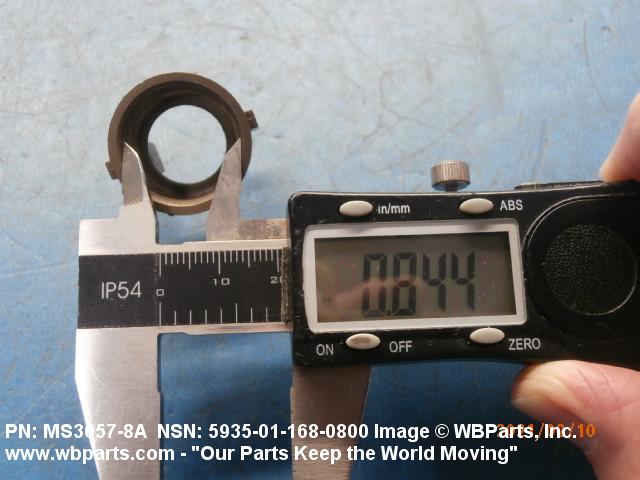

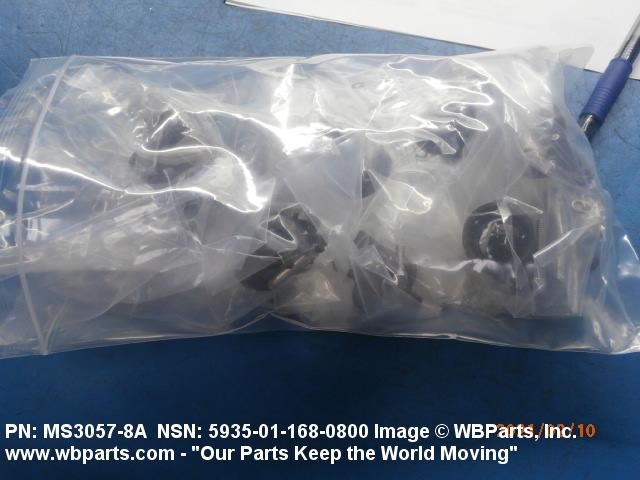

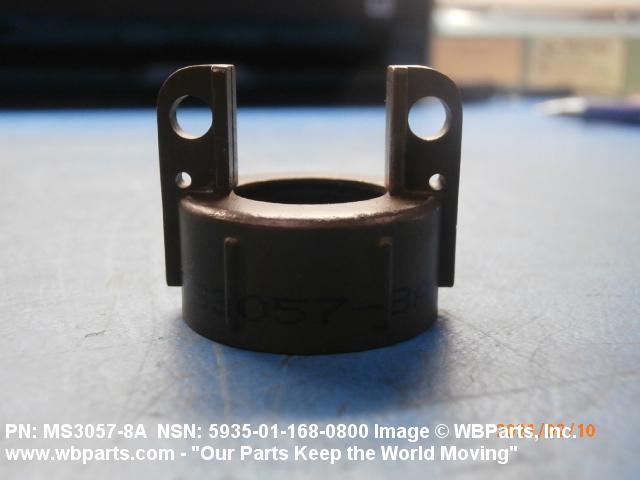

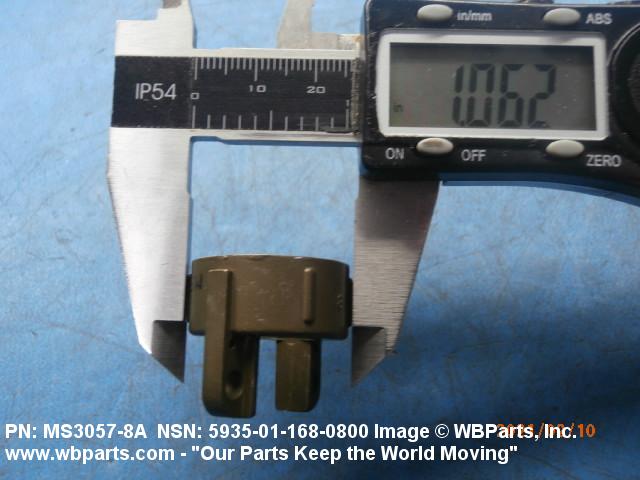

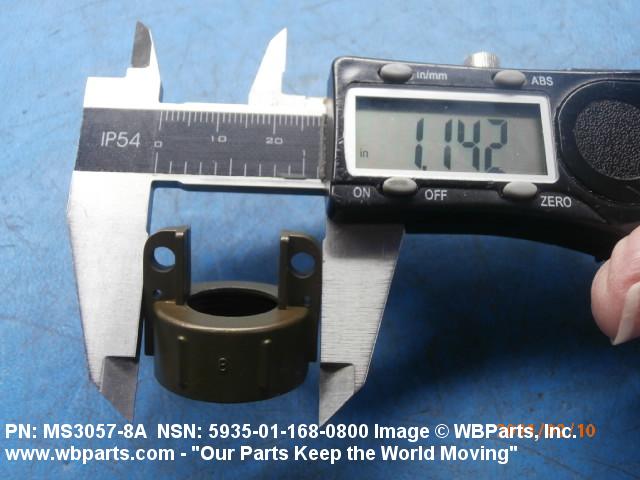

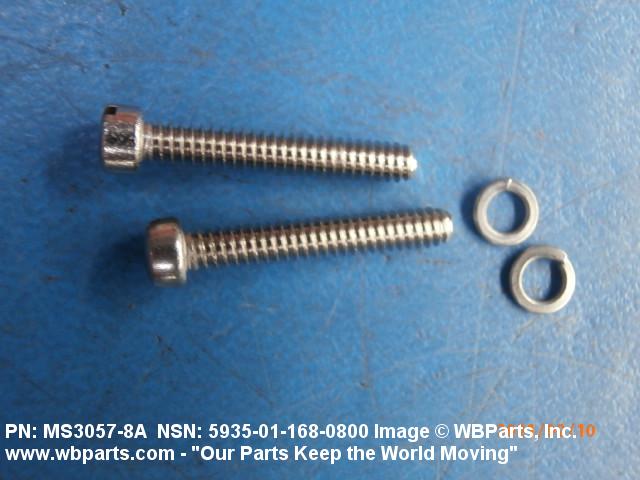

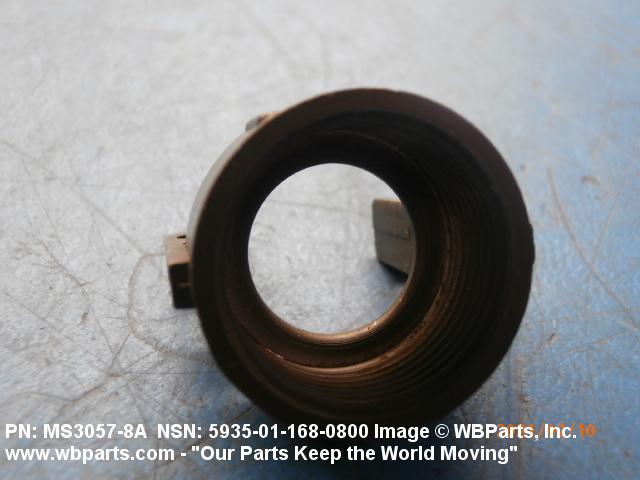

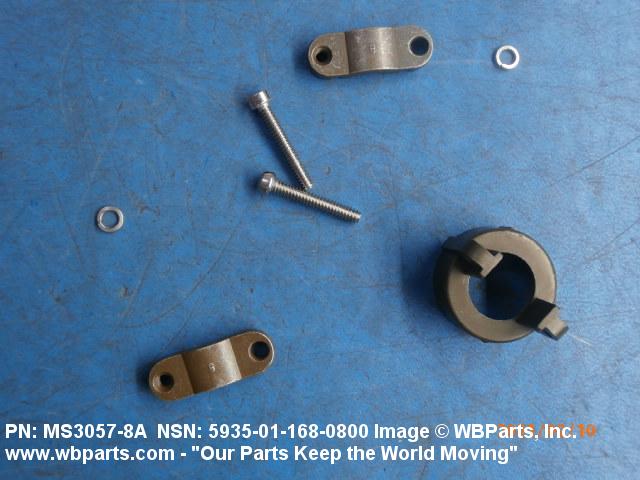

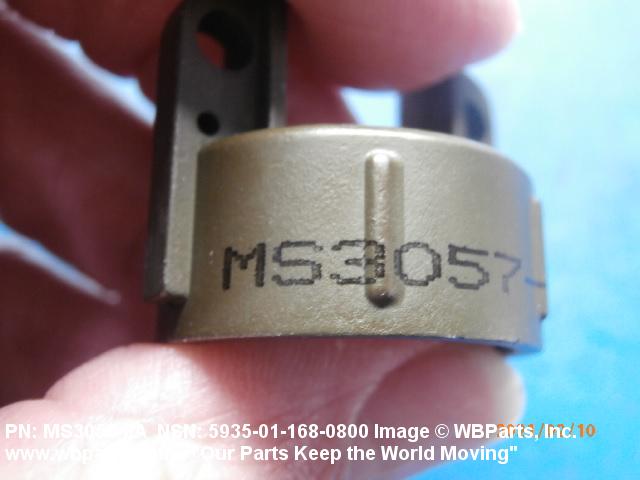

Drawings & Photos | NSN 5935-01-168-0800

Part Number	Request Date	QTY	Origin
5935-01-168-0800	2025-02-37	462	DIBBS
5935-01-168-0800	2024-08-235	439	DIBBS
5935-01-168-0800	2023-09-271	659	DIBBS
5935-01-168-0800	2022-10-300	979	DIBBS
5935-01-168-0800	2021-02-39	10	United States
AN3057A	2020-12-343	3	United States
5935-01-168-0800	2019-12-347	50	CA
5935-01-168-0800	2018-11-333	2408	DIBBS
5935-01-168-0800	2018-08-242	10	US
5935-01-168-0800	2018-08-213	10	JP
5935-01-168-0800	2018-07-211	900	DIBBS
5935-01-168-0800	2018-07-199	900	DIBBS
5935-01-168-0800	2017-10-284	10	US
M85049418A	2017-09-269	6	US
5935-01-168-0800	2017-09-262	6	US
5935-01-168-0800	2016-06-157	2600	DIBBS
MS30578A	2015-10-278	12	us
MS30578A	2015-10-278	12	us
5935-01-168-0800	2014-02-55	1800	DIBBS
5935-01-168-0800	2013-12-340	3000	DIBBS
5935-01-168-0800	2013-03-81	500	DIBBS
5935-01-168-0800	2013-02-59	150	DIBBS
5935-01-168-0800	2010-08-232	10	US
5935-01-168-0800	2008-10-298	7925	DIBBS
5935-01-168-0800	2008-04-116	5	United States
5935-01-168-0800	2008-04-95	4390	DIBBS
MS3057	2007-05-142	18	US
5935-01-168-0800	2007-05-141	769	DIBBS

Cross Reference | NSN 5935-01-168-0800

Part Number	Cage Code	Manufacturer
104382-004	54933	AERO SYSTEMS ENGINEERING, INC. DBA ASE
352250029014	H0203	THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS
80233721	18876	U S ARMY AVIATION AND MISSILE COMMAND
97-3057-8(608)	02660	AMPHENOL CORP SPECTRA-STRIP/ITD
AN3057-8	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN3057A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
BA98323-4	02660	AMPHENOL CORP SPECTRA-STRIP/ITD
M3057-8A	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
M85049/41-8A	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M85049/41-8A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M85049/41-8W	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-85049/41	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS3057	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3057-8A	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS3057-8B	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
SAE AS85049/41	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
SC/A4/43447	K0268	RAYTHEON SYSTEMS LTD

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-168-0800

Compare

Related Products | NSN 5935-01-168-0800

5935-01-168-0801, 5935-01-168-0802, 5935-01-168-0803, 5935-01-168-0804, 5935-01-168-0806

Technical Data | NSN 5935-01-168-0800

Characteristic	Specifications
STYLE DESIGNATOR	1B DOUBLE CLAMPING ACTION W OR W/O BUSHING

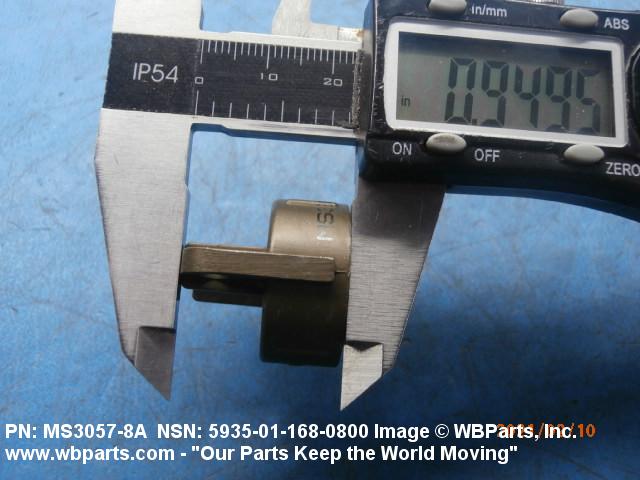

BODY DIAMETER	1.094 INCHES NOMINAL
BODY LENGTH	0.938 INCHES NOMINAL
BODY HEIGHT	1.156 INCHES NOMINAL
MATERIAL	ALUMINUM ALLOY
SURFACE TREATMENT	ANODIZED
MOUNTING FACILITY TYPE AND QUANTITY	1 THREADED COUPLING
THREAD SERIES DESIGNATOR	UNEF
NOMINAL THREAD SIZE	0.875 INCHES
THREAD CLASS	2B

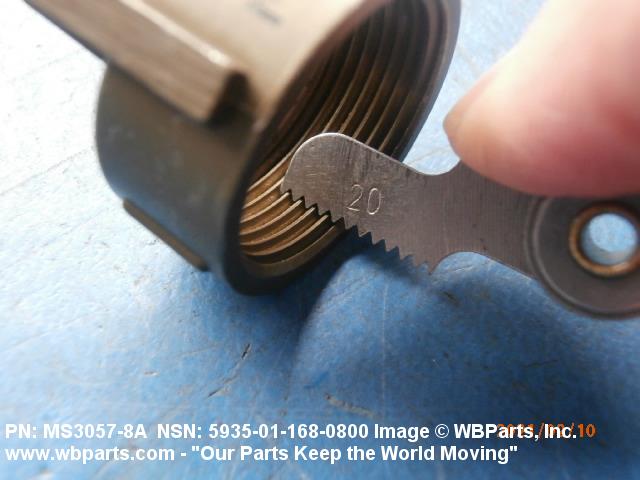

THREAD QUANTITY PER INCH	20
THREAD DIRECTION	RIGHT-HAND
CABLE OPENING QUANTITY	1
CABLE OPENING DIAMETER	0.562 INCHES MAXIMUM
SIZE DESIGNATION	16 AND 16S
TEST DATA DOCUMENT	81349-MIL-C-85049 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-85049/41 GOVERNMENT SPECIFICATION
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-85049/41
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M85049/41-8A

Restrictions/Controls & Freight Information | NSN 5935-01-168-0800

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
