Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-172-7352 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M24217/3-003, M242173003, C07C0141G11, MIL-C-24217/3, MILC242173, 1400400900, 14-004009-00, 5935-01-172-7352, 01-172-7352, 5935011727352, 011727352
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 FEB 1984 | 01-172-7352 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-172-7352
Cross Reference | NSN 5935-01-172-7352
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14-004009-00 | 05574 | VIKING ELECTRONICS, INC. DIV VIKING |
| C07C0141G11 | 17476 | TELEDYNE INSTRUMENTS, INC. DBA TELEDYNE D.G. O'BRIEN |
| M24217/3-003 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-24217/3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5935-01-172-7352
5935-01-172-7353, 5935-01-172-7355, 5935-01-172-7356, 5935-01-172-7467, 5935-01-172-7468
Technical Data | NSN 5935-01-172-7352
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 1A STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 2.862 INCHES NOMINAL |
| OVERALL DIAMETER | 1.501 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 1.750 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 12 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | STEEL COMP 316L |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | PASSIVATE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE |
| MATING END QUANTITY | 1 |

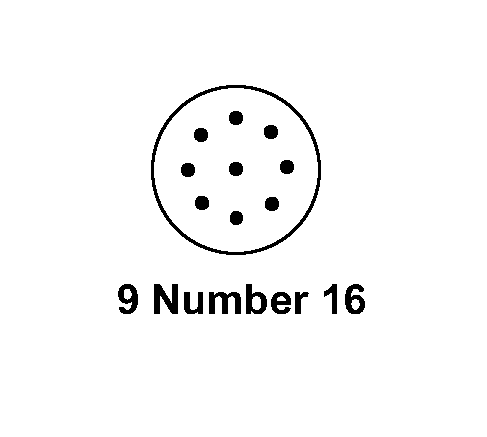

| CONTACT POSITION ARRANGEMENT STYLE | AKBT 9 NUMBER 16 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 9 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND COPPER SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | COLD RESISTANT AND HEAT RESISTANT AND HUMIDITY RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT |
| SPECIAL FEATURES | NOT SUB SAFE ITEM |
| TEST DATA DOCUMENT | 81349-MIL-C-24217 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-24217/3 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.009 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| III END ITEM IDENTIFICATION | DT-365/BQS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-24217/3 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24217/3-003 |
