NSN 5935-01-180-9499 16610113001, 16610113-001, 01-180-9499
Product Details | LAMPHOLDER TO CONNECTOR ADAPTER
5935-01-180-9499 An electrical fitting designed to provide the necessary accommodations to attach a LAMPHOLDER to one or more electrical CONNECTOR (as modified). May include a fuse and/or integral switch; may also accommodate one or more LAMP (as modified). Excludes ADAPTER, CONNECTOR TO LAMPBASE.
Part Alternates: 16610113001, 16610113-001, 5935-01-180-9499, 01-180-9499, 5935011809499, 011809499
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 JUN 1984 | 01-180-9499 | 05765 ( ADAPTER, LAMPHOLDER TO CONNECTOR ) |
Drawings & Photos | NSN 5935-01-180-9499
Cross Reference | NSN 5935-01-180-9499
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16610113-001 | 28009 | SYPRIS ELECTRONICS, LLC DIV SYPRIS ELECTRONICS, LLC - |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-180-9499
Technical Data | NSN 5935-01-180-9499
| Characteristic | Specifications |
|---|---|
| LAMP ACCOMMODATION QUANTITY | 1 |

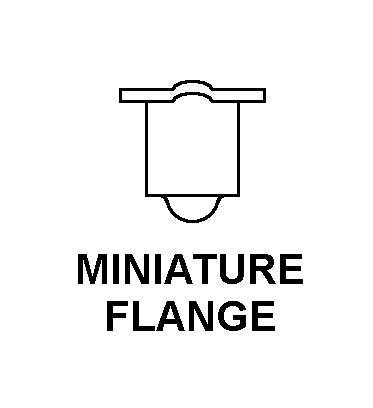

| LAMP BASE STYLE ACCOMMODATED | 4 MINIATURE FLANGE |

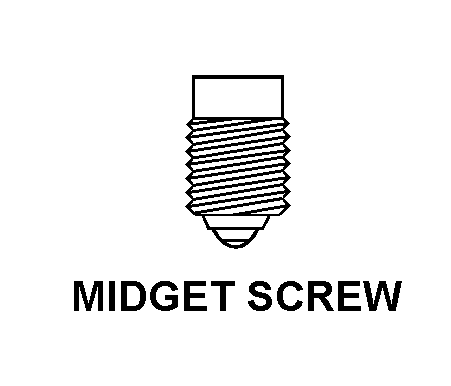

| LAMP BASE STYLE | 1 MIDGET SCREW |
| SHAPE | CYLINDRICAL |
| COMPONENT SWITCH | NOT INCLUDED |
| FUSE ACCOMMODATION | NOT INCLUDED |
| FUSE | NOT INCLUDED |
| MAXIMUM VOLTAGE RATING IN VOLTS | 125.0 |
| BODY MATERIAL | ALUMINUM ALLOY, QQ-A-225/8 |
| SPECIAL FEATURES | 0.312-40 UNS-2A THD AND 0.188 IN. DIA SOCKET |
| III END ITEM IDENTIFICATION | 5895-01-119-1601 RECORDER-REPRODUCER,SIGNAL DATA |
| III TYPE/MODEL DESIGNATION | RD-450/ASH-33 |
Restrictions/Controls & Freight Information | NSN 5935-01-180-9499
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
