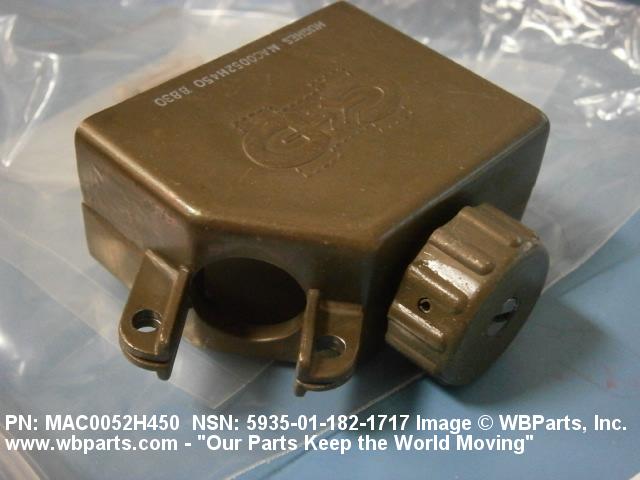

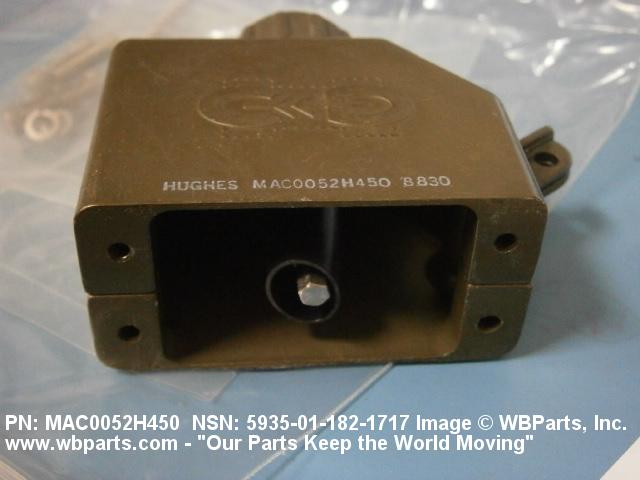

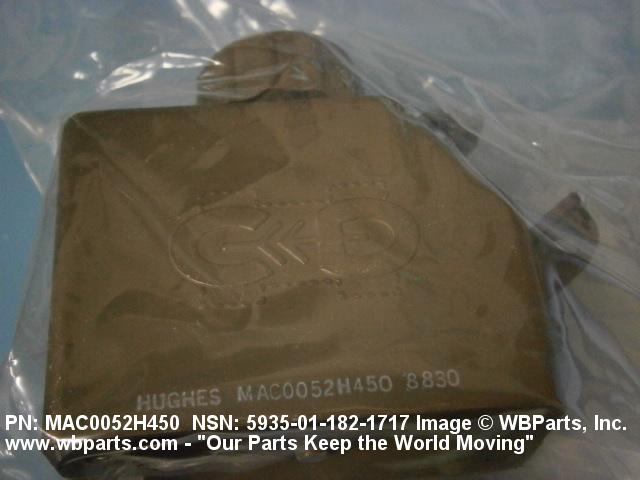

Product Details | ELECTRICAL CONNECTOR BACKSHELL
5935-01-182-1717 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Part Alternates: MAC0052H450, 7119264, 711926-4, 5935-01-182-1717, 01-182-1717, 5935011821717, 011821717
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JUN 1984 | 01-182-1717 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-182-1717
Demand History | NSN 5935-01-182-1717
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5935-01-182-1717
Related Products | NSN 5935-01-182-1717
5935-01-182-1718, 5935-01-182-1719, 5935-01-182-1720, 5935-01-182-1721, 5935-01-182-1722
Technical Data | NSN 5935-01-182-1717
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 8G OPEN HOOD W/CLAMP |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | ANY ACCEPTABLE |
| BODY LENGTH | 2.275 INCHES MAXIMUM |
| BODY WIDTH | 1.090 INCHES NOMINAL |
| BODY HEIGHT | 1.750 INCHES MAXIMUM |
| BODY ANGLE IN DEG | 45.0 |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 SCREW |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.625 INCHES MAXIMUM |
| SIZE DESIGNATION | 52 |
| SPECIAL FEATURES | FOR USE WITH RECESSED JACKSCREW |
