NSN 5935-01-183-6491 MS341720C, MS3417-20C, MS341720N
Product Details | ELECTRICAL CONNECTOR CABLE CLAMP
5935-01-183-6491 A clamp specifically designed to hold an electrical cable firmly in a connector. Must include provisions for attachment to an electrical connector. Excludes ADAPTER (1), CABLE TO CONNECTOR.
Part Alternates: MS341720C, MS3417-20C, MS341720N, MS3417-20N, M85049/52-1-20A, M85049/52-1-20N, M85049/52-1-20W, M85049/52-20W, M8504952120A, M8504952120N, M8504952120W, M850495220W, MILC5015, MIL-C-5015, MIL-C-85049/52, MILC8504952, P719005, P719-005 , G816318NF, G8163-18NF , LS12686G20, 3591007160, 359-1007-160, 4142556016, 414-2556-016, 422485, 768004092005, 7680-04092-005 , 8087388, 808738-8, 5935-01-183-6491, 01-183-6491, 5935011836491, 011836491
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 JUL 1984 | 01-183-6491 | 23010 ( CLAMP, CABLE, ELECTRICAL CONNECTOR ) |

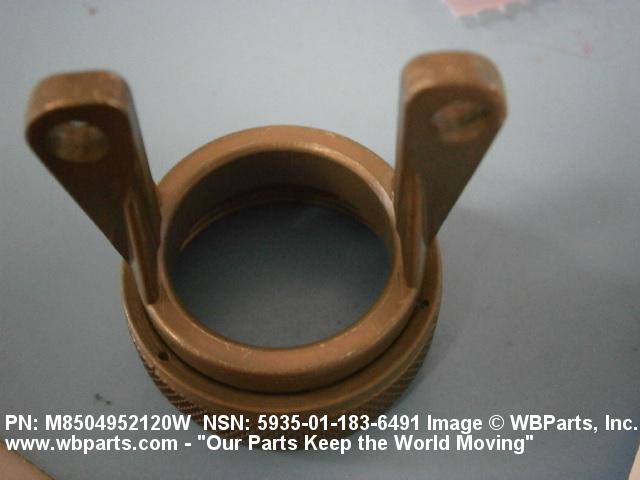

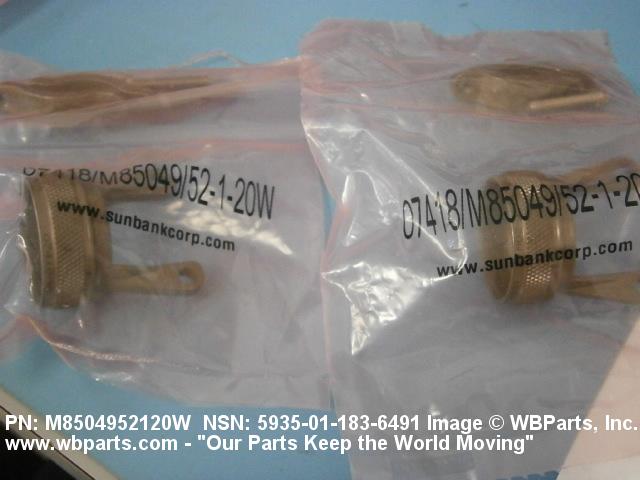

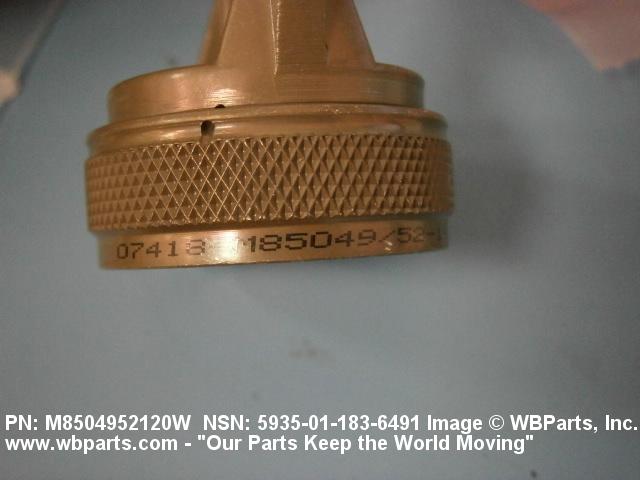

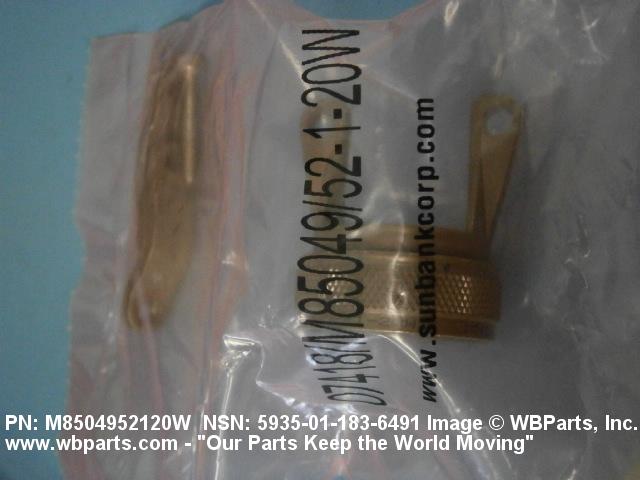

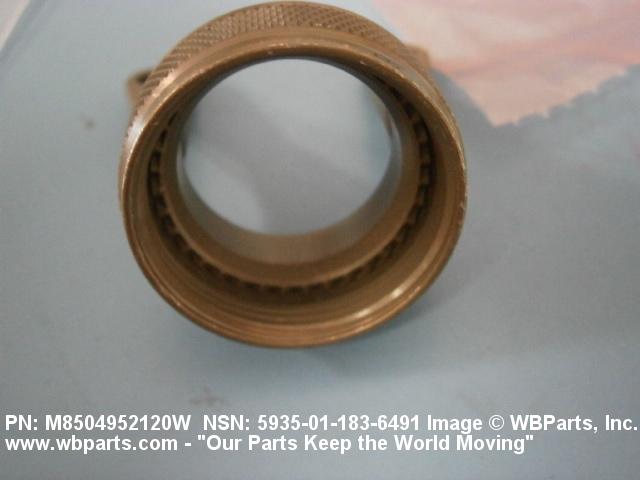

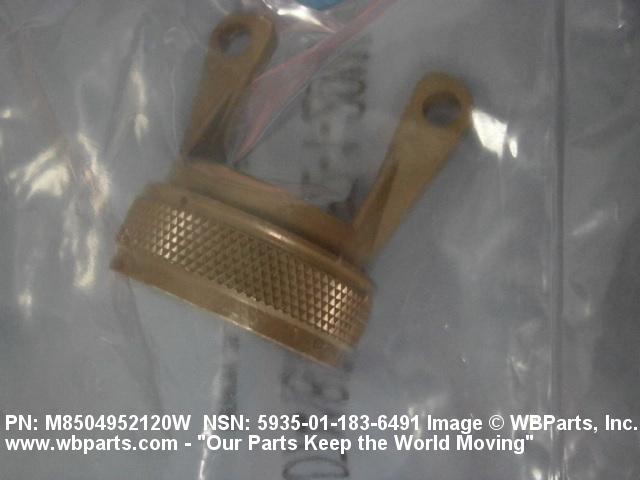

Drawings & Photos | NSN 5935-01-183-6491
Demand History | NSN 5935-01-183-6491
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS341720N | 2024-11-323 | 2 | United States |
| 5935-01-183-6491 | 2023-11-320 | 945 | DIBBS |
| 5935-01-183-6491 | 2022-12-341 | 617 | DIBBS |
| 5935-01-183-6491 | 2022-09-269 | 535 | DIBBS |
| 5935-01-183-6491 | 2022-09-245 | 1288 | DIBBS |
| 5935-01-183-6491 | 2022-08-230 | 1288 | DIBBS |
| 5935-01-183-6491 | 2021-08-228 | 3810 | DIBBS |
| 5935-01-183-6491 | 2020-09-252 | 316 | DIBBS |
| 5935-01-183-6491 | 2020-08-237 | 316 | DIBBS |
| M8504952120W | 2019-04-114 | 34 | United States |
| MS341720N | 2019-02-56 | 4 | IN |
| M8504952120W | 2017-09-263 | 4 | United States |
| 5935-01-183-6491 | 2017-06-157 | 3006 | DIBBS |
| 5935-01-183-6491 | 2017-01-09 | 1593 | DIBBS |
| 5935-01-183-6491 | 2016-12-343 | 6 | United States |
| M8504952120N | 2016-05-131 | 2 | Israel |
| M8504952120W | 2014-11-316 | 6 | United States |
| MS3417-20C | 2014-05-127 | 9 | United States |
| M8504952120N | 2013-11-319 | 47 | United States |
| 5935-01-183-6491 | 2013-06-174 | 798 | DIBBS |
| 5935-01-183-6491 | 2013-05-127 | 635 | DIBBS |
| 5935-01-183-6491 | 2013-03-79 | 4463 | DIBBS |
| M8504952120W | 2012-12-340 | 1 | United States |
| 5935-01-183-6491 | 2012-09-255 | 4 | JP |
| M8504952120W | 2012-07-205 | 37 | US |
| 5935-01-183-6491 | 2012-03-62 | 1669 | DIBBS |
| M8504952120W | 2012-01-25 | 2 | United States |
| M8504952120W | 2012-01-12 | 25 | US |
| 5935-01-183-6491 | 2011-11-314 | 1635 | DIBBS |
| MILC8504952 | 2007-11-319 | 3 | United States |
| 5935-01-183-6491 | 2007-09-267 | 3167 | DIBBS |
| 5935-01-183-6491 | 2007-08-243 | 6330 | DIBBS |
| M8504952120W | 2007-05-124 | 26 | US |
Cross Reference | NSN 5935-01-183-6491
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 359-1007-160 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 414-2556-016 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 422485 | 01014 | AVTRON AEROSPACE, INC. |
| 757592989510 | 0000V | NCB HUNGARY HONVEDSEGI EGYSEGES TERMEKKOD |
| 808738-8 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| AS50151 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| LS12686G20 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| M85049/52-1-20A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M85049/52-1-20N | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| M85049/52-1-20W | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M85049/52-1-20W | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M85049/52-20W | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-5015 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-85049/52 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS3417-20C | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS3417-20N | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-183-6491
Related Products | NSN 5935-01-183-6491
Technical Data | NSN 5935-01-183-6491
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 10B DOUBLE CLAMPING ACTION OPEN FRAME TYPE |
| OVERALL LENGTH | 1.625 INCHES NOMINAL |
| OVERALL DIAMETER | 1.537 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM AND CHROMATE |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 1.188 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 18 |
| THREAD DIRECTION | RIGHT-HAND |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.581 INCHES MINIMUM AND 0.831 INCHES MAXIMUM |
| SIZE DESIGNATION | 20 AND 37 |
| TEST DATA DOCUMENT | 81349-MIL-C-85049 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-85049/52 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-85049/52 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M85049/52-1-20W |
Restrictions/Controls & Freight Information | NSN 5935-01-183-6491
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061200 | CABLE CLAMPS/JOINTS NOI |
| Less than car load rating | ||
| Less than truck load rating | S | 60.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-183-6491
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
