Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-186-4627 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: M28840/16AG1P1, M2884016AG1P1, MIL-C-28840/16, MILC2884016, 5935-01-186-4627, 01-186-4627, 5935011864627, 011864627
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 AUG 1984 | 01-186-4627 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

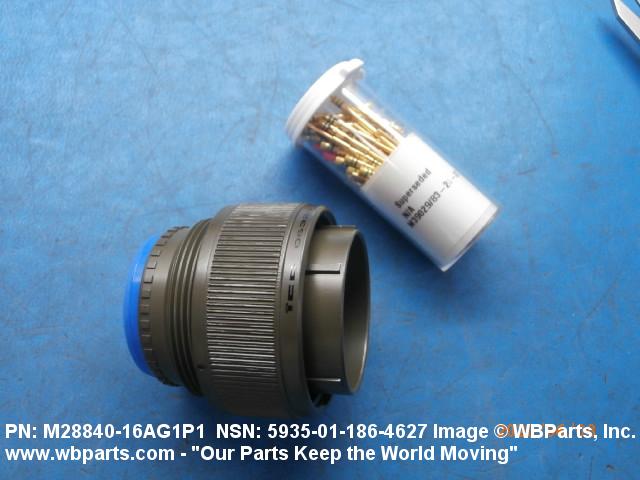

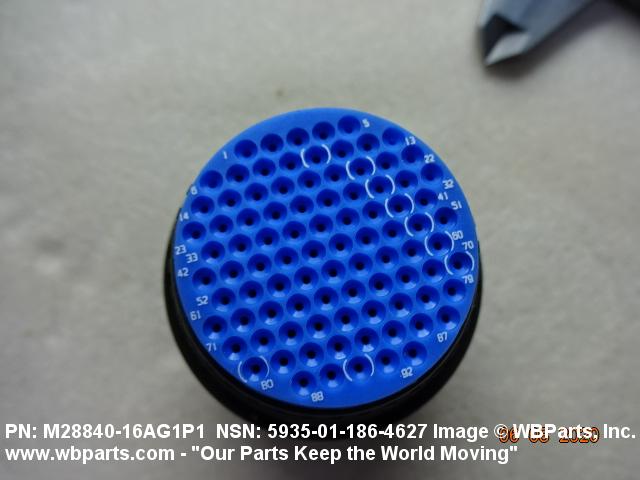

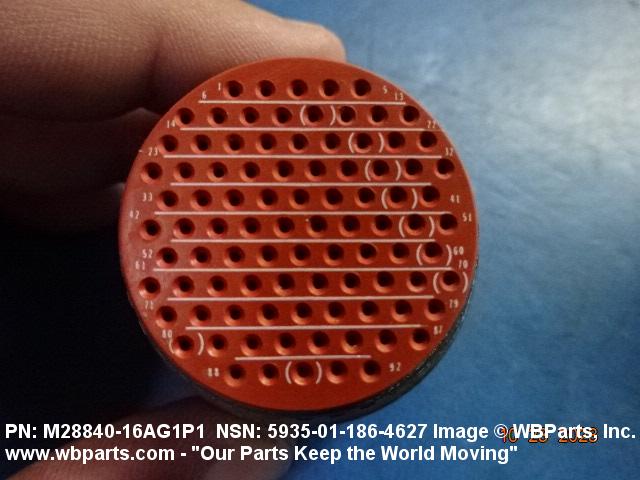

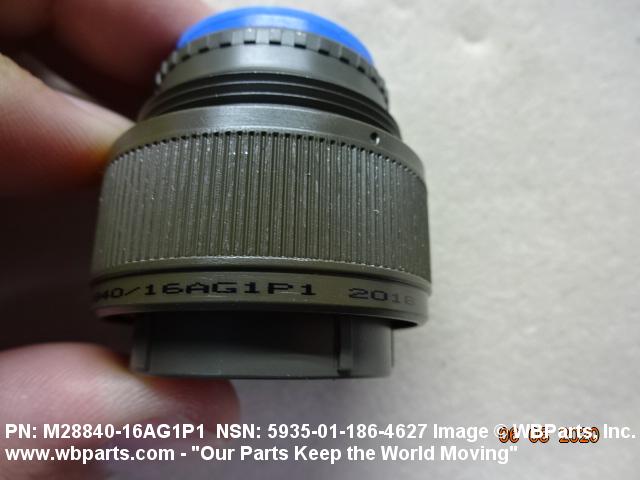

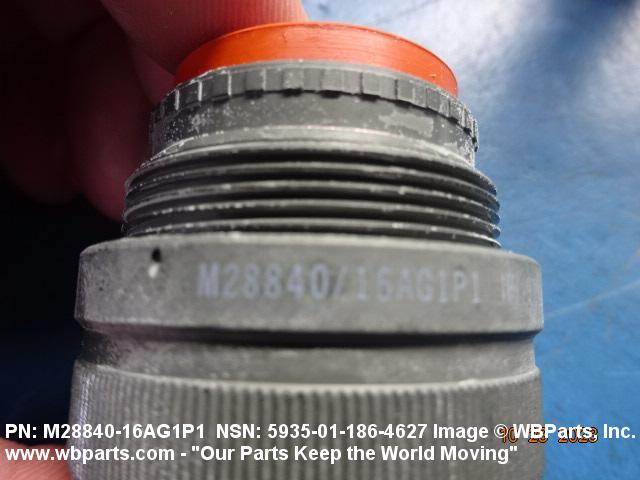

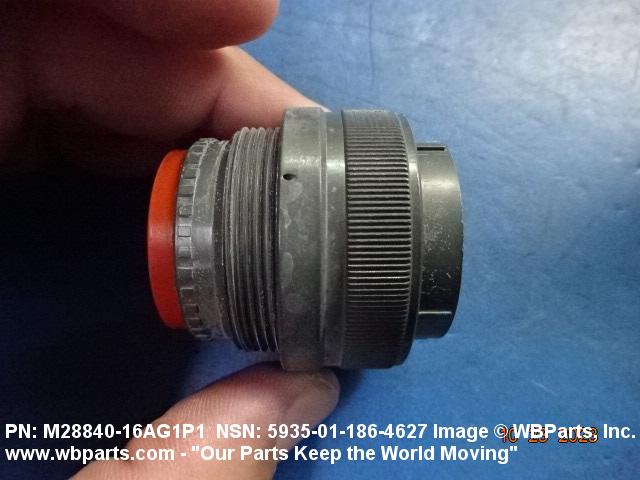

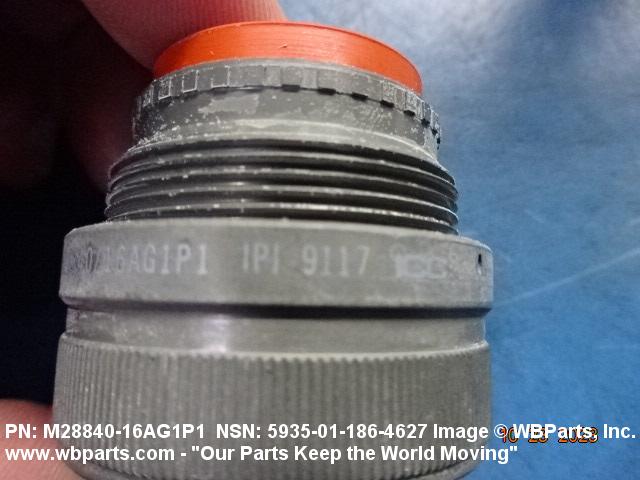

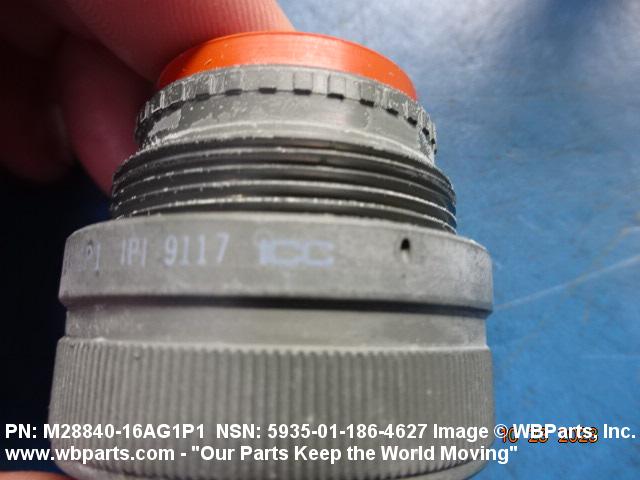

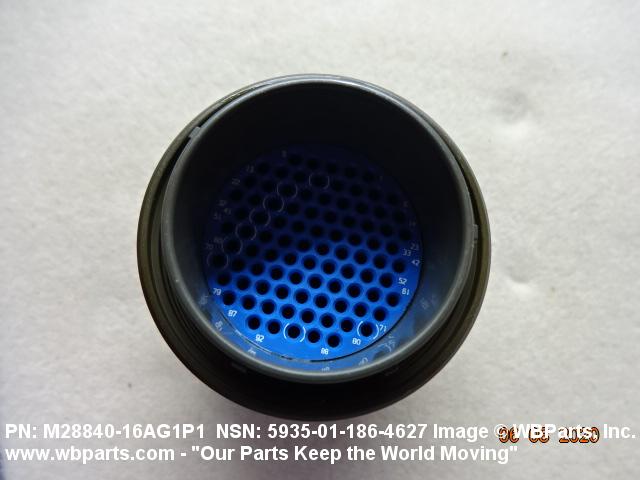

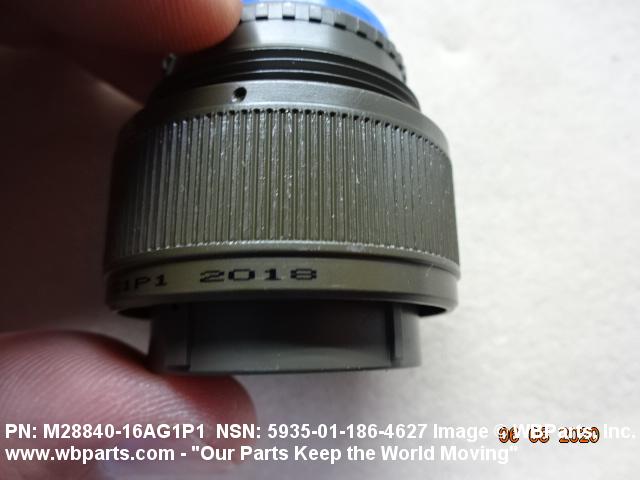

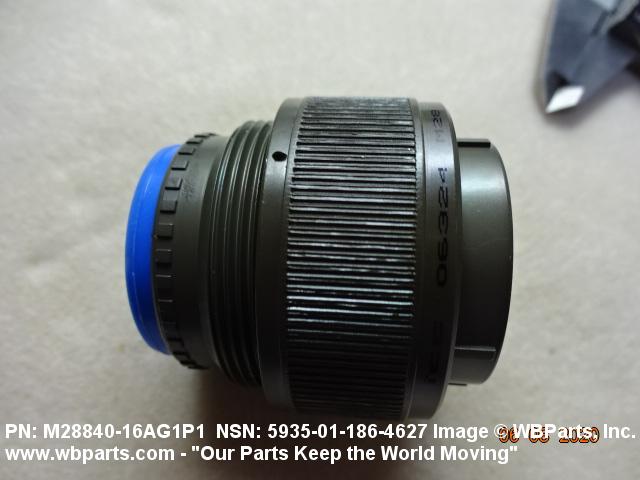

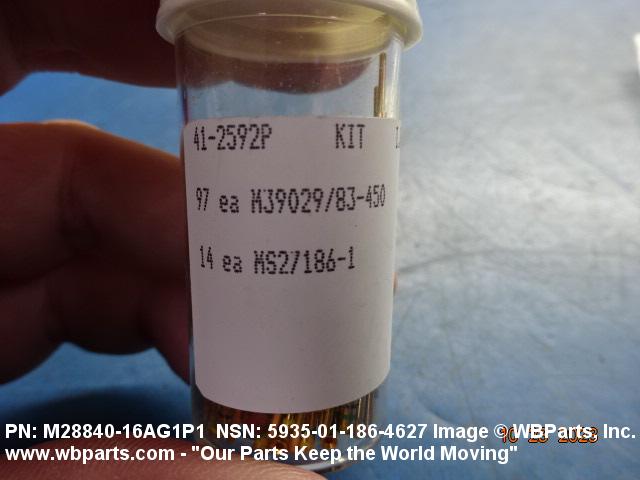

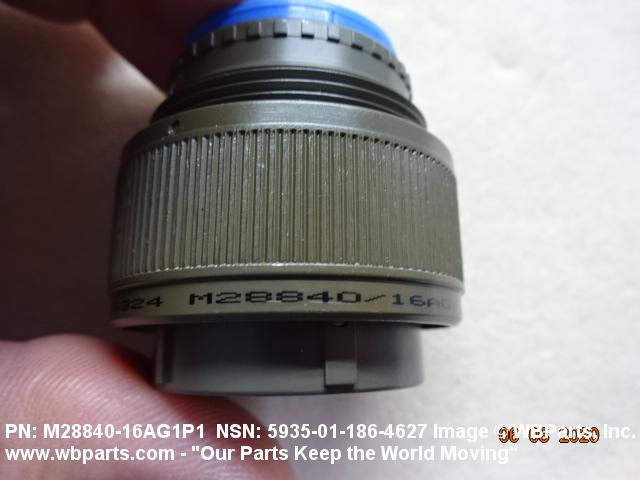

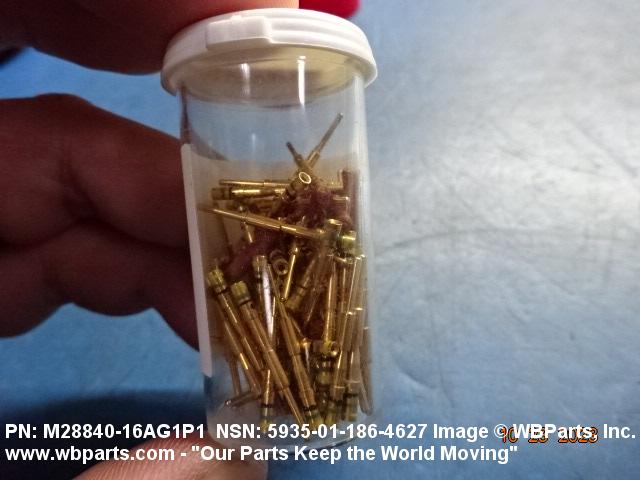

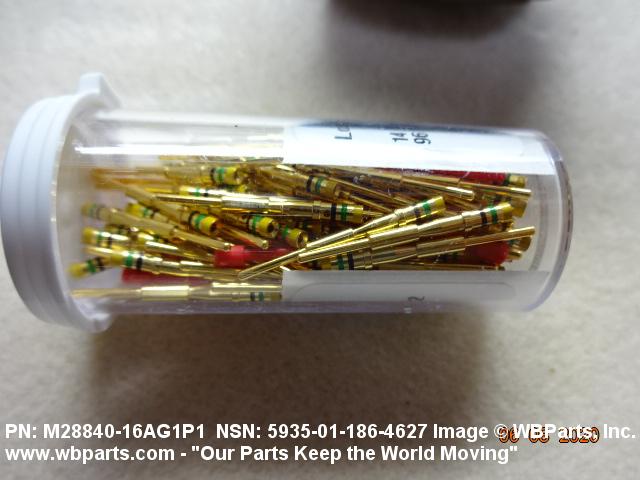

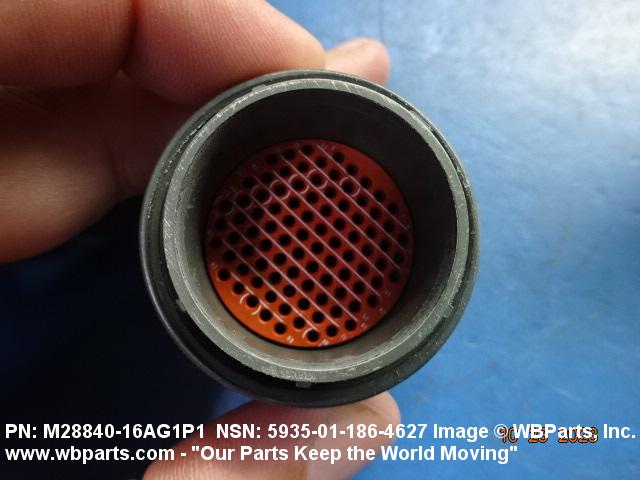

Drawings & Photos | NSN 5935-01-186-4627
Demand History | NSN 5935-01-186-4627
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M2884016AG1P1 | 2023-10-285 | 1 | United States |
| 5935-01-186-4627 | 2023-08-213 | 3 | DIBBS |
| 5935-01-186-4627 | 2023-03-89 | 129 | DIBBS |
| 5935-01-186-4627 | 2023-02-52 | 129 | DIBBS |
| 5935-01-186-4627 | 2023-02-40 | 129 | DIBBS |
| 5935-01-186-4627 | 2022-10-286 | 81 | DIBBS |
| 5935-01-186-4627 | 2022-02-32 | 35 | DIBBS |
| 5935-01-186-4627 | 2021-07-199 | 32 | DIBBS |
| 5935-01-186-4627 | 2021-03-87 | 41 | DIBBS |
| 5935-01-186-4627 | 2020-11-324 | 43 | DIBBS |
| M2884016AG1P1 | 2020-05-140 | 16 | United States |
| M2884016AG1P1 | 2020-05-140 | 16 | United States |
| M2884016AG1P1 | 2020-03-84 | 1 | United States |
| 5935-01-186-4627 | 2017-10-276 | 81 | DIBBS |
| 5935-01-186-4627 | 2017-09-253 | 81 | DIBBS |
| 5935-01-186-4627 | 2016-06-161 | 125 | DIBBS |
| 5935-01-186-4627 | 2016-01-24 | 1 | DIBBS |
| 5935-01-186-4627 | 2015-07-211 | 147 | DIBBS |
| 5935-01-186-4627 | 2009-09-245 | 116 | DIBBS |
| 5935-01-186-4627 | 2009-08-219 | 114 | DIBBS |
| 5935-01-186-4627 | 2009-07-183 | 225 | DIBBS |
| 5935-01-186-4627 | 2009-06-173 | 37 | DIBBS |
| 5935-01-186-4627 | 2009-06-153 | 97 | DIBBS |
| 5935-01-186-4627 | 2009-05-134 | 75 | DIBBS |
| 5935-01-186-4627 | 2009-03-77 | 23 | DIBBS |
| 5935-01-186-4627 | 2009-03-68 | 23 | DIBBS |
| 5935-01-186-4627 | 2009-02-55 | 40 | DIBBS |
| 5935-01-186-4627 | 2008-11-324 | 25 | DIBBS |
| 5935-01-186-4627 | 2008-03-71 | 62 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-186-4627
Related Products | NSN 5935-01-186-4627
Technical Data | NSN 5935-01-186-4627
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7A STRAIGHT SHAPE, INTERNAL COUPLING |

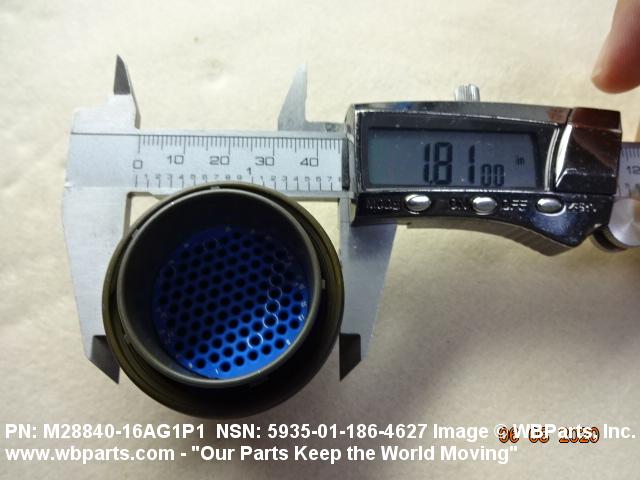

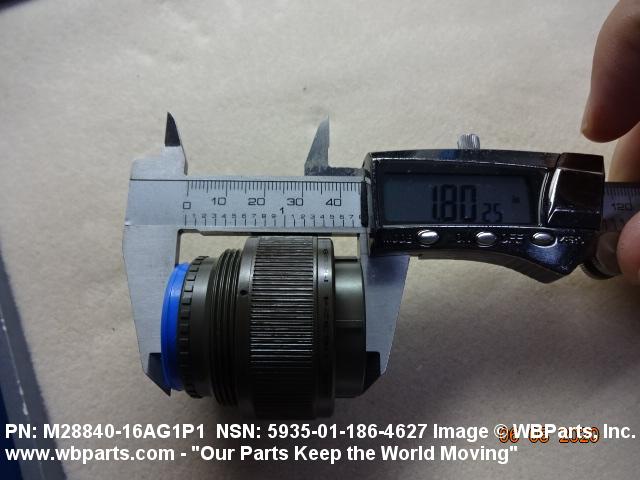

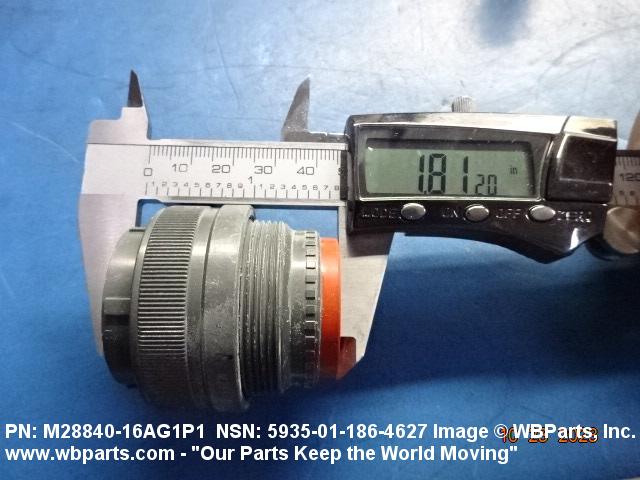

| OVERALL LENGTH | 1.938 INCHES MAXIMUM |

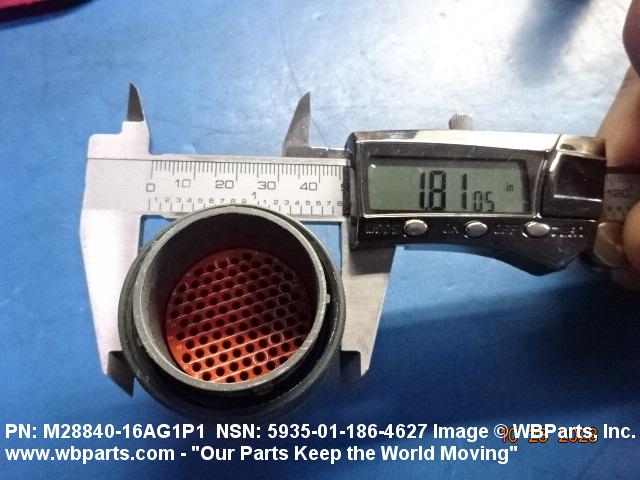

| OVERALL DIAMETER | 1.825 INCHES MAXIMUM |
