NSN 5935-01-193-5472 M28901/3-1, M2890131, MIL-C-28901/3
Product Details | TIP PLUG
5935-01-193-5472 A banana or pin type termination applied to the end of a single electrical conductor and designed to be inserted in a jack or binding post. May be insulated or uninsulated. Excludes TIP, TEST PROD and PLUG, TELEPHONE.
Part Alternates: M28901/3-1, M2890131, MIL-C-28901/3, MILC289013, 5935-01-193-5472, 01-193-5472, 5935011935472, 011935472
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 NOV 1984 | 01-193-5472 | 15046 ( PLUG, TIP ) |
Drawings & Photos | NSN 5935-01-193-5472
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-193-5472
Related Products | NSN 5935-01-193-5472
Technical Data | NSN 5935-01-193-5472
| Characteristic | Specifications |
|---|---|
| FINGER TYPE | BANANA SPRING ALL FINGERS |
| FINGER LENGTH | 0.560 INCHES NOMINAL ALL FINGERS |
| FINGER DIAMETER | 0.170 INCHES MINIMUM AND 0.180 INCHES MAXIMUM ALL FINGERS |

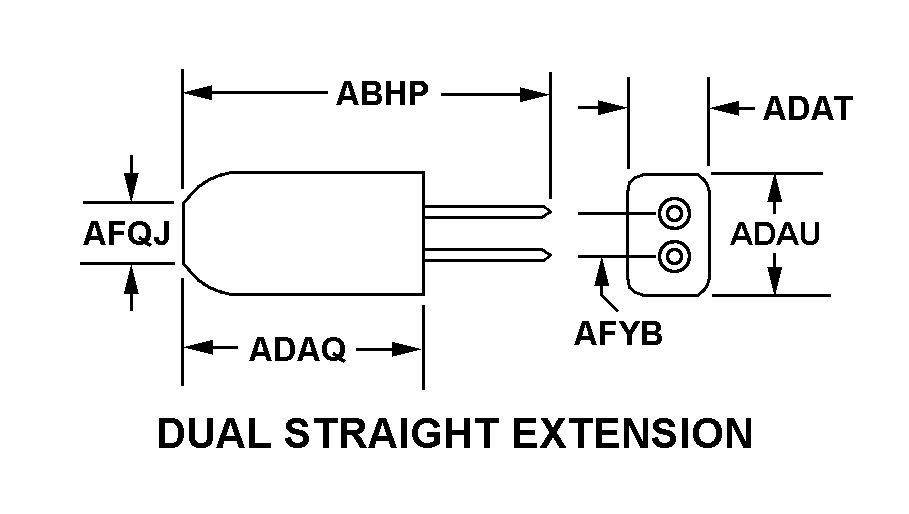

| BODY STYLE | 13 DUAL STRAIGHT EXTENSION |
| OVERALL LENGTH | 1.560 INCHES NOMINAL |
| BODY LENGTH | 1.000 INCHES NOMINAL |
| BODY WIDTH | 0.380 INCHES NOMINAL |
| BODY HEIGHT | 1.150 INCHES NOMINAL |
| CABLE ENTRANCE DIAMETER | 0.200 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN FINGERS | 0.750 INCHES NOMINAL |
| ELECTRICAL INSULATION FEATURE | INSULATED COMPLETELY |
| MATERIAL | STEEL HANDLE PLASTIC INSULATOR BERYLLIUM COPPER SPRING COPPER ALLOY TERMINAL |
| SURFACE TREATMENT | NICKEL HANDLE GOLD SPRING NICKEL TERMINAL |
| IDENTIFICATION CODE COLOR | BLACK |
| TERMINAL TYPE | WIRE WRAP |
| MAXIMUM VOLTAGE RATING IN VOLTS | 1000.0 AC |
| CURRENT RATING IN AMPS | 3.0 |
| TEST DATA DOCUMENT | 81349-MIL-C-28901 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-28901/3 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-28901/3 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M28901/3-1 |
