NSN 5935-01-194-1542 D38999/26WD97PN, D3899926WD97PN, DOD-C-38999/26

Product Details | ELECTRICAL PLUG CONNECTOR

5935-01-194-1542 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: D38999/26WD97PN, D3899926WD97PN, DOD-C-38999/26, DODC3899926, MIL-DTL-38999/26, MILDTL3899926, 5935-01-194-1542, 01-194-1542, 5935011941542, 011941542

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	10 NOV 1984	01-194-1542	01938 ( CONNECTOR, PLUG, ELECTRICAL )

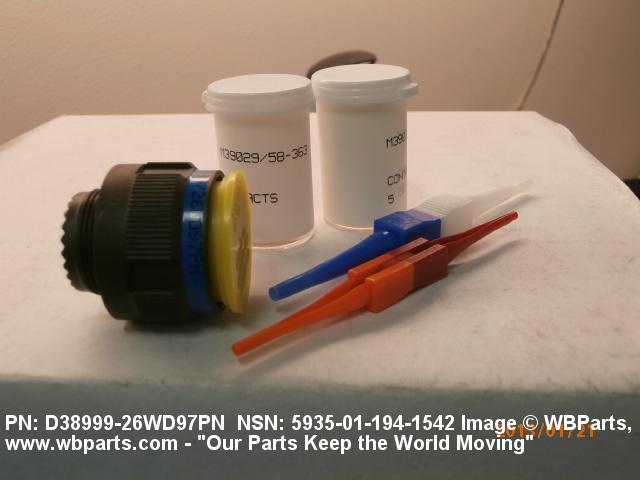

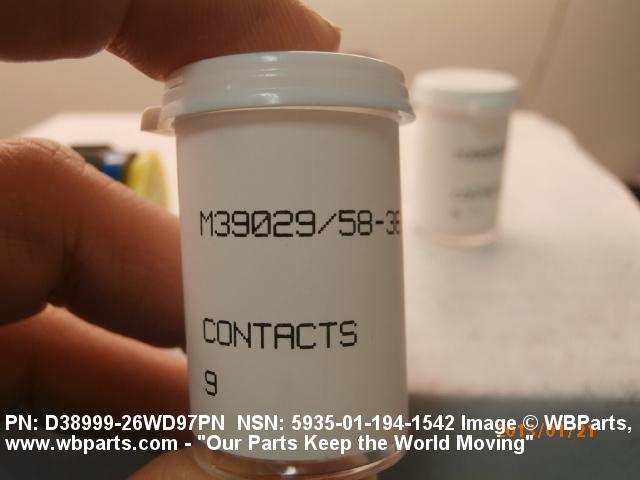

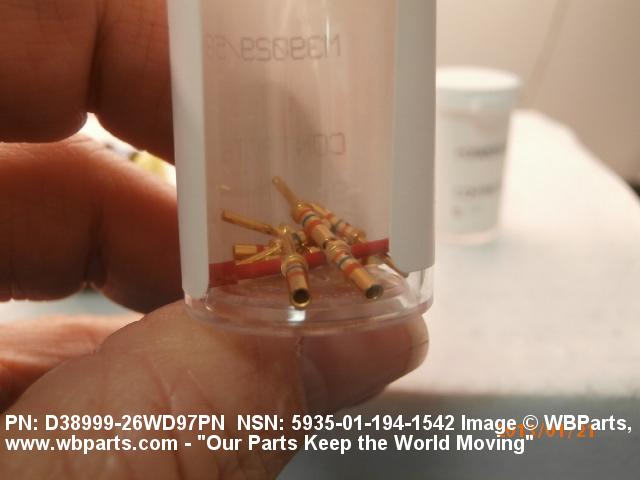

Drawings & Photos | NSN 5935-01-194-1542

Part Number	Request Date	QTY	Origin
MILDTL3899926	2025-09-266	2	US
5935-01-194-1542	2023-05-124	625	DIBBS
5935-01-194-1542	2019-09-247	783	DIBBS
5935-01-194-1542	2019-01-03	764	DIBBS
5935-01-194-1542	2018-08-242	1103	DIBBS
5935-01-194-1542	2017-04-102	338	DIBBS
5935-01-194-1542	2016-04-105	100	DIBBS
5935-01-194-1542	2015-03-85	5	Saudi Arabia
5935-01-194-1542	2013-03-85	360	DIBBS
5935-01-194-1542	2013-02-58	555	DIBBS
5935-01-194-1542	2013-02-32	510	DIBBS
5935-01-194-1542	2013-01-14	1	MANUAL
D38999/26WD97PN	2013-01-14	1	United States
5935-01-194-1542	2012-12-353	3	Malaysia
5935-01-194-1542	2012-10-290	213	DIBBS
5935-01-194-1542	2012-10-290	450	DIBBS
5935-01-194-1542	2012-10-289	213	DIBBS
5935-01-194-1542	2012-10-289	450	DIBBS
5935-01-194-1542	2012-08-215	450	DIBBS
5935-01-194-1542	2012-07-208	213	DIBBS
5935-01-194-1542	2008-06-155	250	DIBBS
5935-01-194-1542	2008-05-140	1300	DIBBS
5935-01-194-1542	2008-03-81	500	DIBBS
5935-01-194-1542	2008-02-53	361	DIBBS

Cross Reference | NSN 5935-01-194-1542

Part Number	Cage Code	Manufacturer
D38999/26WD97PN	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
DOD-C-38999/26	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-38999/26	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-194-1542

Compare

Related Products | NSN 5935-01-194-1542

5935-01-194-1544, 5935-01-194-1545, 5935-01-194-1547, 5935-01-194-1548, 5935-01-194-1622

Technical Data | NSN 5935-01-194-1542

Characteristic	Specifications
BODY STYLE	7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH	33.16 MILLIMETERS MAXIMUM
OVERALL DIAMETER	32.5 MILLIMETERS MAXIMUM
CONNECTOR LOCKING METHOD	INTERNALLY THREADED COUPLING RING
THREADED DEVICE TYPE	BACK SHELL AND COUPLING FACILITY
THREAD SERIES DESIGNATOR	ISO M AND SPECIAL ACME
NOMINAL THREAD SIZE	12.0 MILLIMETERS AND 1.000 INCHES
THREAD CLASS	2B
THREAD TOLERANCE CLASS	6G EXTERNAL
THREAD PITCH IN MILLIMETERS	1.00
THREAD DIRECTION	RIGHT-HAND AND RIGHT-HAND
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY
SHELL SURFACE TREATMENT	CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	21.0 AND 34.0 AND 326.0 AND 339.0
MATING END QUANTITY	1
CONTACT POSITION ARRANGEMENT STYLE	ANCR 15-97 SINGLE MATING END
INCLUDED CONTACT QUANTITY	4 SINGLE MATING END 1ST CONTACT GROUPING 8 SINGLE MATING END 2ND CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
INCLUDED CONTACT TYPE	ROUND PIN SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE	CRIMP SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
TEST DATA DOCUMENT	81349-DOD-C-38999 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-DOD-C-38999/26 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.012 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION	CONTACT SURFACES GOLD
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	DOD-C-38999/26
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	D38999/26WD97PN

Restrictions/Controls & Freight Information | NSN 5935-01-194-1542

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	ZN	Netherlands ZO ZP
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-194-1542

Army

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
