Product Details | PLUG DUMMY CONNECTOR
5935-01-205-3546 An item specifically designed to mate with another connector to perform one or more special functions, such as to act as a cover or shield, to short contacts, or to open or close electrical circuits, in or on another connector. It is not designed for direct attachment to a cable, conduit, or wire, and cannot be used as a CONNECTOR, PLUG, ELECTRICAL. Excludes DUMMY PLUG, TELEPHONE.
Part Alternates: L5493650, 5493650, 5935-01-205-3546, 01-205-3546, 5935012053546, 012053546
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 APR 1985 | 01-205-3546 | 15094 ( DUMMY CONNECTOR, PLUG ) |
Drawings & Photos | NSN 5935-01-205-3546
Demand History | NSN 5935-01-205-3546
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-205-3546 | 2017-01-17 | 2 | DIBBS |
Cross Reference | NSN 5935-01-205-3546
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-205-3546
Related Products | NSN 5935-01-205-3546
Technical Data | NSN 5935-01-205-3546
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 1.230 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.305 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | BAYONET LATCH |
| THREADED DEVICE TYPE | BACK SHELL |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 1.000 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 20 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY 6061 |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-367,T-6 FED SPEC SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 0.0 |
| MATING END QUANTITY | 1 |

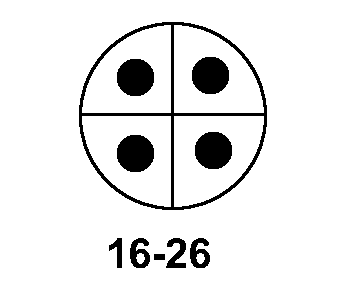

| CONTACT POSITION ARRANGEMENT STYLE | AEBY 16-26 SINGLE MATING END |
