NSN 5935-01-207-1778 28951481, 2895148-1, 01-207-1778
Product Details | ELECTRICAL CONNECTOR RETAINING PLATE
5935-01-207-1778 A flat metallic item varied in shape with an opening(s) to accommodate an electrical connector(s). It must have facilities for mounting. Used to position an electrical connector. See also PLATE, MOUNTING (as modified). Excludes PLATE, WALL, ELECTRICAL and ESCUTCHEON PLATE.
Part Alternates: 28951481, 2895148-1, 5935-01-207-1778, 01-207-1778, 5935012071778, 012071778
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 APR 1985 | 01-207-1778 | 21538 ( PLATE, RETAINING, ELECTRICAL CONNECTOR ) |
Drawings & Photos | NSN 5935-01-207-1778
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-207-1778
Technical Data | NSN 5935-01-207-1778
| Characteristic | Specifications |
|---|---|

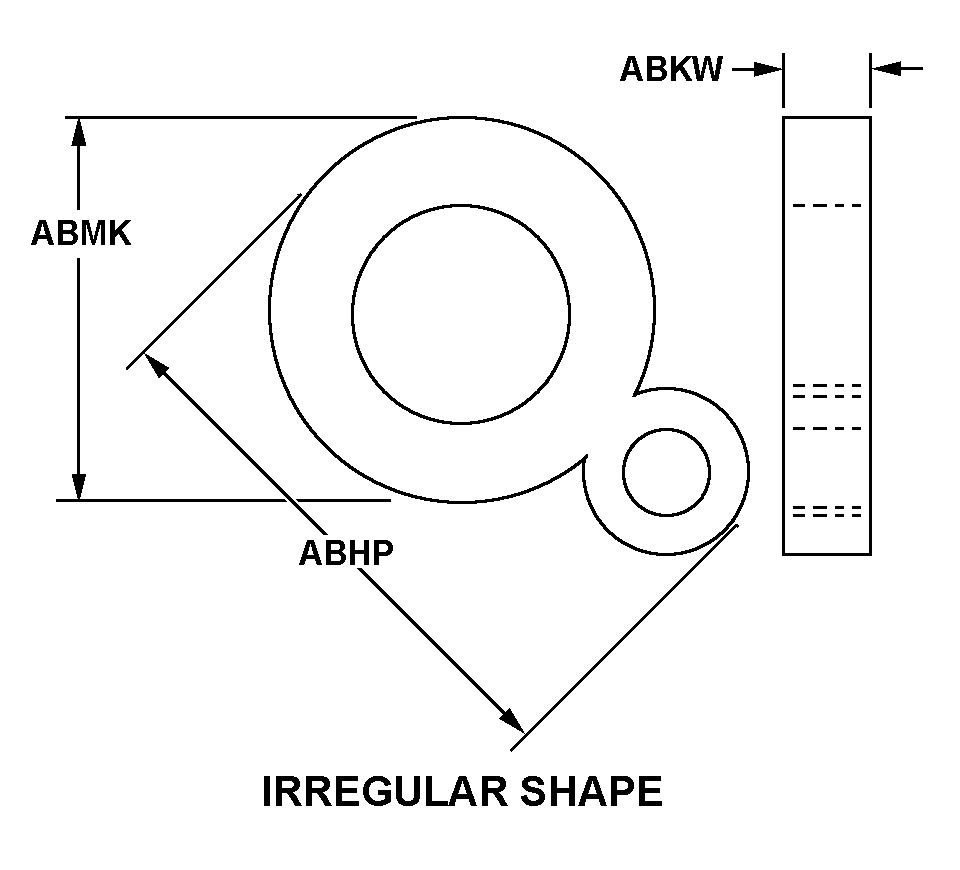

| STYLE DESIGNATOR | 13J IRREGULAR SHAPE |
| OVERALL LENGTH | 1.780 INCHES NOMINAL |
| OVERALL HEIGHT | 0.118 INCHES NOMINAL |
| OVERALL WIDTH | 1.375 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | ANODIZED ALUMINUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE AND 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.144 INCHES NOMINAL AND 0.225 INCHES NOMINAL |
| CABLE OPENING QUANTITY | 1 |
| CABLE OPENING DIAMETER | 0.669 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5935-01-207-1778
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
