NSN 5935-01-215-6069 202M11819B, 202M118-19B, 01-215-6069
Product Details | ELECTRICAL CONNECTOR BACKSHELL
5935-01-215-6069 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.
Part Alternates: 202M11819B, 202M118-19B, 5935-01-215-6069, 01-215-6069, 5935012156069, 012156069
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 AUG 1985 | 01-215-6069 | 67169 ( BACKSHELL, ELECTRICAL CONNECTOR ) |

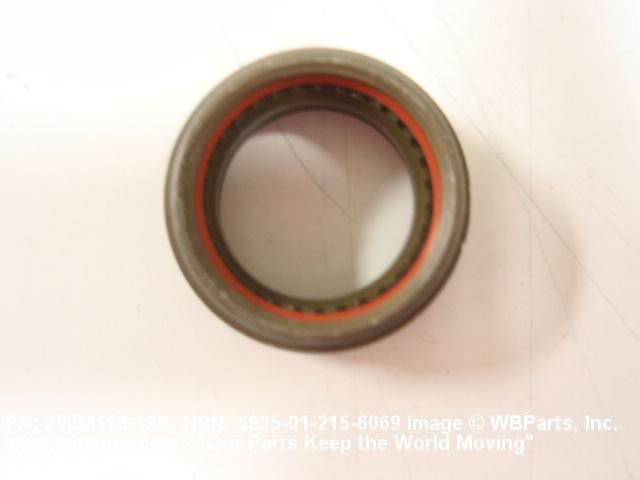

Drawings & Photos | NSN 5935-01-215-6069
Demand History | NSN 5935-01-215-6069
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 202M11819B | 2010-06-160 | 10 | United States |
Cross Reference | NSN 5935-01-215-6069
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 202M118-19B | 06090 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-215-6069
Technical Data | NSN 5935-01-215-6069
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 8C STRAIGHT SHAPE SOLID TYPE |
| OVERALL LENGTH | 0.734 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.310 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM AND NICKEL, ELECTROLESS |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED COUPLING |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 1.062 INCHES |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| SIZE DESIGNATION | 18 AND 19 |
Restrictions/Controls & Freight Information | NSN 5935-01-215-6069
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
