NSN 5935-01-229-1455 C88244W23, C8824-4W23, S3291FM741034

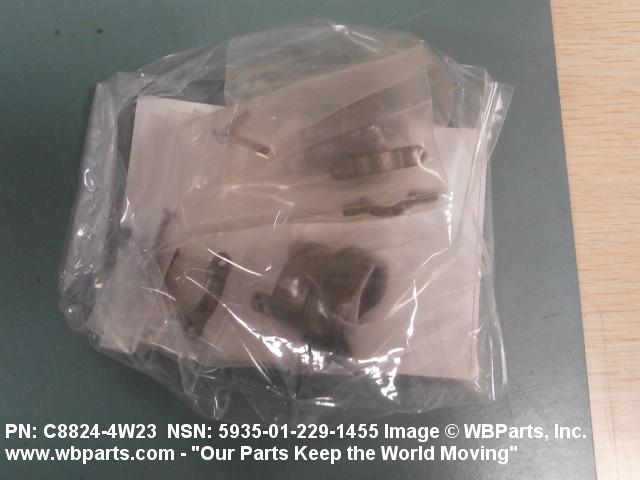

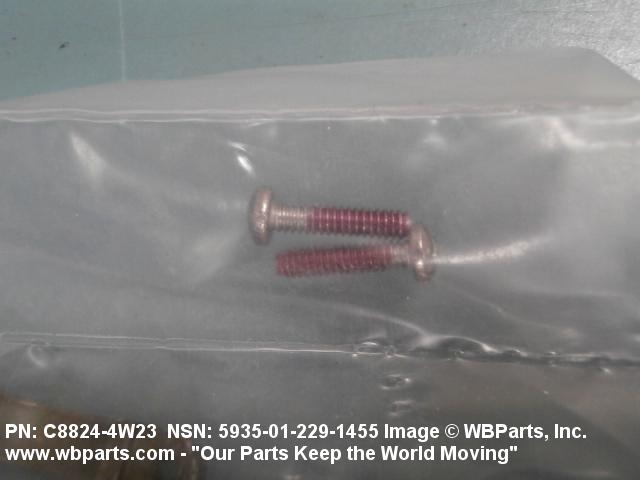

Product Details | ELECTRICAL CONNECTOR BACKSHELL

5935-01-229-1455 An item specifically designed to be placed around that portion of a CONNECTOR, RECEPTABLE, ELECTRICAL or CONNECTOR, PLUG, ELECTRICAL which contains the facilities for attaching wires or cables. It may be designed to provide the necessary accomodations between an electrical cable clamping device and an electrical connector shell, or it may include the clamping device. It may be used for shielding against electrical interference, mechanical injury, or physical damage due to environmental conditions.

Part Alternates: C88244W23, C8824-4W23, S3291FM741034, S3291FM7410-34, G910023NF, G9100-23NF, 5935-01-229-1455, 01-229-1455, 5935012291455, 012291455

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	26 MAR 1986	01-229-1455	67169 ( BACKSHELL, ELECTRICAL CONNECTOR )

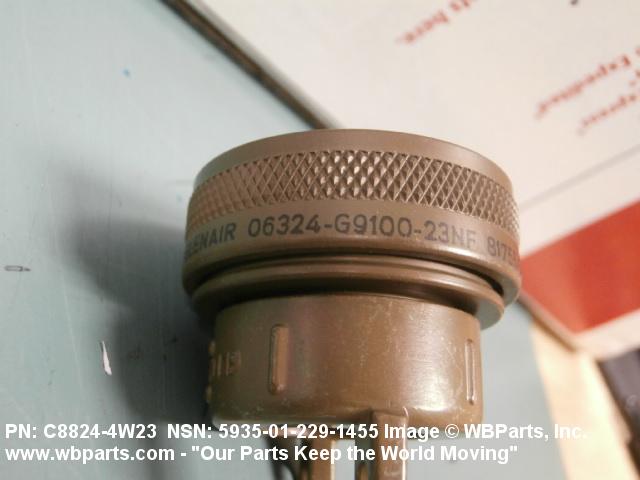

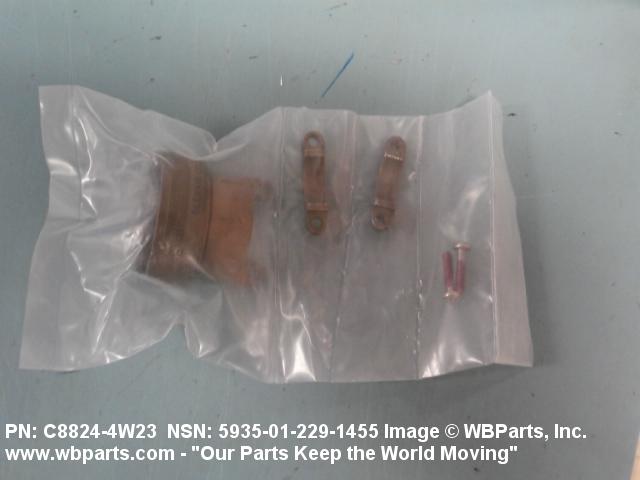

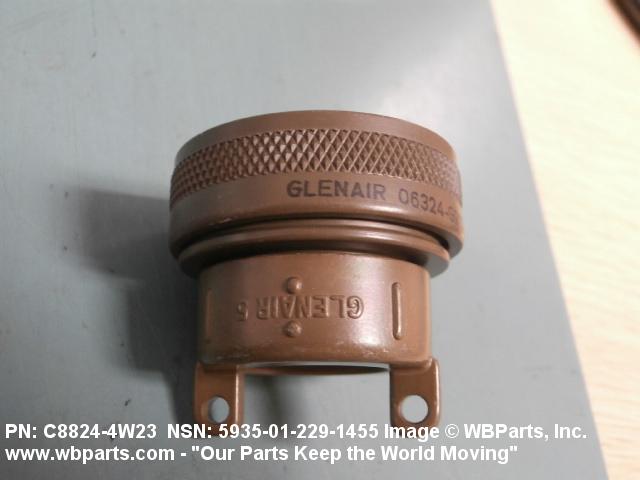

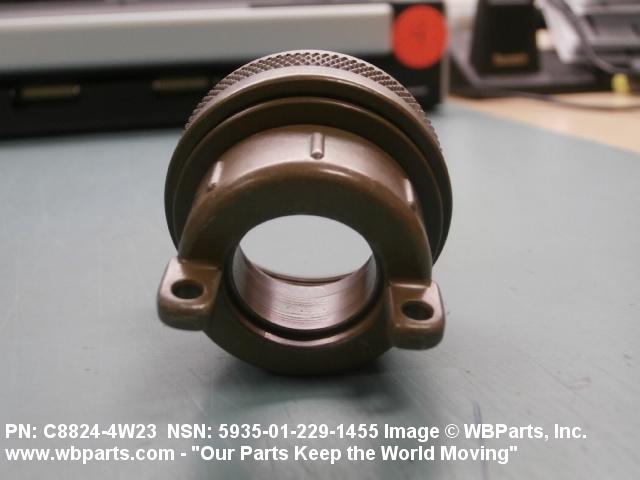

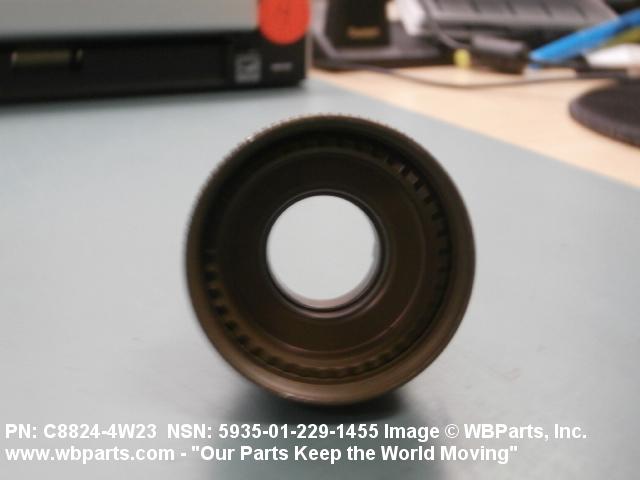

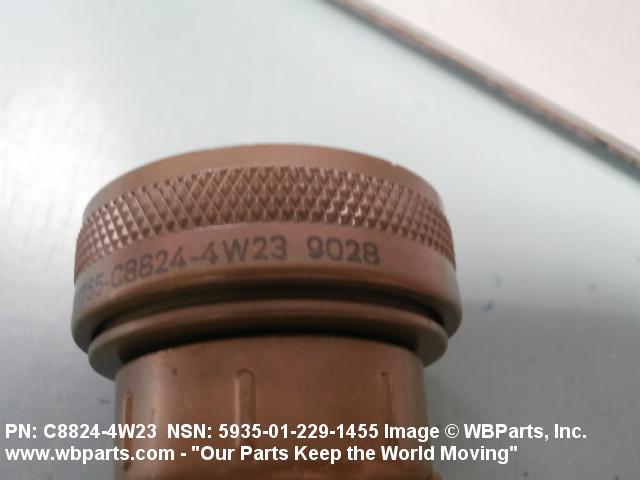

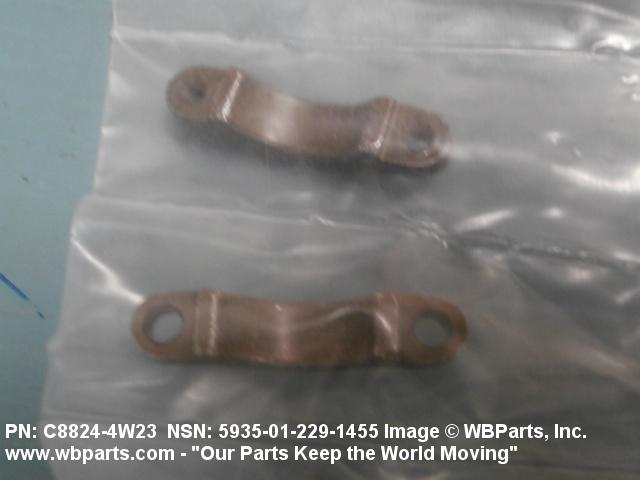

Drawings & Photos | NSN 5935-01-229-1455

Part Number	Request Date	QTY	Origin
5935-01-229-1455	2018-08-242	139	DIBBS
5935-01-229-1455	2016-12-340	135	DIBBS
5935-01-229-1455	2016-02-54	63	DIBBS
5935-01-229-1455	2014-03-65	55	DIBBS
5935-01-229-1455	2014-02-34	38	DIBBS
5935-01-229-1455	2014-01-30	52	DIBBS
5935-01-229-1455	2013-11-329	2	United States
5935-01-229-1455	2009-04-104	26	DIBBS
5935-01-229-1455	2008-07-190	73	DIBBS
5935-01-229-1455	2007-12-351	71	DIBBS

Cross Reference | NSN 5935-01-229-1455

Part Number	Cage Code	Manufacturer
C8824-4W23	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
G9100-23NF	06324	GLENAIR, INC.
S3291FM7410-34	07418	JOSLYN SUNBANK COMPANY, LLC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-229-1455

Compare

Related Products | NSN 5935-01-229-1455

5935-01-229-1718, 5935-01-229-1720, 5935-01-229-1768, 5935-01-229-1769, 5935-01-229-1770

Technical Data | NSN 5935-01-229-1455

Characteristic	Specifications
STYLE DESIGNATOR	4C STRAIGHT TYPE W/CABLE CLAMP
OVERALL LENGTH	1.420 INCHES MAXIMUM
OVERALL HEIGHT	1.448 INCHES MAXIMUM
OVERALL WIDTH	1.219 INCHES MAXIMUM
MATERIAL	ALUMINUM ALLOY
SURFACE TREATMENT	CADMIUM AND NICKEL
MOUNTING FACILITY TYPE AND QUANTITY	1 THREADED COUPLING
THREAD SERIES DESIGNATOR	ISO M
NOMINAL THREAD SIZE	34.0 MILLIMETERS
THREAD TOLERANCE CLASS	6H INTERNAL
THREAD PITCH IN MILLIMETERS	1.00
THREAD DIRECTION	RIGHT-HAND
CABLE OPENING QUANTITY	1
CABLE OPENING DIAMETER	0.437 INCHES MINIMUM AND 0.625 INCHES MAXIMUM
SIZE DESIGNATION	23
