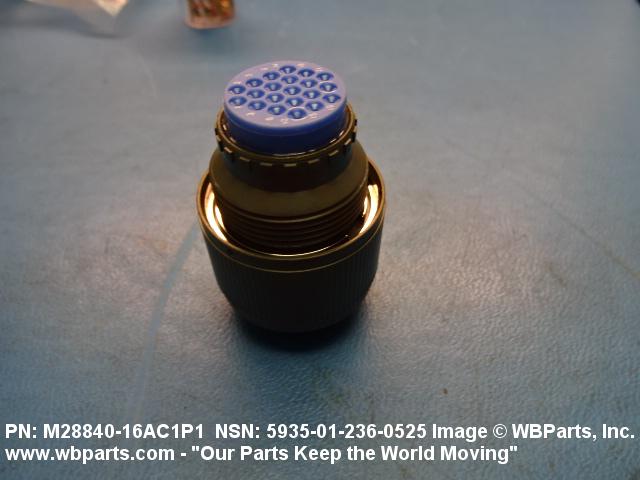

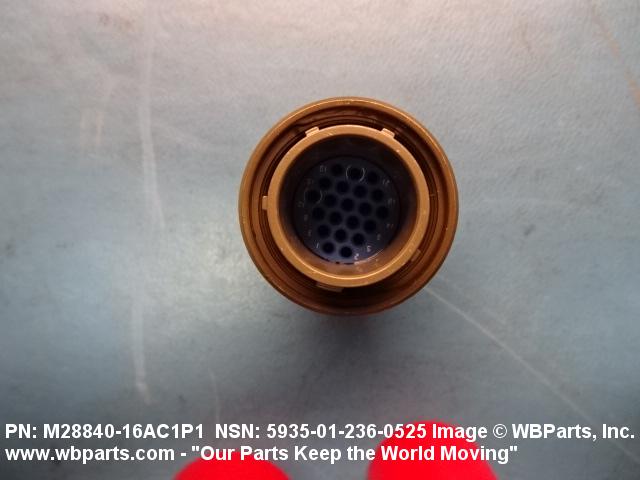

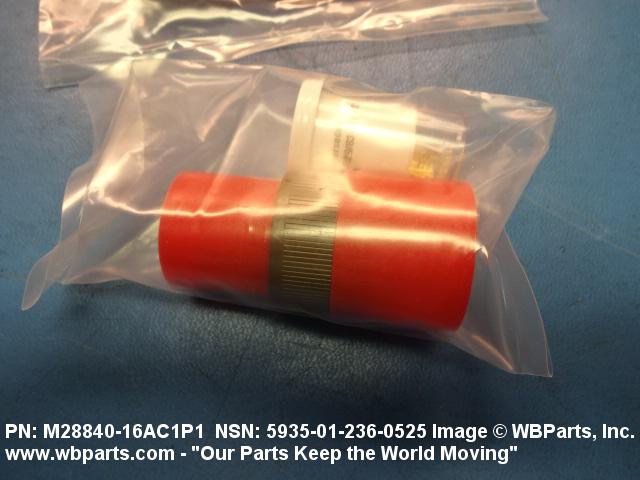

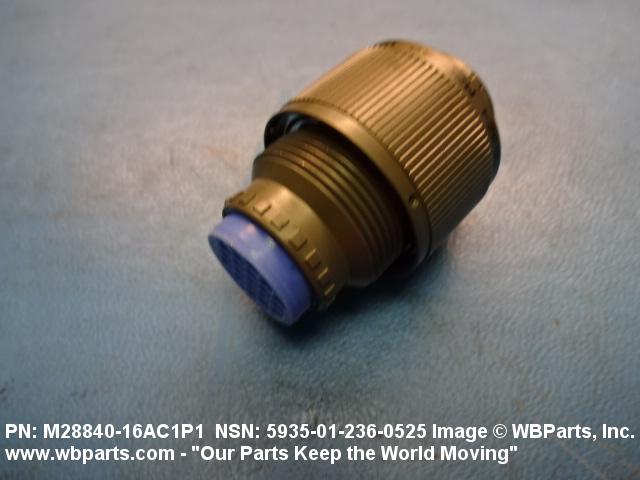

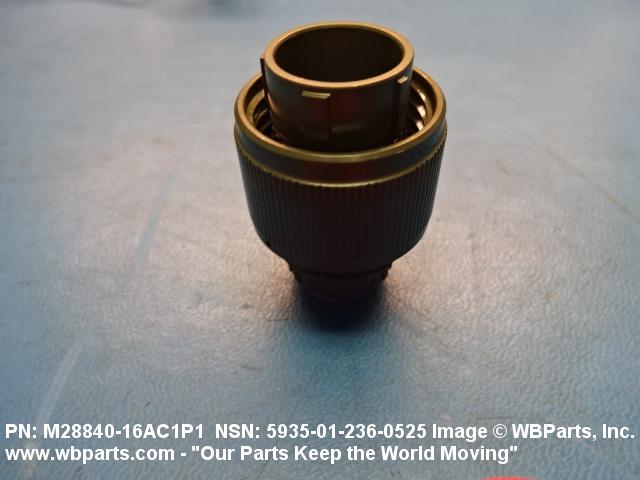

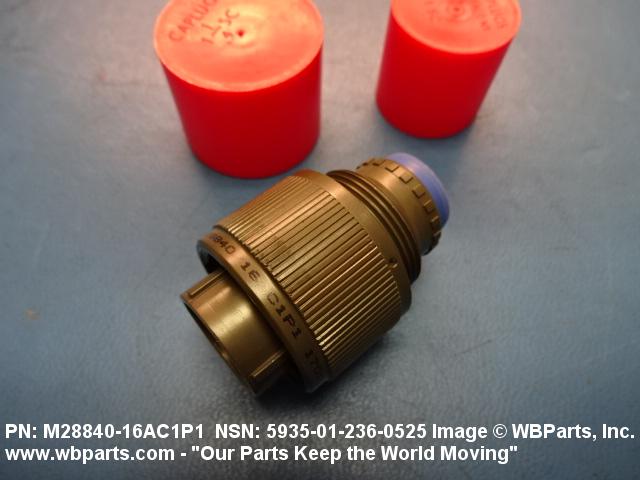

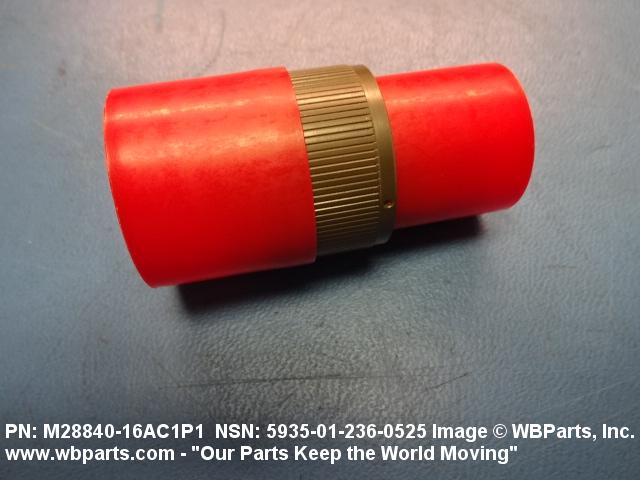

Product Details | ELECTRICAL PLUG CONNECTOR

5935-01-236-0525 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: M28840/16AC1P1, M2884016AC1P1, ASC1104445, MIL-C-28840/16, MILC2884016, 5935-01-236-0525, 01-236-0525, 5935012360525, 012360525

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	10 JUL 1986	01-236-0525	01938 ( CONNECTOR, PLUG, ELECTRICAL )

Drawings & Photos | NSN 5935-01-236-0525

Part Number	Request Date	QTY	Origin
5935-01-236-0525	2024-05-126	306	DIBBS
5935-01-236-0525	2024-03-88	216	DIBBS
M2884016AC1P1	2021-11-315	200	Canada
M2884016AC1P1	2017-05-121	1	United States
M2884016AC1P1	2017-05-121	1	United States
M2884016AC1P1	2017-03-75	1	United States
5935-01-236-0525	2016-11-308	51	DIBBS
5935-01-236-0525	2016-01-25	303	DIBBS
5935-01-236-0525	2016-01-12	303	DIBBS
M28840/16AC1P1	2014-01-09	24	US
5935-01-236-0525	2012-06-166	790	DIBBS
5935-01-236-0525	2012-02-52	157	DIBBS
5935-01-236-0525	2011-12-349	275	DIBBS
5935-01-236-0525	2011-11-306	285	DIBBS
5935-01-236-0525	2011-10-278	130	DIBBS
5935-01-236-0525	2011-09-264	116	DIBBS
5935-01-236-0525	2011-08-213	174	DIBBS
5935-01-236-0525	2011-06-172	85	DIBBS
5935-01-236-0525	2011-06-167	142	DIBBS
5935-01-236-0525	2011-06-153	121	DIBBS
5935-01-236-0525	2011-05-147	21	DIBBS
5935-01-236-0525	2011-02-34	244	DIBBS
5935-01-236-0525	2011-01-07	60	DIBBS
5935-01-236-0525	2010-06-159	156	DIBBS
5935-01-236-0525	2010-05-144	51	DIBBS
5935-01-236-0525	2010-05-139	52	DIBBS
5935-01-236-0525	2009-08-219	117	DIBBS
5935-01-236-0525	2009-07-208	300	DIBBS
5935-01-236-0525	2008-06-175	180	DIBBS
5935-01-236-0525	2008-05-151	218	DIBBS
5935-01-236-0525	2008-03-64	439	DIBBS

Cross Reference | NSN 5935-01-236-0525

Part Number	Cage Code	Manufacturer
ASC1104445	Z4779	ASC PTY LTD
M28840/16AC1P1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-28840/16	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-236-0525

Compare

Related Products | NSN 5935-01-236-0525

5935-01-236-0526, 5935-01-236-0527, 5935-01-236-0528, 5935-01-236-0529, 5935-01-236-0530

Technical Data | NSN 5935-01-236-0525

Characteristic	Specifications
BODY STYLE	7A STRAIGHT SHAPE, INTERNAL COUPLING
OVERALL LENGTH	1.938 INCHES MAXIMUM
OVERALL DIAMETER	1.263 INCHES MAXIMUM
CONNECTOR LOCKING METHOD	EXTERNALLY THREADED COUPLING RING
THREADED DEVICE TYPE	BACK SHELL AND COUPLING FACILITY
THREAD SERIES DESIGNATOR	UNEF AND DOUBLE STUB
NOMINAL THREAD SIZE	1.000 INCHES AND 1.062 INCHES
THREAD CLASS	2A AND 2B
THREAD QUANTITY PER INCH	20 AND 10
THREAD DIRECTION	RIGHT-HAND AND RIGHT-HAND
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM
SHELL SURFACE TREATMENT	CADMIUM AND CHROMATE AND NICKEL
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC 1ST TREATMENT RESPONSE AND QQ-P-416,TY 2,CL 3 FED SPEC 2ND TREATMENT RESPONSE
POLARIZATION METHOD	KEYWAY OR MULTIPLE KEYWAY
INSERT POSITION IN DEG	80.0 AND 142.0 AND 196.0 AND 293.0
MATING END QUANTITY	1
INSERT MATERIAL	PLASTIC FLUOROSILICONE SINGLE MATING END
INCLUDED CONTACT QUANTITY	21 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE	ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE	CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION	BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION	MOISTURE RESISTANT AND CORROSION RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT AND HEAT RESISTANT AND COLD RESISTANT
SPECIAL FEATURES	INSERT ARRANGEMENT IS 15-1
TEST DATA DOCUMENT	81349-MIL-C-28840 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-C-28840/16 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL	GOLD
III PRECIOUS MATERIAL AND WEIGHT	0.021 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND	CONTACT SURFACES GOLD
