Product Details | ELECTRICAL RECEPTACLE CONNECTOR BODY

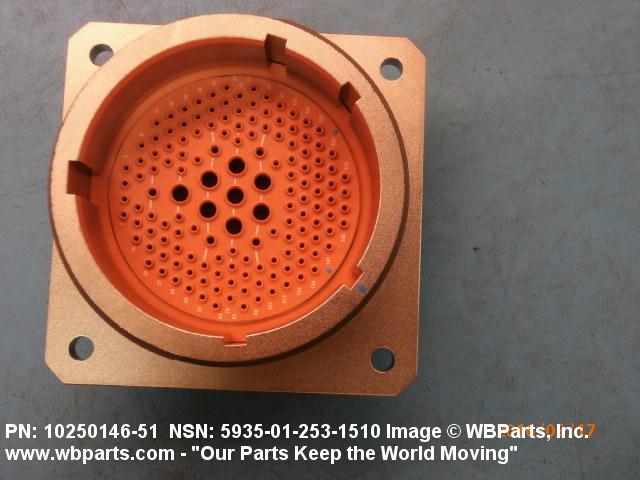

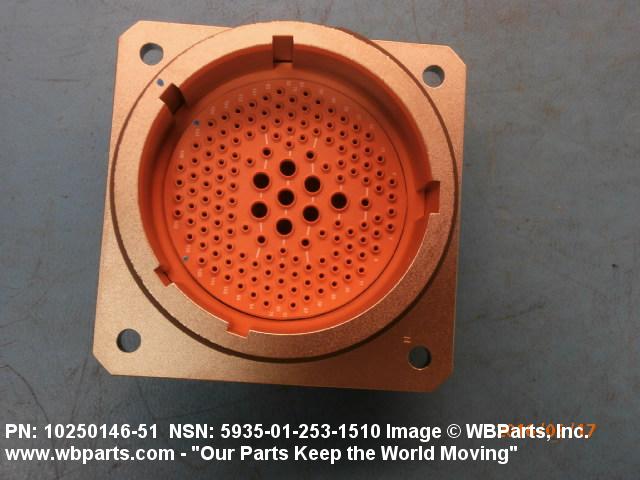

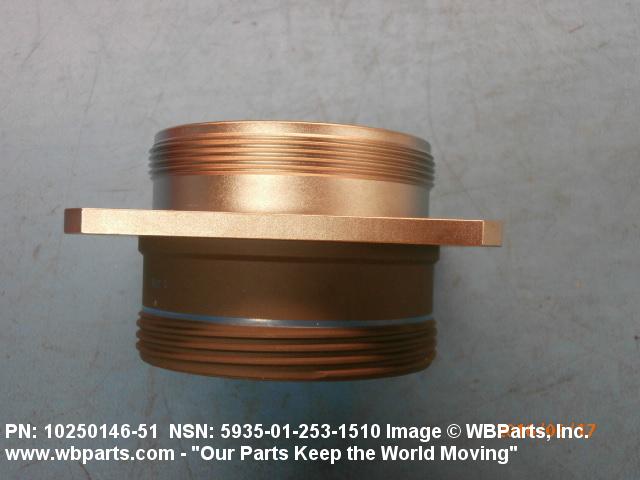

5935-01-253-1510 The main or principal part of a CONNECTOR, RECEPTACLE, ELECTRICAL which includes insert(s) designed to accommodate but does not include removable contacts. It may have a hood or shell, a jackscrew and jacksocket, or other means for polarizing and aligning. It is designed to be mounted on a bulkhead, chassis, panel, wall, or the like. Excludes CONNECTOR BODY, MODULAR RECEPTACLE, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: SD11094651, SD110946-51, 1025014651, 10250146-51, 230942P40YYP, 230942-P40YYP, 5223012-51, 5935-01-253-1510, 01-253-1510, 5935012531510, 012531510, 522301251
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 APR 1987 | 01-253-1510 | 61925 ( CONNECTOR BODY, RECEPTACLE, ELECTRICAL ) |

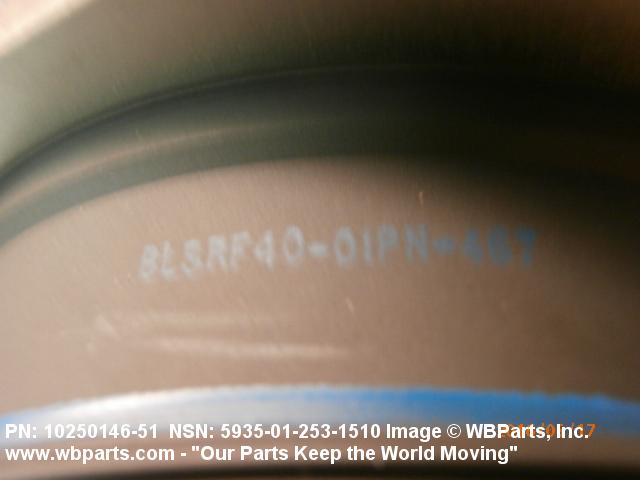

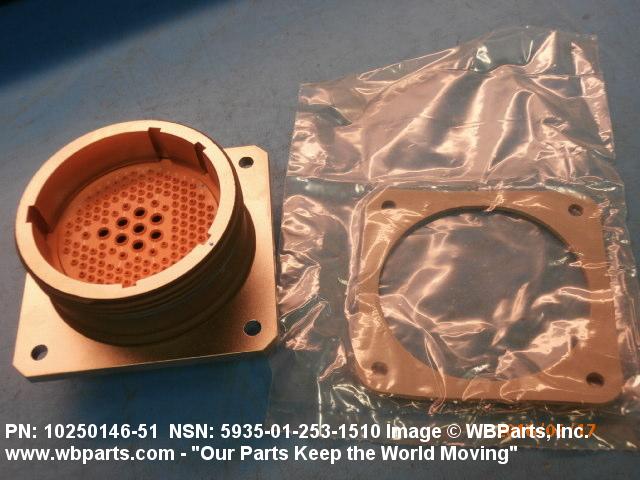

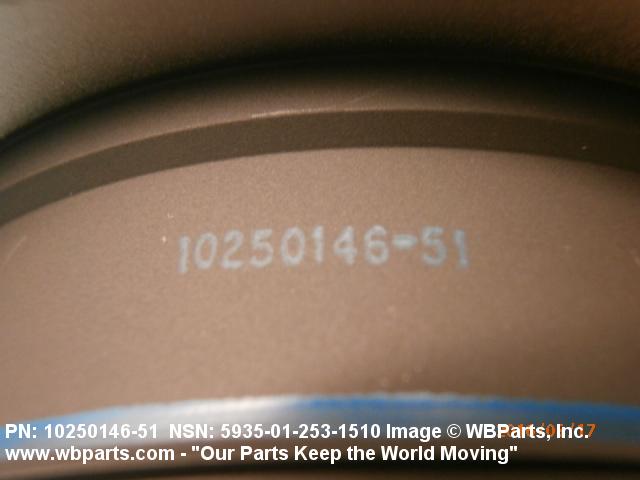

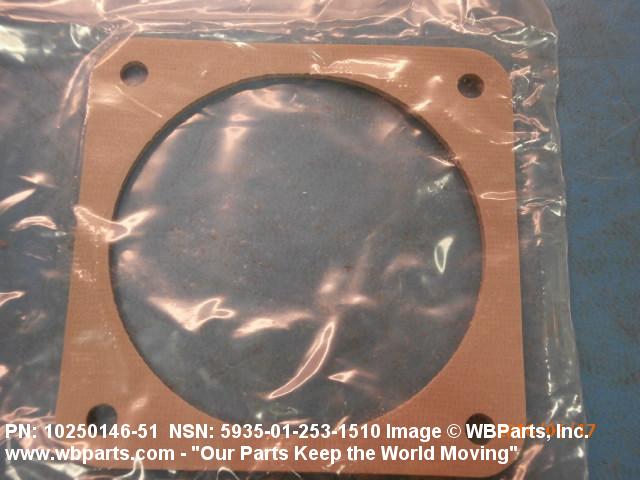

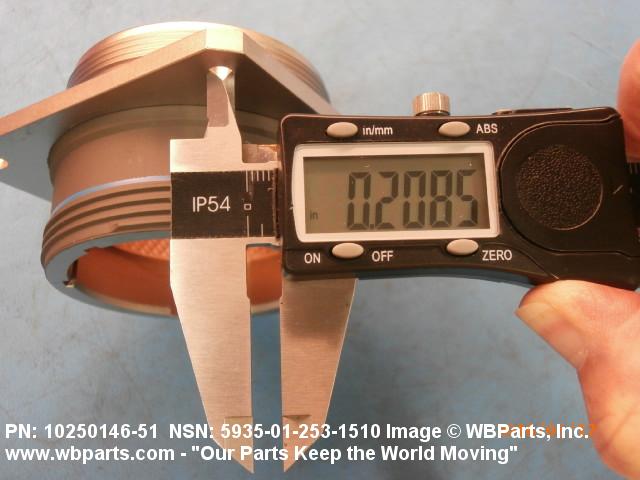

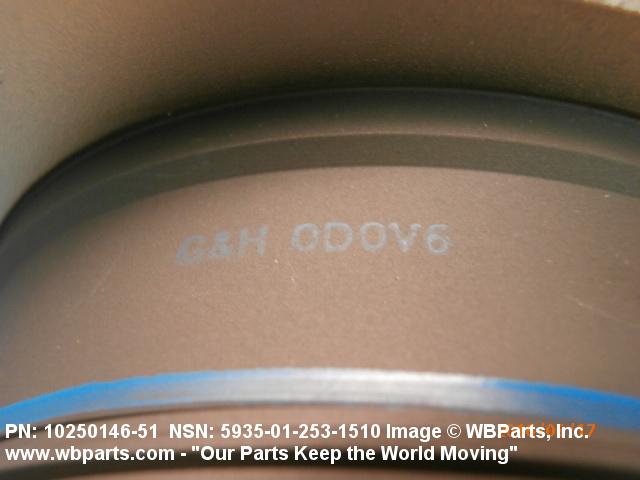

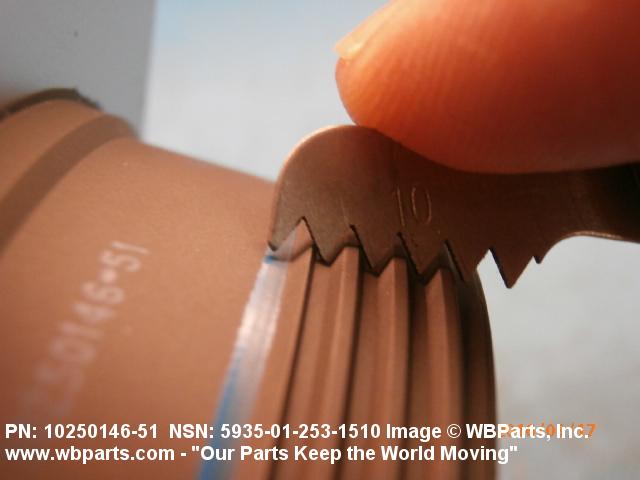

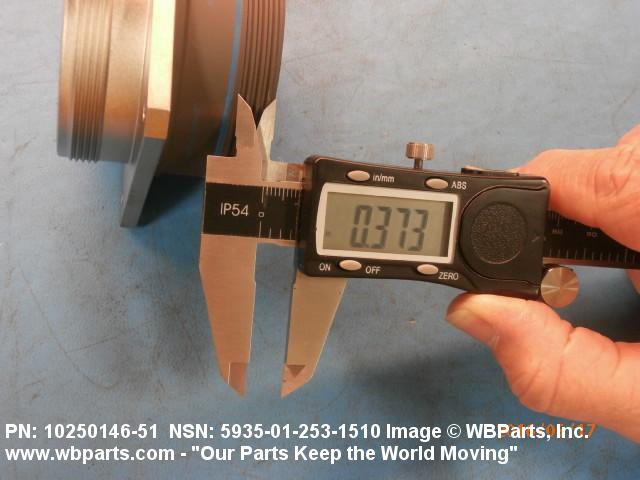

Drawings & Photos | NSN 5935-01-253-1510
Demand History | NSN 5935-01-253-1510
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 491061-P40YYYA | 2024-04-18 | 25 | DIBBS |
| SD110946-51 | 2024-04-18 | 25 | DIBBS |
| SD11094651 | 2023-03-22 | 2 | US |
| SD11094651 | 2022-04-19 | 12 | United States |
| 5935-01-253-1510 | 2021-08-16 | 1 | US |
| 1025014651 | 2021-07-07 | 1 | Greece |
| 5935-01-253-1510 | 2021-04-22 | 3 | United States |
| 5935-01-253-1510 | 2021-03-19 | 1 | US |
| 5935-01-253-1510 | 2021-03-03 | 40 | US |
| 5935-01-253-1510 | 2021-02-16 | 40 | US |
| 5935-01-253-1510 | 2021-02-11 | 1 | Greece |
| 5935-01-253-1510 | 2021-02-10 | 4 | United States |
| 5935-01-253-1510 | 2021-02-04 | 49 | United States |
| 5935-01-253-1510 | 2021-02-04 | 40 | US |
| 5935-01-253-1510 | 2021-01-29 | 40 | US |
| 5935-01-253-1510 | 2021-01-25 | 1 | US |
| 1025014651 | 2021-01-19 | 3 | Greece |
| 5935-01-253-1510 | 2020-12-02 | 1 | Greece |
| 5935-01-253-1510 | 2020-11-10 | 40 | US |
| 5935-01-253-1510 | 2020-10-01 | 10 | US |
| 1025014651 | 2020-09-21 | 1 | Greece |
| 230942-P40YYP | 2020-04-09 | 42 | DIBBS |
| SD110946-51 | 2020-04-09 | 42 | DIBBS |
| 1025014651 | 2020-04-02 | 1 | Greece |
| 230942-P40YYP | 2020-01-30 | 42 | DIBBS |
| SD110946-51 | 2020-01-30 | 42 | DIBBS |
| 230942-P40YYP | 2019-11-25 | 23 | DIBBS |
| SD110946-51 | 2019-11-25 | 23 | DIBBS |
| 5935-01-253-1510 | 2019-09-18 | 8 | US |
| 5935-01-253-1510 | 2019-09-18 | 1 | US |
| 5935-01-253-1510 | 2019-09-18 | 5 | US |
| 5935-01-253-1510 | 2019-08-06 | 1 | us |
| 230942-P40YYP | 2019-04-22 | 22 | DIBBS |
| SD110946-51 | 2019-04-22 | 22 | DIBBS |
| 230942-P40YYP | 2019-04-11 | 22 | DIBBS |
| SD110946-51 | 2019-04-11 | 22 | DIBBS |
| 5935-01-253-1510 | 2018-01-11 | 24 | US |
| 5935-01-253-1510 | 2018-01-11 | 24 | US |
| 5935-01-253-1510 | 2018-01-11 | 24 | DIBBS |
| 5935-01-253-1510 | 2017-08-03 | 24 | DIBBS |
| 1025014651 | 2017-07-11 | 10 | US |
| 5935-01-253-1510 | 2016-05-08 | 30 | DIBBS |
| 5935-01-253-1510 | 2016-04-20 | 2 | United States |
| 5935-01-253-1510 | 2015-09-20 | 15 | DIBBS |
| 5935-01-253-1510 | 2012-04-17 | 10 | US |
| 5935-01-253-1510 | 2012-04-13 | 20 | DIBBS |
| 5935-01-253-1510 | 2011-11-04 | 30 | DIBBS |
| 5935-01-253-1510 | 2011-10-07 | 25 | DIBBS |
| 5935-01-253-1510 | 2011-07-30 | 10 | DIBBS |
| 5935-01-253-1510 | 2011-03-28 | 35 | DIBBS |
| 5935-01-253-1510 | 2011-02-08 | 10 | DIBBS |
| 5935-01-253-1510 | 2010-12-28 | 10 | DIBBS |
| 5935-01-253-1510 | 2010-07-07 | 10 | DIBBS |
| 522301251 | 2010-06-29 | 14 | United States |
| 5935-01-253-1510 | 2010-03-29 | 110 | US |
Cross Reference | NSN 5935-01-253-1510
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10250146-51 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 230942-P40YYP | 30463 | DCX-CHOL ENTERPRISES, INC. DBA ELECSYS DIVISION OF DCX-CHOL |
| 5223012-51 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| SD110946-51 | 71468 | ITT CORPORATION DBA I T T CANNON |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5935-01-253-1510
Related Products | NSN 5935-01-253-1510
5935-01-253-1525, 5935-01-253-1526, 5935-01-253-1700, 5935-01-253-1743, 5935-01-253-1761
Technical Data | NSN 5935-01-253-1510

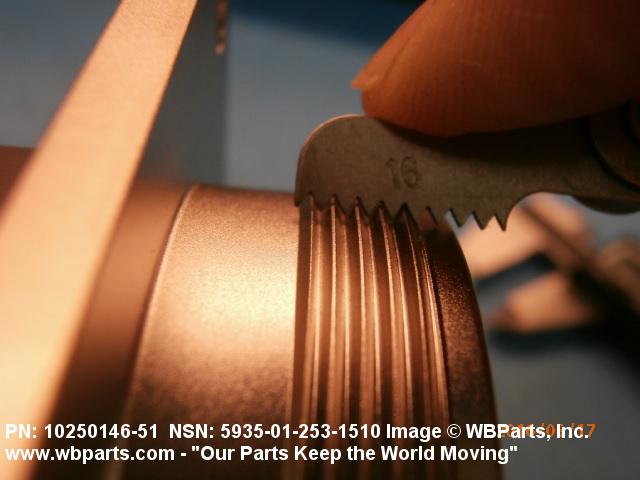

| Characteristic | Specifications |
|---|---|
| BODY STYLE | 3G STRAIGHT SHAPE, EXTERNAL COUPLING |

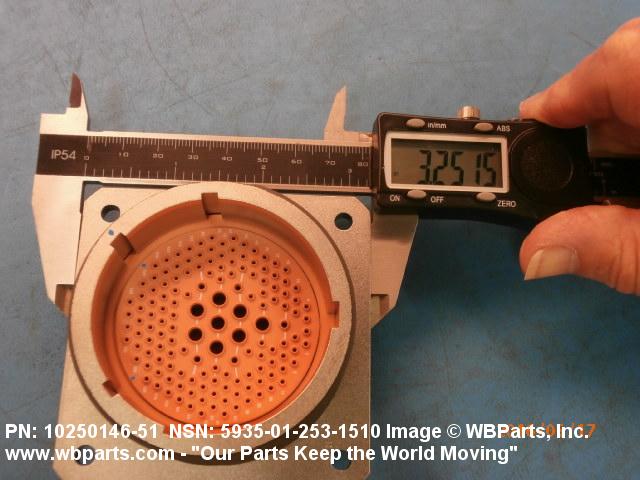

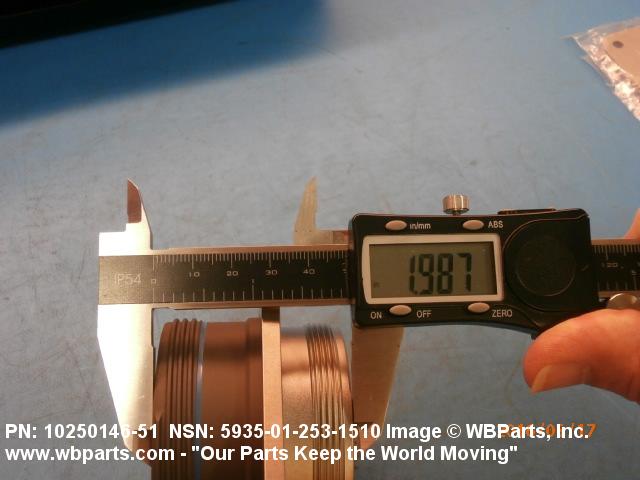

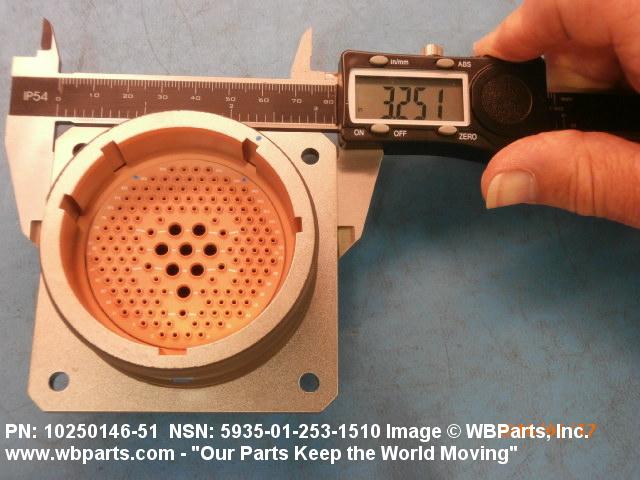

| OVERALL LENGTH | 2.000 INCHES MAXIMUM |
| OVERALL HEIGHT | 3.220 INCHES MINIMUM AND 3.280 INCHES MAXIMUM |
| OVERALL WIDTH | 3.220 INCHES MINIMUM AND 3.280 INCHES MAXIMUM |

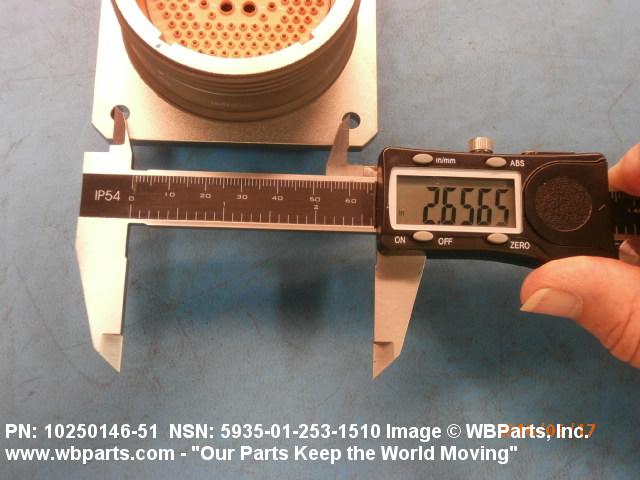

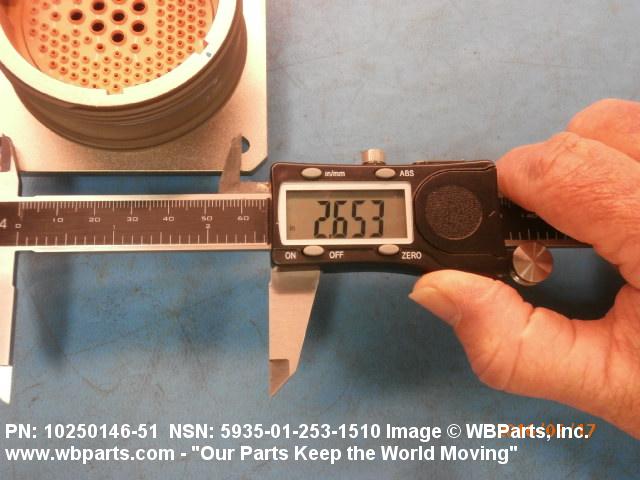

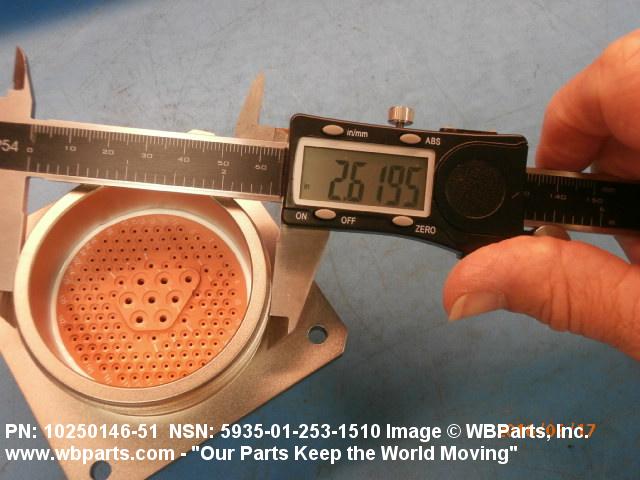

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 2.625 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 2.625 INCHES NOMINAL |

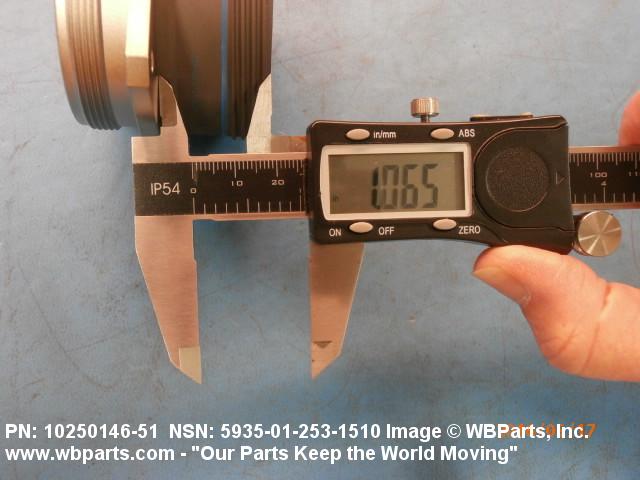

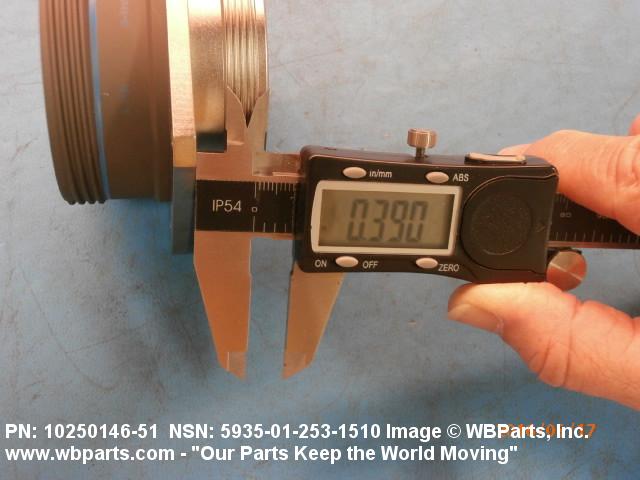

| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 1.052 INCHES MINIMUM AND 1.082 INCHES MAXIMUM |
