Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-254-0135 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 1890039, 189003-9, 5935-01-254-0135, 01-254-0135, 5935012540135, 012540135
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 APR 1987 | 01-254-0135 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-254-0135
Cross Reference | NSN 5935-01-254-0135
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 189003-9 | 37695 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-254-0135
Technical Data | NSN 5935-01-254-0135
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 11L STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 0.875 INCHES NOMINAL |
| OVERALL DIAMETER | 0.250 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.425 INCHES NOMINAL |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | COPPER ALLOY |
| SHELL SURFACE TREATMENT | SILVER |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-S-365,TYPE II,GRADE A FED SPEC SINGLE TREATMENT RESPONSE |
| MATING END QUANTITY | 2 |

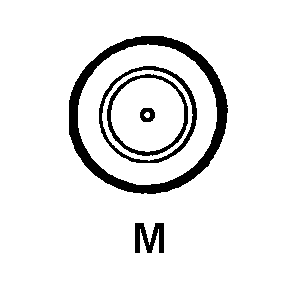

| CONTACT POSITION ARRANGEMENT STYLE | ABDL M 1ST MATING END |
| INSERT MATERIAL | PLASTIC TETRAFLUOROETHYLENE ALL MATING ENDS |
| CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS | 300.0 1ST MATING END SINGLE CONTACT GROUPING |
| RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 1ST MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM FREQUENCY RATING | 4000.0 MEGAHERTZ 1ST MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | PIN 1ST MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | FRONT 1ST MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | SHOCK RESISTANT AND VIBRATION RESISTANT |
| III PRECIOUS MATERIAL AND LOCATION | BODY SURFACE SILVER |
Restrictions/Controls & Freight Information | NSN 5935-01-254-0135
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
