NSN 5935-01-255-8868 D38999/20WF32SN, D3899920WF32SN, MIL-C-38999/20
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-255-8868 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: D38999/20WF32SN, D3899920WF32SN, MIL-C-38999/20, MILC3899920, 5935-01-255-8868, 01-255-8868, 5935012558868, 012558868
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 MAY 1987 | 01-255-8868 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |

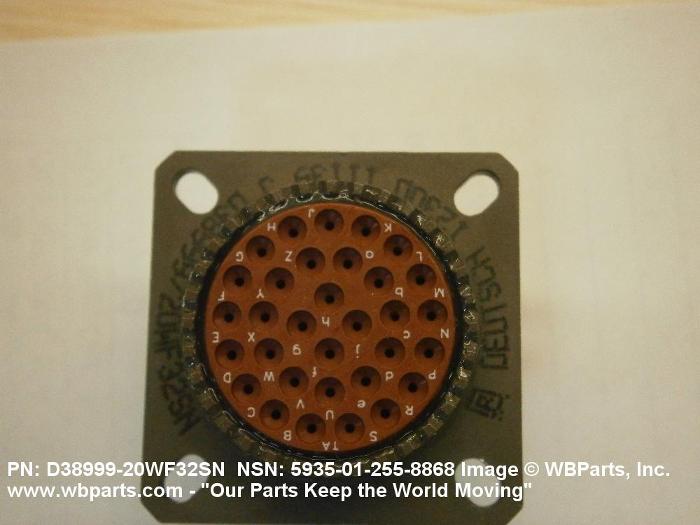

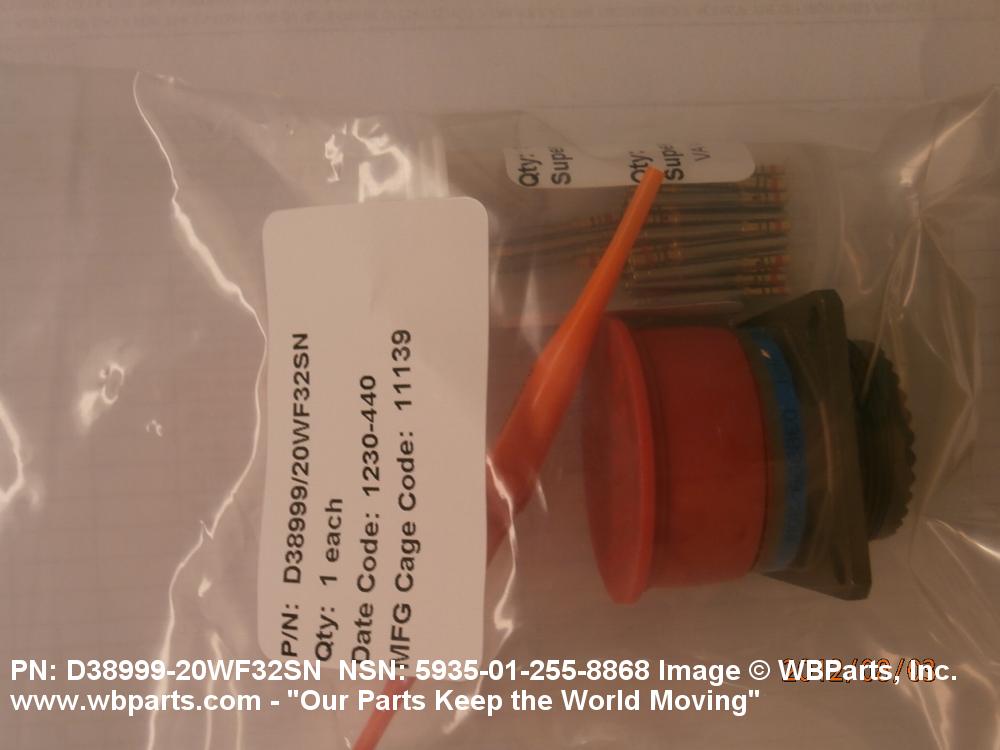

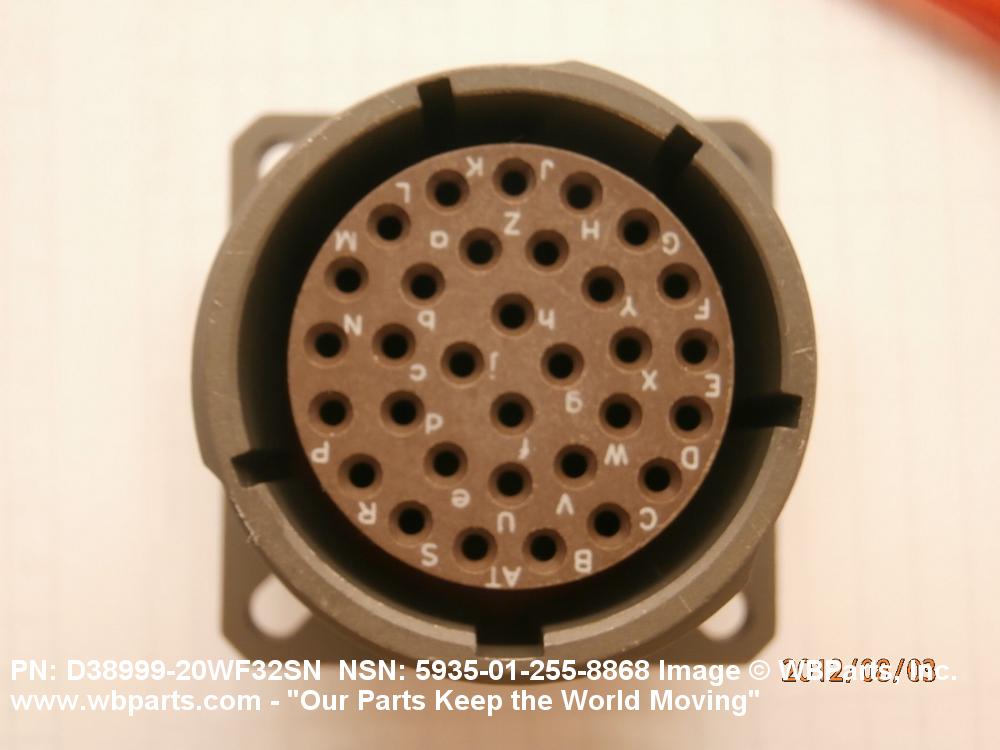

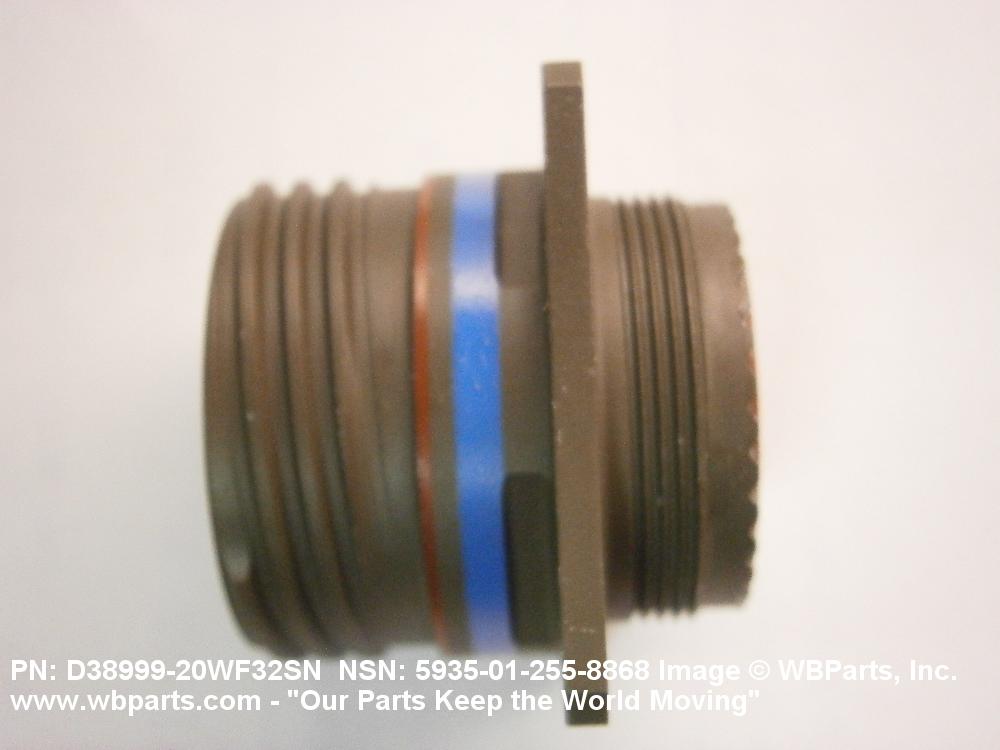

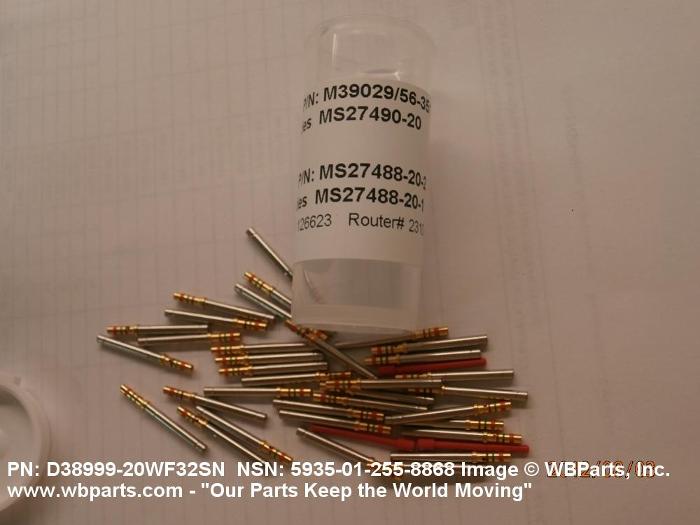

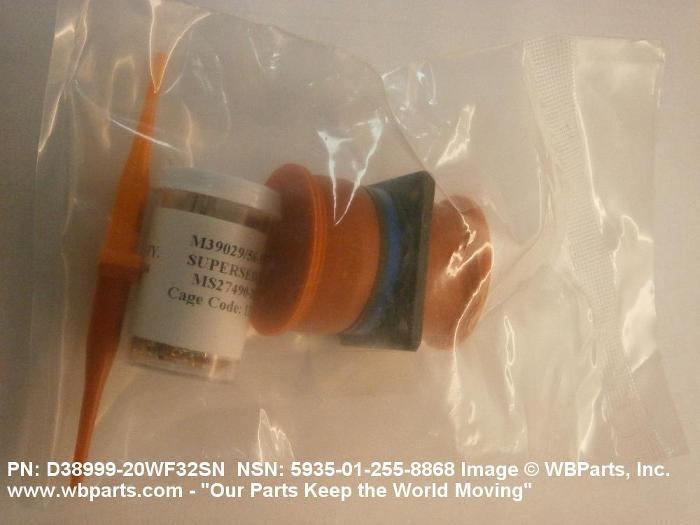

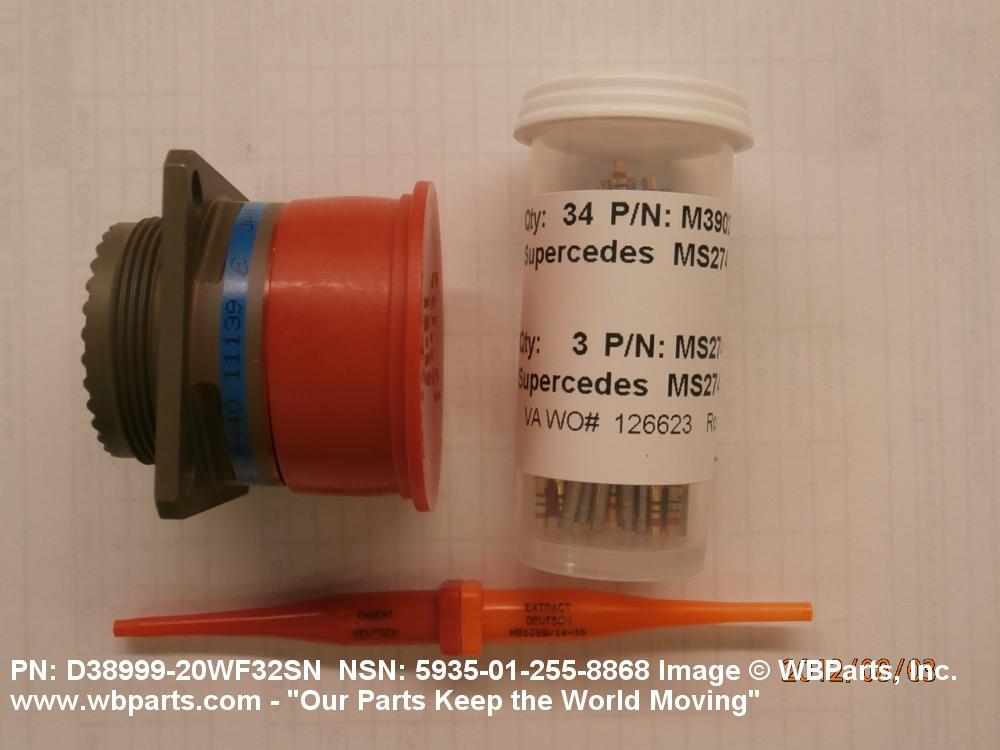

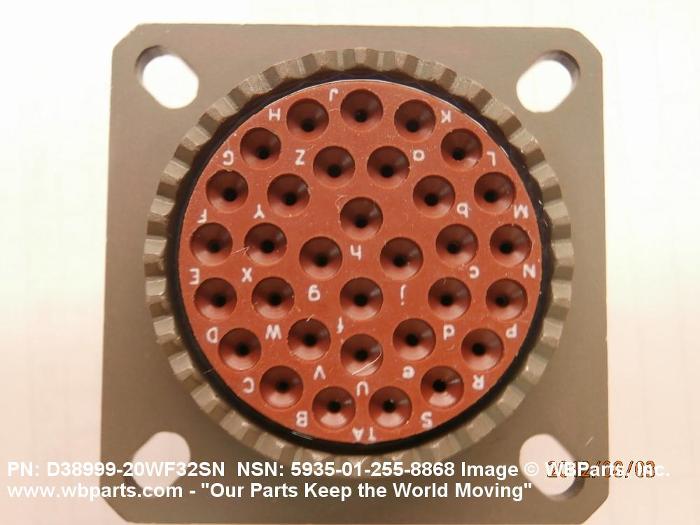

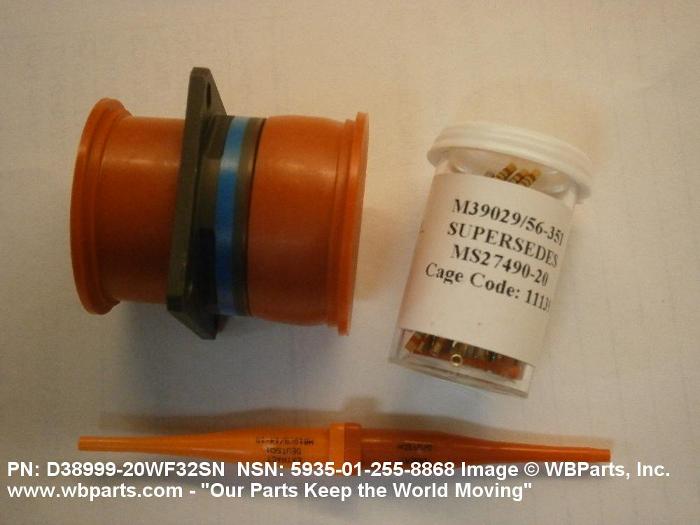

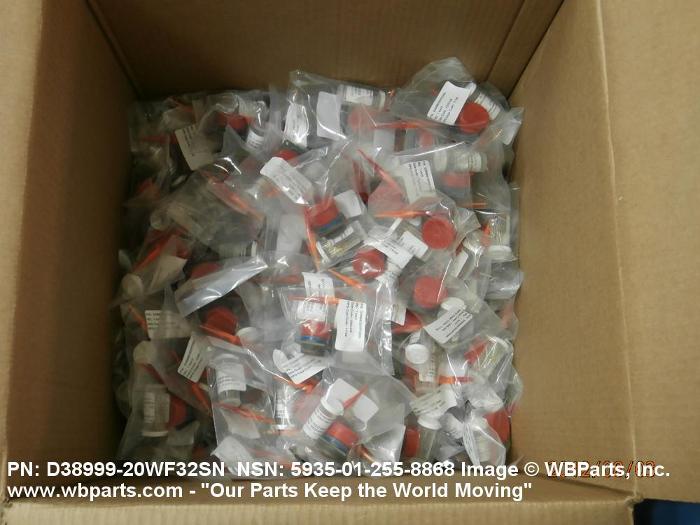

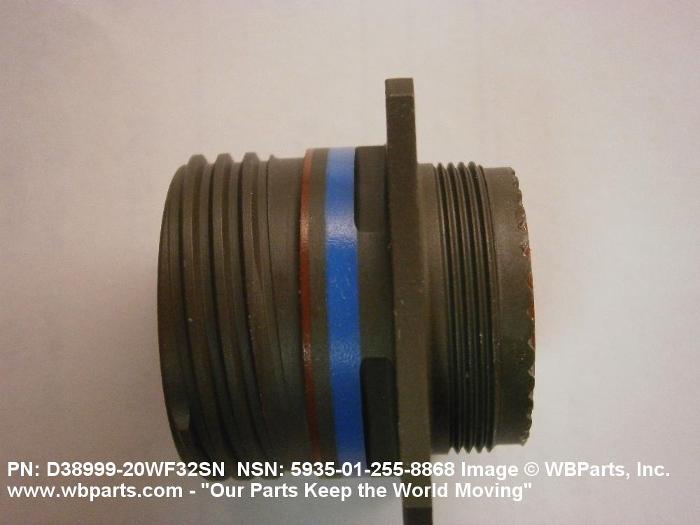

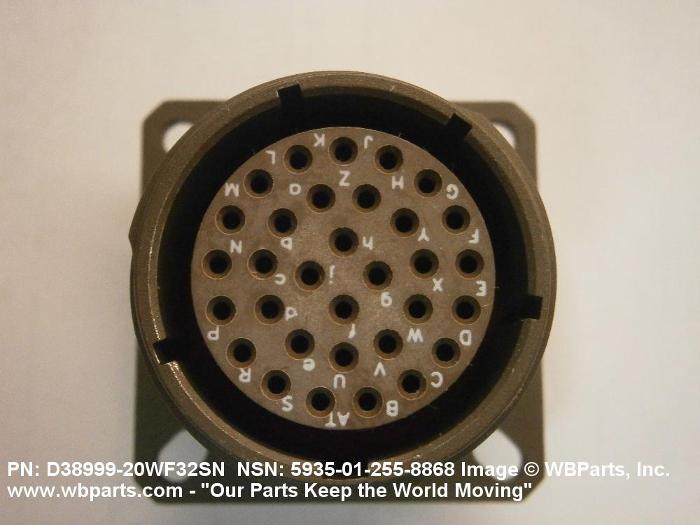

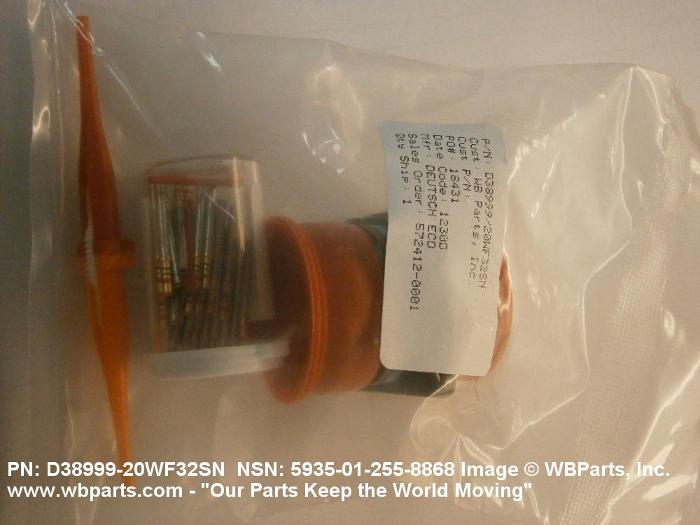

Drawings & Photos | NSN 5935-01-255-8868
Demand History | NSN 5935-01-255-8868
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-255-8868 | 2024-08-220 | 148 | DIBBS |
| 5935-01-255-8868 | 2024-04-102 | 81 | DIBBS |
| 5935-01-255-8868 | 2023-11-316 | 62 | DIBBS |
| 5935-01-255-8868 | 2019-08-213 | 68 | DIBBS |
| 5935-01-255-8868 | 2018-08-242 | 24 | DIBBS |
| 5935-01-255-8868 | 2016-06-157 | 40 | DIBBS |
| D3899920WF32SN | 2012-07-200 | 267 | Mexico |
| D38999/20WF32SN | 2012-04-110 | 75 | Mexico |
| D38999/20WF32SN | 2012-04-110 | 192 | Mexico |
| 5935-01-255-8868 | 2010-11-320 | 195 | DIBBS |
| 5935-01-255-8868 | 2009-05-132 | 150 | DIBBS |
| 5935-01-255-8868 | 2009-04-120 | 146 | DIBBS |
| 5935-01-255-8868 | 2009-03-83 | 22 | DIBBS |
| 5935-01-255-8868 | 2009-03-75 | 41 | DIBBS |
Cross Reference | NSN 5935-01-255-8868
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-255-8868
Technical Data | NSN 5935-01-255-8868
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 3G STRAIGHT SHAPE, EXTERNAL COUPLING |
| OVERALL LENGTH | 33.66 MILLIMETERS MAXIMUM |
| OVERALL HEIGHT | 36.5 MILLIMETERS NOMINAL |
| OVERALL WIDTH | 36.5 MILLIMETERS NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 29.36 MILLIMETERS NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 29.36 MILLIMETERS NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 20.9 MILLIMETERS MAXIMUM |
| MOUNTING SLOT WIDTH | 3.25 MILLIMETERS NOMINAL |
| MOUNTING SLOT LENGTH | 4.93 MILLIMETERS NOMINAL |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | BACK SHELL AND COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | ISO M AND SPECIAL ACME |
| NOMINAL THREAD SIZE | 28.0 MILLIMETERS AND 1.250 INCHES |
| THREAD CLASS | 2A |
| THREAD TOLERANCE CLASS | 6G EXTERNAL |
| THREAD QUANTITY PER INCH | 10 |
| THREAD PITCH IN MILLIMETERS | 1.00 |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | NICKEL |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-26074 MIL SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 67.0 AND 164.0 AND 218.0 AND 280.0 |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | BJAW 19-32 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC EPOXY SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 32 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | SALT WATER RESISTANT AND VIBRATION PROOF AND MOISTURE PROOF AND CORROSION RESISTANT AND DUST RESISTANT AND |
Restrictions/Controls & Freight Information | NSN 5935-01-255-8868
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 114850 | BEARING/BUSHING O/T BALL/ROLLER I/S |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 742 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
