NSN 5935-01-260-2824 ND16381E, X21903998PN, X21-903-9-98PN
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-260-2824 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: ND16381E, X21903998PN, X21-903-9-98PN, D38999/26WA98PN, D3899926WA98PN, DOD-C-38999/26, DODC3899926, FE1000051003N, FE100-0051-003N, FV 2050607 ITEM 3, FV2050607ITEM3, MILSPEC38999SRS3D3899/26WA98PN, MILSPEC38999SRS3D389926WA98PN, 42321964001, 42321-964-001, 5935-01-260-2824, 01-260-2824, 5935012602824, 012602824
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 JUL 1987 | 01-260-2824 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

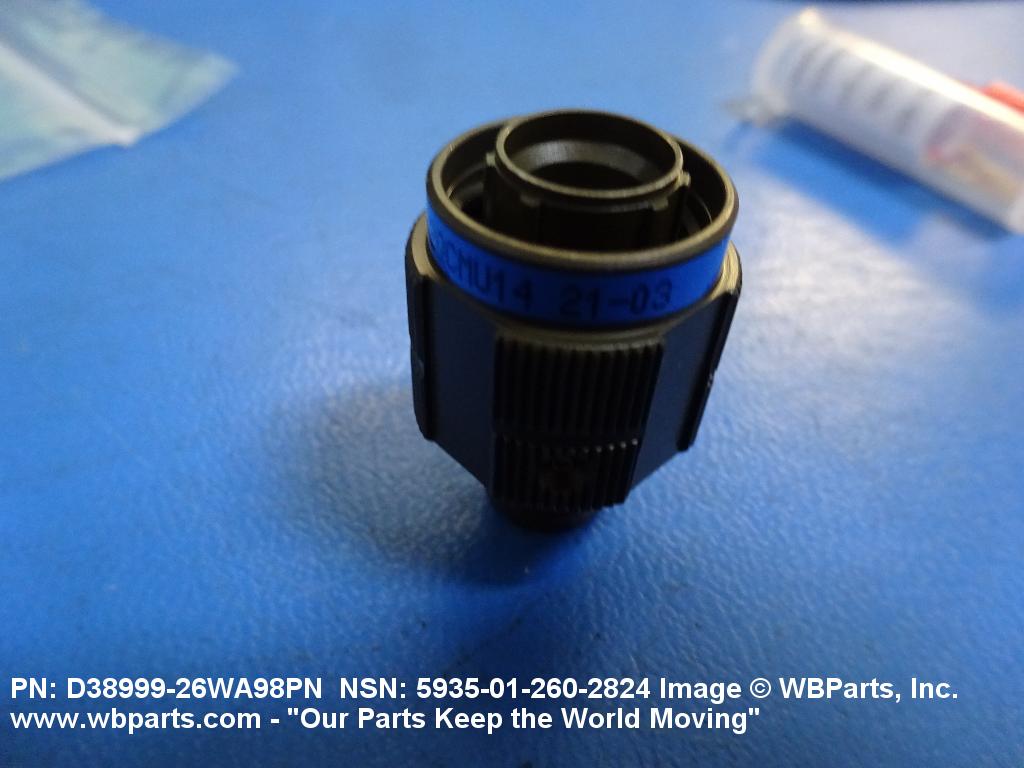

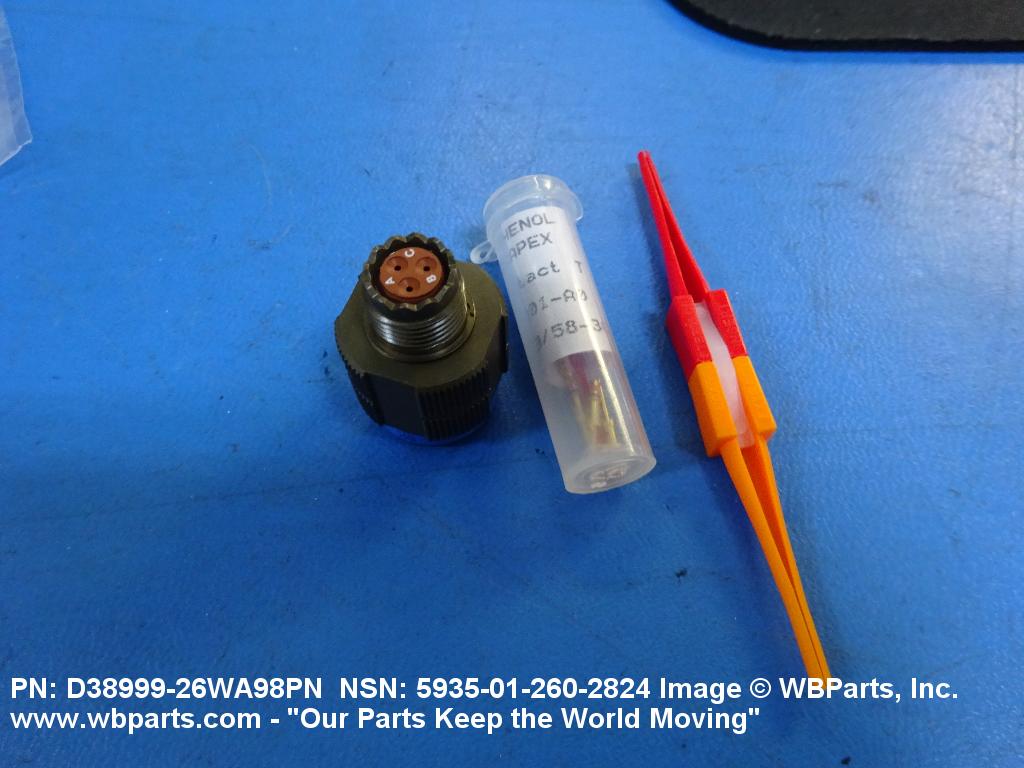

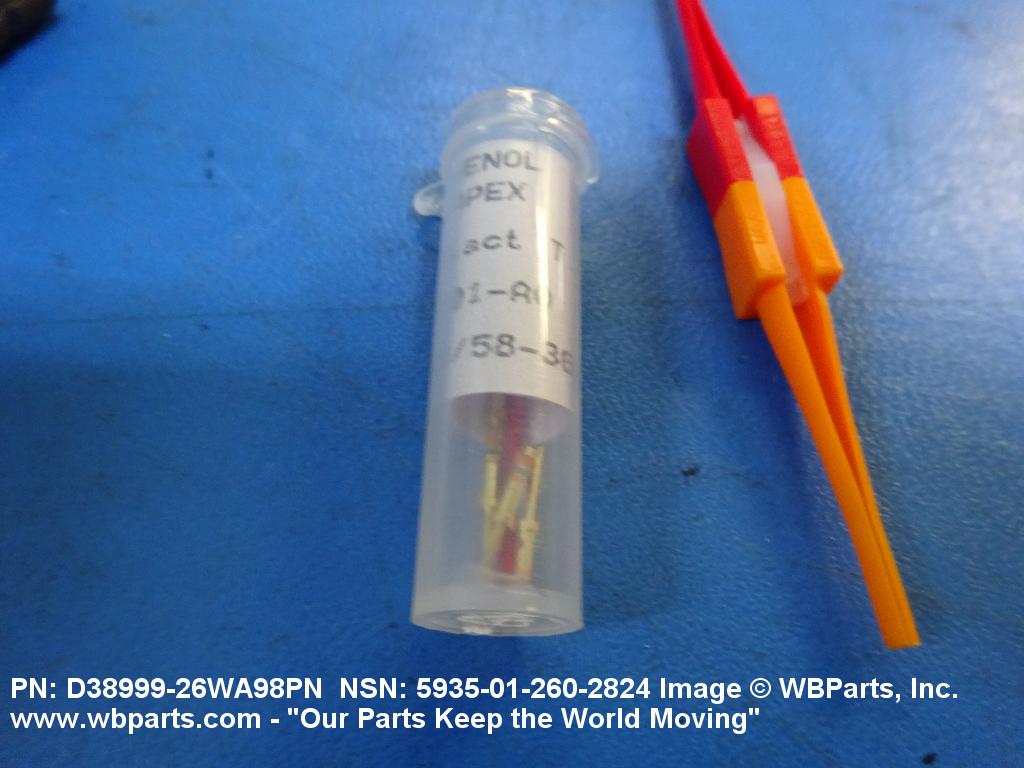

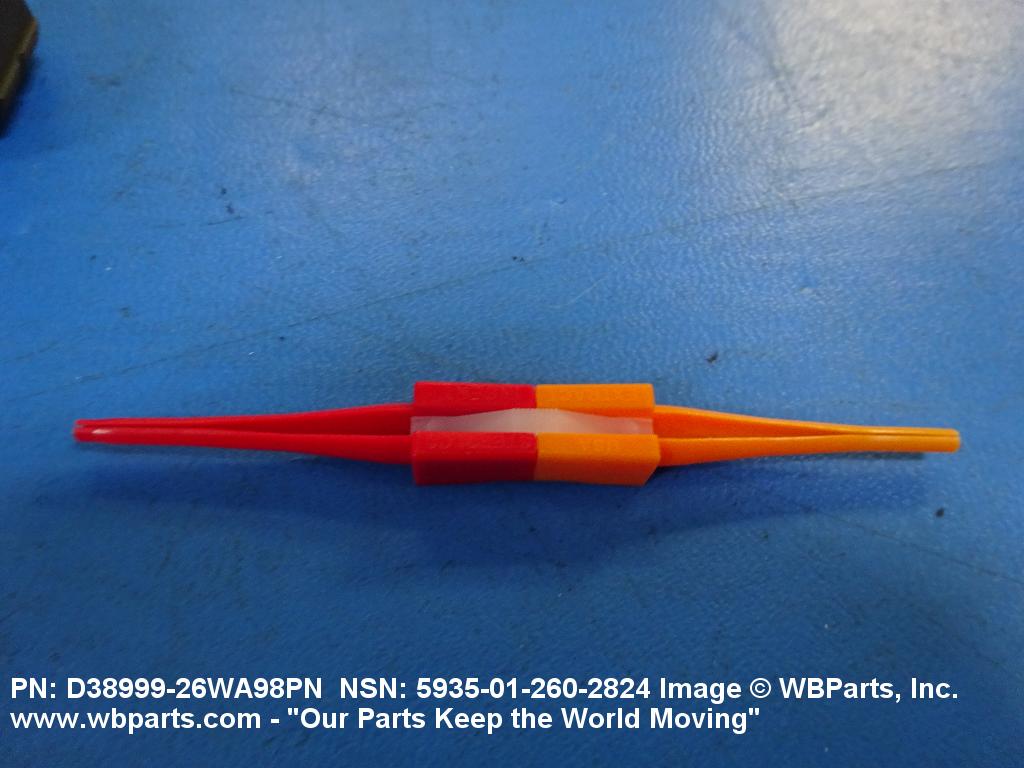

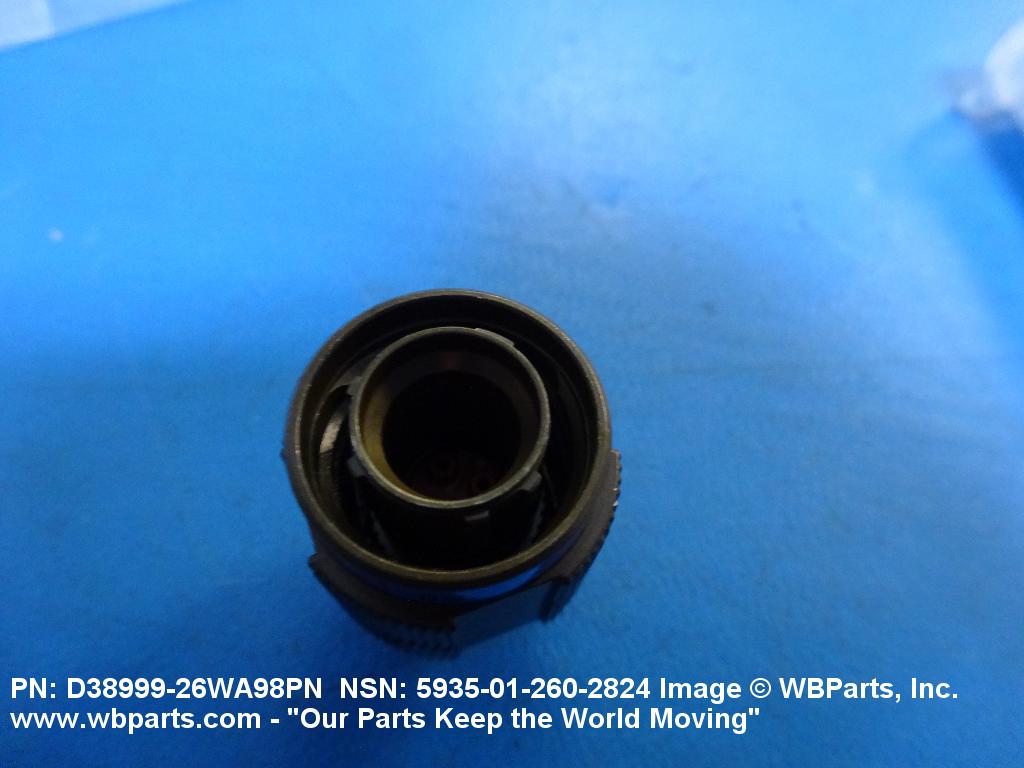

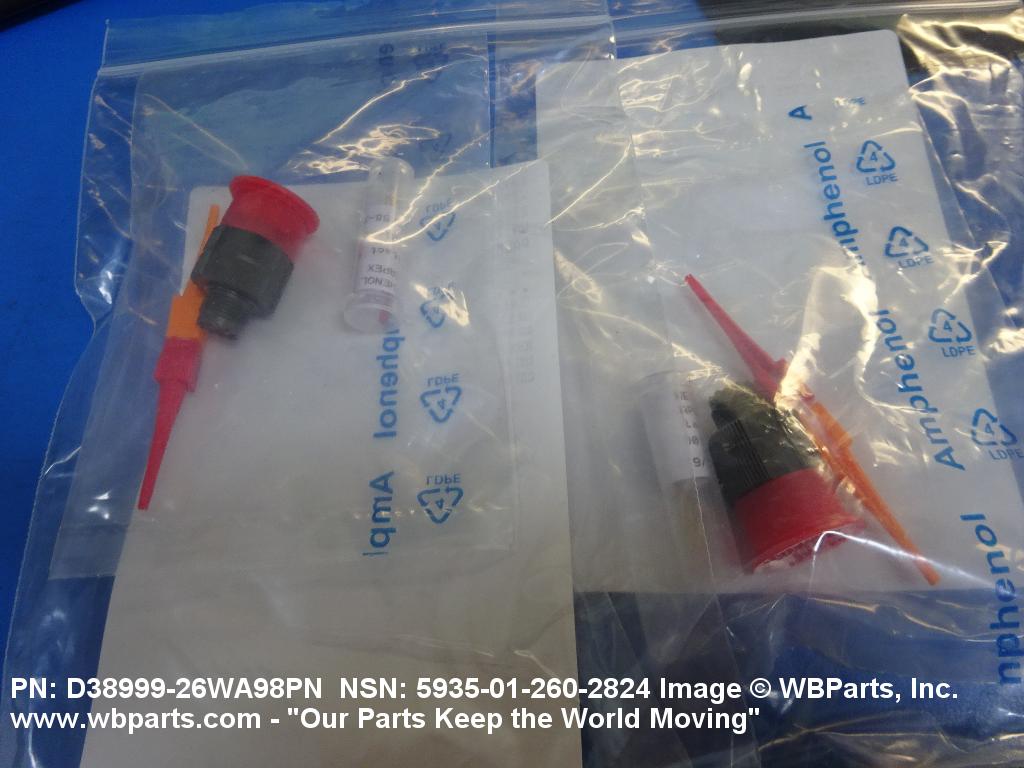

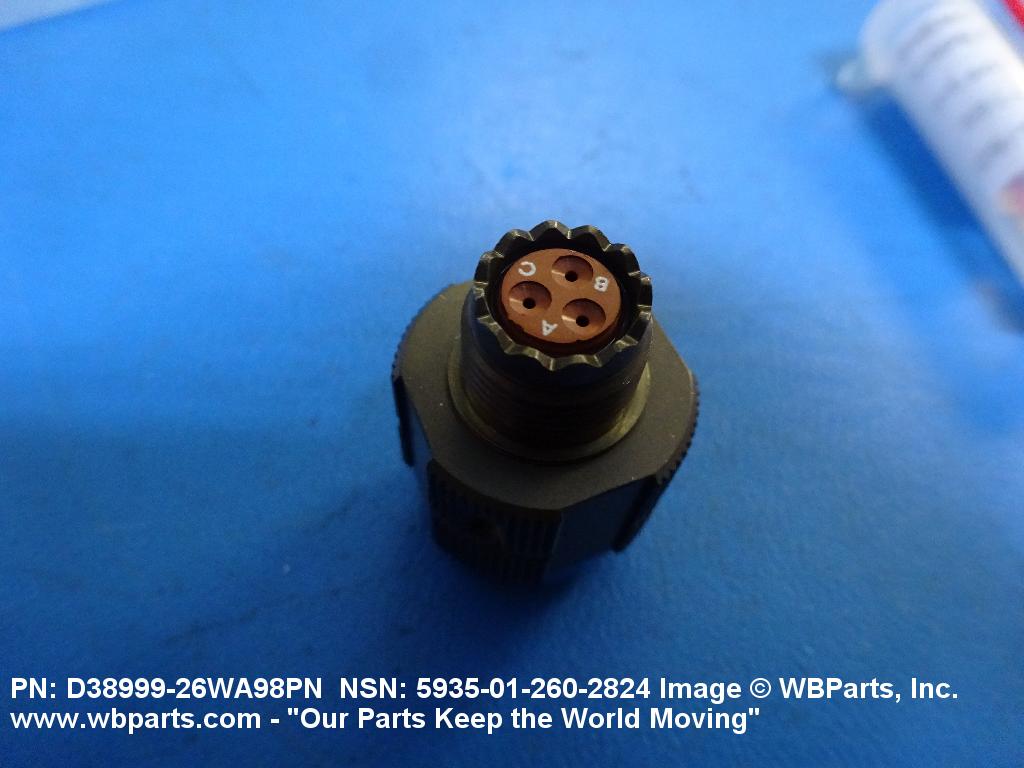

Drawings & Photos | NSN 5935-01-260-2824
Demand History | NSN 5935-01-260-2824
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-260-2824 | 2022-12-356 | 570 | DIBBS |
| 5935-01-260-2824 | 2022-02-56 | 2 | United States |
| D3899926WA98PN | 2021-08-217 | 5 | United States |
| 5935-01-260-2824 | 2021-02-36 | 1 | DIBBS-RFPs |
| 5935-01-260-2824 | 2020-02-44 | 835 | DIBBS |
| 5935-01-260-2824 | 2019-08-213 | 1037 | DIBBS |
| 5935-01-260-2824 | 2019-01-17 | 517 | DIBBS |
| 5935-01-260-2824 | 2017-06-157 | 1773 | DIBBS |
| D3899926WA98PN | 2017-02-45 | 4 | United States |
| D3899926WA98PN | 2017-02-45 | 4 | United States |
| 5935-01-260-2824 | 2016-12-364 | 732 | DIBBS |
| 5935-01-260-2824 | 2016-09-273 | 55 | DIBBS |
| 5935-01-260-2824 | 2016-04-110 | 897 | DIBBS |
| 5935-01-260-2824 | 2016-03-91 | 350 | DIBBS |
| 5935-01-260-2824 | 2015-12-349 | 30 | us |
| D3899926WA98PN | 2015-05-126 | 58 | US |
| 5935-01-260-2824 | 2013-11-325 | 916 | DIBBS |
| 5935-01-260-2824 | 2013-08-213 | 953 | DIBBS |
| D3899926WA98PN | 2012-05-143 | 4 | United States |
| 5935-01-260-2824 | 2011-12-347 | 774 | DIBBS |
| 5935-01-260-2824 | 2011-08-213 | 799 | DIBBS |
| 5935-01-260-2824 | 2011-04-111 | 2500 | DIBBS |
| 5935-01-260-2824 | 2011-04-100 | 5000 | DIBBS |
| 5935-01-260-2824 | 2011-03-66 | 600 | DIBBS |
| 5935-01-260-2824 | 2011-02-39 | 453 | DIBBS |
| 5935-01-260-2824 | 2010-11-309 | 8384 | DIBBS |
| 5935-01-260-2824 | 2010-11-307 | 8384 | DIBBS |
| 5935-01-260-2824 | 2010-04-96 | 120 | DIBBS |
| 5935-01-260-2824 | 2009-07-183 | 122 | DIBBS |
| D3899926WA98PN | 2007-11-311 | 2 | US |
Cross Reference | NSN 5935-01-260-2824
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 42321-964-001 | K4556 | BRITISH AEROSPACE DEFENCE SYSTEMS LTD T/A BAE SYSTEMS |
| D38999/26WA98PN | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| DOD-C-38999/26 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| FE100-0051-003N | U0425 | PYLE NATIONAL A DIVISION OF AMPHENOL LTD |
| FV 2050607 ITEM 3 | K1562 | LOCKHEED MARTIN UK INSYS LTD |
| FV 2050607 ITEM 3 | U0795 | QINETIQ |
| MIL-DTL-38999/26 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILSPEC38999SRS3D3899/26WA98PN | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| ND16381E | K1562 | LOCKHEED MARTIN UK INSYS LTD |
| X21-903-9-98PN | S3715 | BOFORS AB |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-260-2824
Technical Data | NSN 5935-01-260-2824
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 7A STRAIGHT SHAPE, INTERNAL COUPLING |
| OVERALL LENGTH | 33.16 MILLIMETERS MAXIMUM |
| OVERALL DIAMETER | 21.8 MILLIMETERS MAXIMUM |
| CONNECTOR LOCKING METHOD | INTERNALLY THREADED COUPLING RING |
| THREADED DEVICE TYPE | BACK SHELL AND COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | ISO M AND SPECIAL ACME |
| NOMINAL THREAD SIZE | 12.0 MILLIMETERS AND 0.625 INCHES |
| THREAD CLASS | 2B |
| THREAD TOLERANCE CLASS | 6G EXTERNAL |
| THREAD QUANTITY PER INCH | 10 |
| THREAD PITCH IN MILLIMETERS | 1.00 |
| THREAD DIRECTION | RIGHT-HAND AND RIGHT-HAND |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | KEYWAY OR MULTIPLE KEYWAY |
| INSERT POSITION IN DEG | 105.0 AND 140.0 AND 215.0 AND 265.0 |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ADEN 9-98 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 3 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| TEST DATA DOCUMENT | 81349-DOD-C-38999 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-DOD-C-38999/26 GOVERNMENT SPECIFICATION |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.015 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | DOD-C-38999/26 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | D38999/26WA98PN |
Restrictions/Controls & Freight Information | NSN 5935-01-260-2824
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
