NSN 5935-01-260-7742 E1010165, E1010-165 , 10250287-1
Product Details | TIP PLUG
5935-01-260-7742 A banana or pin type termination applied to the end of a single electrical conductor and designed to be inserted in a jack or binding post. May be insulated or uninsulated. Excludes TIP, TEST PROD and PLUG, TELEPHONE.
Part Alternates: E1010165, E1010-165 , 10250287-1, 5935-01-260-7742, 01-260-7742, 5935012607742, 102502871, 012607742
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 AUG 1987 | 01-260-7742 | 15046 ( PLUG, TIP ) |

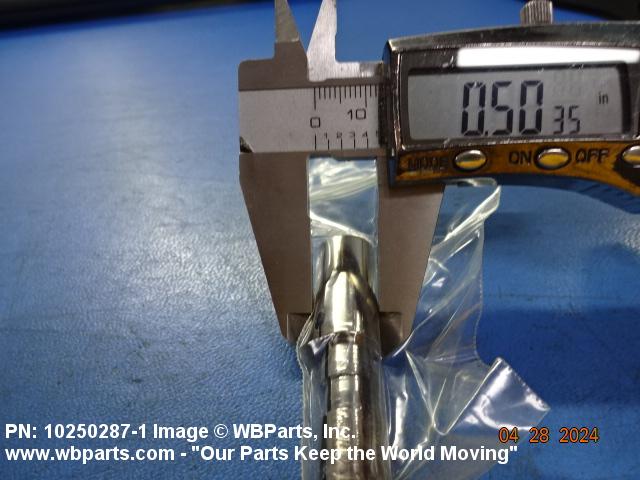

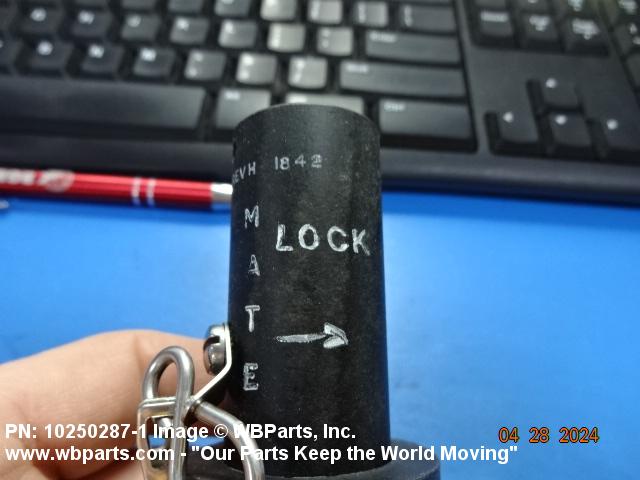

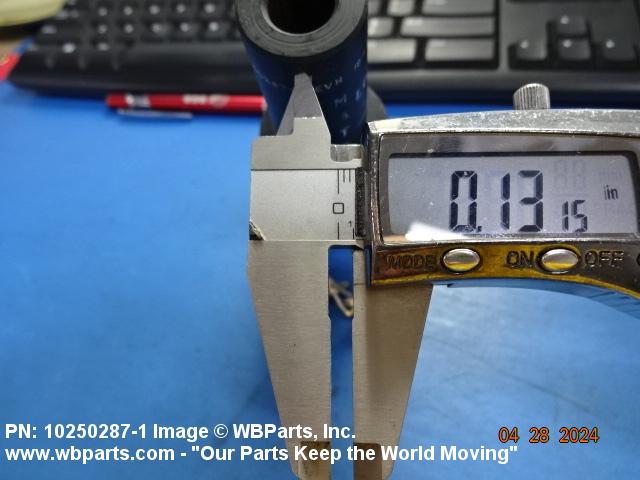

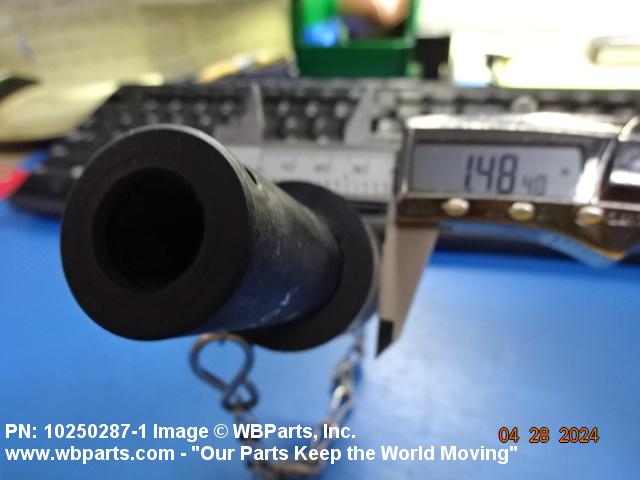

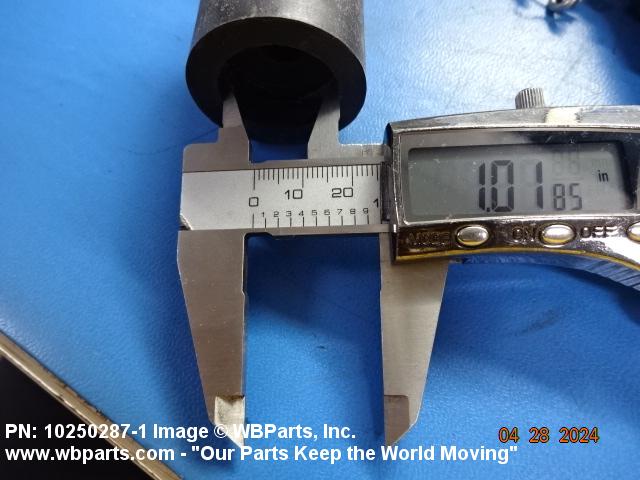

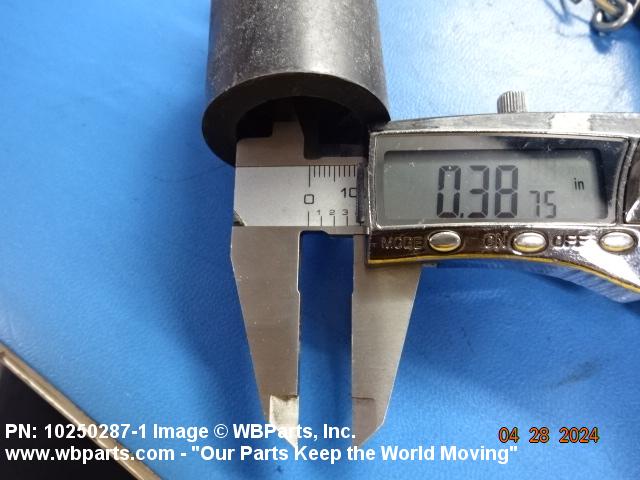

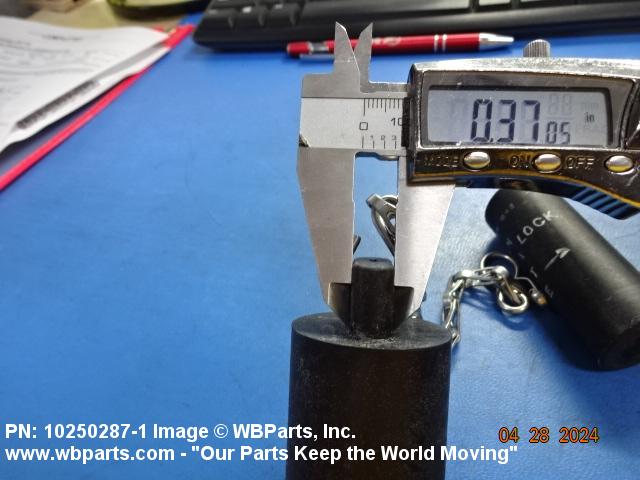

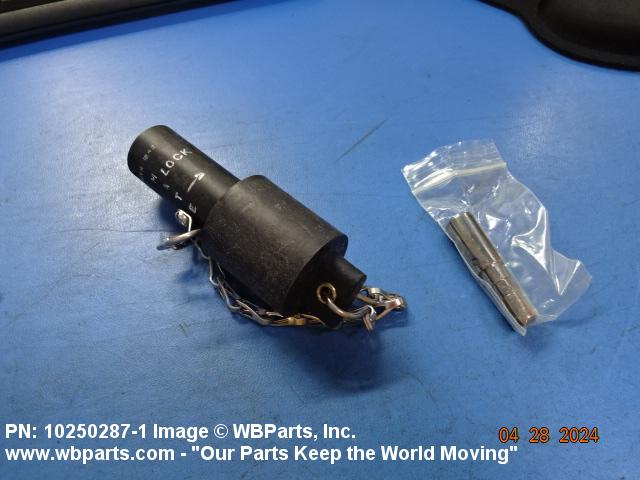

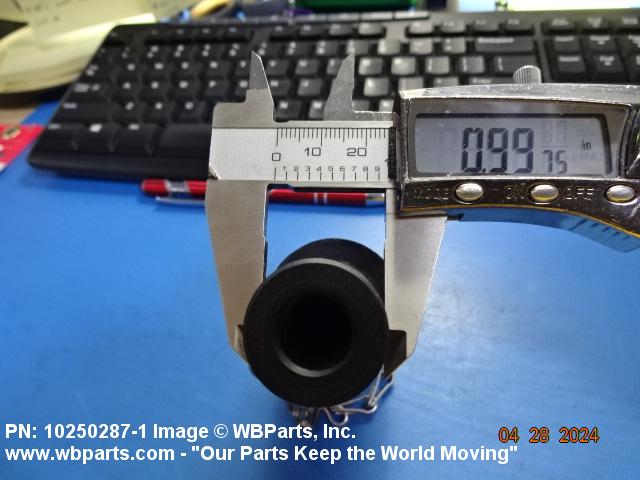

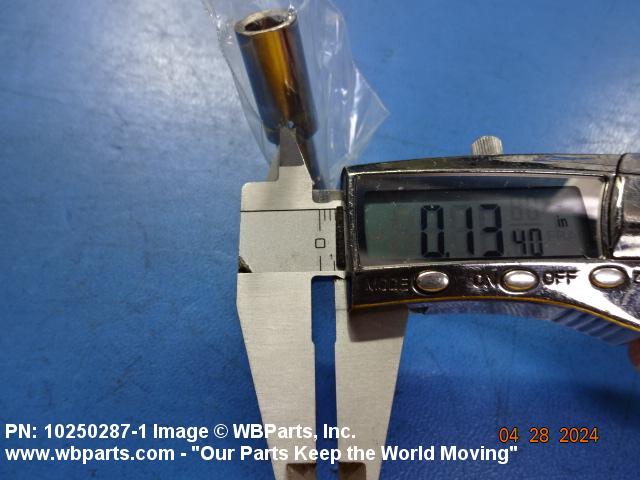

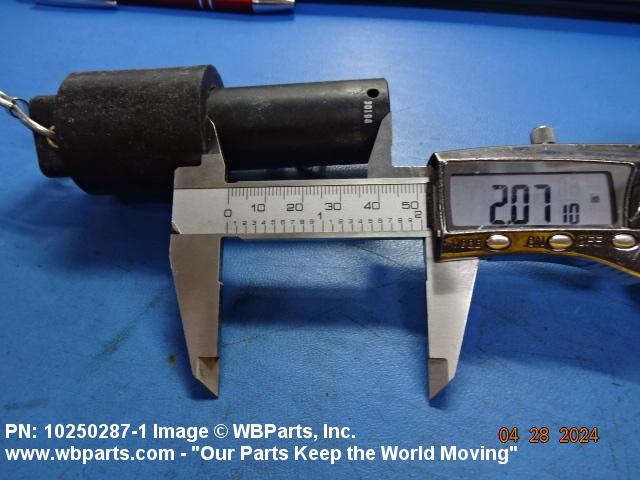

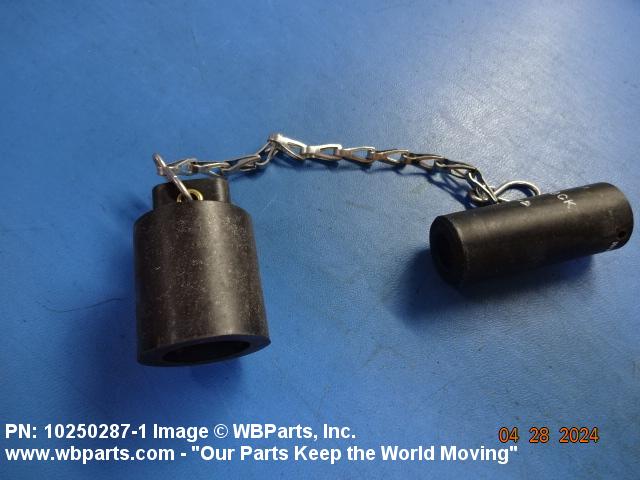

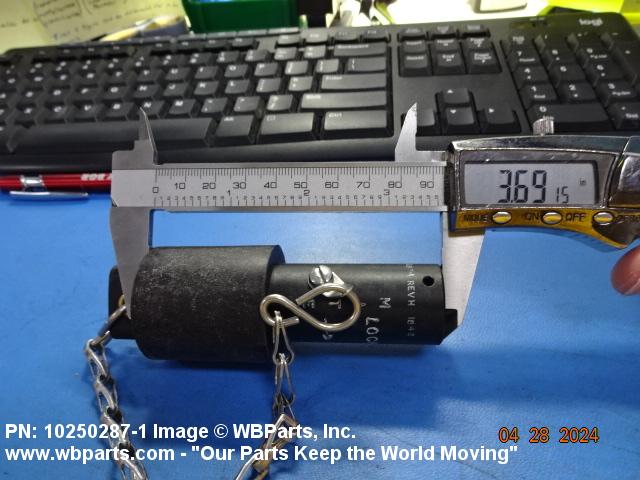

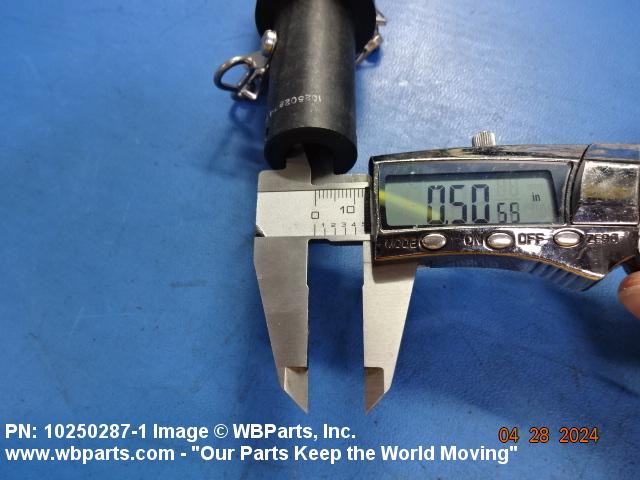

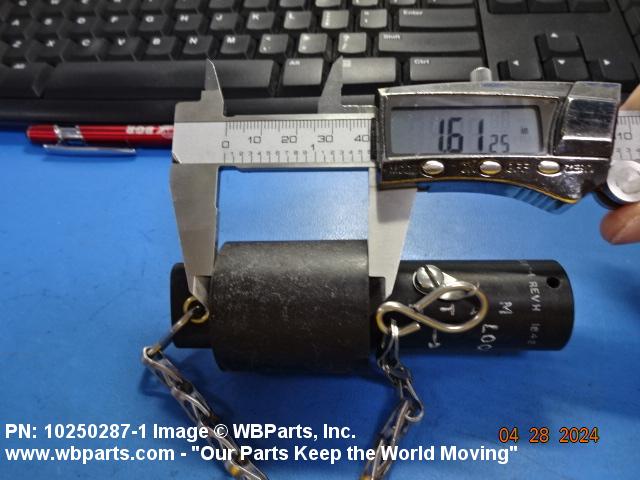

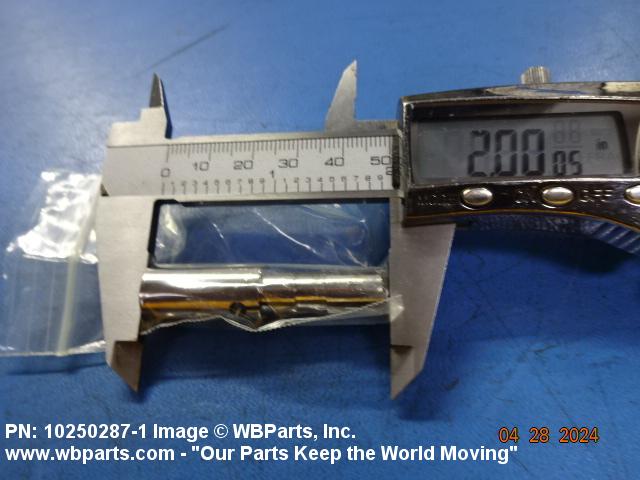

Drawings & Photos | NSN 5935-01-260-7742
Demand History | NSN 5935-01-260-7742
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-260-7742 | 2025-09-244 | 180 | TR |
| E1010165 | 2025-07-182 | 54 | Japan |
| 102502871 | 2025-06-170 | 25 | Japan |
| E1010165 | 2025-06-170 | 54 | Japan |
| 5935-01-260-7742 | 2025-06-168 | 25 | Japan |
| E1010165 | 2025-06-159 | 50 | Japan |
| 5935-01-260-7742 | 2025-03-72 | 130 | DIBBS |
| 5935-01-260-7742 | 2024-08-227 | 75 | US |
| 102502871 | 2024-04-102 | 18 | Japan |
| E1010165 | 2024-04-102 | 18 | Japan |
| E1010165 | 2024-04-99 | 36 | Japan |
| E1010165 | 2024-04-96 | 9 | Japan |
| 5935-01-260-7742 | 2023-08-243 | 142 | DIBBS |
| 5935-01-260-7742 | 2023-07-188 | 20 | Taiwan |
| 5935-01-260-7742 | 2023-03-68 | 100 | US |
| 5935-01-260-7742 | 2023-03-66 | 235 | DIBBS |
| 5935-01-260-7742 | 2023-01-16 | 35 | United States |
| 5935-01-260-7742 | 2022-09-254 | 235 | DIBBS |
| 5935-01-260-7742 | 2022-04-94 | 315 | DIBBS |
| 5935-01-260-7742 | 2022-03-81 | 315 | DIBBS |
| 5935-01-260-7742 | 2022-02-34 | 111 | DIBBS |
| 5935-01-260-7742 | 2022-01-06 | 93 | DIBBS |
| E1010165 | 2021-11-319 | 35 | United States |
| 5935-01-260-7742 | 2021-10-280 | 114 | DIBBS |
| 5935-01-260-7742 | 2021-07-187 | 163 | DIBBS |
| 5935-01-260-7742 | 2021-06-172 | 163 | DIBBS |
| 5935-01-260-7742 | 2021-04-102 | 228 | DIBBS |
| 5935-01-260-7742 | 2021-04-91 | 228 | DIBBS |
| E1010165 | 2021-02-33 | 230 | US |
| 102502871 | 2021-02-33 | 230 | United States |
| E1010165 | 2021-02-33 | 230 | United States |
| 5935-01-260-7742 | 2020-10-303 | 176 | DIBBS |
| 5935-01-260-7742 | 2020-10-289 | 10000 | us |
| 5935-01-260-7742 | 2020-10-282 | 123 | DIBBS |
| E1010165 | 2020-10-281 | 121 | United States |
| 5935-01-260-7742 | 2020-09-245 | 1 | US |
| 5935-01-260-7742 | 2020-03-86 | 210 | DIBBS |
| 5935-01-260-7742 | 2020-02-54 | 193 | DIBBS |
| 5935-01-260-7742 | 2020-01-30 | 30 | DIBBS |
| 5935-01-260-7742 | 2020-01-02 | 17 | DIBBS |
| E1010165 | 2019-12-358 | 35 | US |
| 5935-01-260-7742 | 2019-09-265 | 466 | DIBBS |
| 5935-01-260-7742 | 2019-06-163 | 42 | United States |
| E1010165 | 2019-04-113 | 121 | United States |
| 5935-01-260-7742 | 2019-01-09 | 48 | United States |
| 5935-01-260-7742 | 2017-10-302 | 514 | DIBBS |
| 5935-01-260-7742 | 2017-03-89 | 507 | DIBBS |
| 5935-01-260-7742 | 2017-01-10 | 451 | DIBBS |
| 5935-01-260-7742 | 2016-12-347 | 154 | US |
| 5935-01-260-7742 | 2016-05-147 | 12 | United States |
| 5935-01-260-7742 | 2016-04-118 | 50 | United States |
| 5935-01-260-7742 | 2016-03-91 | 348 | DIBBS |
| 5935-01-260-7742 | 2015-02-44 | 5 | us |
| 5935-01-260-7742 | 2014-09-247 | 2 | US |
| 5935-01-260-7742 | 2014-06-152 | 99 | DIBBS |
| 5935-01-260-7742 | 2014-04-106 | 100 | DIBBS |
| 5935-01-260-7742 | 2014-03-73 | 300 | US |
| 5935-01-260-7742 | 2012-08-227 | 804 | United States |
| 5935-01-260-7742 | 2011-06-181 | 150 | US |
| 5935-01-260-7742 | 2011-06-179 | 200 | US |
| 102502871 | 2011-03-82 | 220 | US |
| E1010165 | 2011-03-62 | 109 | United States |
| 102502871 | 2011-03-61 | 93 | US |
| E1010165 | 2011-02-49 | 4 | US |
| 5935-01-260-7742 | 2011-02-48 | 10 | US |
| 102502871 | 2010-08-230 | 80 | US |
| E1010165 | 2010-08-225 | 239 | US |
| 5935-01-260-7742 | 2010-08-222 | 68 | DIBBS |
| 5935-01-260-7742 | 2010-06-176 | 156 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-260-7742
Related Products | NSN 5935-01-260-7742
Technical Data | NSN 5935-01-260-7742
| Characteristic | Specifications |
|---|---|
| FINGER TYPE | SPLIT END SINGLE FINGER |
| FINGER LENGTH | 0.937 INCHES MINIMUM AND 1.063 INCHES MAXIMUM SINGLE FINGER |
| FINGER DIAMETER | 0.375 INCHES NOMINAL SINGLE FINGER |
| BODY STYLE | 5 STRAIGHT HANDLE |
| OVERALL LENGTH | 3.437 INCHES MINIMUM AND 3.693 INCHES MAXIMUM |
| BODY LENGTH | 2.500 INCHES MINIMUM AND 2.630 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.980 INCHES MINIMUM AND 1.020 INCHES MAXIMUM |
| CABLE ENTRANCE DIAMETER | 0.320 INCHES MINIMUM AND 0.350 INCHES MAXIMUM |
| ELECTRICAL INSULATION FEATURE | INSULATED COMPLETELY |
| MATERIAL | BERYLLIUM COPPER FINGER PLASTIC, PHENOLIC RESIN, PAPER BASE HANDLE PLASTIC, PHENOLIC RESIN, PAPER BASE INSULATOR BERYLLIUM COPPER TERMINAL |
| SURFACE TREATMENT | NICKEL FINGER NICKEL TERMINAL |
| IDENTIFICATION CODE COLOR | NATURAL |
| TERMINAL TYPE | SOLDER WELL |
| MAXIMUM VOLTAGE RATING IN VOLTS | NOT RATED |
| CURRENT RATING IN AMPS | NOT RATED |
| SPECIAL FEATURES | ITEM IS FURNISHED WITH A COVER |
| III END ITEM IDENTIFICATION | 1440-01-087-9844 LAUNCHING STATION,GUIDED MISSILE,SEMITRAILER MOUNTED |
Restrictions/Controls & Freight Information | NSN 5935-01-260-7742
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-260-7742
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
