NSN 5935-01-311-7970 10021561, 1002156-1, 32461880001
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-311-7970 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 10021561, 1002156-1, 32461880001, 3246188-0001, 801M33FIXEDYMMGN1, 801M33FIXED-YM-MG-N-1, 5935-01-311-7970, 01-311-7970, 5935013117970, 013117970
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 DEC 1989 | 01-311-7970 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-311-7970
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-311-7970
Technical Data | NSN 5935-01-311-7970
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 12Q RIGHT ANGLE TYPE |
| OVERALL LENGTH | 53.7 MILLIMETERS NOMINAL |
| OVERALL WIDTH | 14.94 MILLIMETERS NOMINAL |
| BODY HEIGHT | 6.4 MILLIMETERS NOMINAL |
| CONNECTOR LOCKING METHOD | POST JACKSOCKET |
| THREADED DEVICE TYPE | COUPLING FACILITY |
| THREAD SERIES DESIGNATOR | ISO S |
| NOMINAL THREAD SIZE | 2.5 MILLIMETERS |
| THREAD PITCH IN MILLIMETERS | 0.45 |
| THREAD DIRECTION | RIGHT-HAND |
| POLARIZATION METHOD | JACKSCREW |
| JACKSCREW TYPE AND LOCATION | FEMALE LEFT-HAND AND FEMALE RIGHT-HAND |
| MATING END QUANTITY | 1 |

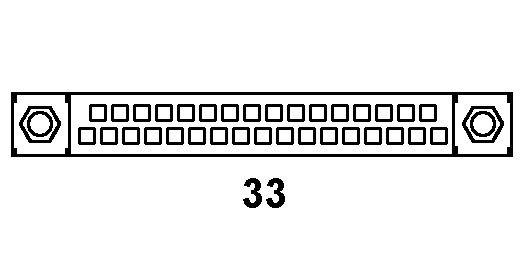

| CONTACT POSITION ARRANGEMENT STYLE | BKAP 33 SINGLE MATING END |
| INSERT MATERIAL | PLASTIC DIALLYL PHTHALATE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 33 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MAXIMUM CURRENT RATING IN AMPS | 3.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | GOLD AND NICKEL OR GOLD AND COPPER SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-G-45204,TY 2,CL 1,GRADE C MIL SPEC 1ST TREATMENT RESPONSE AND QQ-N-290,CL 2 FED SPEC 2ND TREATMENT RESPONSE OR MIL-G-45204,TY 2,CL 1,GRADE C MIL SPEC 3RD TREATMENT RESPONSE AND MIL-C-14550,CL 4 MIL SPEC 4TH TREATMENT RESPONSE SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | SIDE SINGLE MATING END SINGLE CONTACT GROUPING |
| ENVIRONMENTAL PROTECTION | HEAT RESISTANT AND COLD RESISTANT |
| III OPERATING TEMP RATING | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND WEIGHT | 0.033 GOLD GRAINS, TROY |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACES GOLD |
| III END ITEM IDENTIFICATION | 1430-01-286-1314 GUIDED MISSILE |
