NSN 5935-01-312-1786 D611BA5000, D-611-BA-50-00, PB050700
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-312-1786 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: D611BA5000, D-611-BA-50-00, PB050700, PB0-50-7-00, PB050M00, PB0-50-M-00, RBD50L00, RBD-50-L-00, RBD50M00, RBD-50-M-00, 15185742 , 5935-01-312-1786, 01-312-1786, 5935013121786, 013121786
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 DEC 1989 | 01-312-1786 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

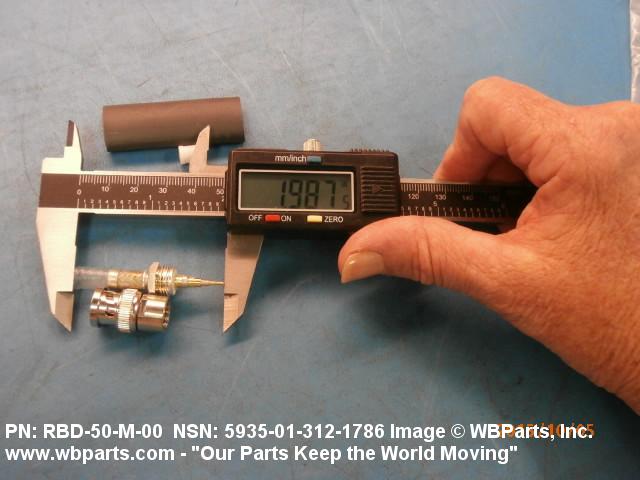

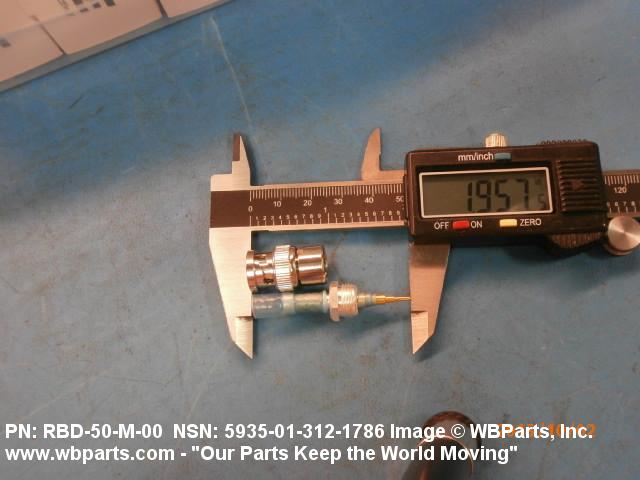

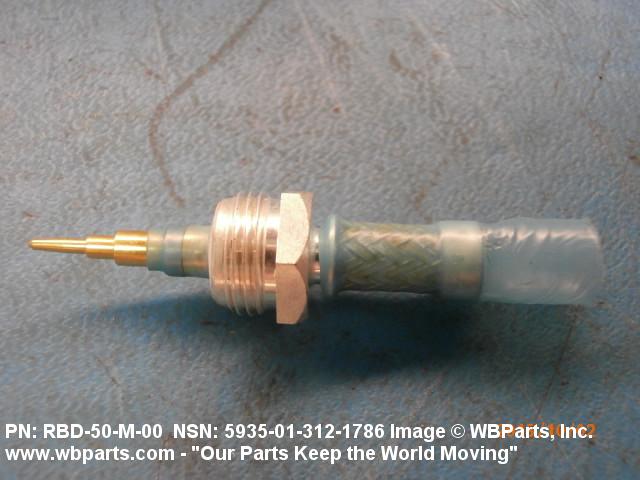

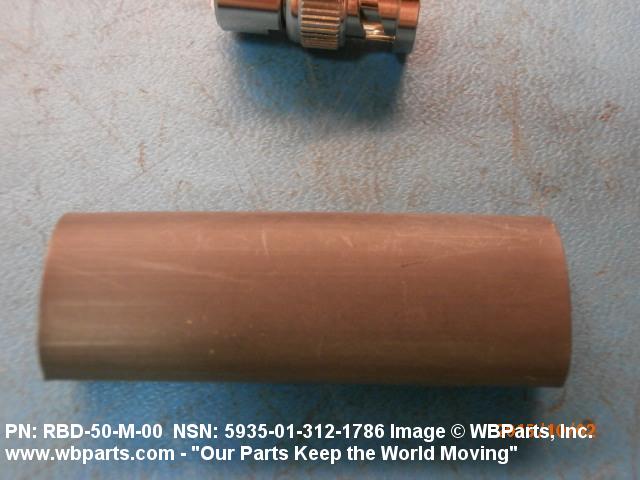

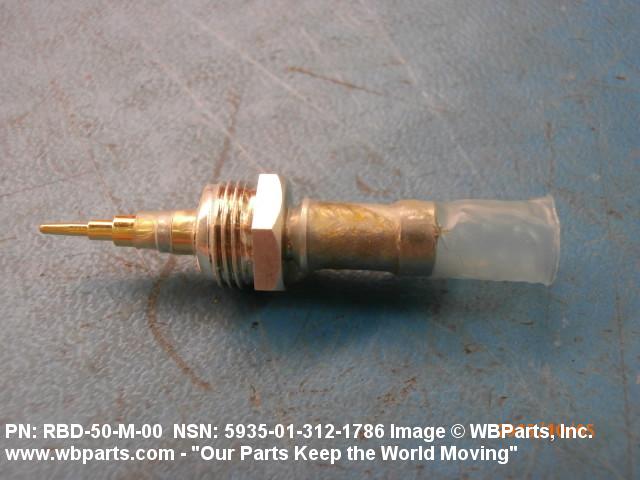

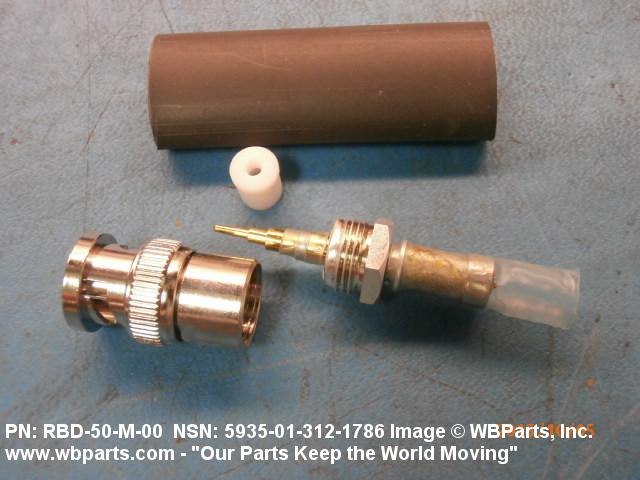

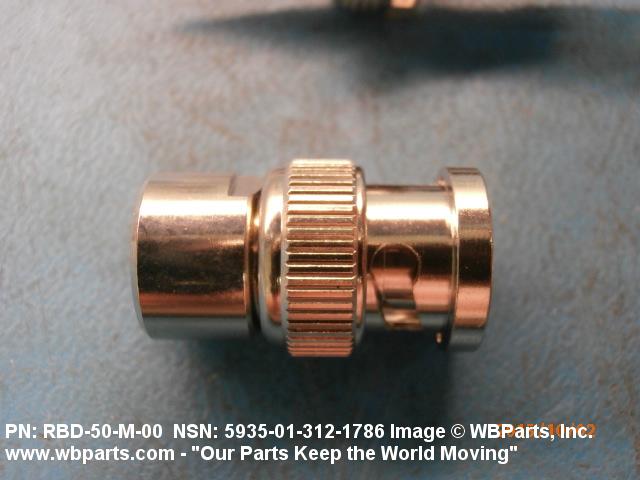

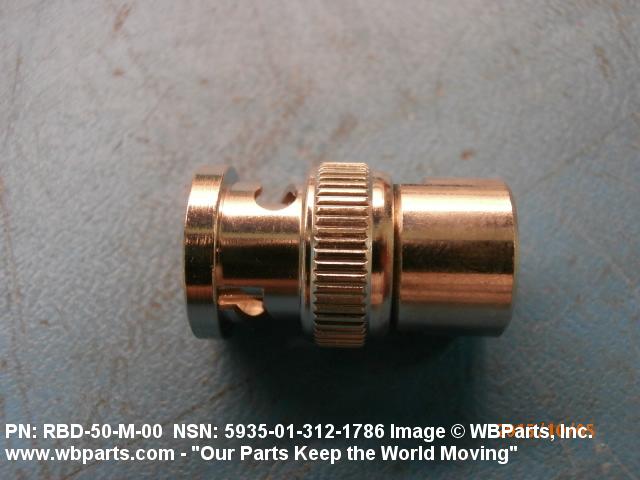

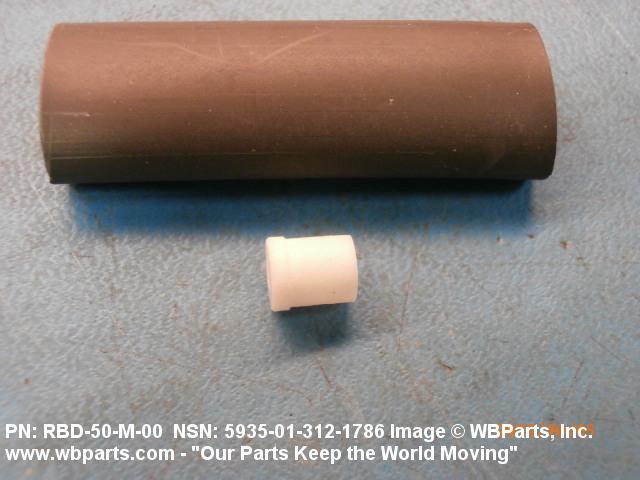

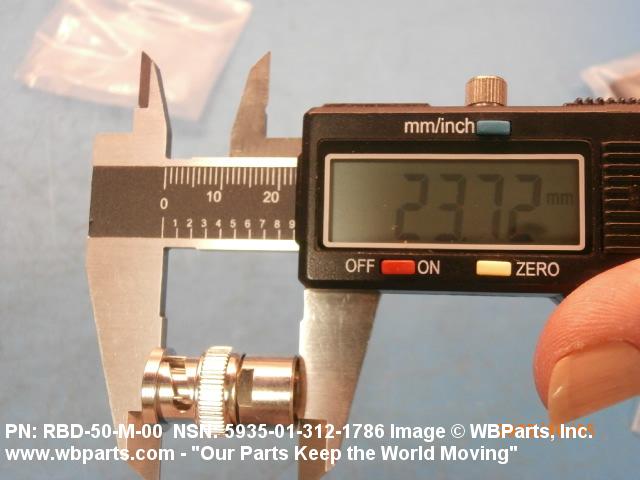

Drawings & Photos | NSN 5935-01-312-1786
Demand History | NSN 5935-01-312-1786
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-312-1786 | 2015-09-266 | 130 | Canada |
Cross Reference | NSN 5935-01-312-1786
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15185742 | K6451 | BAE SYSTEMS MARINE LIMITED |
| D-611-BA-50-00 | 06090 | TYCO ELECTRONICS CORPORATION |
| PB0-50-7-00 | 06090 | TYCO ELECTRONICS CORPORATION |
| PB0-50-M-00 | 06090 | TYCO ELECTRONICS CORPORATION |
| RBD-50-L-00 | 06090 | TYCO ELECTRONICS CORPORATION |
| RBD-50-M-00 | 06090 | TYCO ELECTRONICS CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-312-1786
Technical Data | NSN 5935-01-312-1786
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 3A STRAIGHT SHAPE, EXTERNAL COUPLING W/BACKSHELL |
| OVERALL LENGTH | 2.010 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | COPPER ALLOY |
| SHELL SURFACE TREATMENT | SILVER |
| MATING END QUANTITY | 1 |
| CONTACT POSITION ARRANGEMENT STYLE | ABBJ BNC SINGLE MATING END |
| INSERT MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 1 SINGLE MATING END SINGLE CONTACT GROUPING |
| RADIO FREQUENCY TYPE CONTACT CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT MATERIAL | COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT SURFACE TREATMENT | SILVER SINGLE MATING END SINGLE CONTACT GROUPING |
| III PRECIOUS MATERIAL AND LOCATION | BODY AND CONTACT PLATING SILVER |
Restrictions/Controls & Freight Information | NSN 5935-01-312-1786
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
