NSN 5935-01-315-5820 DPX2NE67MS67MS33B02, DPX2NE-67MS67MS-33B-02, 01-315-5820
Product Details | ELECTRICAL RECEPTACLE CONNECTOR
5935-01-315-5820 An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), PRINTED WIRING BOARD, or the like for convenience in joining with another electrical connector(s) or PRINTED WIRING BOARD. It is designed to be mounted on a bulkhead, chassis, panel, wall, PRINTED WIRING BOARD, or the like. Excludes LAMPHOLDER; JACK, TELEPHONE; JACK, TIP; INSERT ELECTRICAL CONNECTOR; INSERT MODULE, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified) and SOCKET, PLUG-IN ELECTRONIC COMPONENTS. See also WIRING HARNESS (as modified) and CABLE ASSEMBLY (as modified). For items with termination wires of more than four inches in length, see LEAD ASSEMBLY, ELECTRICAL. For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: DPX2NE67MS67MS33B02, DPX2NE-67MS67MS-33B-02, 5935-01-315-5820, 01-315-5820, 5935013155820, 013155820
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 FEB 1990 | 01-315-5820 | 15093 ( CONNECTOR, RECEPTACLE, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-315-5820
Demand History | NSN 5935-01-315-5820
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| DPX2NE67MS67MS33B02 | 2013-01-10 | 2 | IT |
Cross Reference | NSN 5935-01-315-5820
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DPX2NE-67MS67MS-33B-02 | 71468 | ITT CORPORATION DBA I T T CANNON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-315-5820
Technical Data | NSN 5935-01-315-5820
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 18G STRAIGHT SHAPE |
| OVERALL LENGTH | 0.954 INCHES NOMINAL |
| OVERALL HEIGHT | 3.110 INCHES NOMINAL |
| OVERALL WIDTH | 2.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 2.783 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.437 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE | 0.766 INCHES NOMINAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.120 INCHES NOMINAL |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | ALUMINUM ALLOY |
| SHELL SURFACE TREATMENT | CADMIUM AND CHROMATE |
| MATING END QUANTITY | 2 |

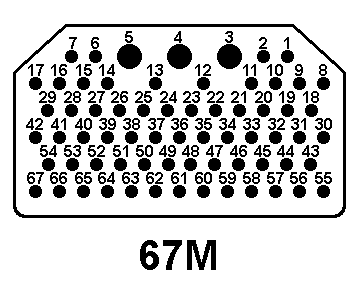

| CONTACT POSITION ARRANGEMENT STYLE | CWAE 67M ALL MATING ENDS |
| INSERT MATERIAL | PLASTIC ALL MATING ENDS |
| INCLUDED CONTACT QUANTITY | 3 1ST MATING END 1ST CONTACT GROUPING 64 1ST MATING END 2ND CONTACT GROUPING 3 2ND MATING END 1ST CONTACT GROUPING 64 2ND MATING END 2ND CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE ALL MATING ENDS ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND PIN ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT MATERIAL | COPPER ALLOY ALL MATING ENDS ALL CONTACT GROUPINGS |
| CONTACT SURFACE TREATMENT | GOLD ALL MATING ENDS ALL CONTACT GROUPINGS |
| TERMINAL TYPE | CRIMP ALL MATING ENDS ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK ALL MATING ENDS ALL CONTACT GROUPINGS |
| SPECIAL FEATURES | SHELL DESIGN WITH TABS FOR ATTACHING JUNCTION SHELLS |
| III PRECIOUS MATERIAL | GOLD |
Restrictions/Controls & Freight Information | NSN 5935-01-315-5820
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
