NSN 5935-01-325-3919 10135773 , 4409430S315, 44094-30S-315
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-325-3919 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 10135773 , 4409430S315, 44094-30S-315, 6544772, 654477-2, 5935-01-325-3919, 01-325-3919, 5935013253919, 013253919
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 SEP 1990 | 01-325-3919 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

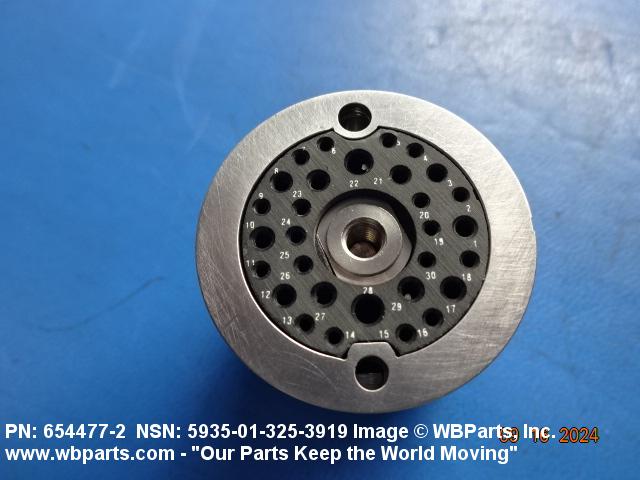

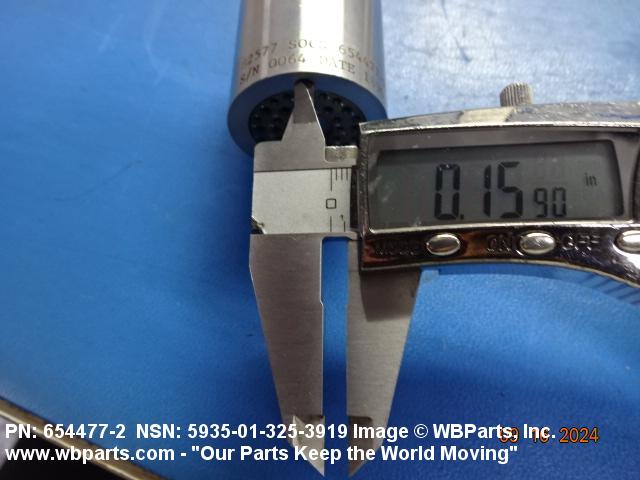

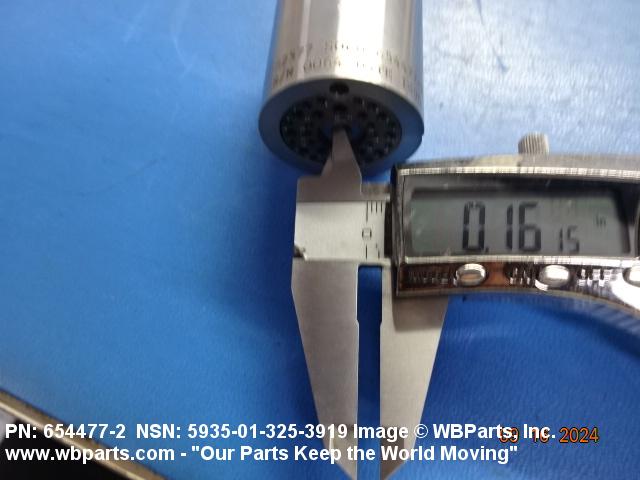

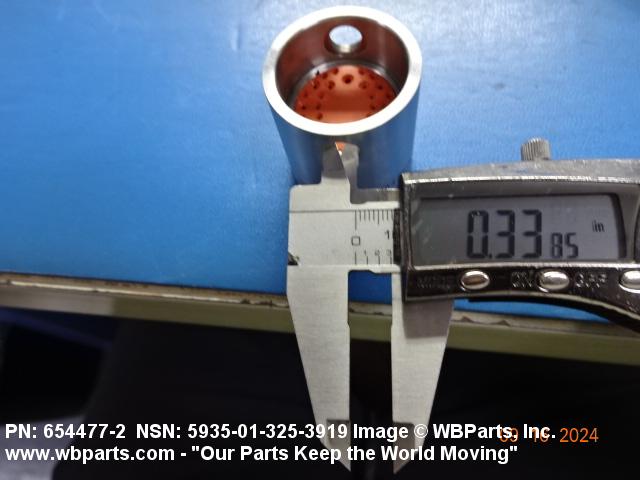

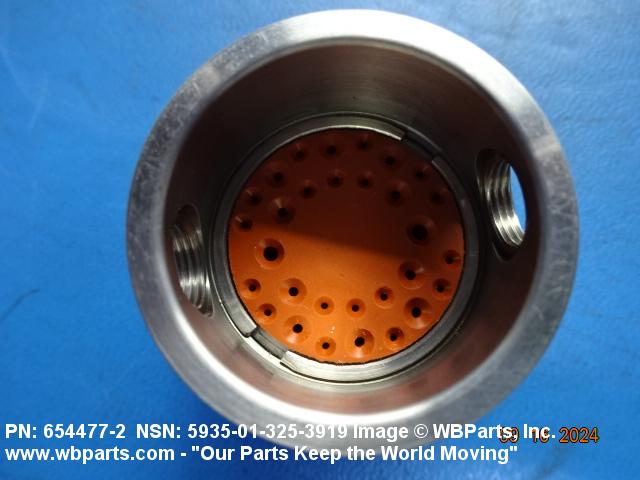

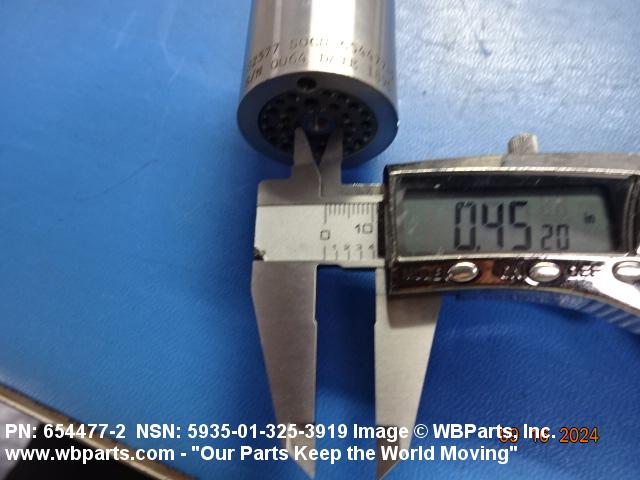

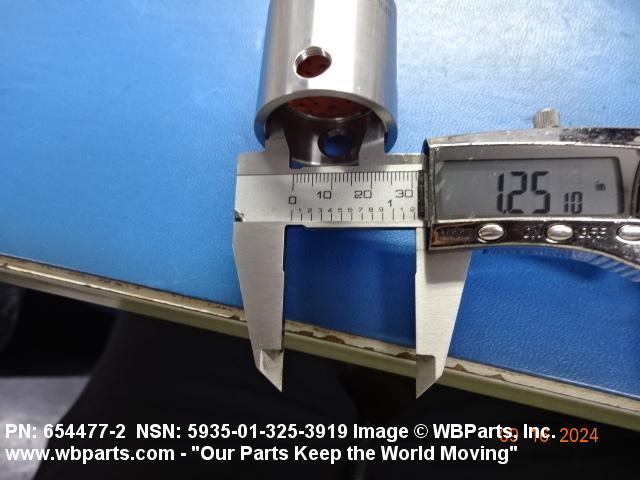

Drawings & Photos | NSN 5935-01-325-3919
Demand History | NSN 5935-01-325-3919
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 44094-30S-315 | 2025-09-267 | 36 | DIBBS |
| 6544772 | 2024-08-242 | 2 | us |
| 5935-01-325-3919 | 2024-08-233 | 2 | us |
| 44094-30S-315 | 2022-11-333 | 75 | DIBBS |
| 44094-30S-315 | 2022-10-279 | 49 | DIBBS |
| 44094-30S-315 | 2022-08-223 | 49 | DIBBS |
| 44094-30S-315 | 2022-07-212 | 49 | DIBBS |
| 44094-30S-315 | 2021-04-115 | 24 | DIBBS |
| 44094-30S-315 | 2020-12-357 | 25 | DIBBS |
| 5935-01-325-3919 | 2018-11-308 | 34 | DIBBS |
| 5935-01-325-3919 | 2018-09-249 | 27 | DIBBS |
| 5935-01-325-3919 | 2018-08-220 | 40 | DIBBS |
| 5935-01-325-3919 | 2018-06-178 | 30 | DIBBS |
| 5935-01-325-3919 | 2018-04-91 | 14 | DIBBS |
| 5935-01-325-3919 | 2016-12-357 | 21 | DIBBS |
| 5935-01-325-3919 | 2016-12-343 | 21 | DIBBS |
| 5935-01-325-3919 | 2016-04-96 | 28 | DIBBS |
| 5935-01-325-3919 | 2016-03-78 | 9 | DIBBS |
| 5935-01-325-3919 | 2016-03-67 | 9 | DIBBS |
| 5935-01-325-3919 | 2013-05-127 | 2 | MANUAL |
| 6544772 | 2012-08-244 | 1 | SG |
| 6544772 | 2012-08-239 | 1 | SG |
| 5935-01-325-3919 | 2011-11-327 | 13 | DIBBS |
| 5935-01-325-3919 | 2011-09-259 | 93 | DIBBS |
| 5935-01-325-3919 | 2010-11-321 | 27 | DIBBS |
| 5935-01-325-3919 | 2010-09-267 | 12 | DIBBS |
| 5935-01-325-3919 | 2010-04-106 | 52 | DIBBS |
| 5935-01-325-3919 | 2009-03-84 | 56 | DIBBS |
| 5935-01-325-3919 | 2009-02-35 | 59 | DIBBS |
| 5935-01-325-3919 | 2009-01-29 | 156 | DIBBS |
| 5935-01-325-3919 | 2009-01-20 | 59 | DIBBS |
| 5935-01-325-3919 | 2008-09-262 | 56 | DIBBS |
| 5935-01-325-3919 | 2008-05-122 | 79 | DIBBS |
| 5935-01-325-3919 | 2007-10-298 | 119 | DIBBS |
| 5935-01-325-3919 | 2007-08-228 | 24 | DIBBS |
| 5935-01-325-3919 | 2007-07-205 | 26 | DIBBS |
| 5935-01-325-3919 | 2007-05-125 | 45 | DIBBS |
| 5935-01-325-3919 | 2007-04-95 | 38 | DIBBS |
| 5935-01-325-3919 | 2007-02-57 | 32 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-325-3919
Related Products | NSN 5935-01-325-3919
Technical Data | NSN 5935-01-325-3919
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 8F STRAIGHT SHAPE |
| OVERALL LENGTH | 1.554 INCHES MINIMUM AND 1.574 INCHES MAXIMUM |
| OVERALL DIAMETER | 1.490 INCHES MINIMUM AND 1.510 INCHES MAXIMUM |
| SHELL TYPE | SOLID |
| SHELL MATERIAL | STEEL COMP 303SE |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582,COND.A,COLD FINISHED ASSN STD SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | PASSIVATE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TYPE II FED SPEC SINGLE TREATMENT RESPONSE |
| MATING END QUANTITY | 1 |
| INSERT MATERIAL | PLASTIC EPOXY SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 2 SINGLE MATING END 1ST CONTACT GROUPING 10 SINGLE MATING END 2ND CONTACT GROUPING 18 SINGLE MATING END 3RD CONTACT GROUPING |
| CONTACT REMOVABILITY | REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS |
| INCLUDED CONTACT TYPE | ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL TYPE | CRIMP SINGLE MATING END ALL CONTACT GROUPINGS |
| TERMINAL LOCATION | BACK SINGLE MATING END ALL CONTACT GROUPINGS |
| SPECIAL FEATURES | HAS TRUNNION PINS-2 PLACES |
| III END ITEM IDENTIFICATION | LAU129A LAUNCHER |
| MANUFACTURERS CODE | 82577 |
| MFR SOURCE CONTROLLING REFERENCE | 654477-2 |
Restrictions/Controls & Freight Information | NSN 5935-01-325-3919
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-325-3919
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | AL | TG:ADVANCE MEDIUM RANGE AIR-TO-AIR MISSILE |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
