NSN 5935-01-326-0503 01-326-0503, 013260503
Product Details | ELECTRICAL CONNECTOR JACKSCREW
5935-01-326-0503 A locking device specifically designed to secure engaged electrical connectors. Its mating end is either internally or externally threaded. It is designed to be installed in an ADAPTER (2), CONNECTOR; CONNECTOR BODY, PLUG, ELECTRICAL; CONNECTOR BODY, RECEPTACLE, ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; COVER, ELECTRICAL CONNECTOR; DUMMY CONNECTOR, PLUG; DUMMY CONNECTOR, RECEPTACLE; INSERT, ELECTRICAL CONNECTOR; SHELL, ELECTRICAL CONNECTOR; or a SHIELD, ELECTRICAL CONNECTOR. It may be used for polarization. It may be equipped with a knob, slotted head, knurled head, or the like.
Part Alternates: 5935-01-326-0503, 01-326-0503, 5935013260503, 013260503
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-326-0503 | 36340 ( JACKSCREW, ELECTRICAL CONNECTOR ) |

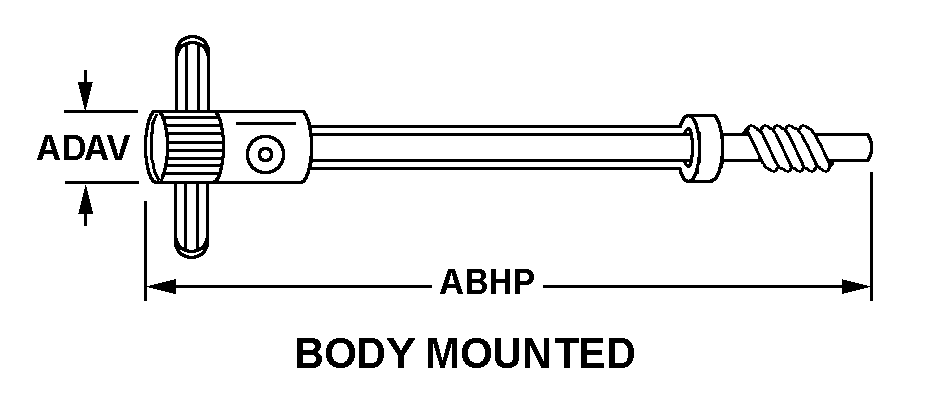

Drawings & Photos | NSN 5935-01-326-0503
Cross Reference | NSN 5935-01-326-0503
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 08-03-09 | 0H3D3 | ZET-TEK INC |
| 11569884 | 00779 | TYCO ELECTRONICS CORPORATION |
| 11569884 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 716897-8 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 88618-2 | 00779 | TYCO ELECTRONICS CORPORATION |
| 893895-2 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 893895-2 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| BB-2000-8 | 36534 | STEGG LIMITED |
| SS9754-01 | 00779 | TYCO ELECTRONICS CORPORATION |
| SS9754-01 | 05791 | LYN-TRON INC |
| SS9754-01 | 91506 | AUGAT INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-326-0503
Technical Data | NSN 5935-01-326-0503
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 1M BODY MOUNTED |
| OVERALL LENGTH | 0.946 INCHES MINIMUM AND 0.966 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.175 INCHES MINIMUM AND 0.185 INCHES MAXIMUM |
| MATERIAL | STEEL, CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATED |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 BODY |
Restrictions/Controls & Freight Information | NSN 5935-01-326-0503
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
