NSN 5935-01-326-5798 TBP7100, TBP7-100, 01-326-5798
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-326-5798 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: TBP7100, TBP7-100, 5935-01-326-5798, 01-326-5798, 5935013265798, 013265798
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 27 SEP 1990 | 01-326-5798 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |
Drawings & Photos | NSN 5935-01-326-5798
Cross Reference | NSN 5935-01-326-5798
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TBP7-100 | 05574 | VIKING ELECTRONICS, INC. DIV VIKING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5935-01-326-5798
Technical Data | NSN 5935-01-326-5798
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF |
| BODY LENGTH | 1.140 INCHES NOMINAL |
| OVERALL DIAMETER | 0.510 INCHES NOMINAL |
| CONNECTOR LOCKING METHOD | EXTERNALLY THREADED SHELL |
| THREADED DEVICE TYPE | BACK SHELL |
| NOMINAL THREAD SIZE | 0.406 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| MATING END QUANTITY | 1 |

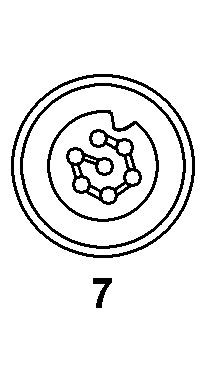

| CONTACT POSITION ARRANGEMENT STYLE | AHGD 7 SINGLE MATING END |
| INCLUDED CONTACT QUANTITY | 7 SINGLE MATING END SINGLE CONTACT GROUPING |
| SPECIAL FEATURES | GRAY BACKSHELL |
