NSN 5935-01-336-9017 4409530P303, 44095-30P-303, 6544783
Product Details | ELECTRICAL PLUG CONNECTOR
5935-01-336-9017 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.
Part Alternates: 4409530P303, 44095-30P-303, 6544783, 654478-3, 891 1922 , 8911922, 5935-01-336-9017, 01-336-9017, 5935013369017, 013369017
Electrical and Electronic Equipment Components | Connectors, Electrical
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 APR 1991 | 01-336-9017 | 01938 ( CONNECTOR, PLUG, ELECTRICAL ) |

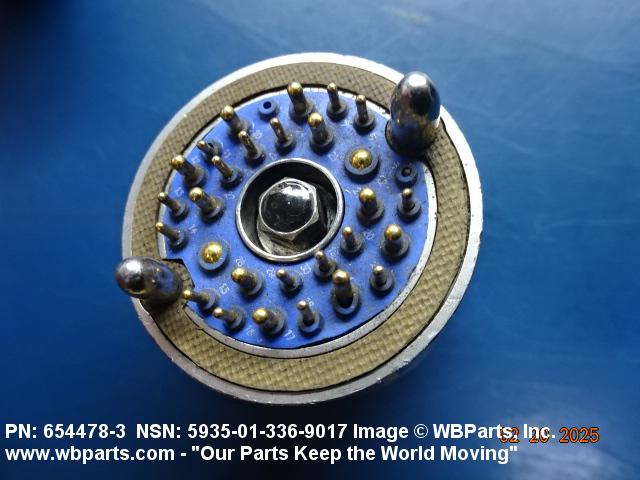

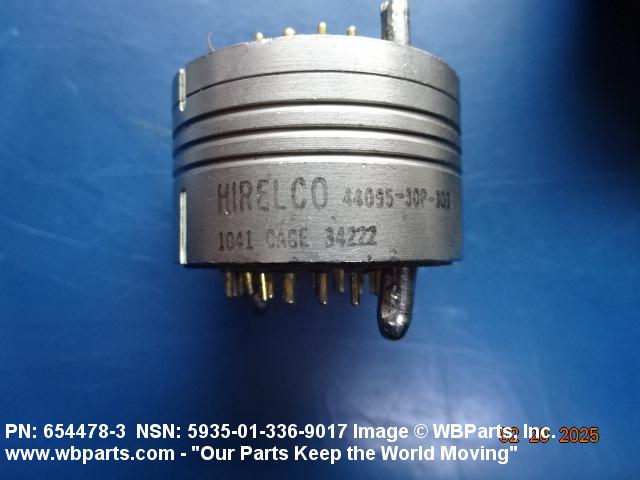

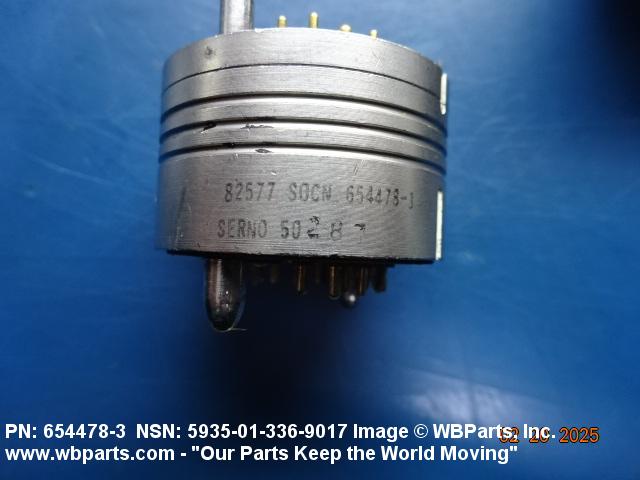

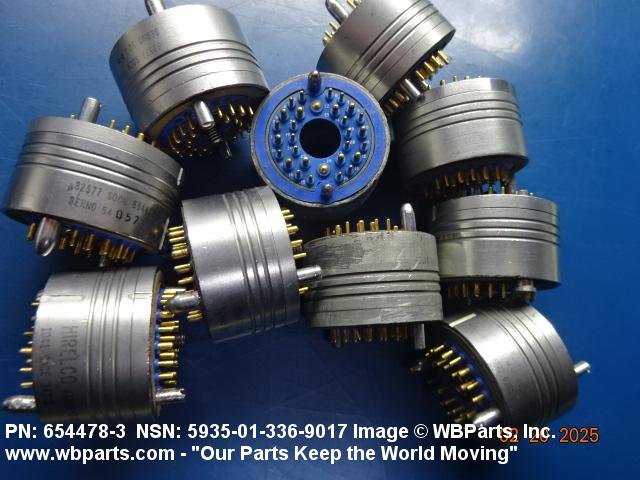

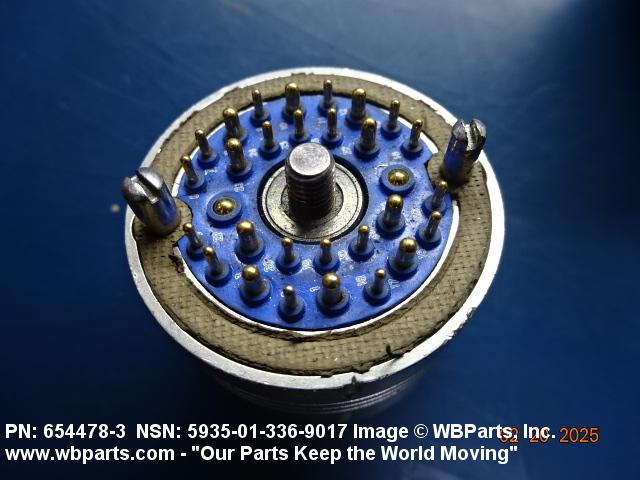

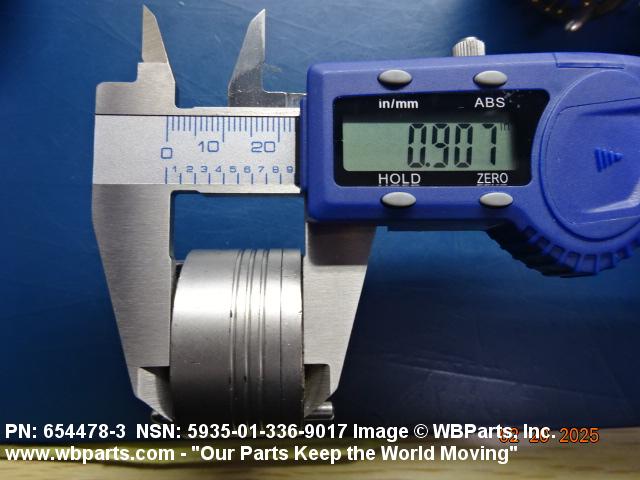

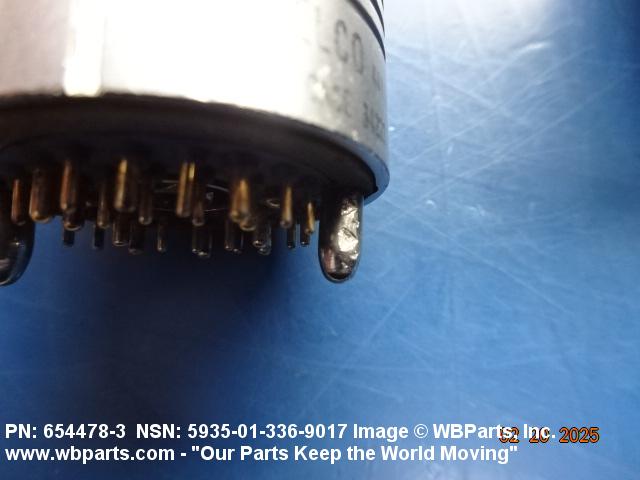

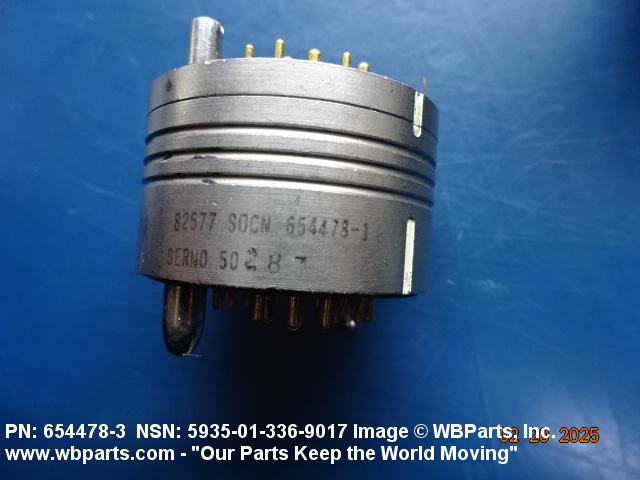

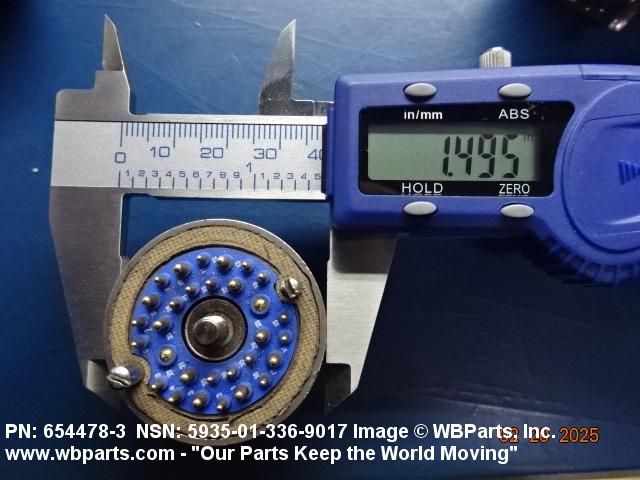

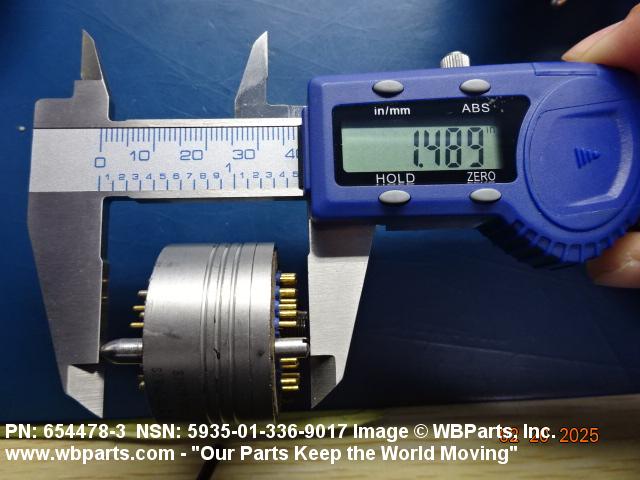

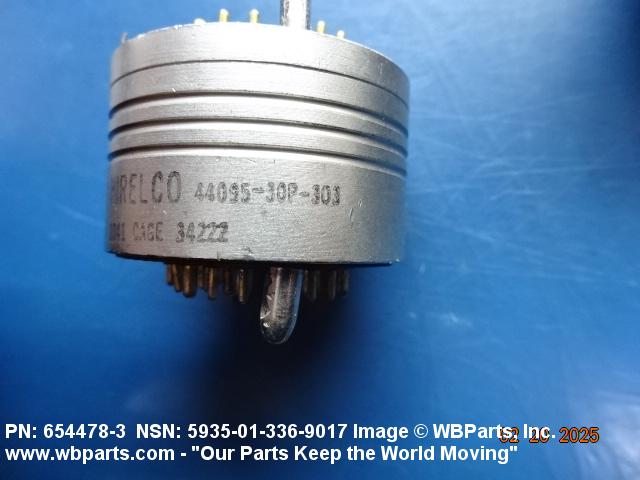

Drawings & Photos | NSN 5935-01-336-9017
Demand History | NSN 5935-01-336-9017
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5935-01-336-9017 | 2025-11-323 | 60 | Denmark |
| 44095-30P-303 | 2025-11-307 | 407 | DIBBS |
| 44095-30P-303 | 2025-05-150 | 490 | DIBBS |
| 5935-01-336-9017 | 2025-02-37 | 10 | us |
| 5935-01-336-9017 | 2023-12-337 | 63 | Saudi Arabia |
| 5935-01-336-9017 | 2023-09-269 | 100 | Saudi Arabia |
| 5935-01-336-9017 | 2023-09-262 | 63 | United States |
| 5935-01-336-9017 | 2023-09-262 | 63 | Saudi Arabia |
| 5935-01-336-9017 | 2023-09-247 | 70 | Saudi Arabia |
| 5935-01-336-9017 | 2023-08-215 | 66 | US |
| 44095-30P-303 | 2023-05-125 | 66 | Saudi Arabia |
| 5935-01-336-9017 | 2023-05-125 | 66 | MANUAL |
| 5935-01-336-9017 | 2023-05-124 | 66 | Saudi Arabia |
| 5935-01-336-9017 | 2023-05-124 | 70 | Saudi Arabia |
| 44095-30P-303 | 2022-12-361 | 107 | Saudi Arabia |
| 5935-01-336-9017 | 2022-12-361 | 107 | MANUAL |
| 44095-30P-303 | 2021-10-291 | 197 | DIBBS |
| 44095-30P-303 | 2021-10-279 | 197 | DIBBS |
| 44095-30P-303 | 2021-09-256 | 83 | DIBBS |
| 44095-30P-303 | 2021-08-243 | 83 | DIBBS |
| 44095-30P-303 | 2021-08-223 | 23 | DIBBS |
| 44095-30P-303 | 2021-08-220 | 136 | DIBBS |
| 44095-30P-303 | 2021-07-207 | 136 | DIBBS |
| 5935-01-336-9017 | 2019-09-269 | 175 | United States |
| 5935-01-336-9017 | 2019-08-218 | 65 | United States |
| 6544783 | 2019-07-191 | 1 | United States |
| 6544783 | 2019-03-64 | 1 | United States |
| 5935-01-336-9017 | 2018-08-240 | 30 | BH |
| 5935-01-336-9017 | 2018-08-232 | 25 | US |
| 5935-01-336-9017 | 2018-08-232 | 25 | US |
| 5935-01-336-9017 | 2017-08-243 | 50 | US |
| 4409530P303 | 2017-06-170 | 35 | US |
| 5935-01-336-9017 | 2017-01-25 | 1 | United States |
| 5935-01-336-9017 | 2016-08-223 | 4 | United States |
| 5935-01-336-9017 | 2016-08-222 | 1 | United States |
| 5935-01-336-9017 | 2016-02-34 | 30 | United States |
| 44095-30P-303 | 2015-05-125 | 30 | US |
| 5935-01-336-9017 | 2015-05-125 | 30 | MANUAL |
| 5935-01-336-9017 | 2015-04-113 | 30 | PL |
| 5935-01-336-9017 | 2015-04-96 | 20 | Poland |
| 5935-01-336-9017 | 2014-04-100 | 875 | US |
| 4409530P303 | 2014-02-51 | 20 | AE |
| 5935-01-336-9017 | 2013-05-127 | 58 | MANUAL |
| 5935-01-336-9017 | 2012-03-72 | 1 | United States |
| 6544783 | 2012-03-61 | 2 | United States |
| 6544783 | 2011-11-334 | 25 | UM |
| 6544783 | 2010-08-228 | 3 | US |
| 6544783 | 2009-03-76 | 1 | US |
| 5935-01-336-9017 | 2009-03-75 | 8 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5935-01-336-9017
Related Products | NSN 5935-01-336-9017
Technical Data | NSN 5935-01-336-9017
| Characteristic | Specifications |
|---|---|
| BODY STYLE | 8F STRAIGHT SHAPE |
| OVERALL LENGTH | 1.522 INCHES NOMINAL |
| OVERALL DIAMETER | 0.410 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| SHELL MATERIAL | STEEL CORROSION RESISTING |
| SHELL MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582,TYPE 303SE ASSN STD SINGLE MATERIAL RESPONSE |
| SHELL SURFACE TREATMENT | PASSIVATE |
| SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35,TYPE II FED SPEC SINGLE TREATMENT RESPONSE |
| POLARIZATION METHOD | GUIDE PIN/SOCKET |
| ROUND GUIDE TYPE AND LOCATION | PIN LEFT-HAND AND PIN RIGHT-HAND |
| MATING END QUANTITY | 1 |
| INCLUDED CONTACT QUANTITY | 30 SINGLE MATING END SINGLE CONTACT GROUPING |
| CONTACT REMOVABILITY | NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING |
| INCLUDED CONTACT TYPE | ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL TYPE | CRIMP SINGLE MATING END SINGLE CONTACT GROUPING |
| TERMINAL LOCATION | BACK SINGLE MATING END SINGLE CONTACT GROUPING |
| MANUFACTURERS CODE | 82577 |
| MFR SOURCE CONTROLLING REFERENCE | 654478-3 |
Restrictions/Controls & Freight Information | NSN 5935-01-336-9017
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5935-01-336-9017
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
