NSN 5935-01-342-3925 D38999/26WJ20PN, D3899926WJ20PN, MIL-C-38999/26

Product Details | ELECTRICAL PLUG CONNECTOR

5935-01-342-3925 An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connector(s) or PRINTED WIRING BOARD and is not designed to be mounted on a bulkhead, chasses, panel, PRINTED WIRING BOARD, or the like. Excludes JACK, TELEPHONE; JACK, TIP; PLUG, TELEPHONE; PLUG TIP; INSERT, ELECTRICAL CONNECTOR; CONNECTOR BODY (as modified); and SOCKET, PLUG-IN, ELECTRONIC COMPONENTS. See also LEAD ASSEMBLY, ELECTRICAL; WIRING HARNESS (as modified); and CABLE ASSEMBLY (as modified). For items without inserts, see SHELL, ELECTRICAL CONNECTOR.

Part Alternates: D38999/26WJ20PN, D3899926WJ20PN, MIL-C-38999/26, MILC3899926, 5935-01-342-3925, 01-342-3925, 5935013423925, 013423925

Electrical and Electronic Equipment Components | Connectors, Electrical

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	21 JUL 1991	01-342-3925	01938 ( CONNECTOR, PLUG, ELECTRICAL )

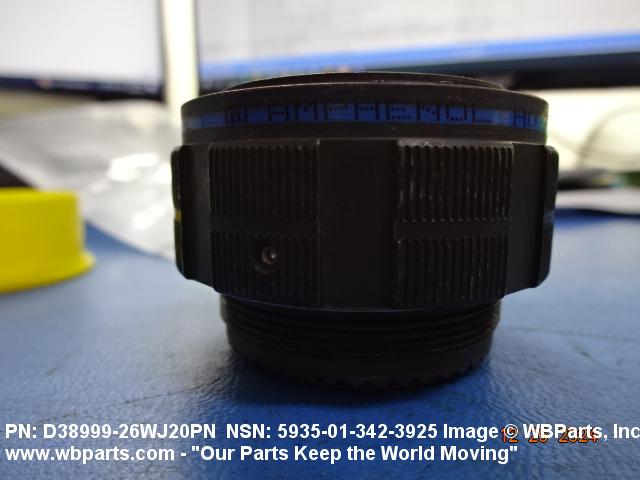

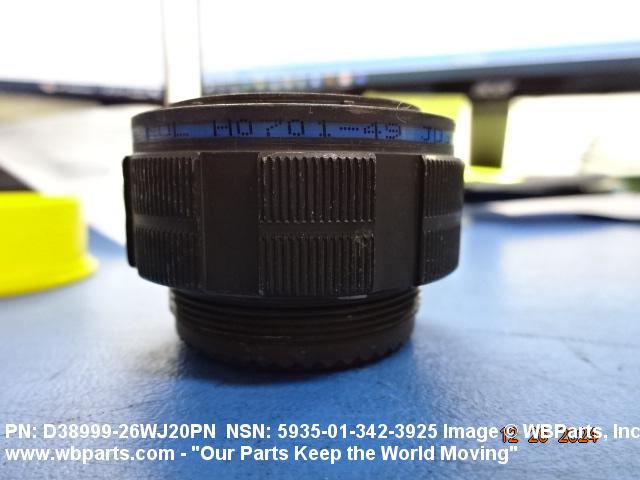

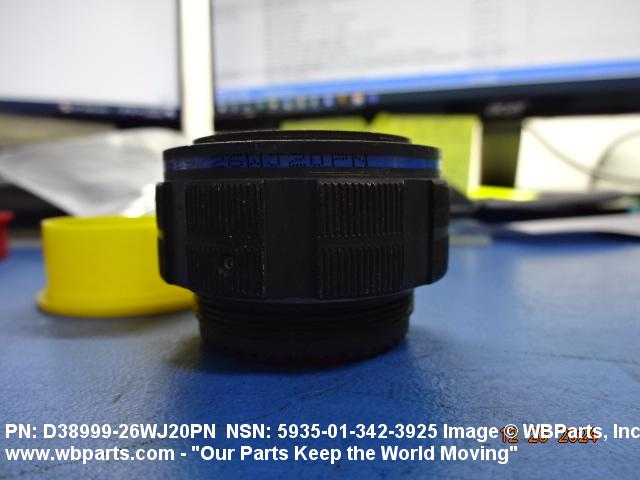

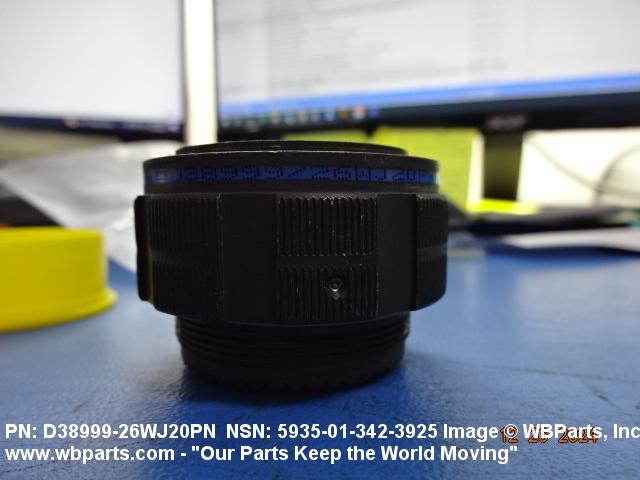

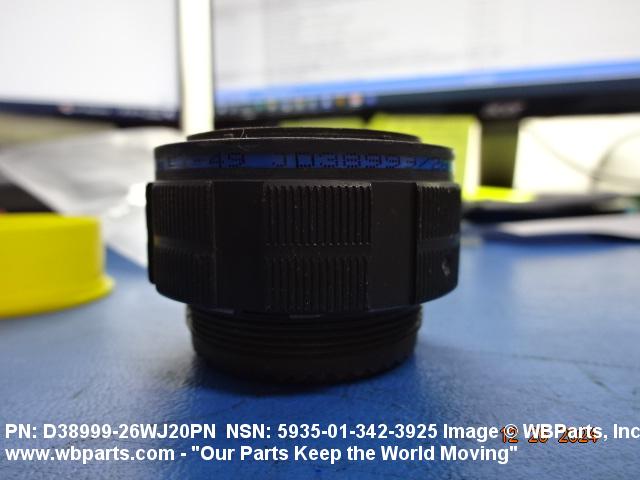

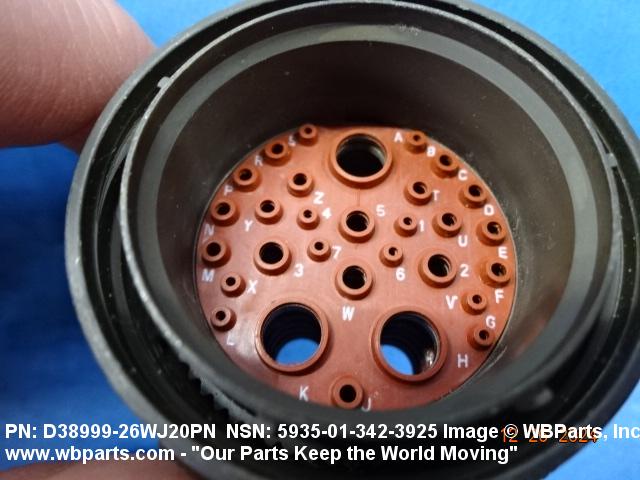

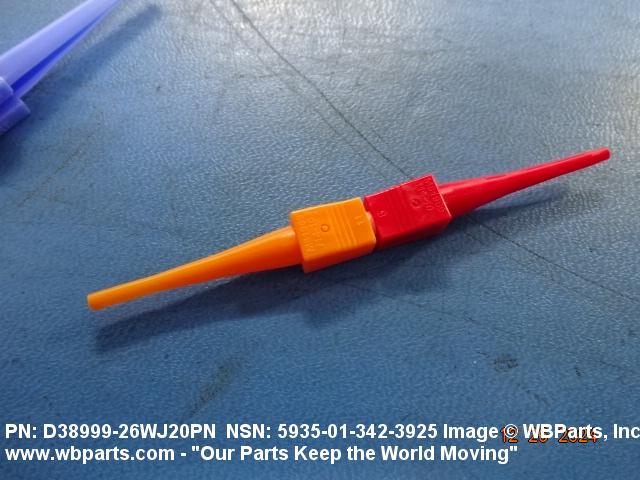

Drawings & Photos | NSN 5935-01-342-3925

Part Number	Request Date	QTY	Origin
5935-01-342-3925	2025-10-282	239	DIBBS
5935-01-342-3925	2025-09-267	362	DIBBS
5935-01-342-3925	2025-04-104	362	DIBBS
5935-01-342-3925	2025-02-55	228	DIBBS
5935-01-342-3925	2025-02-42	228	DIBBS
5935-01-342-3925	2025-02-34	111	DIBBS
5935-01-342-3925	2025-01-23	111	DIBBS
D3899926WJ20PN	2024-12-337	2	United States
D3899926WJ20PN	2024-10-290	270	United States
D3899926WJ20PN	2023-09-271	1	US
5935-01-342-3925	2023-09-271	171	DIBBS
5935-01-342-3925	2023-08-243	52	DIBBS
5935-01-342-3925	2023-08-236	7	DIBBS
5935-01-342-3925	2023-08-221	50	DIBBS
5935-01-342-3925	2023-07-206	241	DIBBS
5935-01-342-3925	2023-05-139	290	DIBBS
5935-01-342-3925	2023-05-124	290	DIBBS
5935-01-342-3925	2022-06-153	60	DIBBS
5935-01-342-3925	2022-05-132	8	DIBBS
5935-01-342-3925	2022-04-107	228	DIBBS
5935-01-342-3925	2022-03-90	228	DIBBS
5935-01-342-3925	2021-06-181	50	US
5935-01-342-3925	2021-04-102	145	DIBBS
5935-01-342-3925	2020-04-117	87	DIBBS
5935-01-342-3925	2019-12-346	56	DIBBS
5935-01-342-3925	2019-08-213	56	DIBBS
5935-01-342-3925	2018-02-51	199	DIBBS
5935-01-342-3925	2016-12-350	124	DIBBS
5935-01-342-3925	2016-10-304	56	DIBBS
5935-01-342-3925	2016-08-227	118	DIBBS
5935-01-342-3925	2016-04-110	172	DIBBS
5935-01-342-3925	2016-03-91	80	DIBBS
5935-01-342-3925	2015-12-340	23	DIBBS
5935-01-342-3925	2015-08-238	85	DIBBS
5935-01-342-3925	2010-10-291	75	DIBBS
5935-01-342-3925	2010-08-228	29	DIBBS
5935-01-342-3925	2010-08-221	29	DIBBS
5935-01-342-3925	2010-07-211	38	DIBBS
5935-01-342-3925	2010-04-105	26	DIBBS
5935-01-342-3925	2010-03-85	44	DIBBS
5935-01-342-3925	2010-02-36	63	DIBBS
5935-01-342-3925	2009-10-303	56	DIBBS
5935-01-342-3925	2009-05-151	52	DIBBS
5935-01-342-3925	2008-11-316	93	DIBBS
5935-01-342-3925	2008-09-268	62	DIBBS
5935-01-342-3925	2008-09-253	54	DIBBS
5935-01-342-3925	2008-08-219	32	DIBBS
5935-01-342-3925	2008-04-95	67	DIBBS
5935-01-342-3925	2008-02-60	41	DIBBS
5935-01-342-3925	2007-08-242	70	DIBBS
5935-01-342-3925	2007-08-219	24	DIBBS
5935-01-342-3925	2007-07-191	54	DIBBS
5935-01-342-3925	2007-06-158	48	DIBBS
5935-01-342-3925	2007-03-72	51	DIBBS
5935-01-342-3925	2007-03-61	62	DIBBS

Cross Reference | NSN 5935-01-342-3925

Part Number	Cage Code	Manufacturer
D38999/26WJ20PN	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-38999/26	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5935-01-342-3925

Compare

Related Products | NSN 5935-01-342-3925

5935-01-342-3926, 5935-01-342-3927, 5935-01-342-3928, 5935-01-342-3929, 5935-01-342-3930

Technical Data | NSN 5935-01-342-3925

Characteristic	Specifications
BODY STYLE	7A STRAIGHT SHAPE, INTERNAL COUPLING

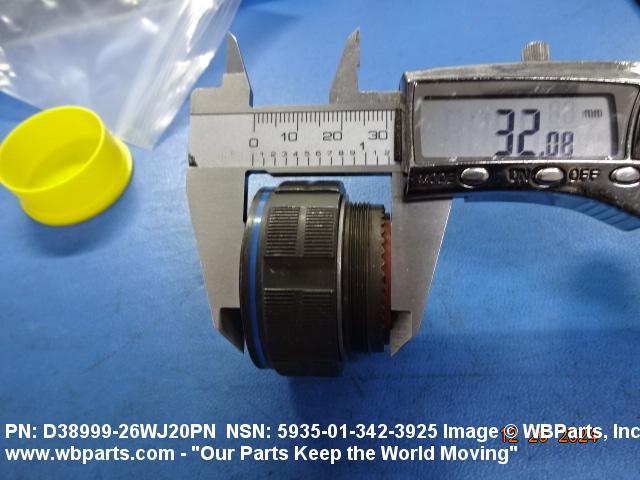

OVERALL LENGTH	33.16 MILLIMETERS MAXIMUM

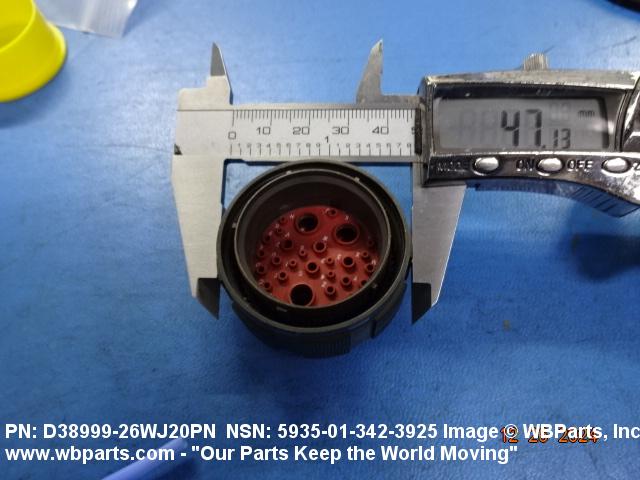

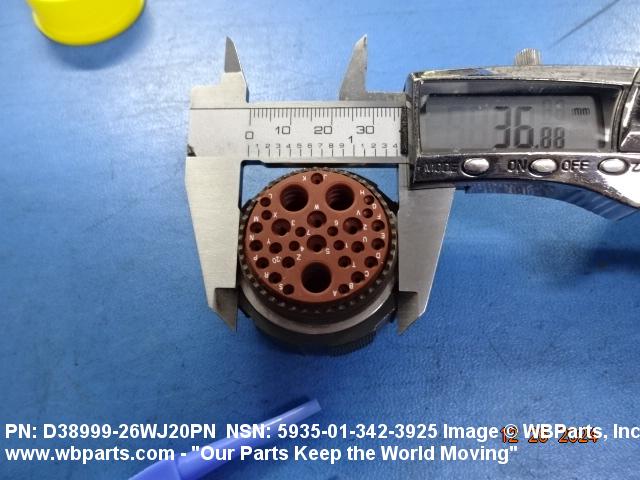

OVERALL DIAMETER	48.0 MILLIMETERS MAXIMUM
CONNECTOR LOCKING METHOD	INTERNALLY THREADED COUPLING RING
THREADED DEVICE TYPE	BACK SHELL AND COUPLING FACILITY
THREAD SERIES DESIGNATOR	ISO M AND SPECIAL ACME
NOMINAL THREAD SIZE	37.0 MILLIMETERS AND 1.625 INCHES
THREAD CLASS	2B
THREAD TOLERANCE CLASS	6G EXTERNAL
THREAD QUANTITY PER INCH	10
THREAD PITCH IN MILLIMETERS	1.00
THREAD DIRECTION	RIGHT-HAND AND RIGHT-HAND
SHELL TYPE	SOLID
SHELL MATERIAL	ALUMINUM ALLOY
SHELL SURFACE TREATMENT	CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD	KEY, MULTIPLE KEY GROOVE
INSERT POSITION IN DEG	0.0 AND 80.0 AND 142.0 AND 196.0 AND 293.0
MATING END QUANTITY	1
INSERT MATERIAL	PLASTIC EPOXY SINGLE MATING END

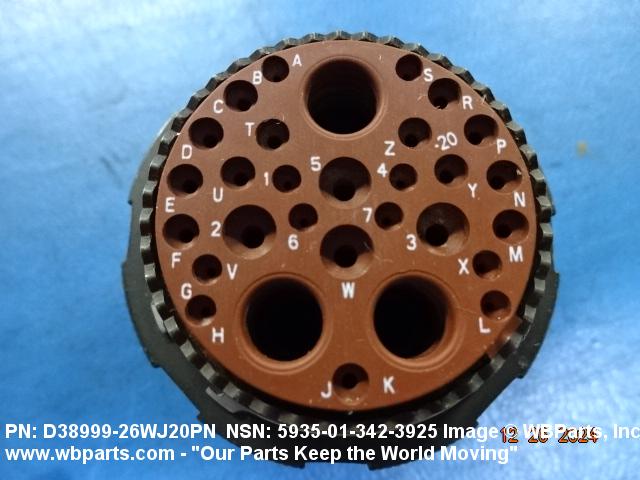

INCLUDED CONTACT QUANTITY	3 SINGLE MATING END 1ST CONTACT GROUPING 4 SINGLE MATING END 2ND CONTACT GROUPING 10 SINGLE MATING END 3RD CONTACT GROUPING 13 SINGLE MATING END 4TH CONTACT GROUPING
CONTACT REMOVABILITY	REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS

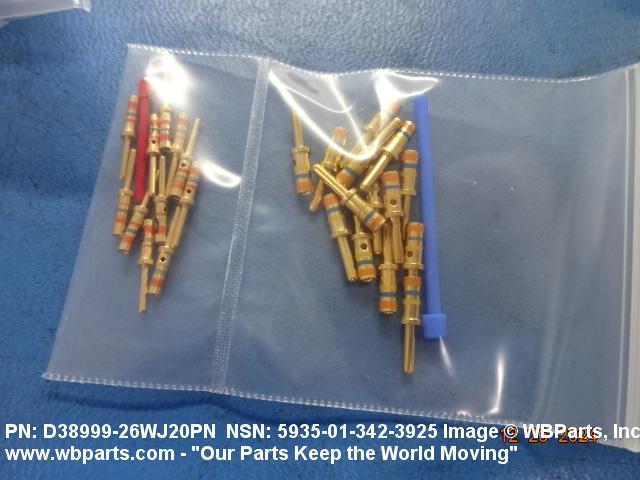

INCLUDED CONTACT TYPE	ROUND PIN SINGLE MATING END 1ST CONTACT GROUPING COAXIAL PIN SINGLE MATING END 2ND CONTACT GROUPING ROUND PIN SINGLE MATING END 3RD CONTACT GROUPING ROUND PIN SINGLE MATING END 4TH CONTACT GROUPING
CONTACT MATERIAL	COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT	GOLD SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE	CRIMP SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL LOCATION	BACK SINGLE MATING END ALL CONTACT GROUPINGS
ENVIRONMENTAL PROTECTION	MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AND CORROSION RESISTANT AND DUST RESISTANT AND

Restrictions/Controls & Freight Information | NSN 5935-01-342-3925

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	G	Item contains gold
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TH	Defense Supply Center Columbus Columbus, OH 43215
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5935-01-342-3925

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
